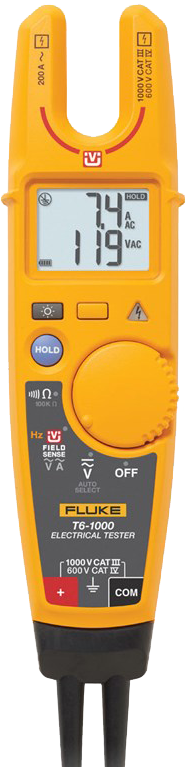

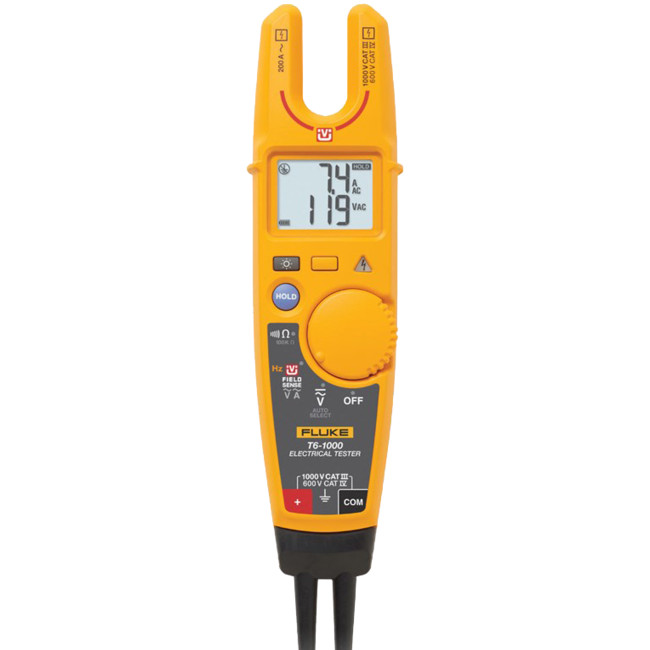

Measure voltage up to 600 V ac through the open fork, without test lead contact to live voltage. Without opening covers or removing wire nuts. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A. It will change your job. Safer. Faster. Easier.
Function
Requires test leads
Range
Resolution
Accuracy[1]
FieldSense ac voltage
No
600 V
1 V
±(3% 3 counts) 45 Hz - 66 Hz[2][3]
FieldSense ac current
200.0 A
0.1 A
±(3% 3 counts) 45 Hz - 66 Hz
FieldSense frequency (Hz)
1 Hz
±(1% 2 counts)[3]
Volts ac
Yes
±(1.5% 2 counts) 45 Hz - 66 Hz
Volts dc
±(1% 2 counts)
Resistance
2000 ?
1 ?
Safety
600 V CAT III
Accuracy[1]: ± ( [ % of reading] [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy[3]: FieldSense is specified from 16 V to 100 % of range.
Calibration
1-year calibration cycle
Dimensions
61.1 x 259.3 x 43.8 mm
Jaw opening
17.8 mm
Weight
0.35 kg (0.78 lb)
Temperature Operating: Storage:
-10 °C to 50 °C (14 °F to 122 °F) -30 °C to 60 °C (-22 °F to 140 °F)
Altitude Operating: Storage:
2,000m (6,562 feet) 10,000 m (32,808 feet)
Relative Humidity
0% to 90%, 5 °C to 30 °C (41 °F to 86 °F) 0% to 75%, 30°C to 40 °C (86 °F to 104 °F) 0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Battery Type and Life
2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
Temperature coefficient
0.1 x (specified accuracy) / °C for <18°C or >28 °C (< 64.4 °F or > 82.4 °F)
IEC/EN 61010-1: Pollution Degree 2
Electromagnetic Environment
IEC/EN 61326-1: Portable
