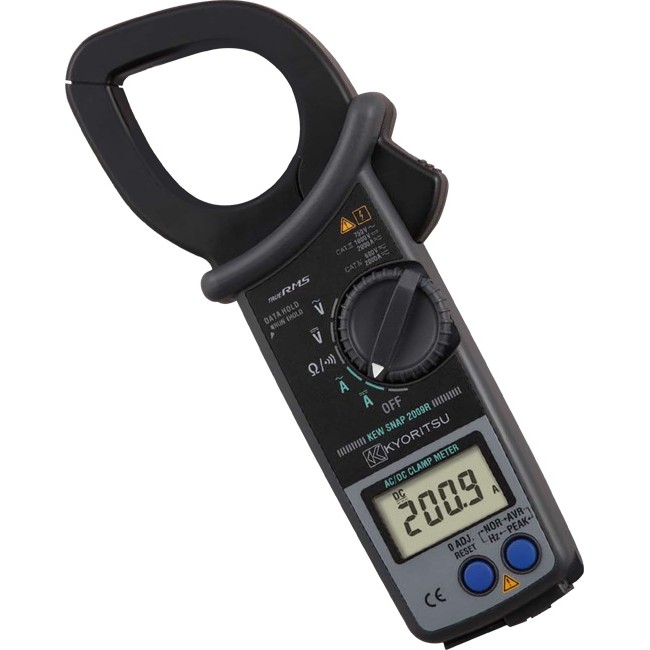

2009RKY TRUE-RMS DIGITAL CLAMP METER

2000AMP AC DC CAT 4 RATED IV

Code: 46440045

EACH
Special
Buy-In
P.O.A. inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

2009R - True RMS AC/DC Digital Clamp Meter - KYORITSU

Kyoritsu 2010 Clamp Meter Product Selection Guide (873kb PDFPDF filefile)

Equipped to measure both AC and DC current with transformer jaws of large diameter.

High performance and wide range digital clamp meter from the world class manufacturer, Kyoritsu.

FEATURES:

  • CAT.IV Clamp Meter can measure the Voltage and Current in both very low and high power circuits.
  • Accurate True-RMS reading of AC current or voltage with distorted waveform.
  • Can measure AC and DC currents up to 2000A: Provides a wide measuring range from 0 up to 2000A AC/DC.
  • Designed to meet international safety standard IEC 61010-1 CAT. IV 600V.
  • Measures current and voltage variation as short as 10 msec with peak-hold feature.
  • AVERAGE function to allow for easy reading of fluctuating current or voltage.
  • Output terminal for connection to recorders: Provides output to a recorder for current variation recording.

SPECIFICATIONS:

AC A
400.0/2000A
±1.3%rdg±3dgt (0~400.0A, 150~1700A) (45~66Hz)
±2.0%rdg±5dgt (0~400.0A, 150~1700A) (20Hz~1kHz)
±2.3%rdg±3dgt (1701~2000A) (45~66Hz)
DC A 400.0/2000A±1.3%rdg±2dgt
AC V
40.00/400.0/750V
±1.0%rdg±3dgt (45~66Hz)
±1.5%rdg±5dgt (20Hz~1kHz)
DC V 40.00/400.0/1000V±1.0%rdg±2dgt
Ω 400.0/4000Ω
(Electronic protection (no fuse) up to 600V)
Continuity buzzer Buzzer sounds below 20Ω
Hz 10.0 ~ 4000Hz±1.5%rdg±5dgt
(Input sensitivityCurrent: more than 40AVoltage: more than 10V)
Output
Recorder : DC400mV against AC/DC400.0A
  DC200mV against AC/DC2000A
Withstand voltage 6880V AC for 5 seconds
Conductor size Ø55mm max.
Applicable standards IEC 61010-1 CAT.IV 600V, CAT.III1000V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1
Power Source R6 (1.5V) × 2
Dimensions 250(L) × 105(W) × 49(D)mm
Weight Approx. 540g (including batteries)
Accessories 7107 (Test leads), 8201 (Output plug), 9094 (Carrying case)
R6 (AA) (1.5V) × 2, Instruction Manual
Optional 8008 (Multi-Tran) (AC only), 7014 (Output cord)
