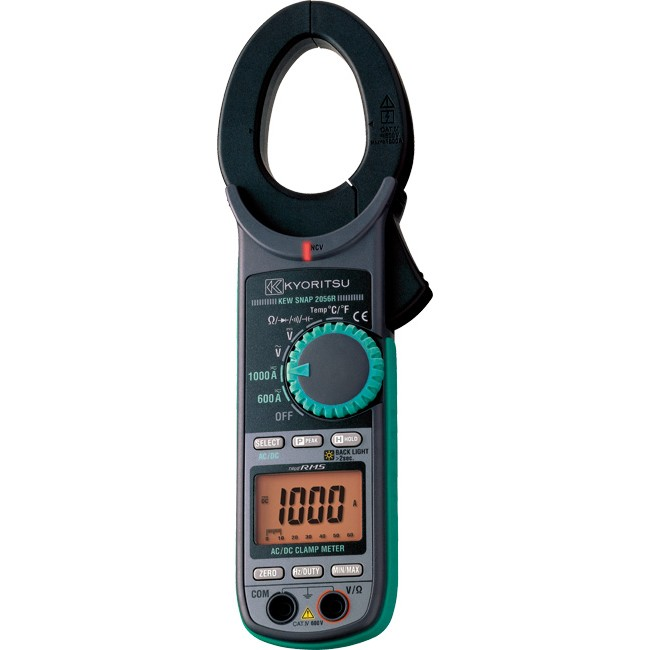

2056R KYORITSU DIGITAL CLAMP METER

1000AMP AC/ DC TRUE RMS CAT4

Code: 46440005

0.6380 kg
4560187060786
EACH
Low Stock
$699 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

2056R - AC/DC Digital Clamp Meter

Kyoritsu 2010 Clamp Meter Product Selection Guide (873kb PDFPDF filefile)

Equipped to measure both AC and DC currents at 1000Amps.

True RMS enables accurate readings of voltages.

FEATURES:

  • Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.
  • CAT.IV Clamp Meters can measure the Voltage and Current in both every low and high power circuits.
  • Thus, very useful for power distribution companies,power utilities and maintenance fields.
  • True RMS enables an accurate measurement (2056R).
  • Red LED, as "Non Contact Voltage" function, gives warning to the user on the presence of AC Voltage.
  • Double molding gives comfortable feeling in palm.
  • 6039 counts with Bar Graph display.
  • MIN/MAX function enables to keep easily min & max value during measurement.

SPECIFICATIONS:

AC A 0~600.0/1000A
(50/60Hz)
(40~500Hz)
DC A 0~600.0/1000A
lusmn;5dgt
AC V 6/60/600V
Auto Ranging
(50/60Hz)
(40~400Hz)
DC V 600m/6/60/600V
Auto Ranging
lusmn;3dgt
Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
(600~6M) / ±5%rdg±8dgt (60M)
Continuity buzzer Buzzer Sounds at 100Ω
Frequency/DUTY 10/100/1k/10kHz (Auto Ranging) / 0.1~99.9%
Temperature -50ºC ~ 300ºC (With the use of Temperature probe 8216)
Conductor Size Ø40mm
Withstand Voltage 6880V AC for 5 seconds
Safety Standard IEC 61010-1 CAT.IV 600V,
IEC 61010-031,
IEC 61010-2-032,
IEC 61326
Power Source R03 (1.5V) (AAA) × 2
Dimensions 254(L) × 82(W) × 36(D)mm
Weight 310g
Accessories 7066 (Test Lead)
9094 (Carrying Case)
Instruction Manual
Option 8216 (Temperature Probe)
