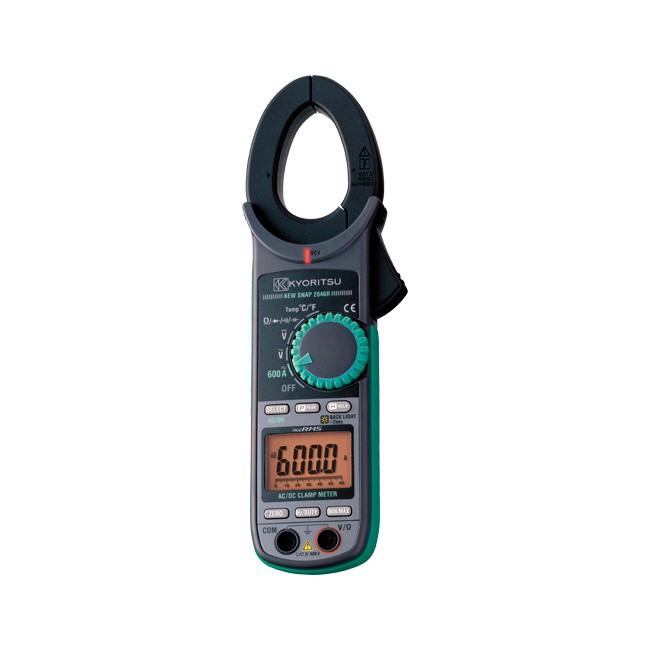

2046R KYORITSU DIGITAL CLAMP METER

600AMP AC/ DC TRUE RMS CAT4

Code: 46440001

0.6320 kg
4560187060762
EACH
Low Stock
$550 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

2046R - AC/DC Digital Clamp Meter

Kyoritsu 2010 Clamp Meter Product Selection Guide (873kb PDFPDF filefile)

FEATURES:

  • Designed to meet international safety standard IEC61010-1 CAT.IV 600V
  • CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits
  • Thus, very useful for power distribution companies, power utilities and maintenance fields
  • True RMS enables an accurate measurement
  • Red LED, as "Non Contact Voltage" function, gives warning to the user on the presence of AC Voltage
  • Double molding gives comfortable feeling in palm
  • 6039 counts with Bar Graph display
  • MIN/MAX function enables to keep easily min & max value during measurement

SPECIFICATIONS:

AC A 0~600.0A
smn;5dgt (50/60Hz)
smn;5dgt (40~500Hz)
DC A 0~600.0A
smn;5dgt
AC V 6/60/600V
Auto Ranging
smn;4dgt (50/60Hz)
smn;5dgt (40~400Hz)
DC V 600m/6/60/600V
Auto Ranging
smn;3dgt
Ω 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
n;5dgt (600~6M) / ±5%rdg±8dgt (60M)
Continuity buzzer Buzzer Sounds at 100Ω
Frequency/DUTY 10/100/1k/10kHz (Auto Ranging)/ 0.1~99.9%
Temperature -50ºC ~ 300ºC (Withthe use of Temperature probe 8216)
Conductor Size Ø33mm
Withstand Voltage 6880V AC for 5 seconds
Safety Standard IEC 61010-1 CAT.IV 600V,
IEC61010-031,
IEC61010-2-032,
IEC61326
Power Source R03(1.5V)(AAA) × 2
Dimensions 243(L) × 77(W) × 36(D)mm
Weight 300g
Accessories 7066 (Test Lead)
9094 (Carrying Case)
Instruction Manual
Option 8216 (Temperature Probe)
