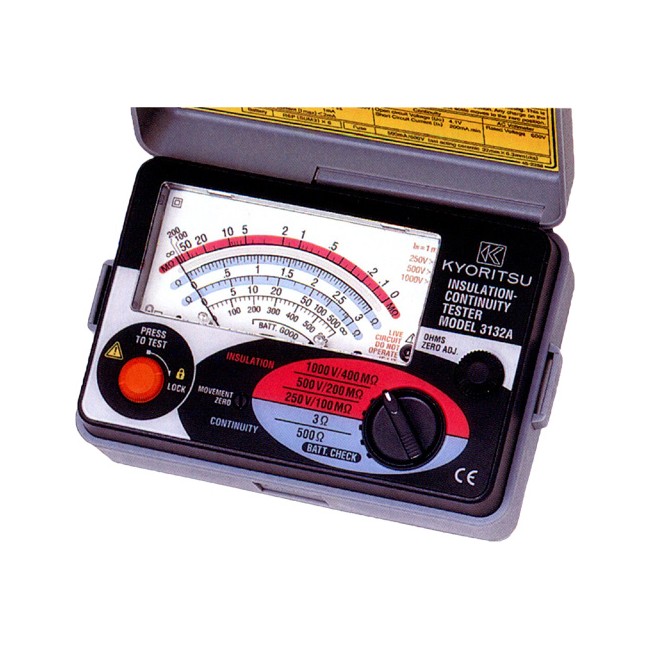

3132A ANALOGUE INSULATION TESTER

/ CONTINUITY TESTER - KYORITSU

Code: 46430001

0.8940 kg
4560187065989
EACH
Low Stock
$469 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Analogue Insulation / Continuity Tester

Kyoritsu 2010 Insulation Tester Product Selection Guide (412kb PDFPDF filefile)

FEATURES:

  • Dust and drip proof construction. (designed to IEC60529 IP54)
  • Designed to meet IEC61010-1 and IEC61557 safety standard
  • 1mA rated test current at the minimum resistance
  • 200mA measuring current on continuity testing
  • Automatic discharge of circuit capacitance
    (Any charge stored in the circuit under test will be automatically discharged after testing.)
  • Live circuit warning buzzer and neon lamp
  • Small and lightweight. Shock resistant new case material
  • AC voltmeter with linear, easy-to-read scale
  • Operates on AA, R6P×6 dry batteries

SPECIFICATIONS:

Insulation Resistance
Test Voltage 250V/500V/1000V
Measuring Ranges
(Mid-scale Value)		 100MΩ/200MΩ/400MΩ
(1MΩ) (2MΩ) (4MΩ)
Output Voltage
on open circuit		 Rated test voltage 20%, -0%
Nominal Current 1mA DC min.
Output Short
Circuit Current		 1~2mA DC
Accuracy 0.1~10MΩ/0.2~20MΩ/0.4~40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicatedvalue
Continuity
Measuring Ranges
(Mid-scale Value)		 3Ω/500Ω
(1.5Ω)/(20Ω)
Output Voltage
on open circuit		 4.1V DC approx.
Measuring Current 210mA DC min.
Accuracy of scale length
AC Voltage
AC Voltage 0~600V AC
Accuracy scale length
General
Safety Standard IEC61010-1 CAT.III 600V Pollution Degree 2
IEC61010-2-031
IEC61557-1/2/4
IP Rating IEC60529-IP54
EMC Standard IEC61326-1
Withstand Voltage 3700V AC for 1 minute
Power Source R6P(AA)(1.5V) × 6
Dimensions 106(L) × 160(W) × 72(D)mm
Weight 560g approx.
Accessories 7122(Test leads) Pouch for test leads
8923(F500mA/600V fuse) × 2
R6P(AA) × 6
Shoulder Strap
Instruction Manual
