UT210E MINI TRUE RMS CLAMP METER

AC/DC CURRENT W/ CAPACITANCE

Code: 44488265

0.3000 kg
6935750521052
EACH
40
In Stock
$79 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

UT210E

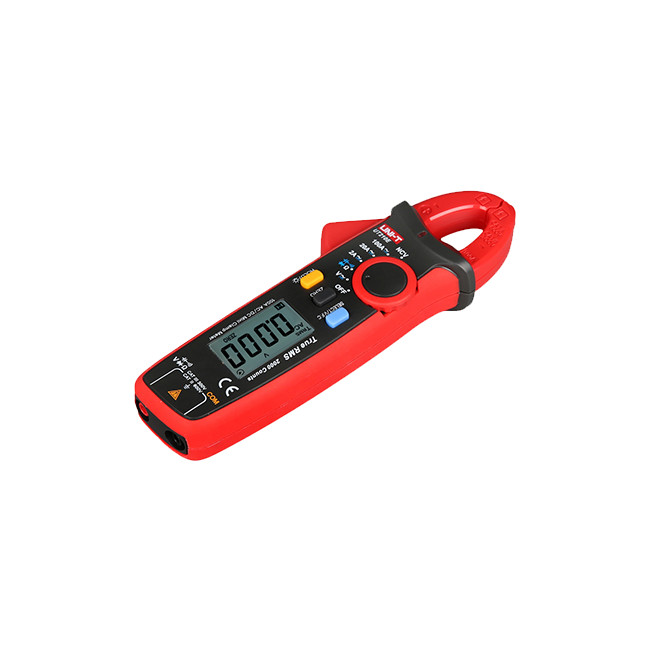

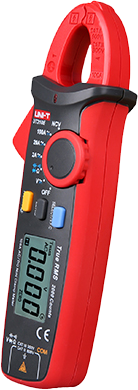

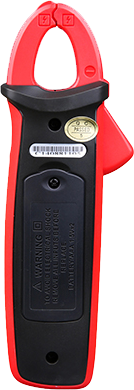

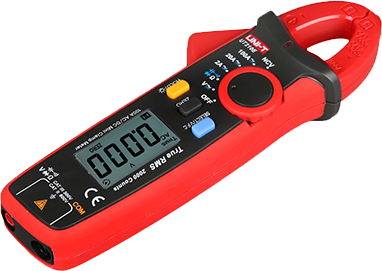

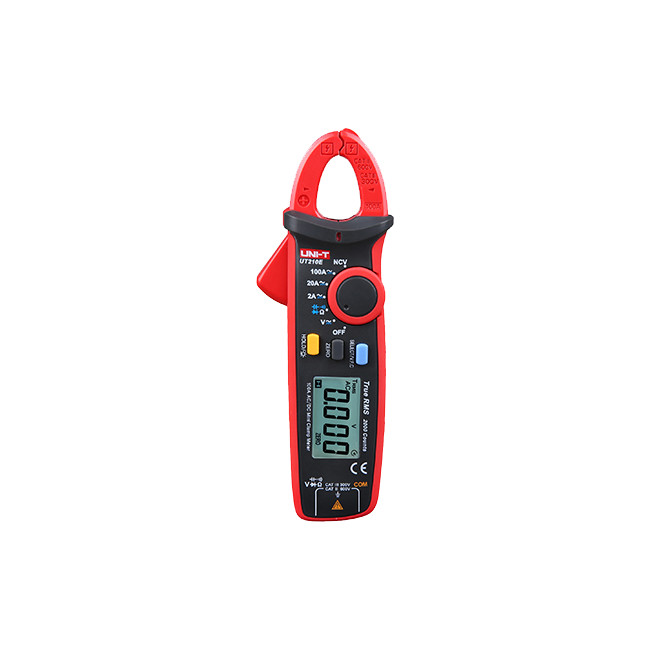

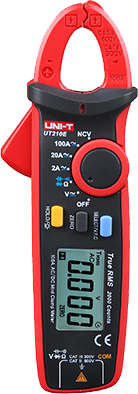

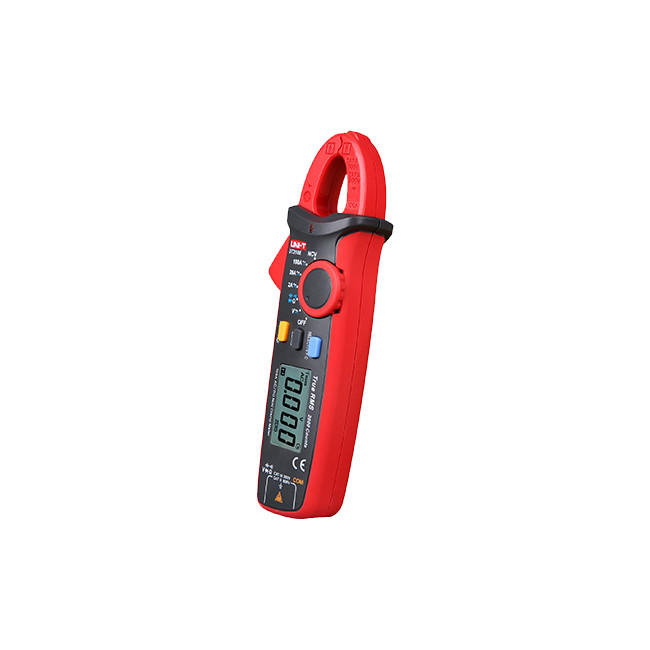

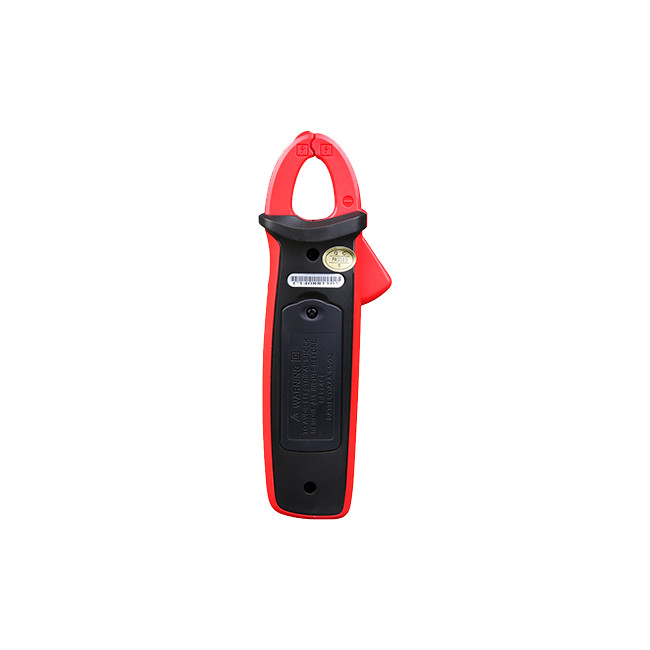

UNI-T's UT210E is a mini 100A True RMS auto range digitalclamp meter with 2000 display count and VFC function. It is convenient to use in narrow space.

Features

  • VFC, low pass filter
  • NCV
  • Ergonomic and lightweight
  • Auto range, 2~3/s sampling rate
  • True RMS
  • ZERO mode
  • LCD backlight, data hold
  • Auto power off, low battery indication



Specifications

Specifications Range Best Accuracy
Model UT210E
AC Current (A) 2A/20A/100A ±(2.5% 5)
DC Current (A) 2A/20A/100A ±(2% 3)
AC Voltage (V) 2V/20V/200V/600V ±(1% 3)
DC Voltage (V) 200mV/2V/20V/200V/600V ±(0.7% 3)
Resistance (O) 200O/2kO/20kO/200kO/2MO/20MO ±(1% 2)
Capacitance (F) 2nF/20nF/200nF/2µF/20µF/200µF/2mF/20mF ±(4% 5)
Features
Display Count 2000
Auto Range v
Jaw Capacity 17mm
True RMS v
Diode Around 3.0V v
V.F.C. v
NCV v
Auto Power Off Around 15 minutes v
Continuity Buzzer v
Low Battery Indication =2.5V v
Data Hold v
Zero Mode v
LCD Backlight v
Input Protection v
Input Impedance for DCV =10MO v
General Characteristics
Power AAA 1.5V x 2
LCD Size 39.3mm x 26.5mm
Product Color Red and grey
Product Net Weight 170g
Product Size 175mm x 60mm x 33.5mm
Standard Accessories Batteries, Test Leads
Standard Individual Packing Gift Box, Carrying bag, English Manual
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 385mm x 345mm x 305mm (0.041 CBM Per Standard Carton)
Standard Carton Gross Weight 11kg



UT210E Manual PDF file
