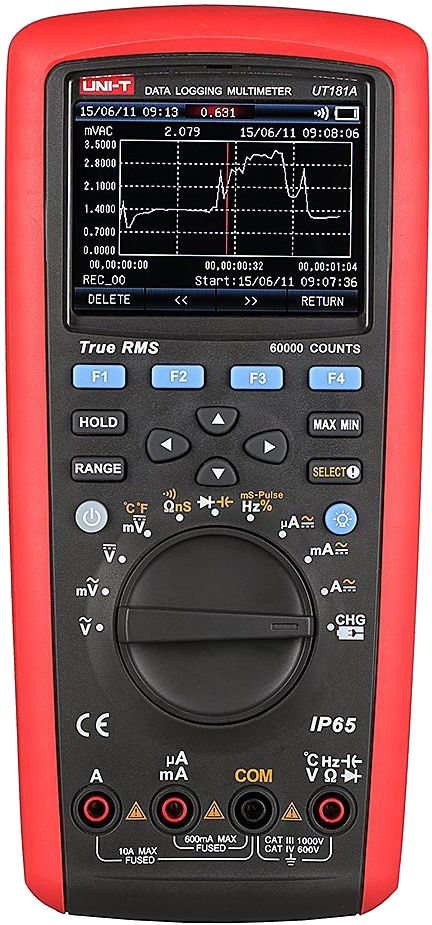

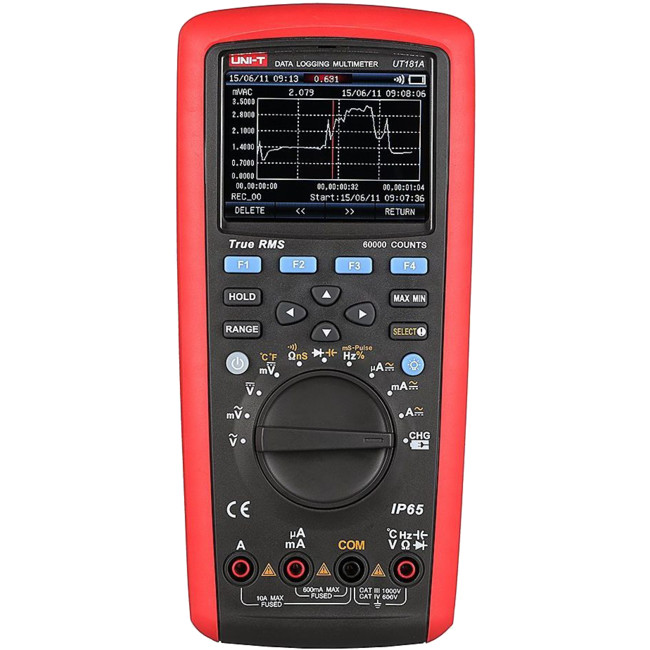

UT181A RMS Datalogging Multimeter

Code: 44488243

1.28 kg
6935750518113
EACH
5
In Stock
$449 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

  • Trend capture function: can be a long time to monitorand record the signal change process and form a trend chart for comparison
  • Higher extended storage 20,000 recorded data
  • Data filtering function: can set upper and lower values of any gear and the measured object is compared, and there is an overproof alarm
  • Provide more data, multiple readings can be displayedon the screen
  • Double temperature measurement: intuitive and real-time temperature contrast, improve work efficiency
  • Low pass filtering: can be used for the measurement of inverter and motor drives
  • IP65 waterproof, dust should be used for: humid environment and dusty environment
  • Powered by Li-ion: 2200mAh long endurance capacity donot replace the battery to save the cost of the purchase of battery
  • True RMS 100KHZ AC frequency response
  • 0.025% basic DC accuracy
  • Peak hold function can record fast to 250us transient
  • USB data transmission
  • Design meet IEC EN61010-1 CAT IV 600V/CAT III 1000V over voltage protection, EN61010-2-030 pollution level 2 anddouble insulation safety etc; wider application range; measurement is more secure, to ensure the safety of personnel and instrumentation.



Specification

Specifications

Range

Best Accuracy

Model

UT181A

DC Voltage(V)

60mV/600mV/6V/60V/600V/1000V

±(0.025% 5)

AC Voltage(V)

60mV/600mV/6V/60V/600V/1000V

±(0.3% 30)

DC Current(A)

600µA/6000µA/60mA/600mA/10A

±(0.08% 10)

AC Current(A)

600µA/6000µA/60mA/600mA/10A

±(0.6% 20)

Resistance(O)

600O/6kO/60kO/600kO/6MO/60MO

±(0.05% 2)

Admittance(S)

60ns

±(2% 10)

Capacitance(F)

6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF

±(2% 5)

Frequency(Hz)

10Hz-60MHz

±(0.01% 5)

Temperature(°C)

-40 °C~1000°C

±(1% 30)

Temperature(°F)

-40°F~1832°F

±(1.5% 50)

Features

Display Count

60000

Auto Range

v

Manual Range

v

True RMS

v

Bandwidth(Hz)

100kHz

v

AC DC

v

Low Pass Filter

1KHz(-3db)

v

Dbv/dBm

v

Continuity Buzzer

v

Diode

Around 3V

v

Duty Cycle

10% ~ 90%

v

Dual Temperature Measurement

T1, T2, T1-T2, T2-T1

v

Data Hold

v

Peak Hold

v

Relative Mode

v

Data Logging

20000

v

Trend Capture

v

MAX/MIN/AVG

v

Data Time Display

v

Data Comparsion

v

Display Type

3.5 Inches64K Color TFTL LCD (320*240)

v

Backlight Adjustment

v

Analogue Bar Graph

v

USB Interface

v

Mis-Plug Alarm

v

Battery Indication

v

Auto Power Off

v

Re-Chargeable Battery

v

Input Protection

v

Input Impedance for DCV

=10MO

v

General Characteristics

Power

7.4V 2200mAh Li-ion Battery

LCD Size

70mm*52mm

Product Color

Red and Grey

Product Net Weight

638.6g

Product Size

103mm X 225mm X59 mm

Standard Accessories

Test Lead, Battery, Alligator Clip, USB Interface, BNC Probe

Standard Individual Packing

Gift Box, Carrying Bag,

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

480mm X 385mm X 505mm (0.085 CBM Per Standard Carton )

Standard Carton Gross Weight

26.5kg

Optional Accessories

Bluetooth Adaptor(UT-D07)



PRODUCT MANUAL PDF file
