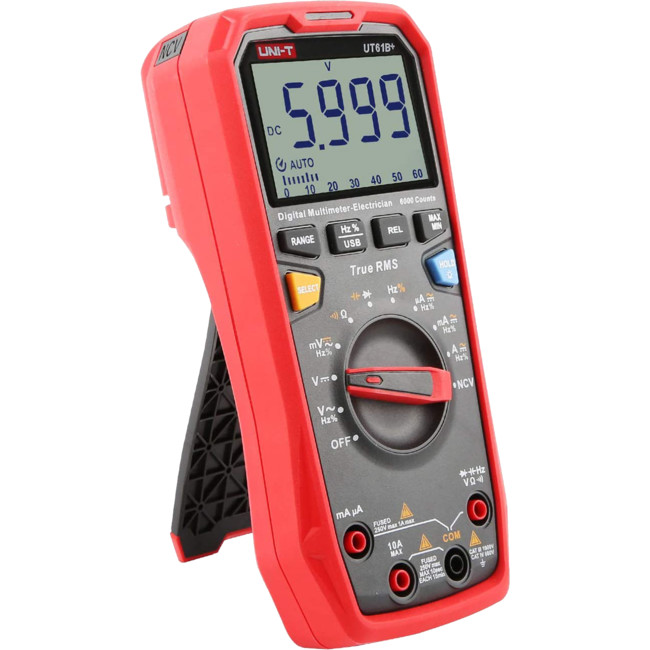

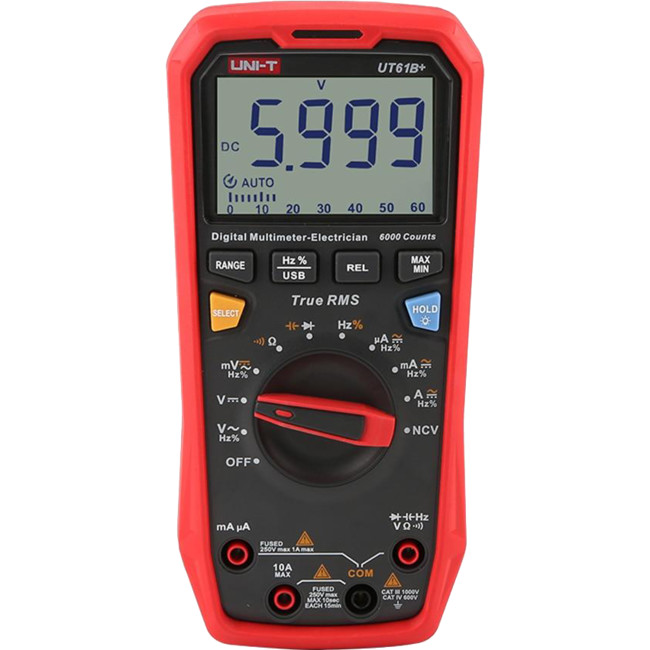

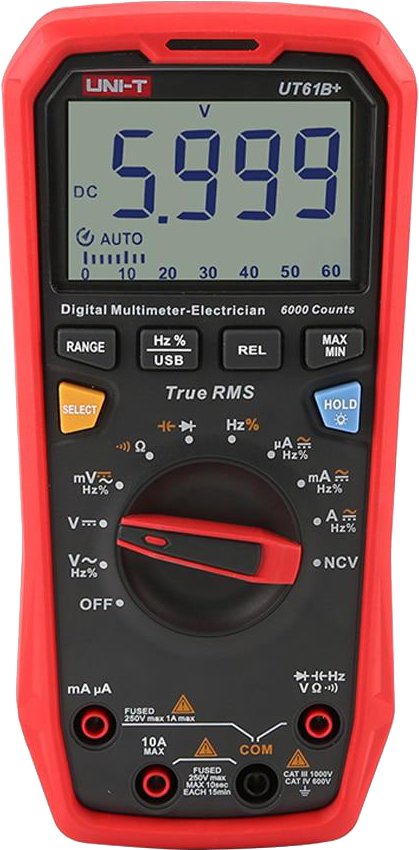

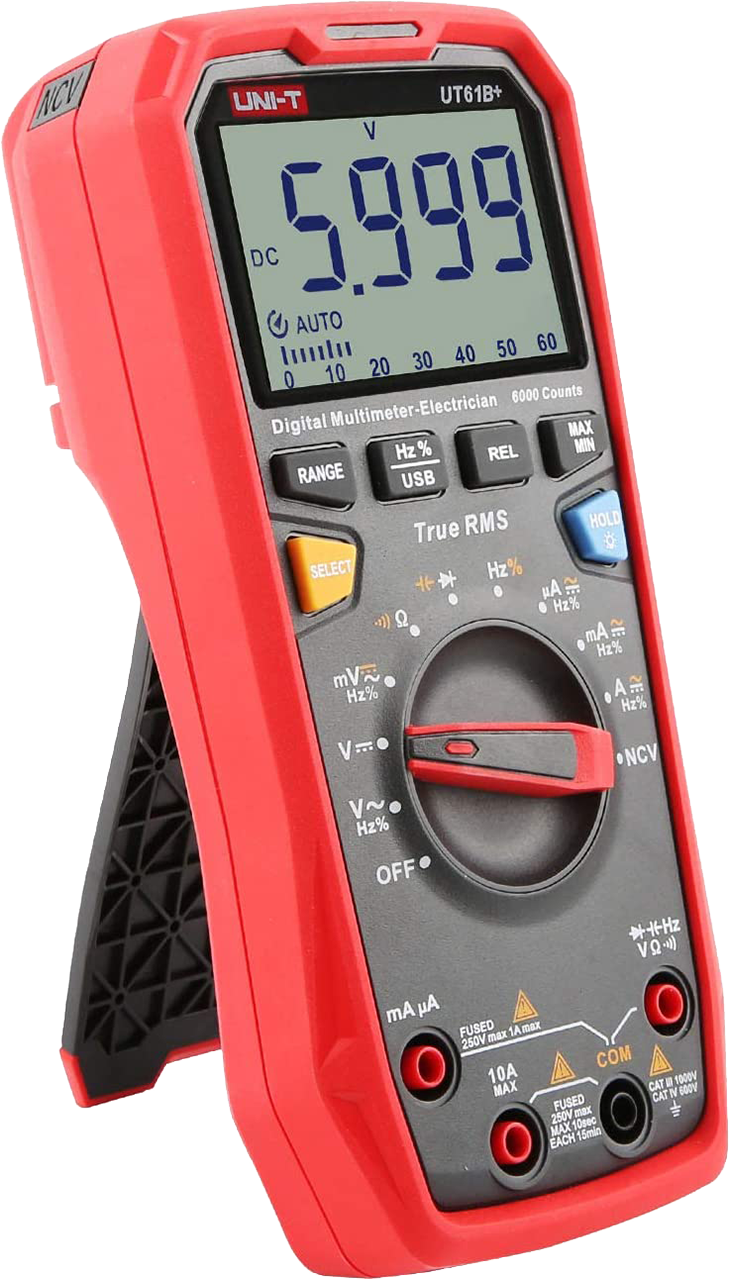

UT61B+ MODERN DIGITAL MULTIMETER

W/USB TRUE RMS 1000V

Code: 44488204

0.7360 kg
6935750561096
EACH
20
In Stock
$89.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
UT61B is a True RMS digital multimeter with display counts 6000. It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, it can provide warning, especially when measuring high voltage/current and temperature.
With the USB connection, you can export the test results to your PC in Excel file.

Features

  • True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV Non-Contact Voltage (audible/visual alarm)

Specifications

Specifications Range UT61B
Safety ratings CAT III 1000V/CAT IV 600V
AC voltage (V) 1000V ±(1% 3)
DC voltage (V) 1000V ±(0.5% 3)
AC current (A) 10A ±(1.2% 5)
DC current (A) 10A ±(1% 2)
Resistance (Ω) 60MΩ ±(1% 2)
Capacitance (F) 60mF ±(3% 5)
Frequency (Hz) 10MHz ±(0.1% 4)
Duty cycle (%) 0.1%~99.9% ±(2% 5)
Display count 6000
Bandwidth (Hz) 40Hz~500Hz
Analog bar 31

General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, English manual
Standard individual packing Gift box, cloth bag
Standard quantity per carton 20pcs
Standard carton measurement 480mm x 370mm x 365mm
Standard carton gross weight 15.2kg
