KEW1110 KYORITSU ANALOGUE MULTIMETER

Code: 44426186

0.6000 kg
4560187060083
EACH
ETA
2024-07-30
$352 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

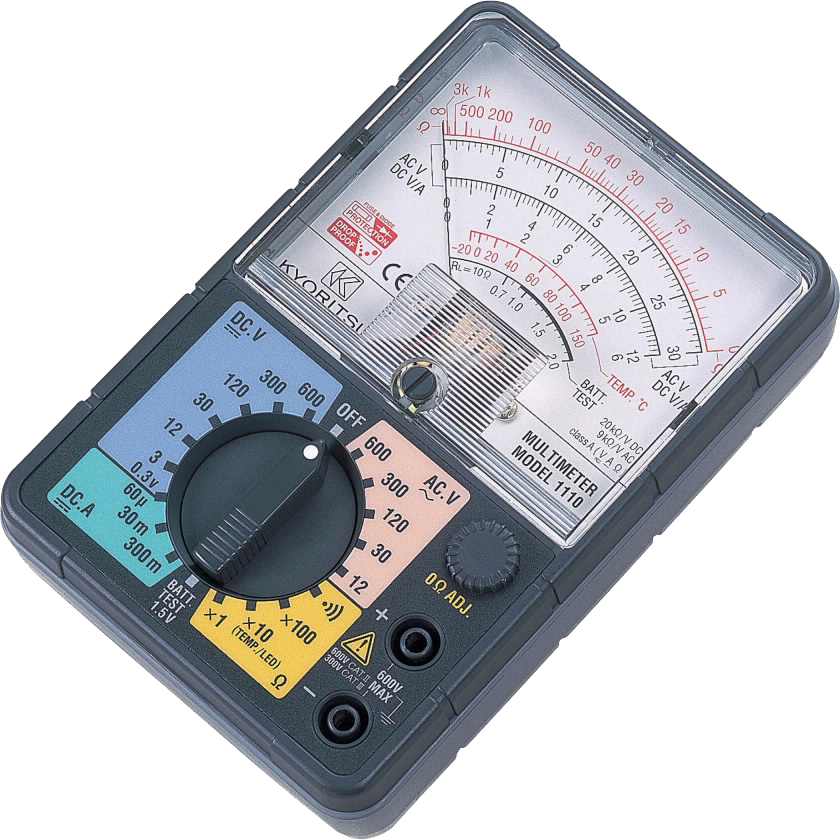

Kyoritsu 1110 Analogue Multimeter 300mA dc 600V ac/dc

• High sensitivity DC20kΩ/V.
• 1m drop-proof heavy duty designed taut-band movement.
• Can measure line voltage up to AC 600V.
(Voltage to ground MAX AC300V)
(Protected by 600V ceramic fuse against accidental overload)
• Continuity buzzer, battery check, LED check function.
• Skeleton type robust and clear case
with carrying handle furnished as standard accessory.

DC V 0.3V (16.7kΩ/V) ±3% of FS
3/12/30/120/300/600V (20kΩ/V)
±3% of FS
AC V 12V (9kΩ/V) ±4% of FS
30/120/300/600V (9kΩ/V)
±3% of FS
DC A 60µA/30/300mA
±3% of FS
Ω 3/30/300kΩ
±3% of scale length
Continuity buzzer Buzzer sounds below 100Ω
Battery Test 1.5V (0.7 - 2V)
±3% of FS (10Ω load)
Temperature Note: The MODEL1110 includes a temperature measurement scale,
but it is not available for new customers due to thediscontinue of the Temperature Probe 7060.
LED 10mA approx. at 0 Ω
(at 3V of battery voltage)
Applicable standards IEC 61010-1
CAT III 300V Pollution Degree 2
CAT II 600V Pollution Degree 2
IEC 61010-2-031
Power source R6 (AA) (1.5V) × 2
Dimensions 140(L) × 94(W) × 39(D) mm
Weight 280g approx.
Included Accessories 7066A (Test leads)
8923 (F500mA/600V fuse) × 2
9103 (Carrying case)
R6 (AA) × 2
Instruction Manual
