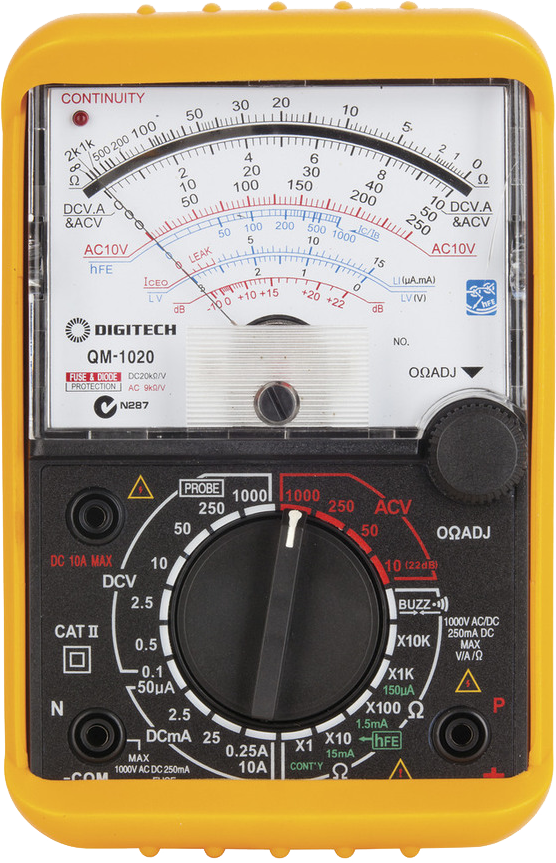

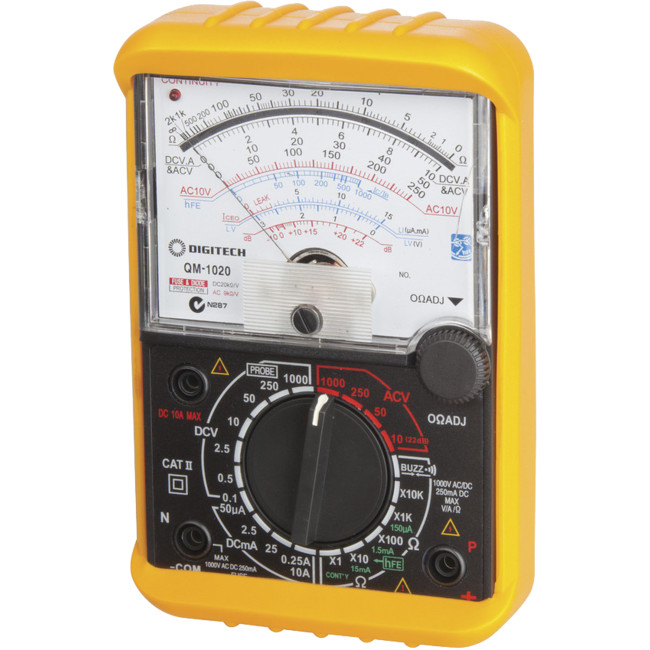

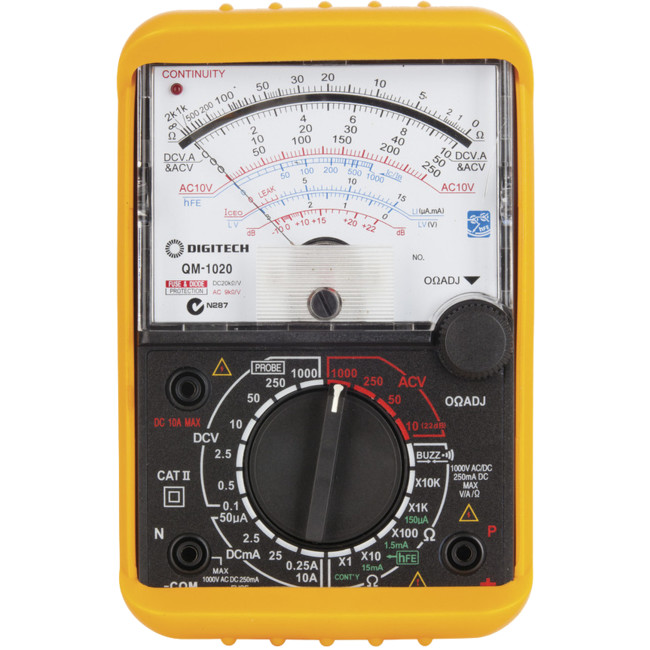

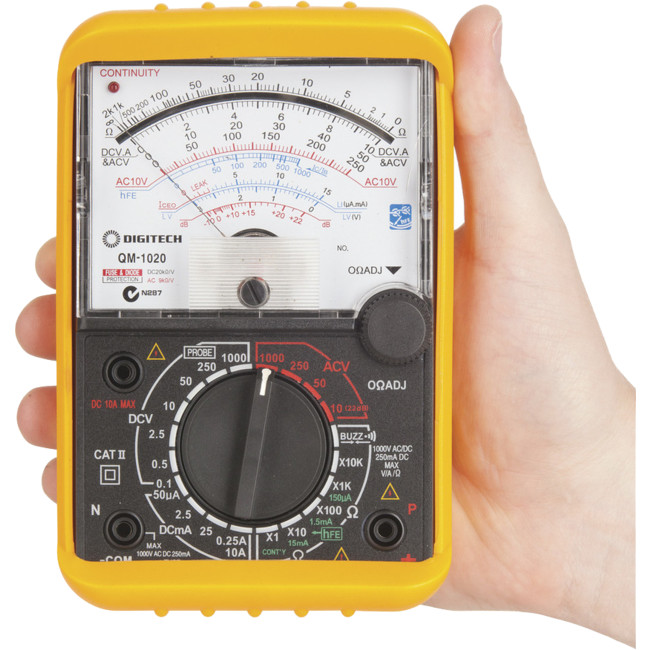

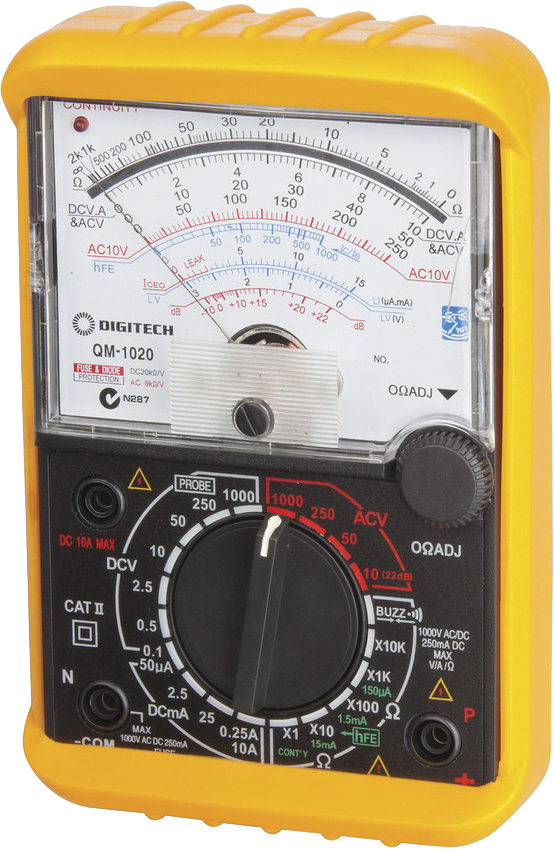

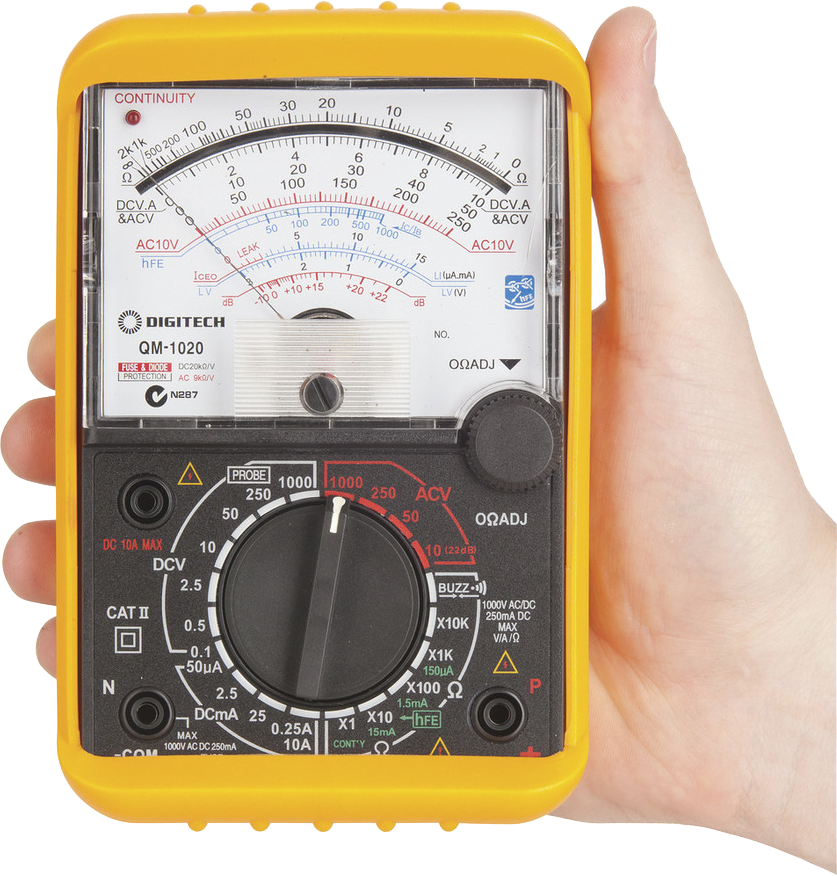

QM1020 ANALOGUE MULTIMETER

AMM

Code: 44426072

0.5450 kg
9319236071106
EACH
Low Stock
$29.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
  • Features:
  • 20,000 Ohm /V DC Sensitivity
  • Transistor test
  • Continuity buzzer
  • Fused and diod protected
  • This well made meter is great for those who prefer theanalogue meter movement to the digital.
  • It has several`digital' features, like a 10 amp DC current measuring capability a continuity buzzer and safety shroudedprobes.
  • Specifications-
  • DC Voltage: 0-100mV, 500mV, 2.5V, 10V, 50V, 250V &1000V,10,000
  • Ohm /V ±3%
  •  AC Voltage: 0-10V, 50V, 250V & 1000V 9,000/V ±4%
  • DC Amps: 0-50µA, 2.5mA, 25mA, 250mA & 10A
  • Voltage drop =250mV ±3% FS- Resistance : 0.2(approx) - 2K, 20K 200K 2M & 20M-
  • Continuity: Internal Buzzer- dB: -10 to 22dB (AC 10V scale)-
  • Transistor Test: Leakage (ICEO) 0-150µA, 1.5mA, 15mA & 150mA. -hFE 0-1000 (needs external equipment)-
  • Size: 100(W) x 150(L) x 36(D)-
  • Power: 1x9V, 2xAA (supplied)-
  • Test leads included
  • Now includes rubber holster.
