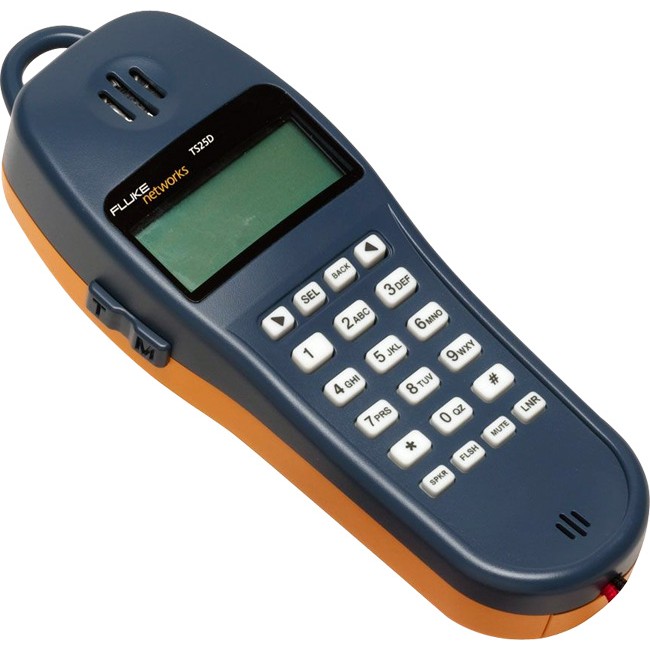

Name: TS25D TELEPHONE TEST SET FLUKE NETWORKS
SKU: 44365080
Price: 726 AUD
Availability: InStock

FLUKE NETWORKS

Code: 44365080

EACH

Special
Buy-In

$726 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.

Click here if you agree to these terms and to show the Add To Cart button.

View Product

Freight Estimator Enter 4 digit postcode

Features

TS®25D Test Sets

The TS®25D features data lockout and lockout override, and a large LCD.

At a Glance

Caller ID and Call Waiting Caller ID
Amplified speakers for hands-free monitoring
Data lockout and data lockout override
Tone generator for wire identification
Talk Battery to power voice conversation on dry (non-powered) lines
Easy to read oversized liquid crystal display

Product Capabilities

This feature-rich test set is a necessity for a variety of installs.
The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode.
The DSL/POTS filtering technology allows you to safelydraw dial tone without downing DSL.
A built-in analog tone generator simplifies wire identification with a probe.
An amplified speaker makes monitoring the line hands-free, so you can keep working.
The talk battery function provides voltage to carry voice conversation on non-powered pairs.
All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sensemenus easy-to-read and use.

Specifications

Electrical

Return Loss >14 dB (ref 600 Ω)

DC Resistance

Off-Hook 150 Ω nominal
On-Hook >1 MΩ

AC Impedance

Off-Hook 600 Ω nominal; 300 Hz to 3400 Hz
On-Hook >120 kΩ; 300 Hz to 3400 Hz

Rotary Dial Output

Pulsing Rate 10 pps ±1 pps
Break/Make Ratio 60/40
Interdigit >300 ms
Interval Resistance During Break >100 kΩ

DTMF Output

Tone Frequency Error ±1.5 % maximum
Tone Level –1 dBm combined (typical)
High versus Low Tone difference 2 dB ± 2 dB

Memory Dialing

Memory Capacity 10 speed dial memories plus one last number redial memory
Digit Capacity 23 digits per memory
Pause Duration User programmable Default: 4 seconds
Hook Flash Duration User programmable Default: 600 ms
Automatic Speaker Shut Off Duration User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes
Battery 9 V alkaline or lithium battery

Physical

Measurement 7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm)
Weight 10 ounces (284 g)

Environmental

Temperature Range Operating 32°F to 122 °F (0 °C to 50 °C)
Storage -40 °F to 150 °F (-40 °C to 65 °C)
Altitude Up to 10,000 ft (3,000 m)
Relative Humidity 5 % to 95 %

Certifications and Compliance Conformité Européenne. Conforms to relevant European Union directives.
