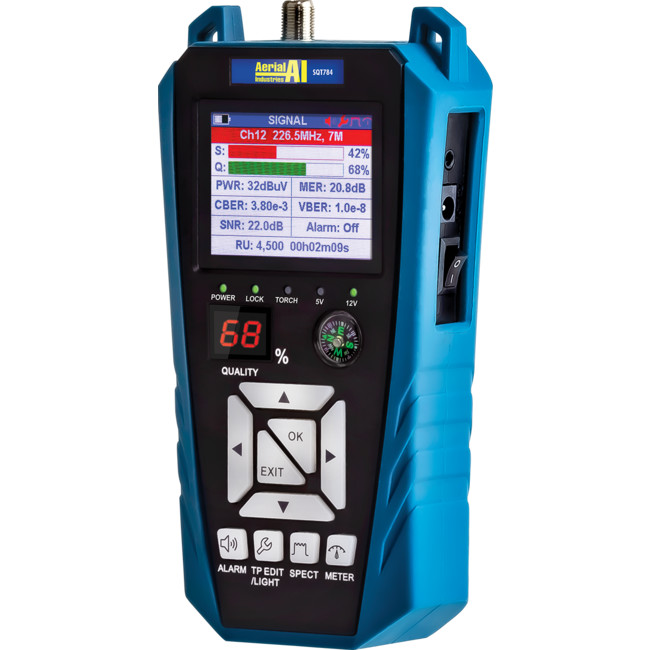

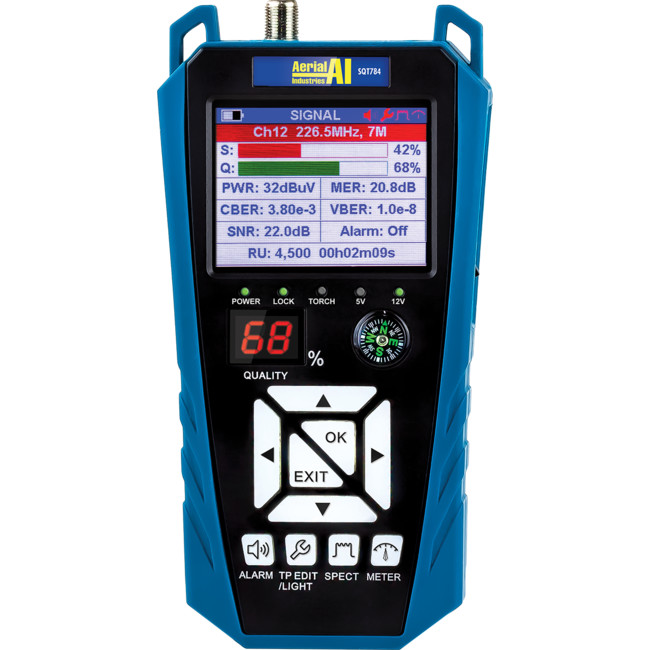

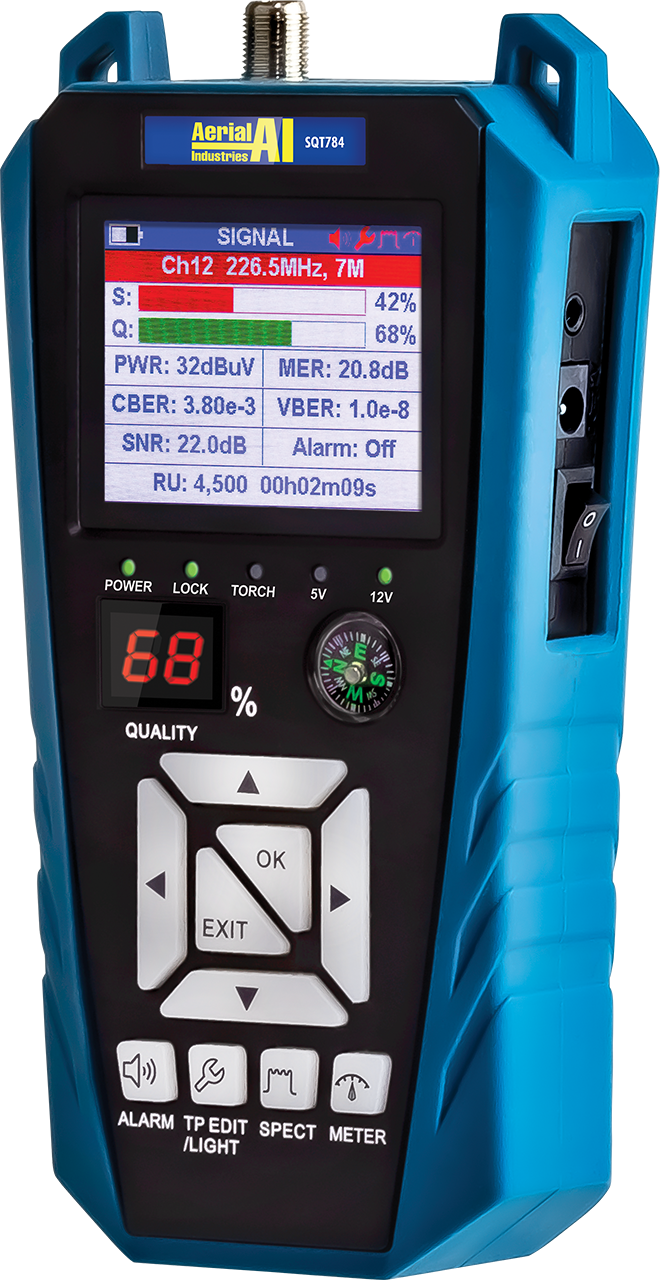

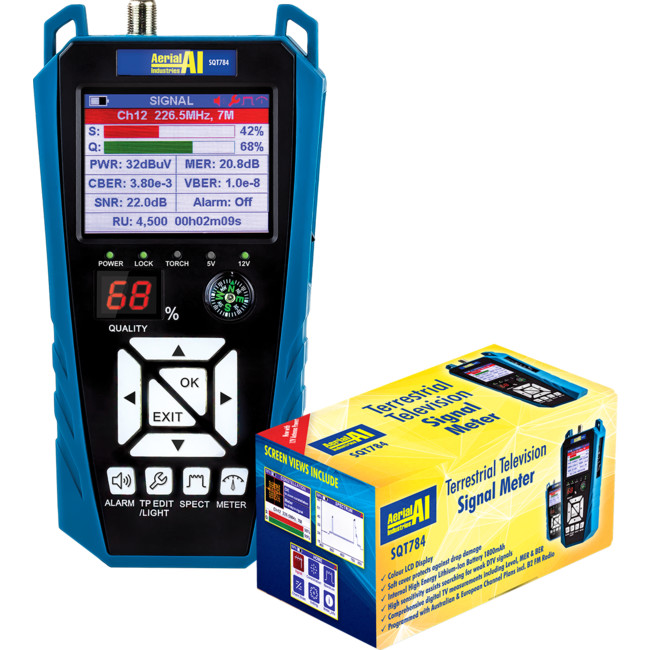

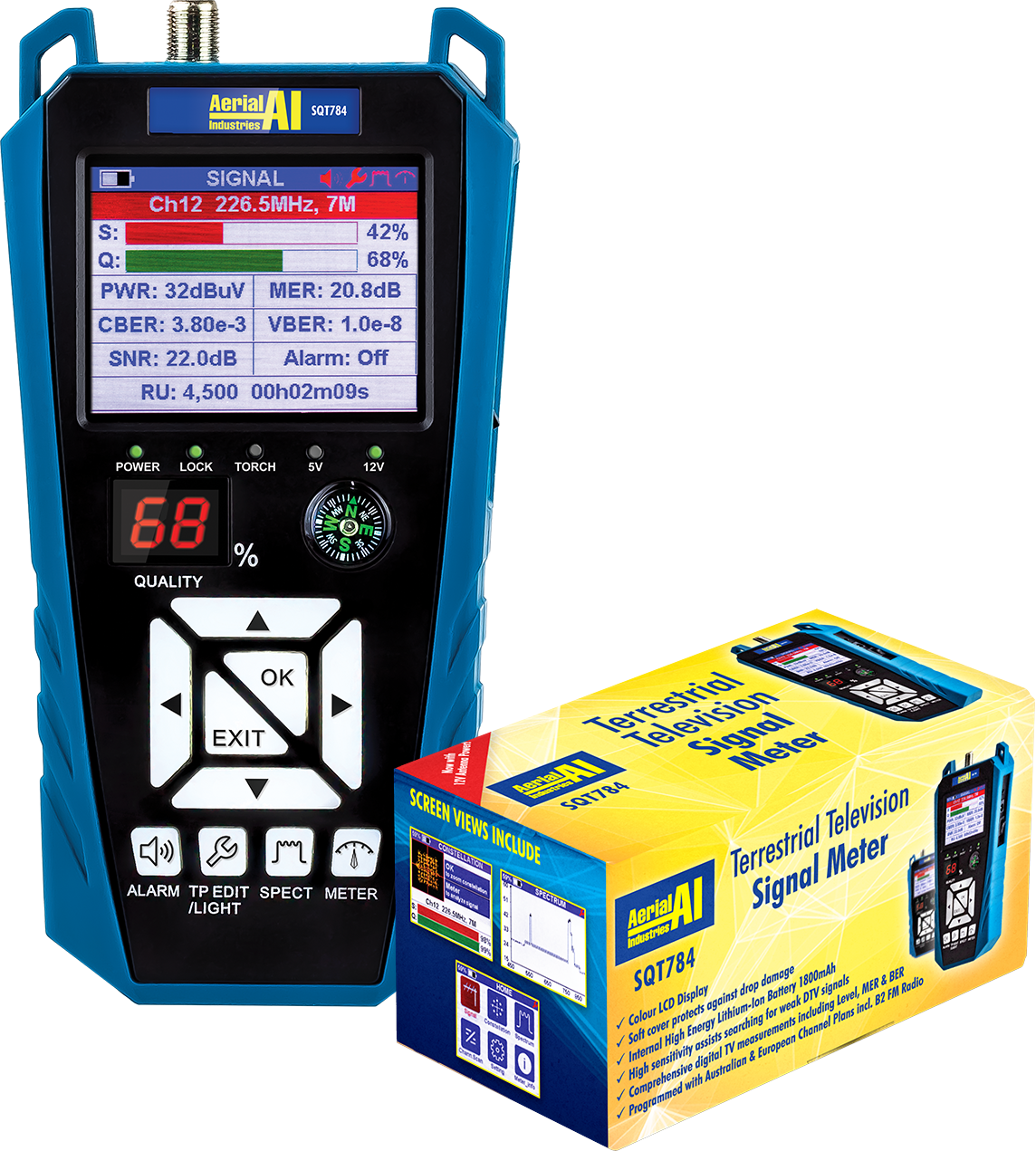

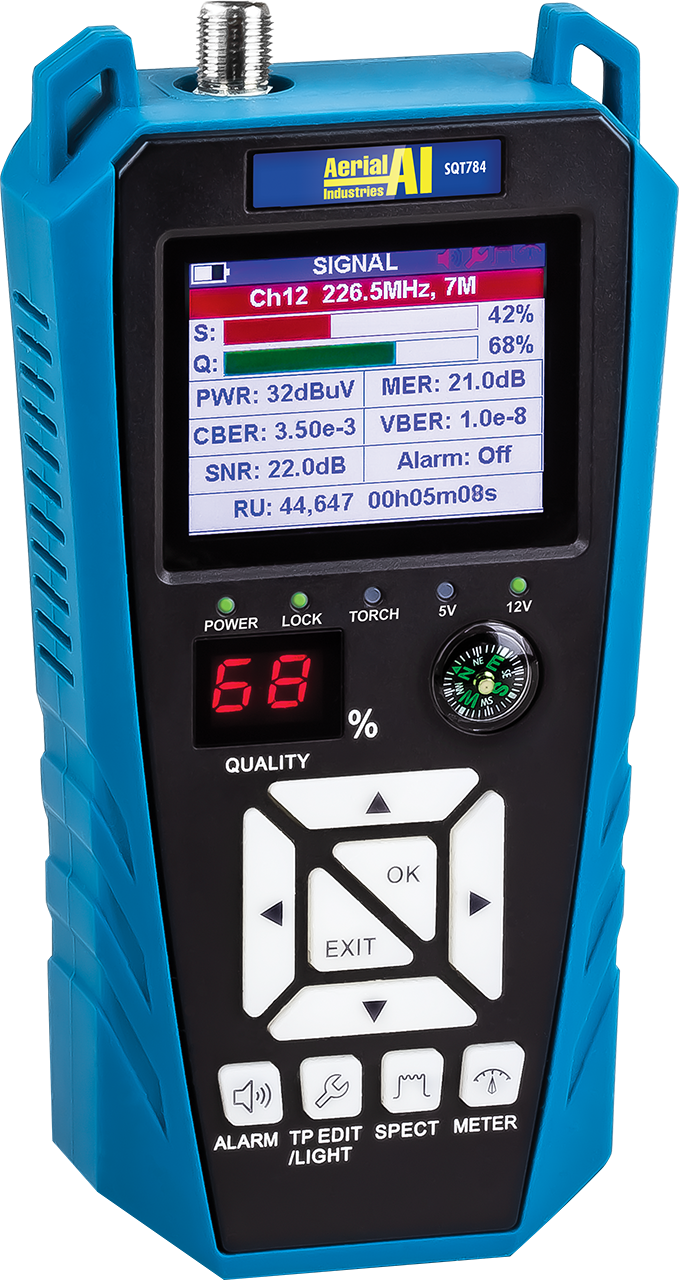

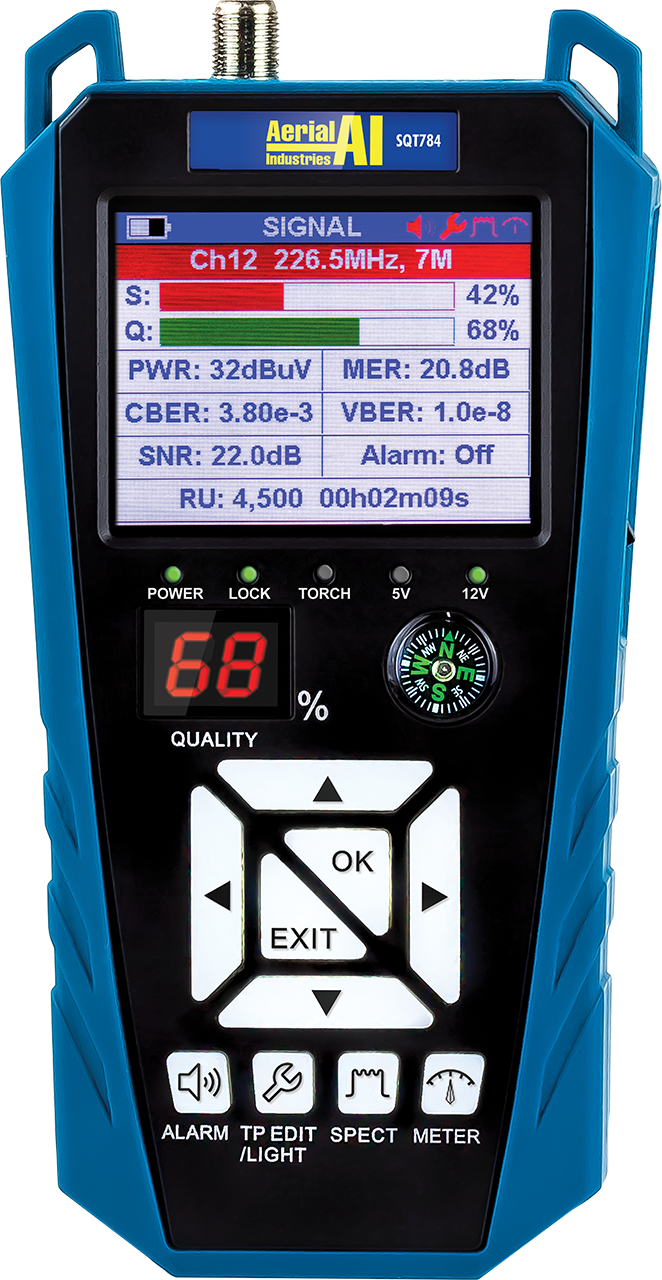

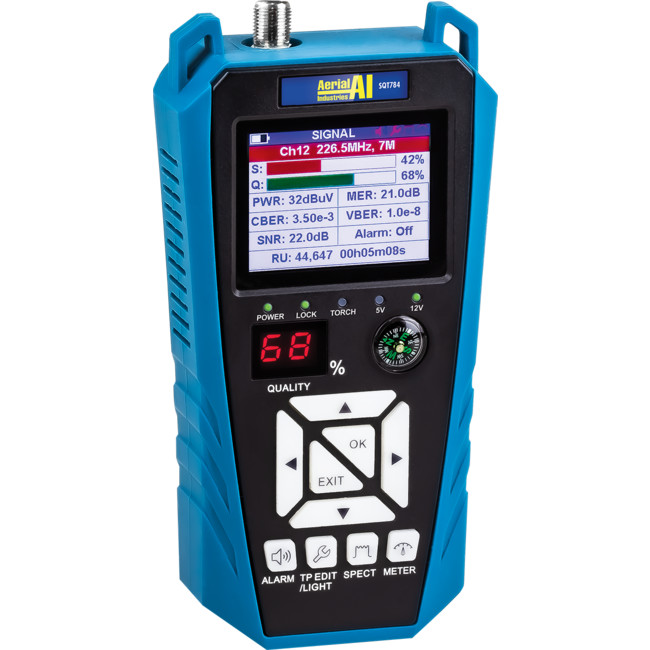

SQT784 TERRESTRIAL DTV SIGNAL METER

{tab Overview}

SQT784 TERRESTRIAL DTV SIGNAL METER

PRODUCT HIGHLIGHTS:

• Colour LCD Display

• Soft Cover Protects Against Drop Damage

• Internal High Energy Lithium-Ion Battery 1800mAh

• High Sensitivity Assists Searching for Weak DTV Signals

• Comprehensive Digital TV Measurements including Level,MER and BER

• Programmed with Australian and European Channel Plans including B2 FM Radio

Features:

• Expanded Channel Plans

• Spectrum Signal Displays

• Now Powers 12V Mast Amplifiers

• Instant Responses to Signal Changes

• Convenient LED Torch Light Integrated

• Audible Lock and Signal Quality Alarm

• Keypad Backlit Enables Use in Darkness

• Sensitive to Weak and Strong TV Signals

• Reads MER, BER and RU with Lock Timer

• Ready for DVB-T2, Exceptional with DVB-T

• Compact Handheld Shape that's Easy-to-Use

• Magnetic Compass Assists Identifying Direction

• Constellation Displays Locked Signals in XY-Plane Scatter Diagrams

{tab Specs}

Terrestrial Tuner & Demodulator

FREQUENCY RANGE

• 50MHz to 858MHz

INPUT CONNECTOR

• F Male for F Female - Female Adapter (included)

SIGNAL LEVEL RANGE

• <30 to 110dBµV

ANTENNA LINE AMP POWER SUPPLY

• 12V or 5V at up to 300mA Short Circuit Protected

CHANNEL BANDWIDTH

• 7MHz Default 8, 6 or 5 MHz Ready

{/tabs}
