PRODUCT NAME | EH-TW7100 |
PRODUCT CODE | V11H959053 |
WHAT'S IN THE BOX | |
| EH-TW7100 Projector, Power Cable, Remote Control Batteries, User Manual, Quick Start Guide |
TECHNOLOGY | |
Projection System | RGB liquid crystal shutter projection system |
LCD Panel | 0.61-inch wide panel with MLA (C2 Fine, 10 bit) |
Pixel Number | 2,073,600 dots (1920 x 1080) |
Resolution | 4K Enhancement* 1920 x 1080 x 2 |
OPTICAL | |
Zoom | 1 - 1.62 (Optical) |
Screen Size | 40" to 500" [1.16 to 14.87 m] (Zoom: Wide) 40" to 500" [1.89 to 24.01 m] (Zoom: Tele) |
Projection Distance | 100" screen 2.95 - 4.77 m |
Throw Ratio | 1.35 (Zoom: Wide), 2.15 (Zoom: Tele) |
Projection Lens F Number | 1.49 - 1.77 |
Projection Lens Focal Length | 18.2 mm - 29.2 mm |
Focus Method | Manual |
Lens Shift (Manual) | Vertical: -60% to 60% Horizontal: -24% to 24% |
IMAGE | |
Colour Light Output | 3,000 Lumens |
White Light Output | 3,000 Lumens |
Native Aspect Ratio | 16:9 |
Contrast Ratio | 100,000:1 |
Light Source | Lamp |
Lamp Type | 250 W UHE |
Lamp Life | 3,500 h, 5,000 h (ECO) |
Colour Reproduction | Up to 1.07 billion colours |
Colour Processing | 10 bit |
Keystone Correction | Vertical: -30 to 30 degrees Horizontal: -30 to 30 degrees |
2D / 3D Frequency Image | 240 Hz / 480 Hz |
2D Vertical Refresh Rate | 192 Hz - 240 Hz |
3D Vertical Refresh Rate | 400 Hz - 480 Hz |

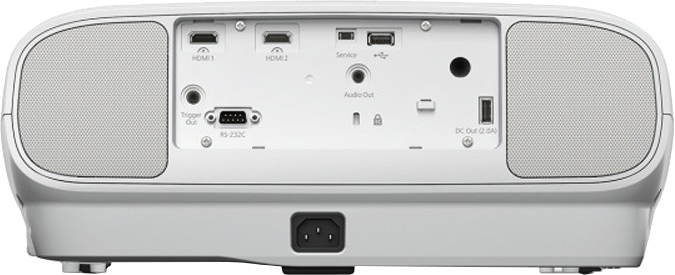

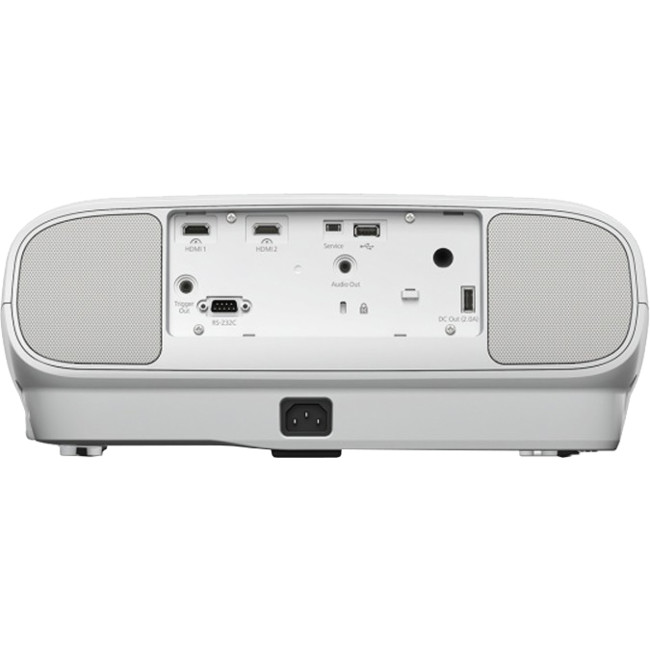

CONNECTIVITY | |
Input: Digital | 2 x HDMI (1 x HDCP2.2) |
Input: Opt. HDMI | 1 x USB A |
Input: Control | 1 x RS232c |
Input: Network I/O | 1 x USB Type A (for optional Wireless LAN unit) |
Trigger Out | 3.5 mm mini-jack |
Audio Out | Stereo Mini |
Wireless Connectivity | Optional |
Super Resolution | Yes |
High Dynamic Range - HDR10 | Yes |
Hybrid Log Gamma - HLG | Yes |
Image Enhancement | Yes |
Frame Interpolation | Yes |
4K Enhancement | Yes |
3D Formats | Top-and-Bottom, Side-by-Side |
Built In Speakers | 2 x 10 W |
Direct Power On | Yes |
Security | Kensington®-style lock provision |
Aspect Modes | Yes (Auto / Normal / Full / Zoom / Anamorphic / Wide / Horizontal Squeeze) |
Colour Modes | Dynamic, Bright Cinema, Natural, Cinema |
GENERAL | |
Dimensions D x W x H (including feet) | 330 x 410 x 164 mm |
Weight | 6.9 kg |
Lamp Warranty | 1 Year or 750 Hours - Whichever comes first |
Projector Warranty | 2 Years |
Power Consumption: Lamp on | 406 W |
Power Consumption: Standby | 2 W |
Noise Level (Normal/Eco) | 35/24 dB |
|
* 4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD resolution. Resolution is Full HD in 3D Mode. |
PRODUCT OPTIONS | Product Code | Description |
| V13H010L85 | ELPLP85 Replacement Lamp |
| V13H134A39 | ELPAF39 Air Filter |
| V12H003B22 | ELPMB22 Ceiling Mount (Standard) |
| V12H526040 | ELPMB30 Ceiling Mount (Flush) |
| V12H003P13 | ELPFP13 Suspension Adapter 450mm |
| V12H003P14 | ELPFP14 Suspension Adapter 700mm |
