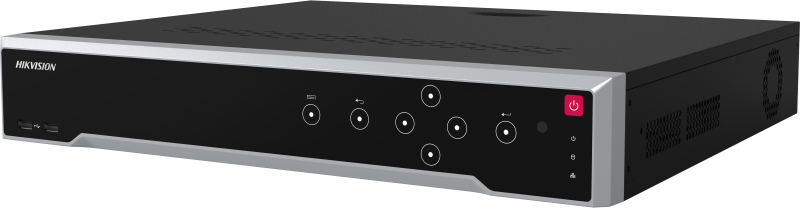

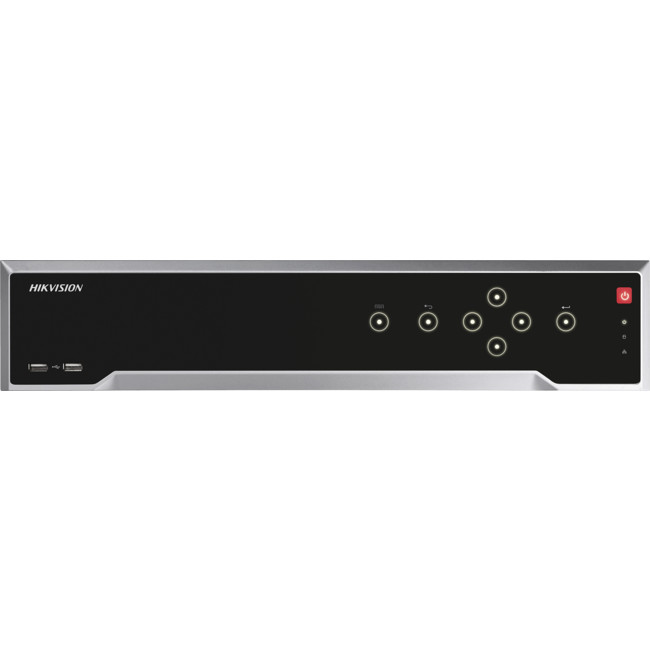

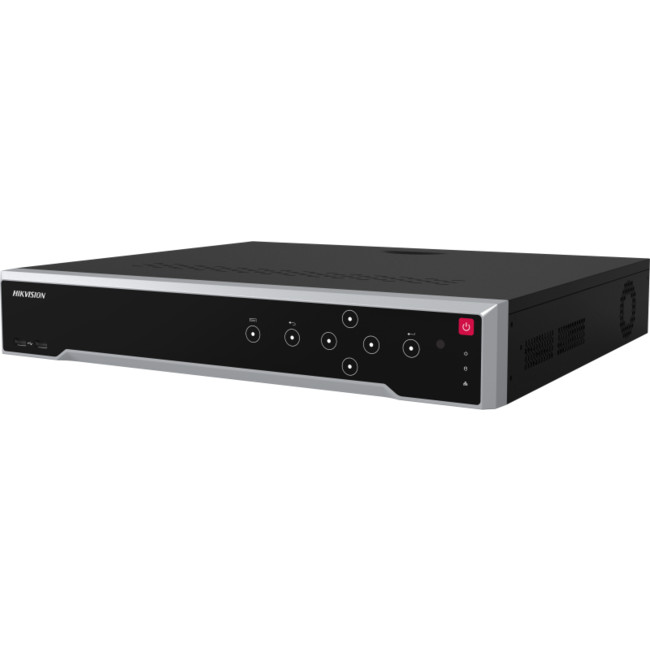

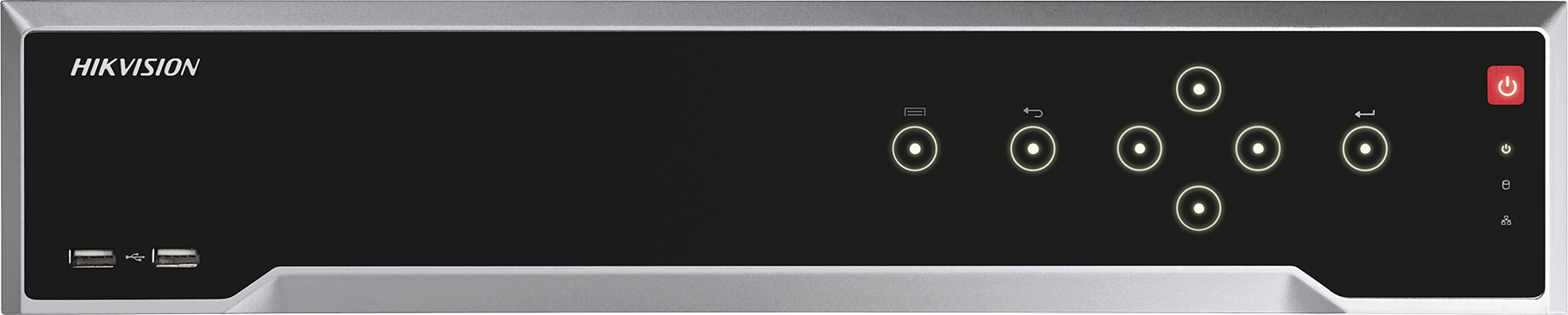

Hikvision DS-7732NI-M4/16P 32CH Ultra Series NVR inc 4TB HDD 320Mbps Bit Rate Input Max (up to 32ch IP video), 32 × 2MP decoding capability, 4 SATA Interfaces, 2 HDMI ouputs(up to 8K),1 eSATA, 24 independent PoE network interfaces, alarm I/O: 16/9, 1.5U case, 19″.
| Video And Audio | IP Video Input | 32ch Up to 32MP resolution
*After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32MP/24MP IP video inputs |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Output Modes | HDMI 1/VGA simultaneous output, HDMI 2/VGA independent output |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| CVBS Output | 1ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1ch, RCA (2.0V p-p, 1 KΩ, using the audio input) |
| Decoding | Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
*After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32MP/24MP IP video inputs |
| Synchronous Playback | 16ch |
| Decoding Capability | 2ch @ 32MP (30 fps) / 2ch @ 4MP (30 fps)/ 4ch @ 12MP (20 fps) / 8ch @ 8MP (25 fps) / 16ch @ 4MP (30 fps) / 32ch @ 1080p (30 fps) |
| Dual-Stream Recording Support | Yes |
| Stream Types | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 |
| Network | Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 × RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| PoE | Interface | 16 (114-437) 24 (114-437-24) RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤200W |
| Standard | IEEE 802.3 af/at |
| Auxiliary Interface | Interfaces | |
| Capacity | Up to 14 TB capacity for each HDD |
| Serial Interface | 2 × RS-485 (half-duplex), 1 × RS-232 |
| Alarm In/Out | 16/9 |
| USB Interface | - Front Panel: 2 × USB 2.0;
- Rear Panel: 1 × USB 3.0
|
| Ctrl 12V | Controllable 12V DC, 1A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*The Ctrl 12V power is controlled by alarm output 9 |
| Power Output | 12V DC, 1A |
| General | Power Supply | 100V to 240V AC, 50 to 60 Hz |
| Consumption | ≤15W (without HDD and PoE off) |
| Working Temperature | −10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Chassis | 19″ rack-mounted 1.5U chassis |
| Dimension (W×D×H) | 445mm × 400mm × 75mm ( 17.5″ × 15.7″ × 3.0″) |
| Weight | ≤5kg (without HDD, 11lb.) |
| Certifications | FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130 4:2011+A1:2014, EN 55035:2017+A11:2020 |
