114-435-4 8CH M-SERIES NVR WITH 4TB HDD

{tab Overview}

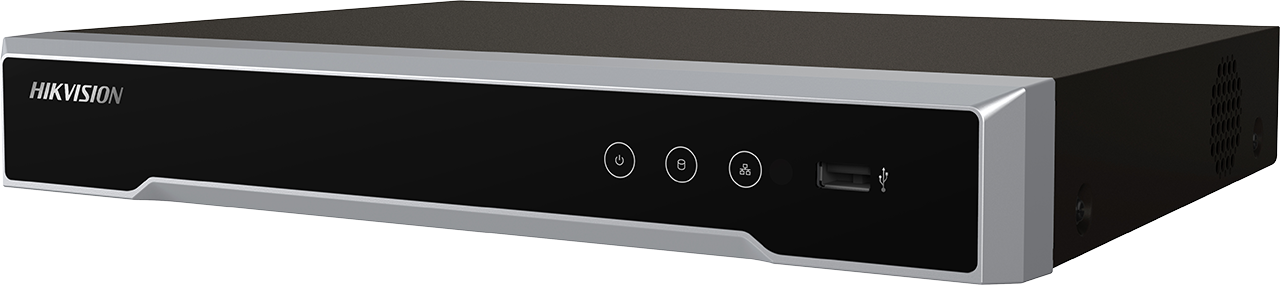

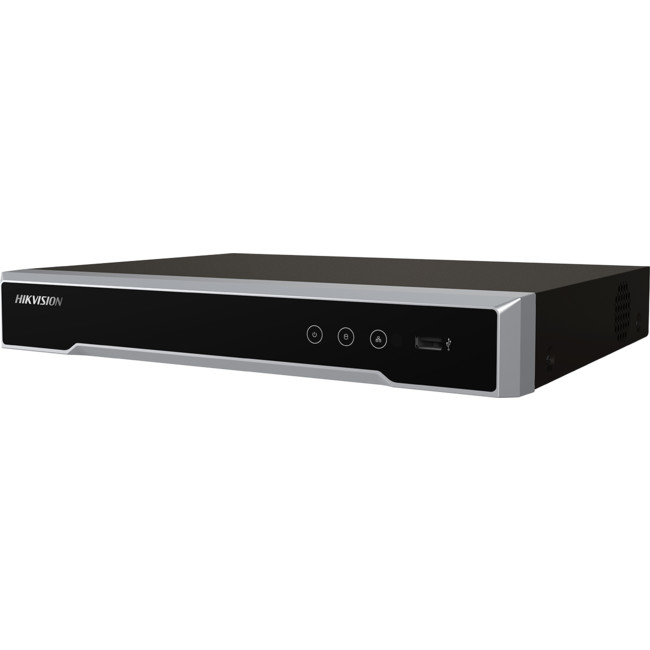

114-435 8CH M-SERIES NVR WITH 4TB HDD - HIKVISION

Hikvision DS-7608NI-M2/8P 8CH Ultra Series NVR inc 4TB HDD 128Mbps Bit Rate Input Max(up to 8-ch IP video),8x8MP decoding capability,HDMI up to 8K, 2 SATA Interfaces, 8 independent PoE network interfaces, alarm I/O: 4/1, 380 1U case

Features:

• H.265 /H.265/H.264 /H.264 video formats

• Up to 8ch IP camera inputs

• Up to 8ch @ 8MP decoding capacity

• Up to 128 Mbps incoming bandwidth

• Inc 4TB HDD


{tab specs}

Video And Audio

• IP Video Input 8-ch Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Incoming Bandwidth 128 Mbps

• Outgoing Bandwidth 256 Mbps

• HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• VGA Output 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Video Output Mode HDMI/VGA independent output

• CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

• Audio Output 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)


Decoding

• Dual-Stream Recording Support

• Decoding Format H.265 /H.265/H.264 /H.264

• Decoding Capability 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)

• Synchronous Playback 8-ch

• Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Stream Type Video, Video & Audio

• Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2


Network

• Remote Connection128

• Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface


PoE

• Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Powe r≤ 120 W

• Standard IEEE 802.3 af/at


Auxiliary Interface

• SATA2 SATA interfaces

• Capacity Up to 14 TB capacity for each HDD

• Alarm In/Out 4/1

• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0


General

• Power Supply 100 to 240 VAC, 50 to 60 Hz

• Consumption ≤ 15 W (without HDD and PoE off)

• Working Temperature -10 C to 55 C (14 F to 131 F)

• Working Humidity 10% to 90%

• Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  ≤ 3 kg (without HDD, 2.2 lb.)


Certification

• FCC Part 15 Subpart B, ANSI C63.4-2014

• CE EN 55032:2015 A1:2020, ENIEC61000-3-2:2019 A1:2021, EN 61000-3-3:2013 A1:201 9, EN 50130-4:2011 A1:2014, EN 55035:2017 A11:2020
