Name: NVR4032H 32 CHANNEL NETWORK VIDEO RECORDER VIGI
Brand: TP-LINK
SKU: 43171342
Price: 549 AUD
Availability: InStock

VIGI

Code: 43171342

1.02 kg

EACH

Out of Stock!

$549 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

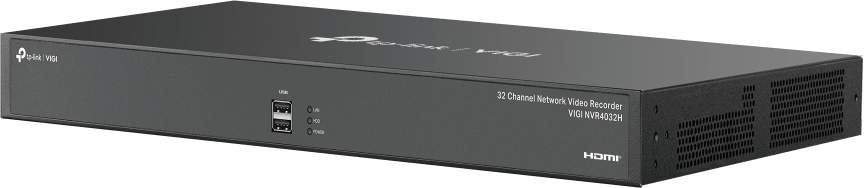

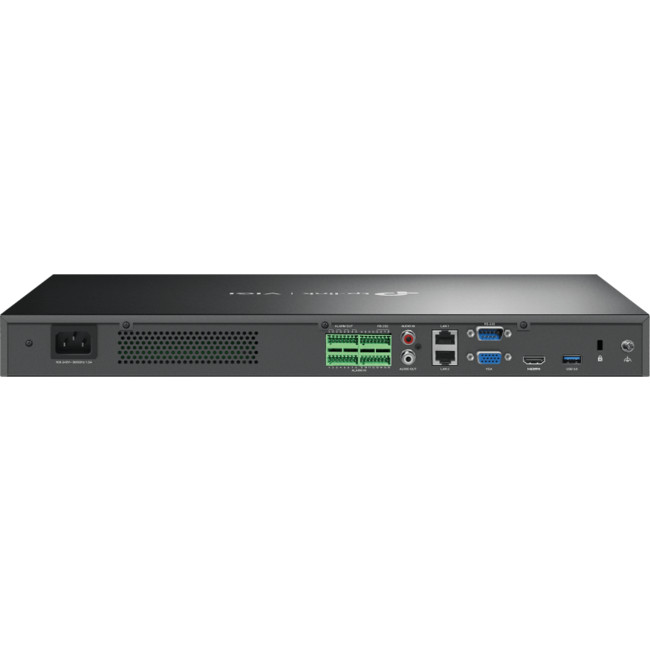

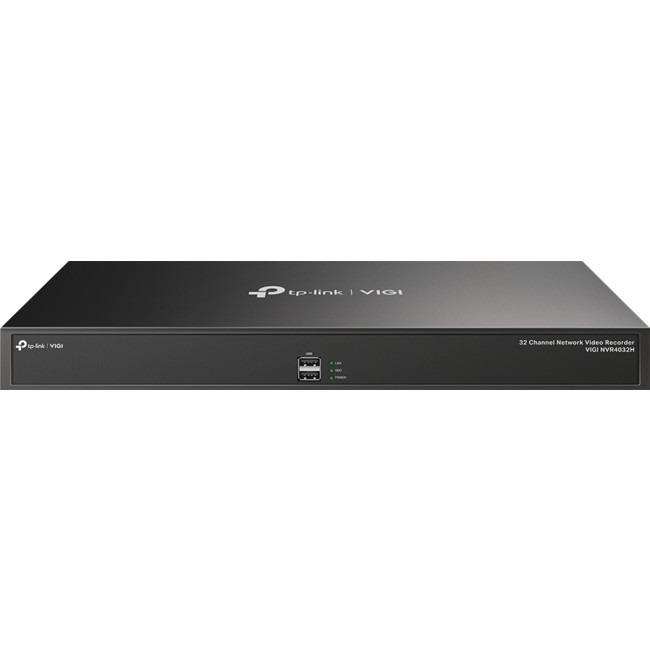

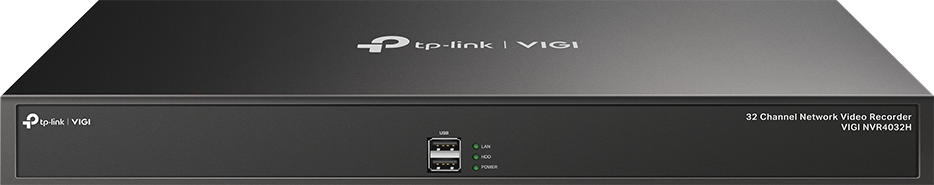

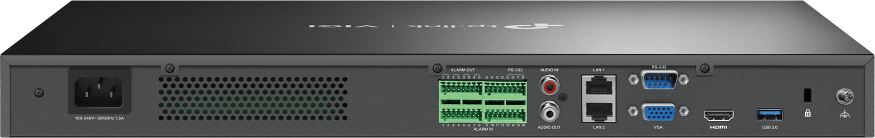

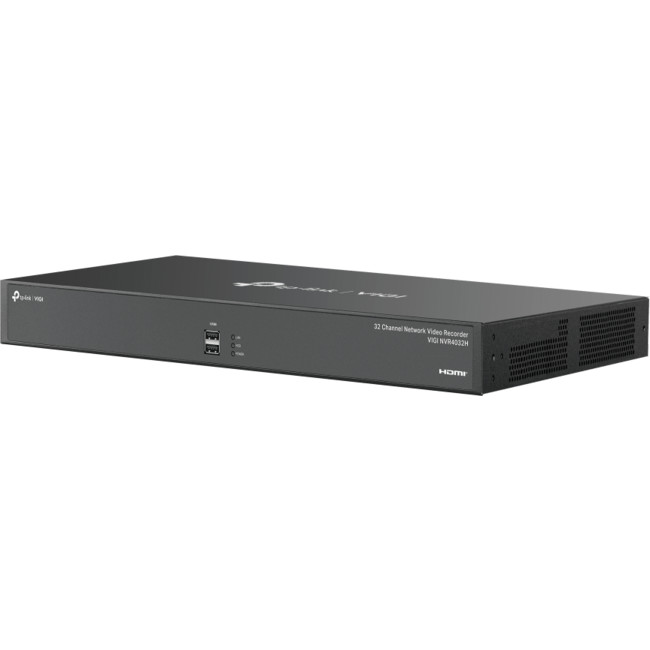

VIGI 32 Channel Network Video Recorder

32-Channel Live View and 4K HDMI Video Output
Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (25fps)Decoding Capability
16-Channel Synchronous Playback
320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
4× SATA Interfaces and 1 Up to 16 TB*
H.265 Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring

Video and Audio
IP Video Input	32-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode	HDMI/VGA Independent Output
Multi-View Display	1/4/6/8/9/16/25/32/36

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265 /H.265/ H.264 /H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	4-ch@8MP (25fps), 6-ch@5MP (25fps), 8-ch@4MP (25fps), 10-ch@3MP (25fps), 16-ch@1080P (25fps)

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57 ), Firefox (52 ), Edge (91 )
Interoperability	ONVIF Profile S, CGI

External Interface
Network Interface	2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	16/4
Serial Interface	1, RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1

HARD DISK
SATA	4 SATA Interfaces
Capacity	Up to 16 TB Capacity for Each HDD*

Alarm
General Alarm	• Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera.

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	• VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	440 × 330 × 44 mm
External Power Supply	100-240 VAC, 50 to 60HZ, 1.5A
Net Weight	4.0 Kg
Gross Weight	5.2 Kg
Power Supply	100-240 VAC, 50 to 60HZ, 1.5A
Power Consumption	• 5 W (Without Disk) • 48 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
