Name: NVR1108H-W 8 CHANNEL WIFI NETWORK VIDEO RECORDER VIGI
Brand: TP-LINK
SKU: 43171321
Price: 169 AUD
Availability: InStock

VIGI

Code: 43171321

1.02 kg

EACH

Call for Availability!

TRADE ALERT!

$169 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

VIGI 8 Channel Wi-Fi Network Video Recorder

8-Channel Live View and 4K HDMI Video Output
Built-in Routing Module and Support Wireless Pairing*
Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
8-Channel SynchronousPlayback
80 Mbps Incoming Bandwidth and60 Mbps OutgoingBandwidth
1 SATA Interface (up to 10TB) **
H.265 Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring

Specifications

Video and Audio
IP Video Input	8-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265 /H.265/ H.264 /H.264
Record Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	8-Channel
Capability	• 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP • 30fps: 4-ch @ 3MP, 2-ch @ 5MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Video Clip • Export Clip • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57 ), Firefox (52 ), Edge (91 )
Interoperability	ONVIF Profile S/T/G, CGI

WIRELESS
Standards	IEEE 802.11b/g/n
WiFi Channels	• UN: 1-13 • US: 1-11
Wireless Name	• SSID Configuration • Radio
Network Switch	Yes
Frequency	2.4 GHz
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Monitoring	N/A
Radio Bandwidth	• Auto: Yes • 20M: Yes • 40M: Yes
Wireless Rate	300Mbps(802.11n), 2 × 2 MIMO
Wireless Security	WPA-PSK/WPA2-PSK

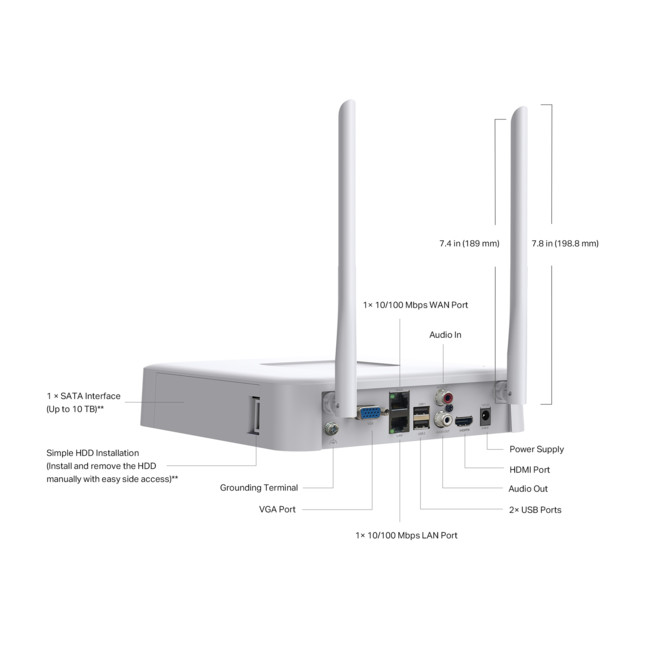

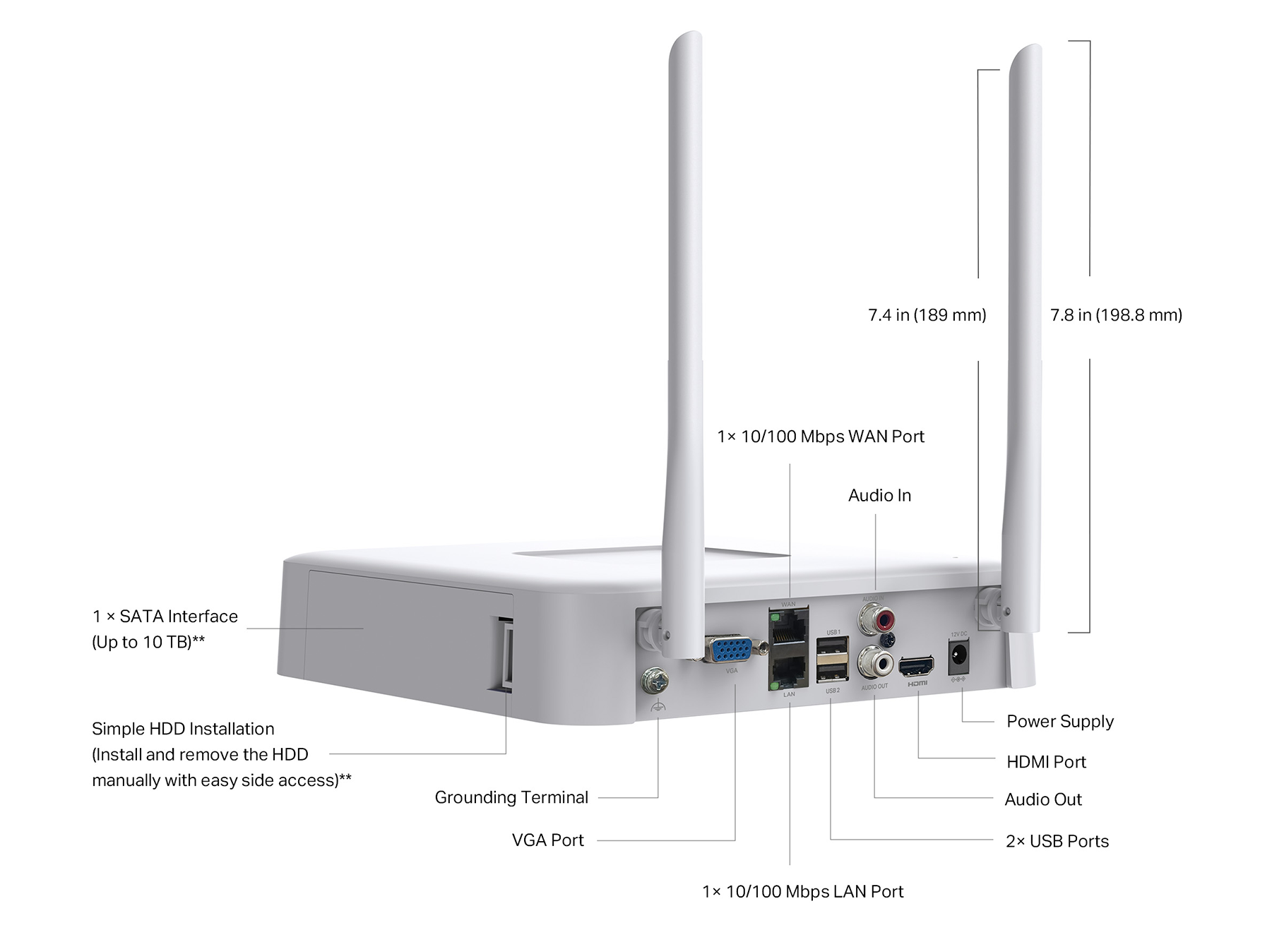

External Interface
Network Interface	• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface • 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	1; Real-time Audio Output without Needing Peripherals.
eSATA	N/A
HDMI	1
VGA	1

HARD DISK
SATA	1 SATA Interface
Capacity	Up to 10 TB Capacity for Each HDD**

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	• Recording • White Light Alarm • Log • Audible Alarm Note: The alarm function requires the use of a camera.

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	• VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Quick Installation Guide
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing

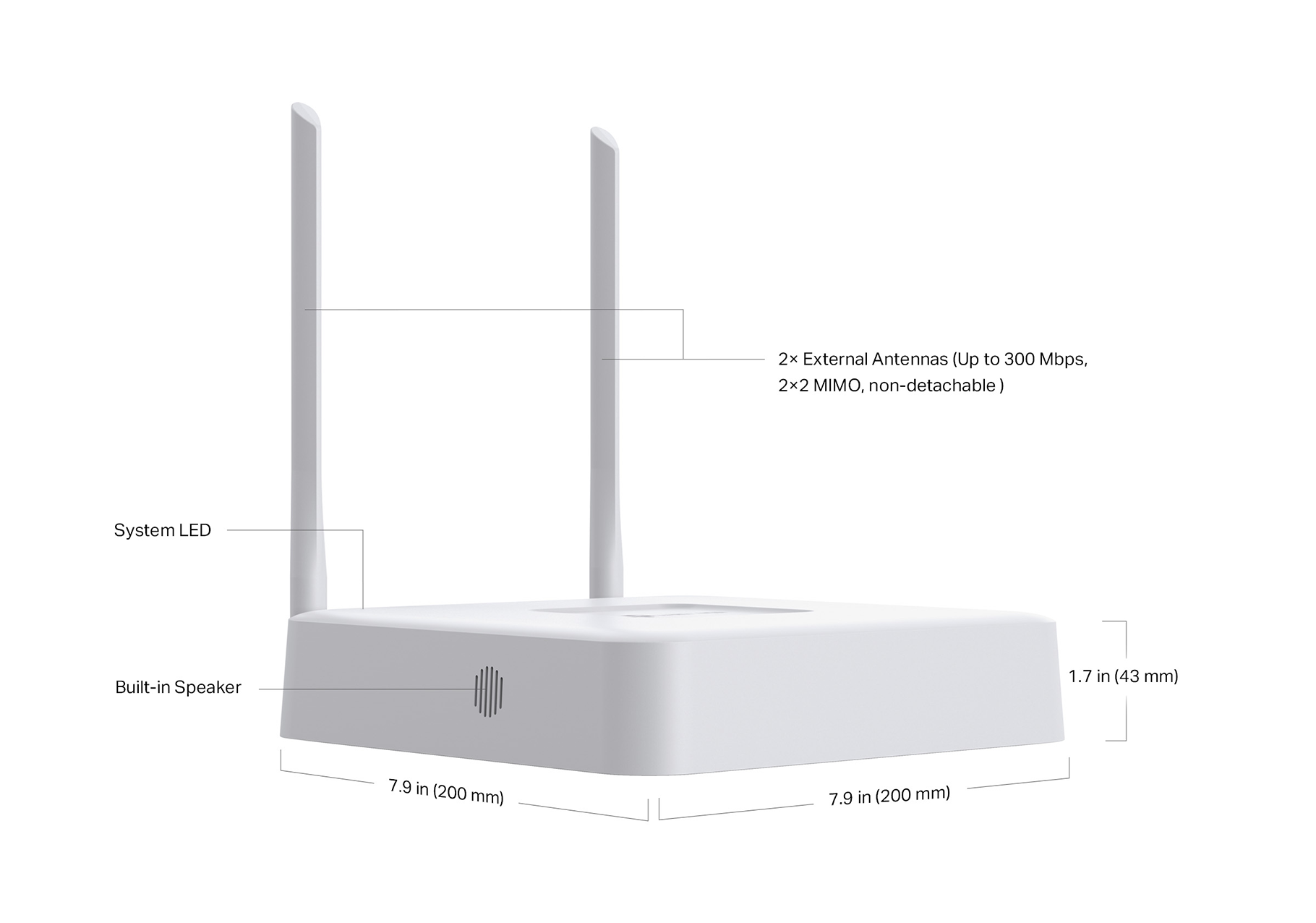

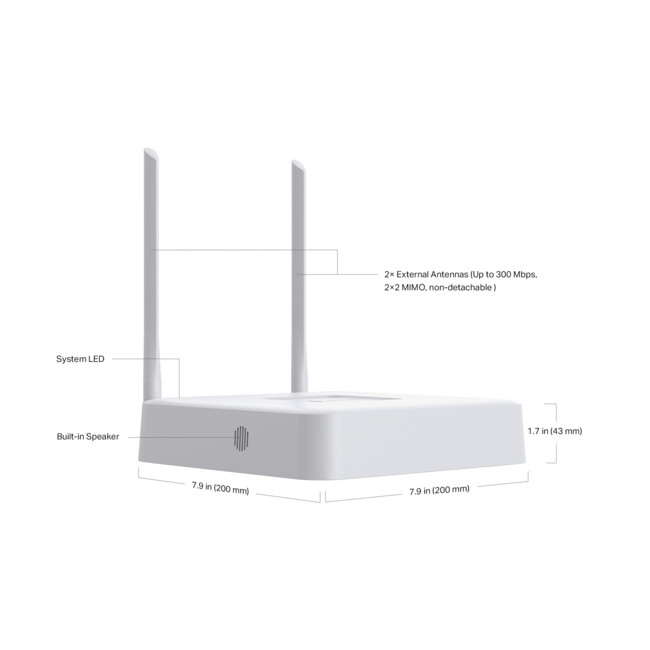

Dimensions( W X D X H )	Excluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)
External Power Supply	DC 12V/2A
Net Weight	0.5 kg
Gross Weight	1.0 kg
Power Consumption	• 5.7 W (Without Disk) • 16.3 W (Without Disk)
Antenna	• Quantity: 2 • Type: 2.4GHz Welded Non-detachable Antenna • Gain: 5.3dBi • Radio Frequency Transmit Power: 16dBm • Length: 198.8 mm for Long Side and 189 mm for Short Side
Certifications	BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
