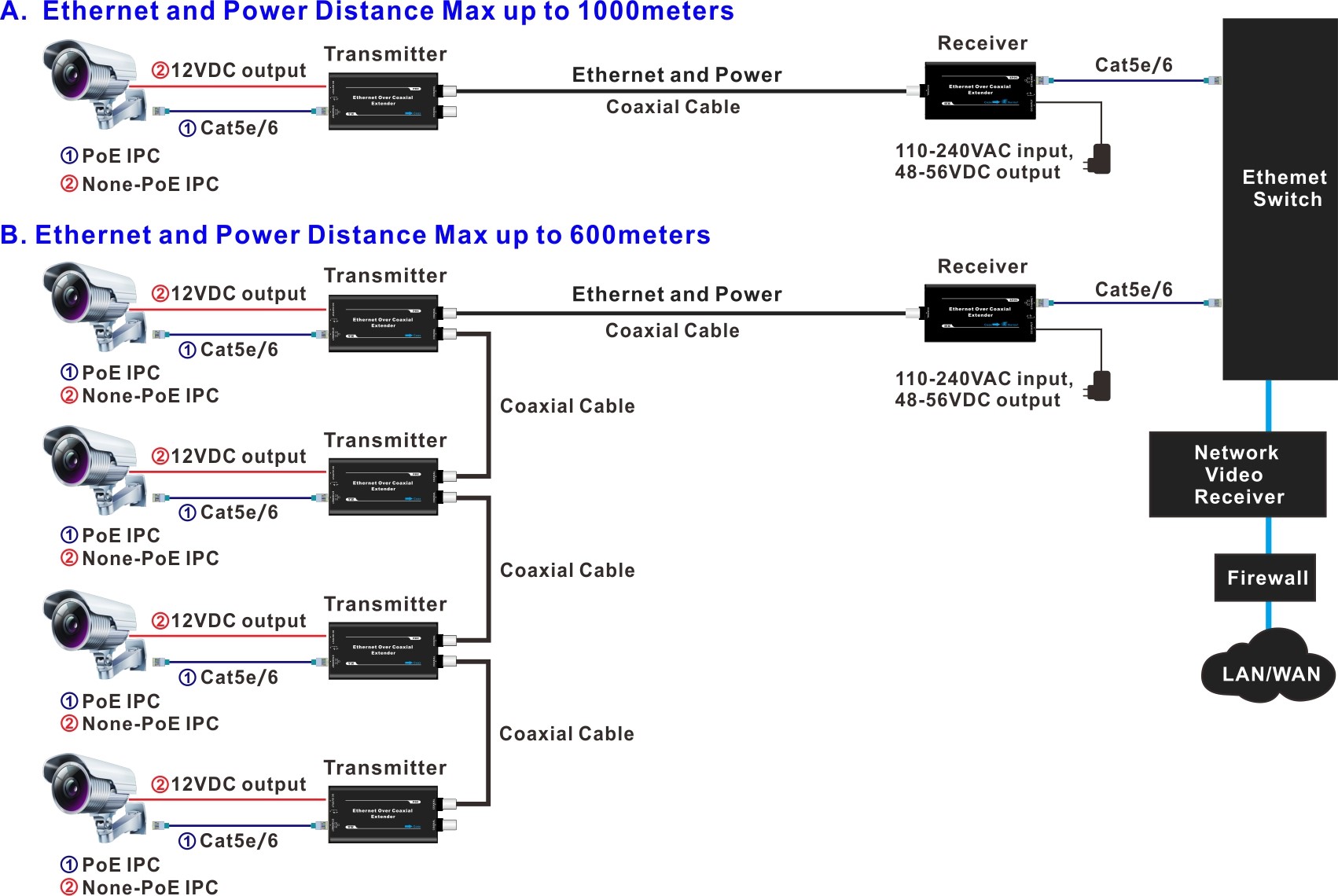

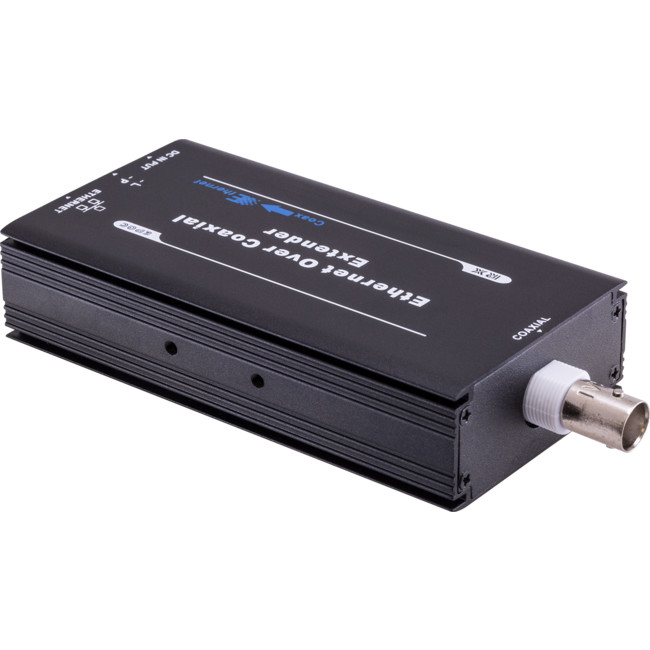

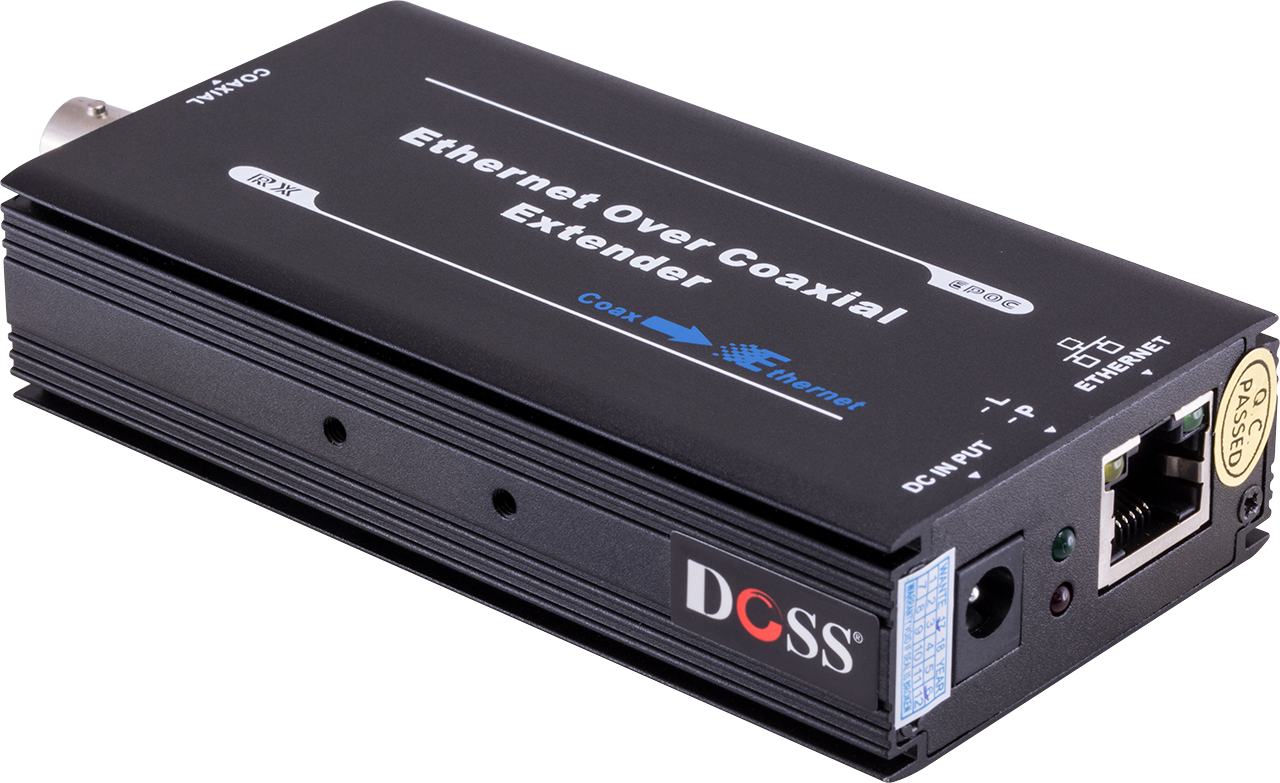

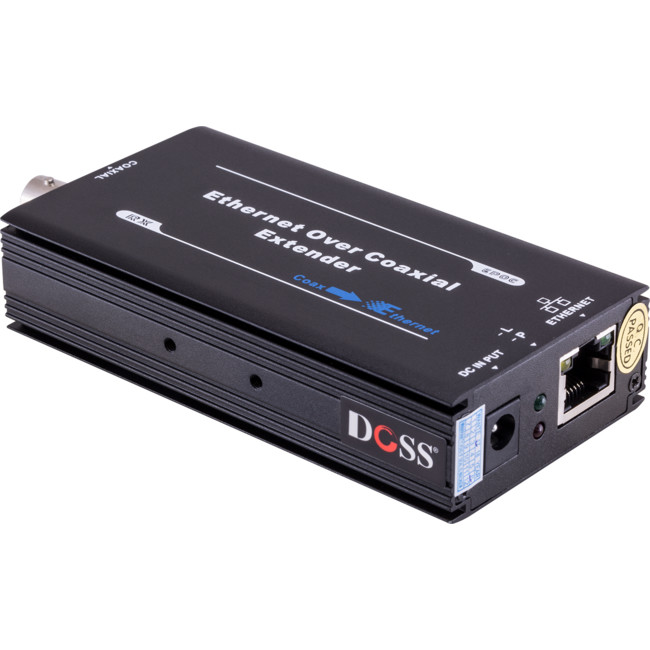

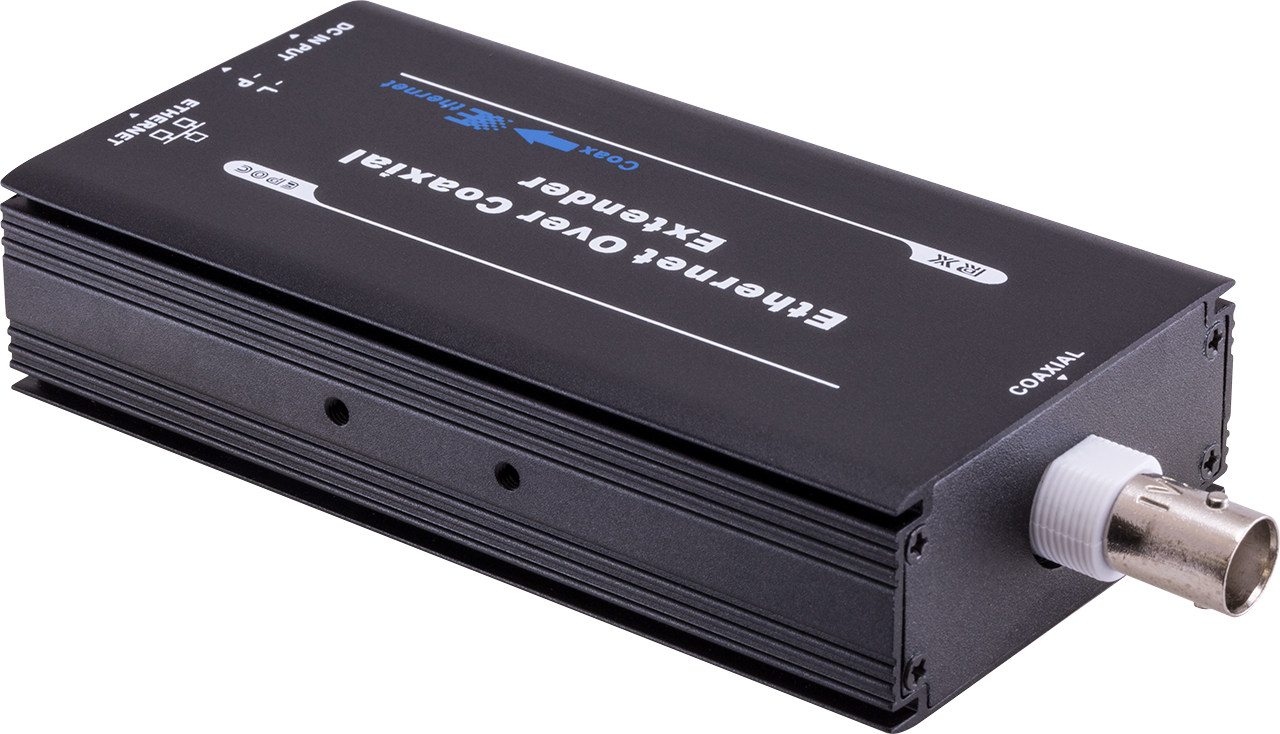

The IPOC1KR is Ethernet and power signal receiver over single coaxial cable. The IPOC1KR is used with IPOC1KPT, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance reach max up to 1000 metres. With high speed modern technology, the physical bandwidth is up to 100Mbps (bidirectional). The IPOC1KR is built-in multi-stage surge and lightning protection protect video equipment against damaging voltage spikes and providenoise immunity to ensure quality signals without disturbing"hum-bars". The IPOC1KR is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.
Single Channel Ethernet and Power Receiver over Single Coaxial Cable
IPOC1KR
Product Name
Power Supply

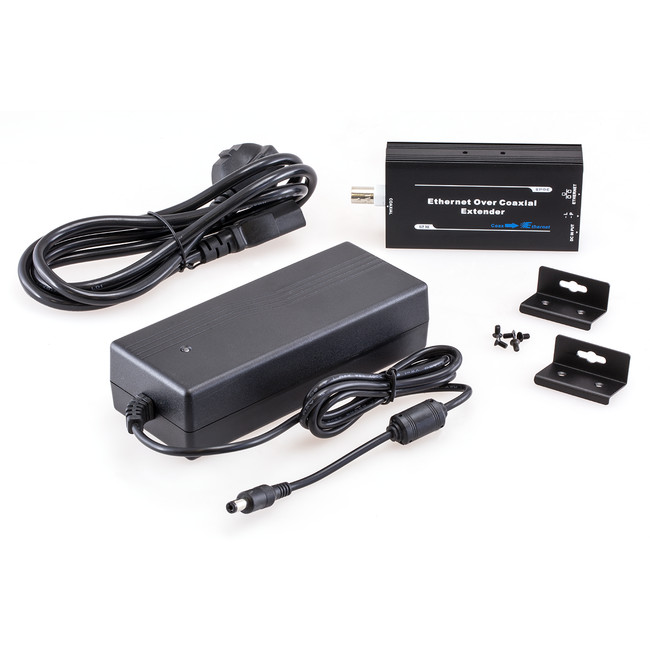

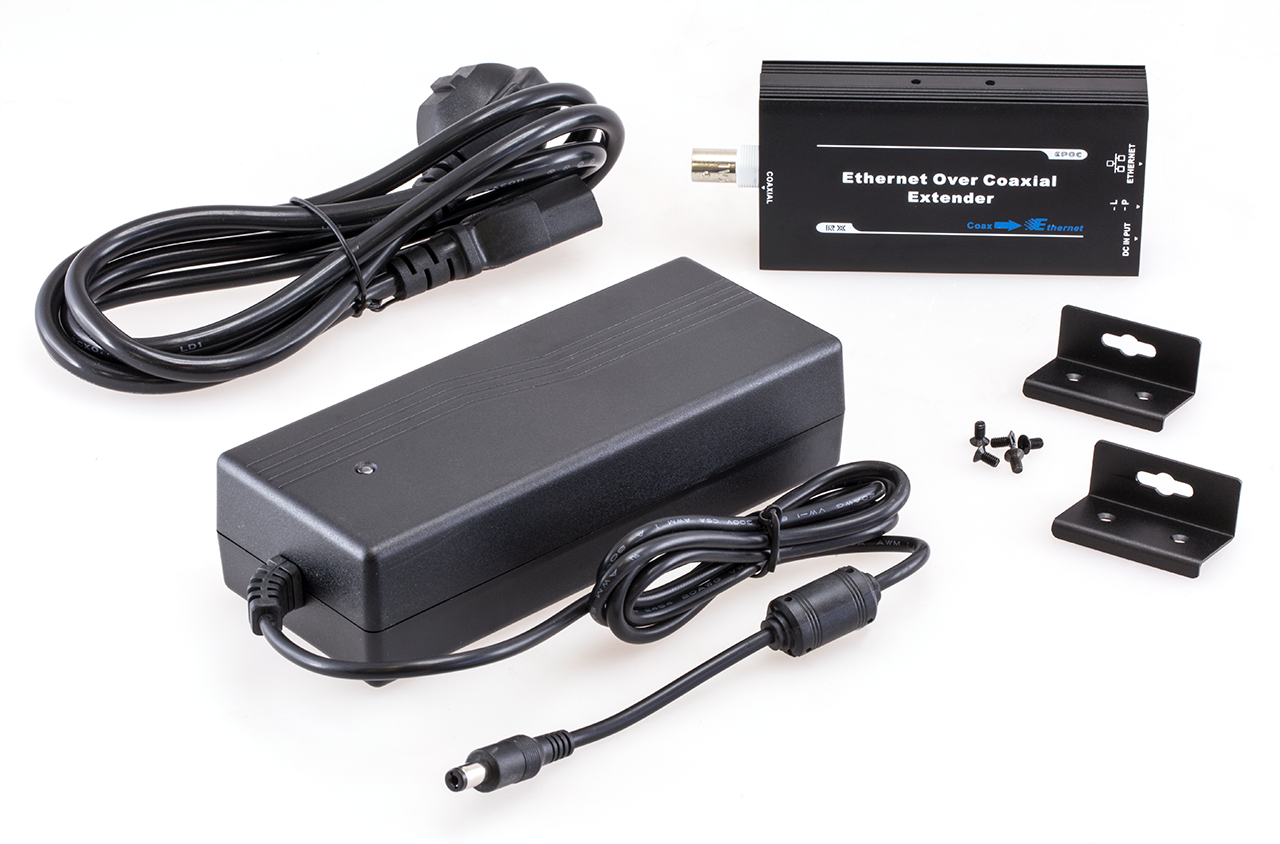

Power Adaptor
Input:100-240VAC Output: 53VDC/1.25A
No-Load Power
1.5W(max)
RJ45Interface
Ethernet Interface
RJ45 Interface
Transmission Distance
100m (max) over cat5e/6
Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE 802.3af
Physical Speed
100Mbps(bidirectional)
Coaxial Cable Interface
BNC connector
Coaxial Cable Impedance
75Ohm
Maximum Distance
1000m(SYV75-5 Cable)
Distance
Bandwidth
300m
100Mbps
500m
90Mbps
800m
70Mbps
1000m
55Mbps
LED Indicators
Green Light
Coaxial cable connecting indicator
Red Light
Power indicator
Lightning Protection Grade
Network Port
Differential Mode:2KV Common Mode:4KV Executive Standard: IEC61000-4-5
Device
contact discharge: 3 grade air discharge: 3 grade Executive Standard: IEC61000-4-2
Mechanical
Dimensions(LxWxH)
103x54x26mm
Housing
Aluminum
Body Color
Black
Weight
145g
Environmental
Operating Temperature
0~55°C
Storing Temperature
-25°~85°C
Relative Humidity
0~95% (non-condensing)
