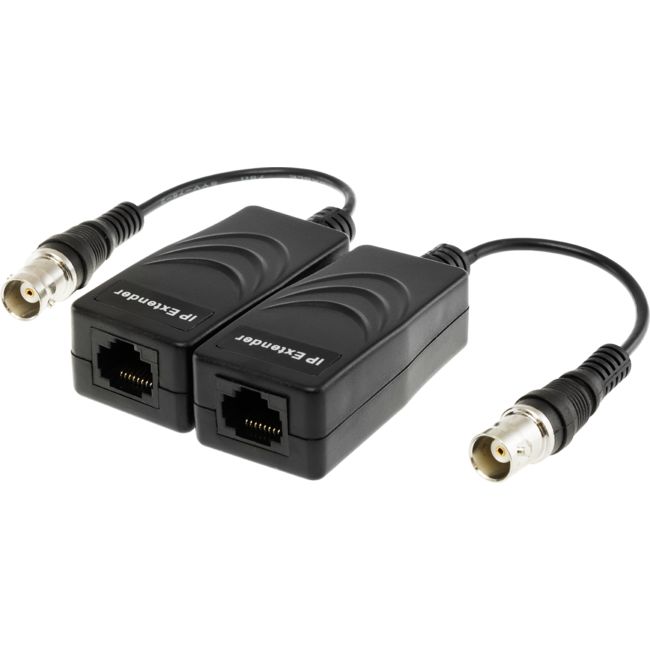

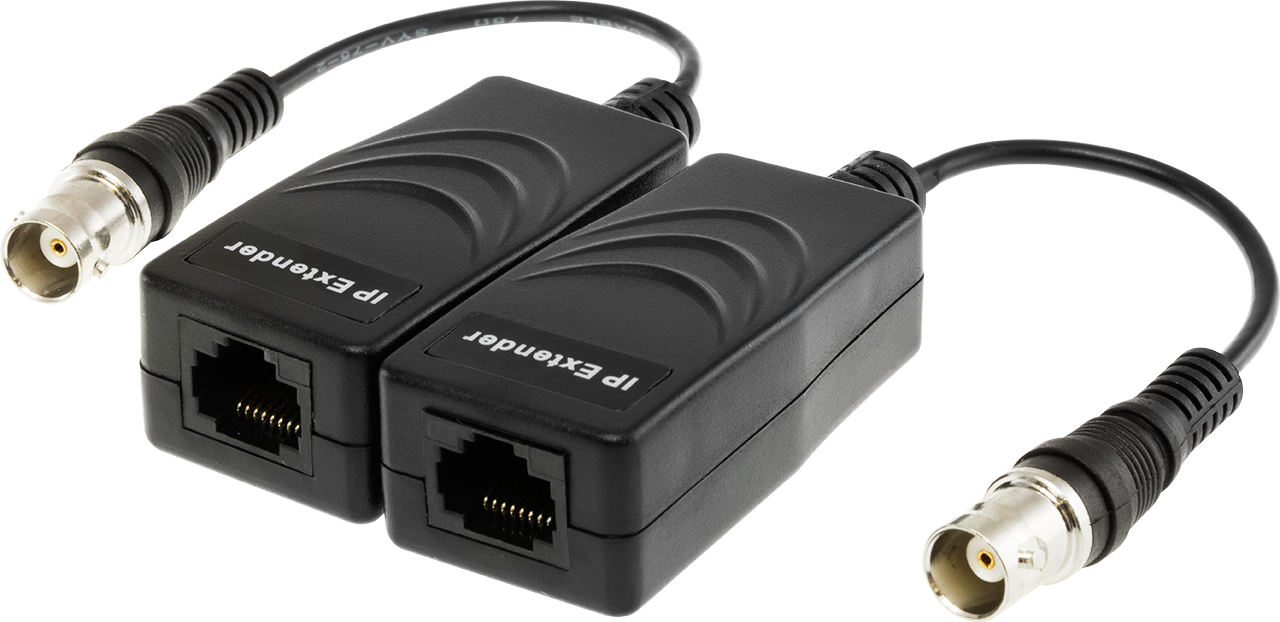

IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area IPOC200 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable.
IPOC200
Product Name
Single Channel IP Extender over Coax
Applied Devices
PoE Switch, Network DVR, Video Codec, Other Network Equipments
Video
Ethernet Port
10/100 Mbps
Impedance
UTP:100 ohm coax:75 ohm
Distance
Up to 200m(100Mbps)
Power
No Extra Power Needed
Connector
Video Port
RJ45 (Female)
BNC (Female)
Protection Level
Surge Protection Type
RenewableSolid Surge Protection
Coaxial Surge Protection
2KV(Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Twisted Pair Interface Surge Protection
2KV(Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Operating Environment
OperatingTemperature
-20-85 ?
Storage Temperature
0~95%
Humidity
115mm*82mm*22mm
Physical Properties
Dimension(Length*Width*Height)
ABS Engineering Plastic
Housing
Black
Color
90g
Weight
>20000h
Reliability
MTBF
