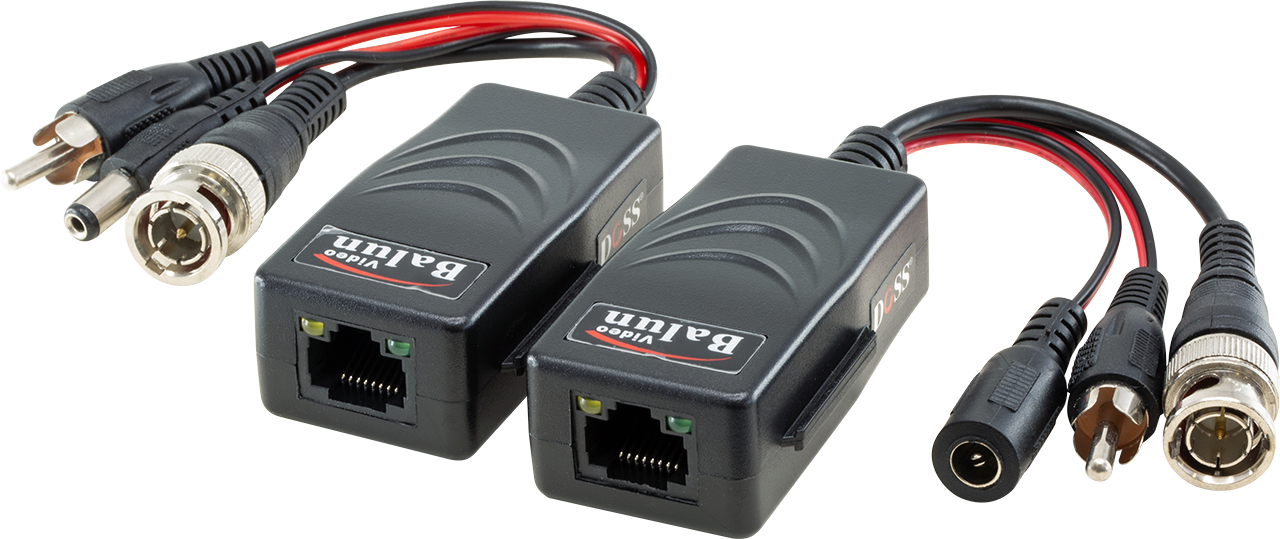

The VPAB45HD is a passive (non-amplified) device that allowsthe transmission of real-time CCTV HD video, power and audiosignal via one cost-effective Unshielded Twisted Paired (UTP) cable. Based band (composite) signals of any type are supported. Used in pairs, VPAB45HD eliminates costly and bulky coaxial cable, allowing live CCTV colour HD video, power and audio signal up to 200m. The superior interference rejection and low emissions of theVPAB45HD allow HD video signals to coexist in the same wire bundle as telephone, datacom or low-voltage power circuits. This allows the use of a shared or existing cable plant. It has built in surge suppressor to protect video equipment against damaging voltage spike. Its crosstalk and noise immunity ensure quality video signals.
It is compatible with allHD-TVI, HD-CVI and AHD analog cameras.
Model
VPAB45HD
Product Name
Single Channel Passive HD Video, Audio and Power Transceiver
AppliedDevices
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video
Video Format
PAL, NTSC, SECAM
Operating Frequency
DC to 6 MHz
Max Distance
UTP Category 5e (24AWG)Color: 400mB&W: 600m
Common-mode/Differential-mode rejection
15 KHz to 5 MHz60 dB typ
Impedance
Coax, BNC Plug75Ω unbalancedUTP, RJ45100Ω balanced
Attenuation
1.5 dB typ Max
WireType
Network Wiring
One Unshielded Twisted Pair (for each video signal)24-16 AWG (0.5-1.31mm)
Category Type
2or better
100 ± 20 ohms
DC Loop Resistance
18 ohms per 100m
Differential Capacitance
62 pF/m max
Power
Power Input
No external power required
Power transmission
12V/24V, DC/AC, up to 200m via UTP cat5e/6
Audio signal
Transmission distance
Up to600mvia UTP cat5e/6
Connector
Video input/output
BNC plug connector
Videoinput/output
RJ45 Jack
Protection
Surge Protection
renewable solid state surge protection
Video Input
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output
2KV(different mode), 10/700us IEC6100-4-5/1955 (GB/T 1726, 5-1999)
Mechanical
Housing
ABS engineering plastic
Body Color
Black
Dimensions (L*W*H)
60.4*29*20.4mm(BNC connector & cable excluded)
Net Weight
65g
Environmental
Operating Temperature
-20°~70°C
Relative Humidity
0~95% (non-condensing)
Storage Temperature
-40°~150°C
