Name: SP6030 INTELLIGENT SOLAR POWER SYSTEM 60W 31.2AH VIGI
Brand: TP-LINK
SKU: 43150892
Price: 849 AUD
Availability: InStock

VIGI

Code: 43150892

18.00 kg

EACH

Out of Stock!

$849 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

{tab Overview}

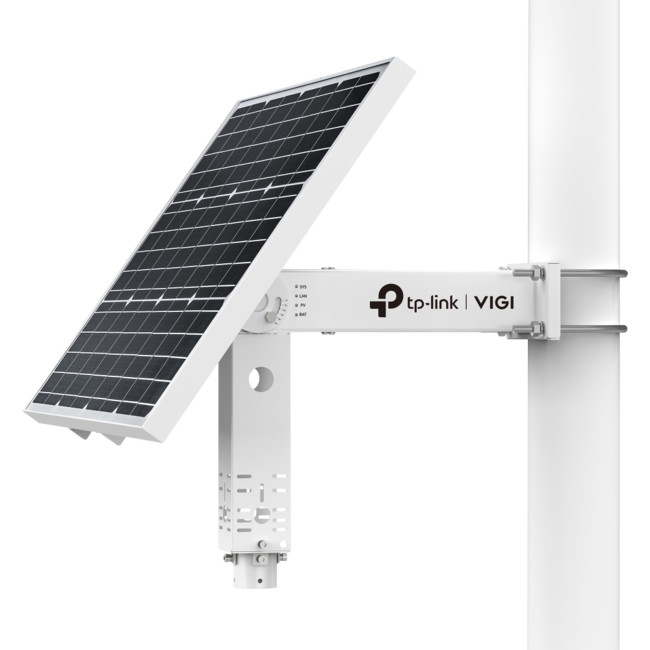

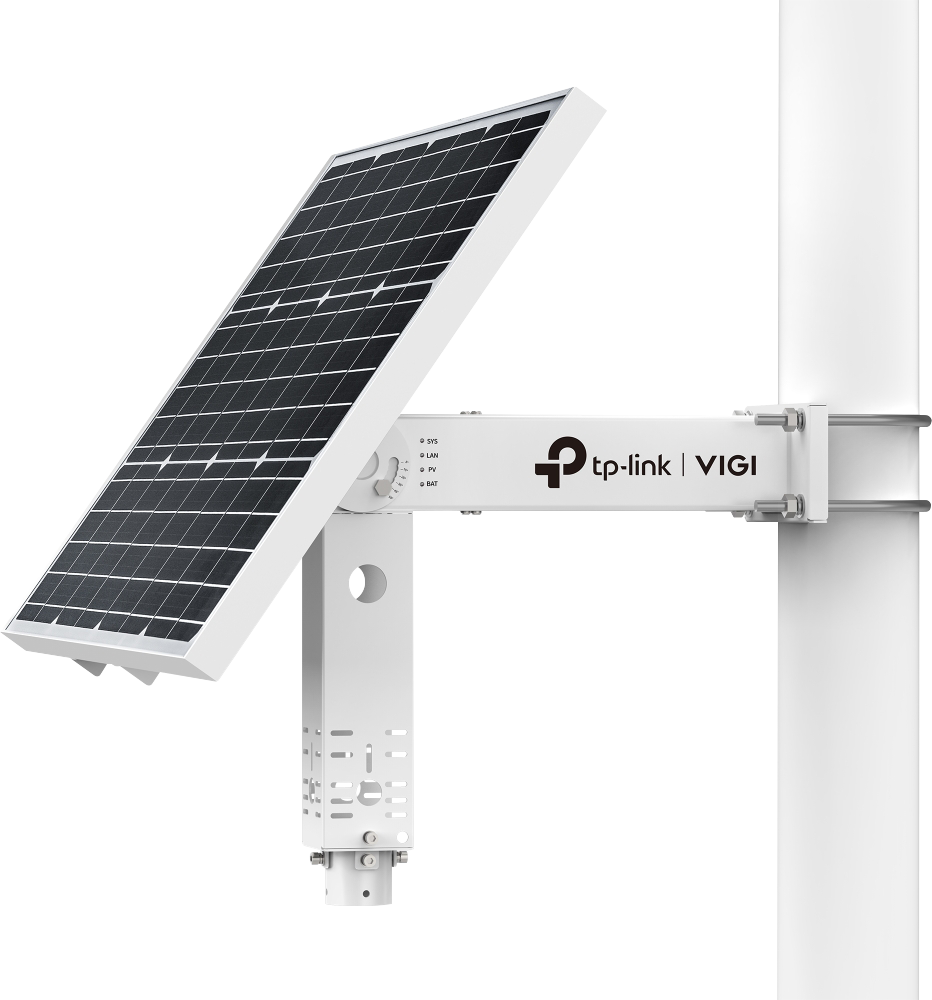

VIGI Intelligent Solar Power Supply System

60W Photovoltaic Panel and31.2Ah/10.8VLithiumBattery
3× DC Voltage Output Ports
Modular Design
5°/15°/25°/35°/45°/55° Adjustable Angles
Intelligent Auxiliary Heating Technology
Maximum Power Point Tracking (MPPT) Charging Controller
IP66 Weatherproof
Remote Management and Simple Installation

Please note: Cameras are not included with the SP6030 System.

{tab Specifications}

Specifications

Solar Panel (Photovoltaic Panel)
Power	60 W
Voltage	18 V

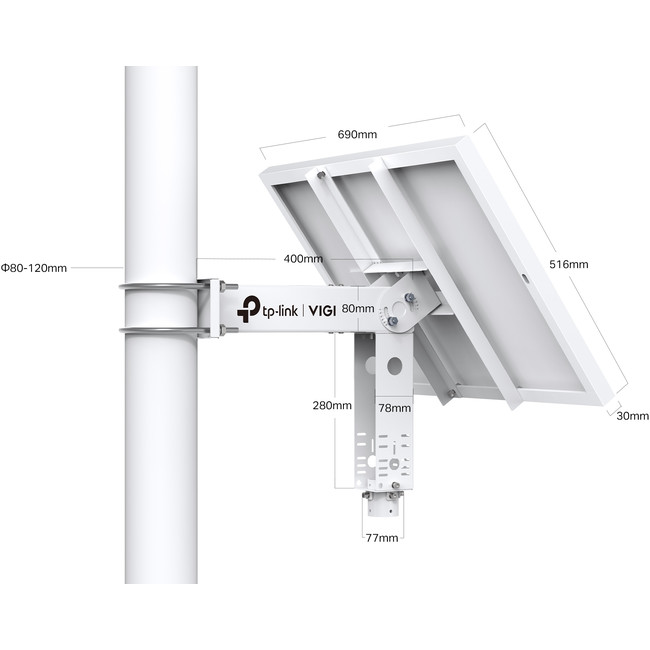

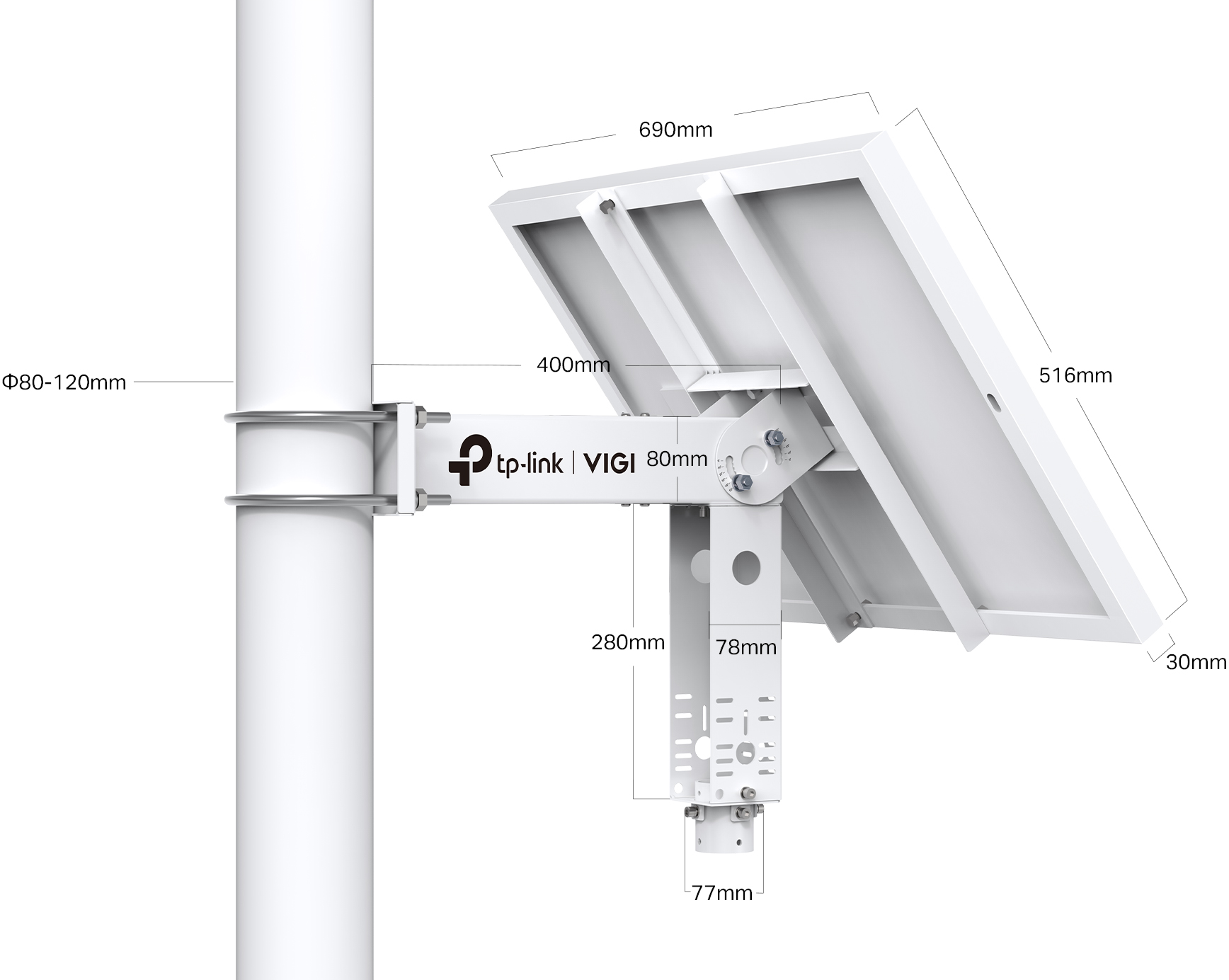

Dimensions (L x W x H)	690×516×30 mm (27.2×20.3×1.2 in)

Battery
Type	Lithium
Intelligent Auxiliary Heat	Yes
Battery Capacity	31.2 Ah
Voltage	10.8 V
Max. Output Voltage	12.6 V
Life	More than 500 cycles
Dimension	242×70×65 mm (9.5×2.8×2.6 in)
Charging Condition	• 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition	• -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating)

Angle Adjustment (Manual)
Range	5°/15°/25°/35°/45°/55°

HARDWARE
Interface	• 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED	• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue

SOFTWARE FEATURES
Load Control	Yes
High and Low Temperature Protection	Yes
Overdischarge Protection	Yes
Power Consumption Statistics	Yes
Displays Real-time Load Status	Yes
Battery Level Display	Yes
Time Zone Selection	Yes
Region Selection	Yes
Schedule Saving	Yes
Firmware Remote Update	Yes
Remote Reboot	Yes
Local LAN Management	Yes
Smart Charging Control	-30°C~5°C
Account Management	Yes
Web Management	Yes
Remote Reset	Yes
Remote Message Push	Yes

OTHERS
Certification	• CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66
Package Contents	• VIGI SP6030 • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Box Dimensions (W X D X H)	800×615×225 mm (31.5×24.2×8.9 in)
Weight	• Product Weight: 14 kg • Package Weight: 15.5 kg
Environment	• Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing

{tab Typical Combinations}

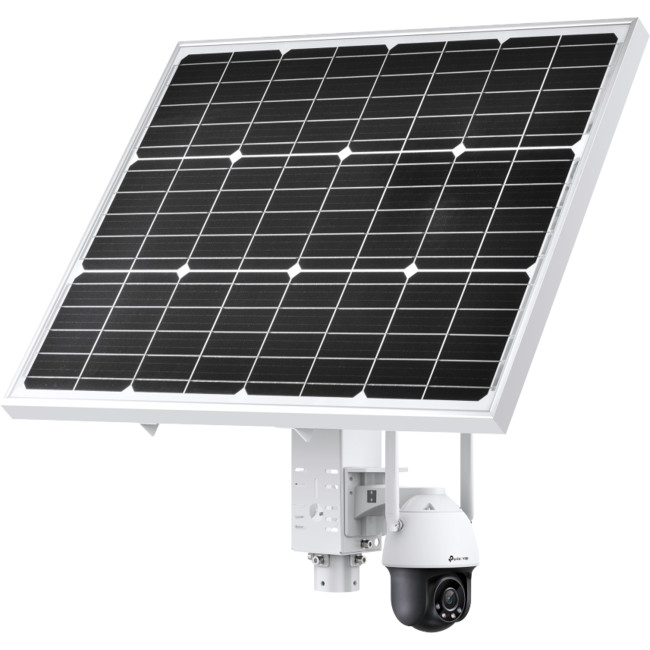

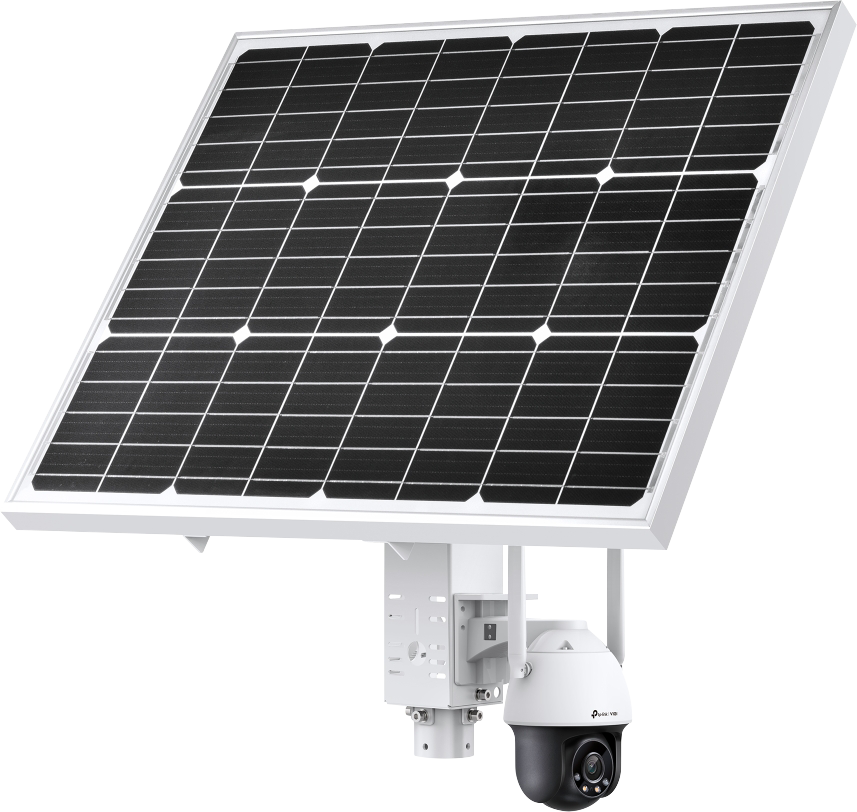

VIGI SP6030 +4G camera

Recommended model: VIGI C540-4G × 1

Working hours on consecutive rainy days: 6.4 days
On-load charge on sunny days: 2.7 days

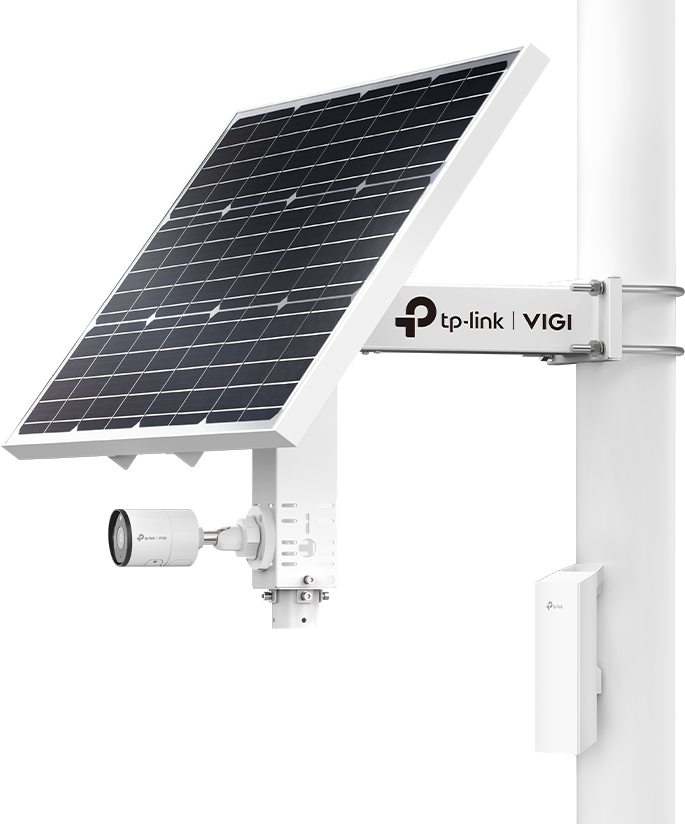

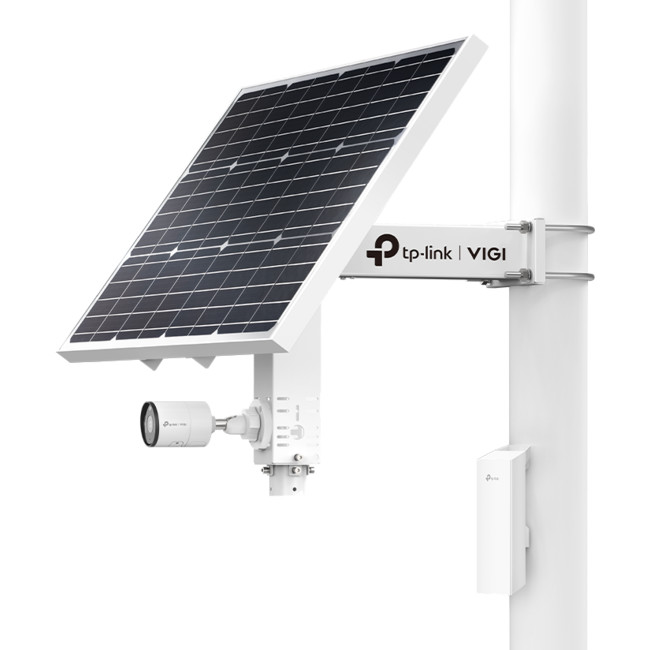

VIGI SP6030 + Wireless Bridge + Bullet Camera

Recommended models

VIGI C345 × 1 & EAP115-bridge kit × 1

Working hours on consecutive rainy days: 3.6 days
On-load charge on sunny days: 4 days

{/tabs}

{tab Downloads}

Assets
