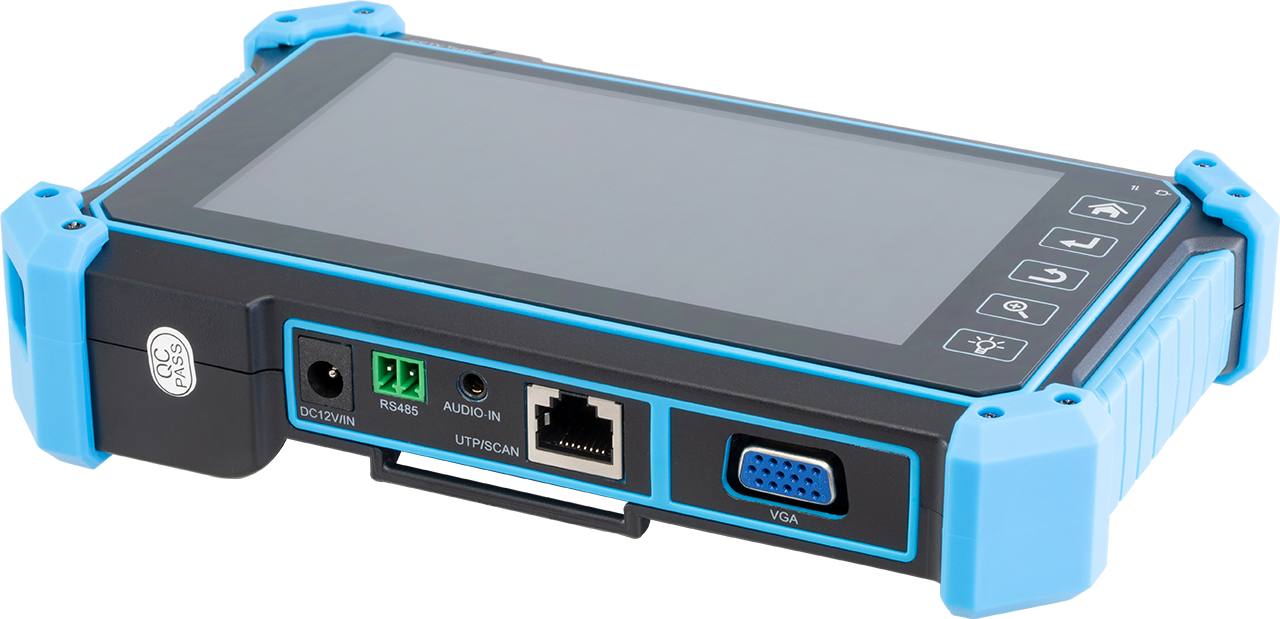

The new T540 tester is designed for CCTV system installation and maintenance. The 5.4 inch IPS touch screen is the perfect size to have in your toolbox. It helps to set up the IP and analog coaxial cameras, HD, or Non-HD cameras, as well as other security equipment. With all the tools built-in to the unit, you can troubleshoot the network issues, cabling, and more.
**Note: TDR cable testing is only the basic feature, it is only for RJ45 cable and it has a higher deviation than others, also no calibration. The TDR test results will be not accurate or mixed when testing the short RJ45 cables. The tester is suggested to test the RJ45 cable over 10m in length.
LCD | Item series | T540 |
Display | New 5.4 inch IPS touch screen, 1920x1080 resolution |
Video Mode | CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) |
PTZ control,RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc |
IP camera test
4k/H.265/H.264 | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK |
Rapid Video | Auto view the video, create testing report |
HIKVISION test tool | support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly changeH.264 and H.265 video, open wide dynamic mode. Factory restore, etc. |
DAHUA test tool | support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name. |
HD Coaxial test | 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu |
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / callOSD menu |
8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu |
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu |

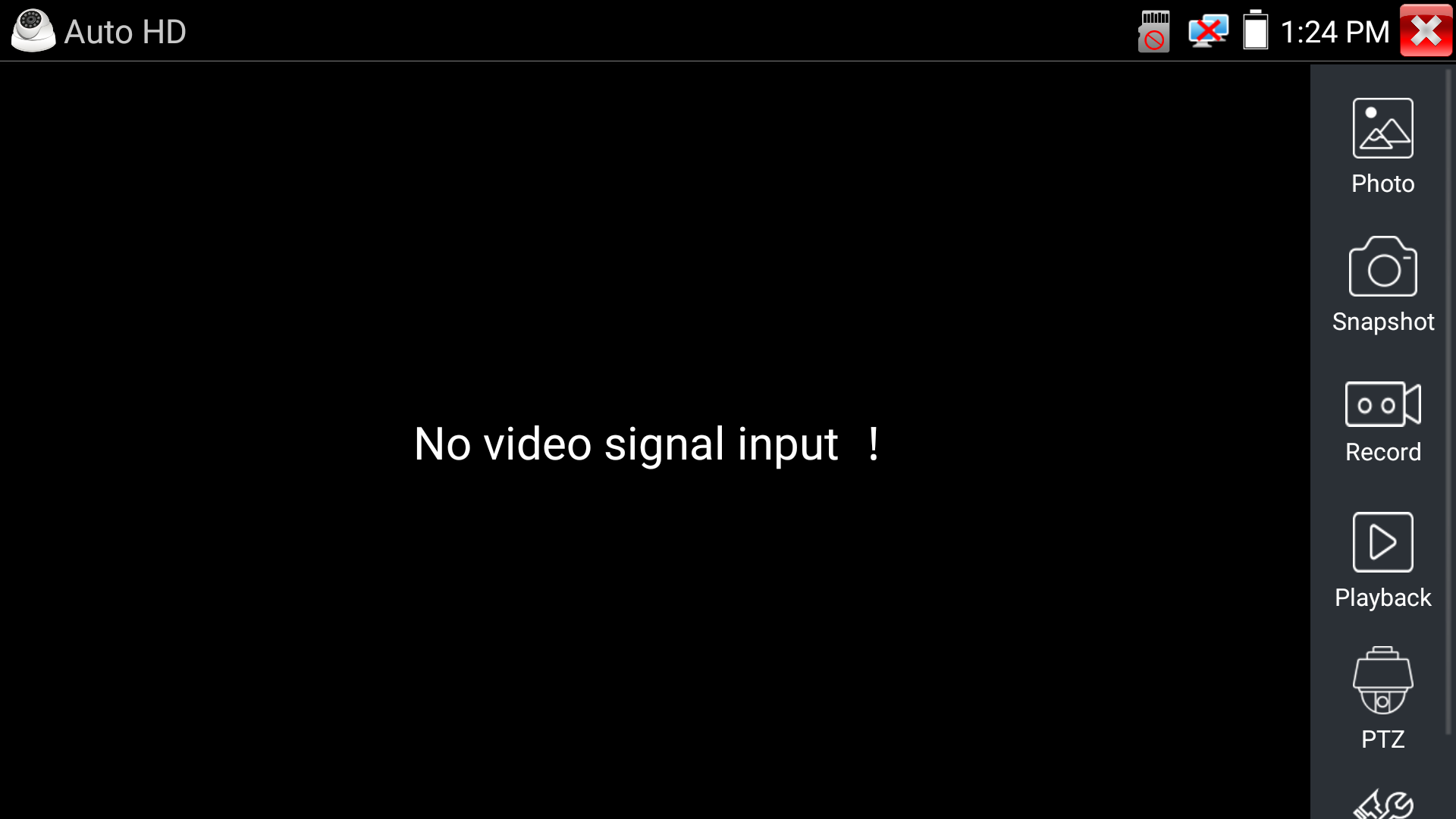

Auto HD app,auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ& call OSD menu |
HDMI input | 1 channel HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
VGA input | 1 channel VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS. |
Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back |
Power output | 12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera |
PoE power output | 48V PoE power output, max power 25.5W |
Cable test | | |
UTP cable test | Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. |
RJ45 TDR cable test | Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M. |
Tester Play | screen projection:Tester, mobile phone and PC display at the same time (For android version mobile phone) |
Network test | Trace route,Link monitor, DHCP server, port flashing, Ping test |
Wi-Fi | Built in WIFI, speeds 150M, display wireless camera image |
Audio test | 1 channel audio signal input, test whether sound normal. |
Power management | Display DC 12V input & output voltage and power in real time |
Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
External power supply | DC 12V 1A |
Battery | Built-in 7.4V Li-ion battery, 3350mAh |
Rechargeable | After charging 3-4 hours, normal working time 6 hours |
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese,Deutsch,Turkish,Portuguese, Czech etc |
Auto off | 1-30 (mins) |
Working Temperature | -10°C--- 50°C |
Working Humidity | 30%-90% |
Dimension/Weight | 183mm x 110mm x 36.5mm /0.32kg |
