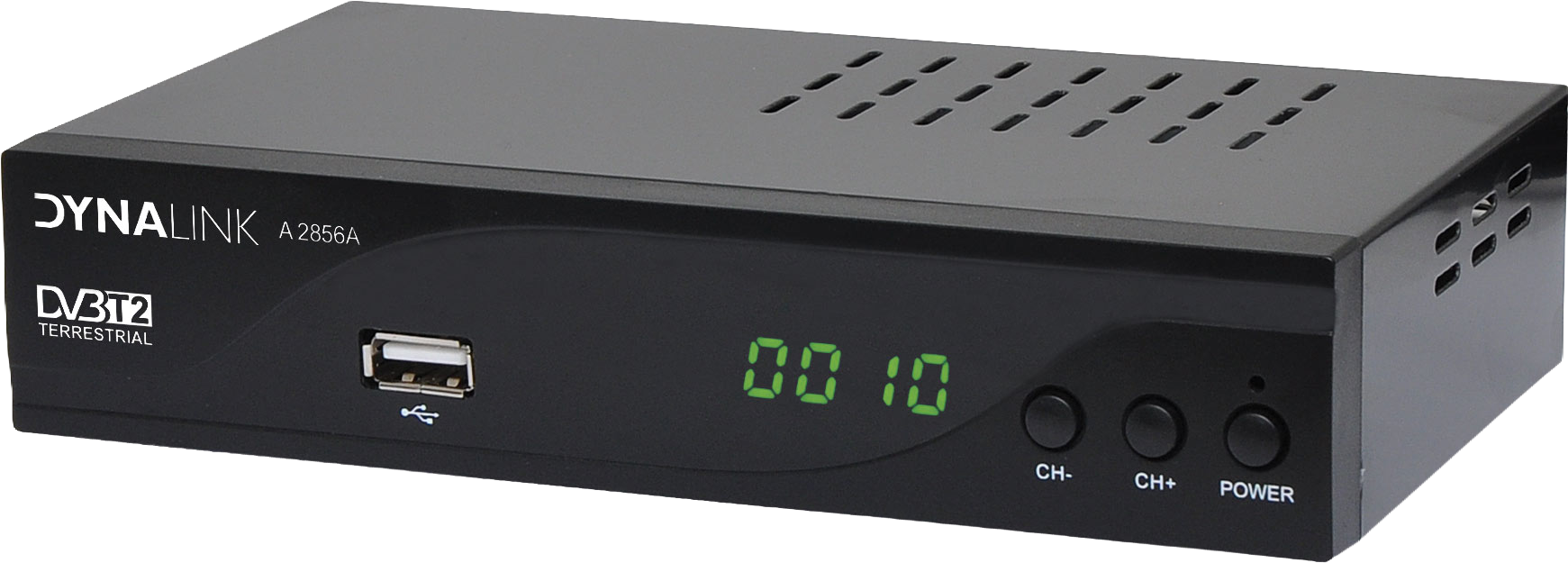

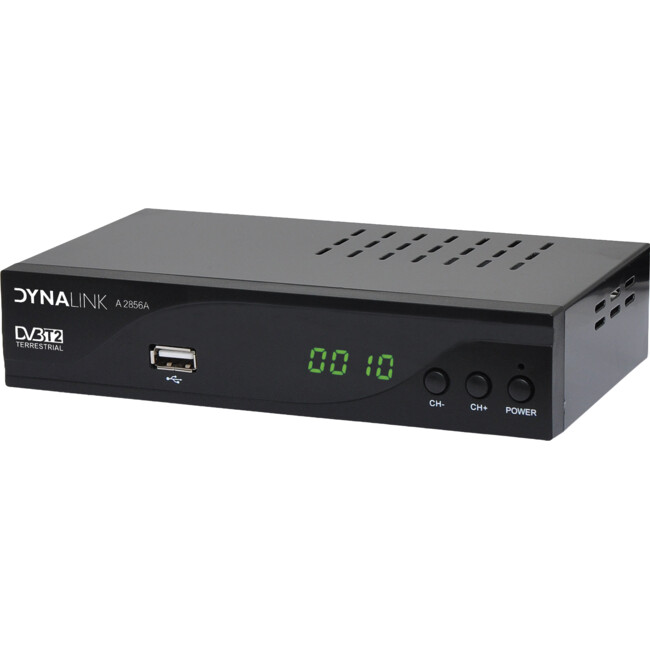

A2856A HD DIGITAL TERRESTRIAL SET TOP BOX

HD Digital Terrestrial Set Top Box with PVR Function

This HD set top box features composite and HDMI outputs for HD televisions or connection to a PC monitor or projector. Powered 240V mains. USB connection allows recording direct to a USB stick, plus playback of photo slideshows. Includes 2 x AAA batteries for remote.

• USB PVR ready for recording
• MPEG-4 AVC/H.264 HP@L4
• Favourite service list editing
• Parental lock facility
• Supports teletext
• IR remote control
• Fully DVB-T compliant
• HDMI cable included
• HDMI and composite outputs
• 7-day electronic program guide (EPG)
• Multi-language subtitle output supported

Specifications

• Input Frequency: VHF: 170-230MHz, UHF: 470-860MHz
• RF Input Level: -78 ~ - 20dBm
• RF Bandwidth: 7MHz and 8MHz
• Modulation: QPSK, 16QAM, 64QAM, 256QAM

Video

• Decoder Format: MPEG4 AVC/H.264 HP@L4, MPEG2 MP@MP.HL
• Output Format: 480i/480p/576i/576p/720p/1080i/1080p

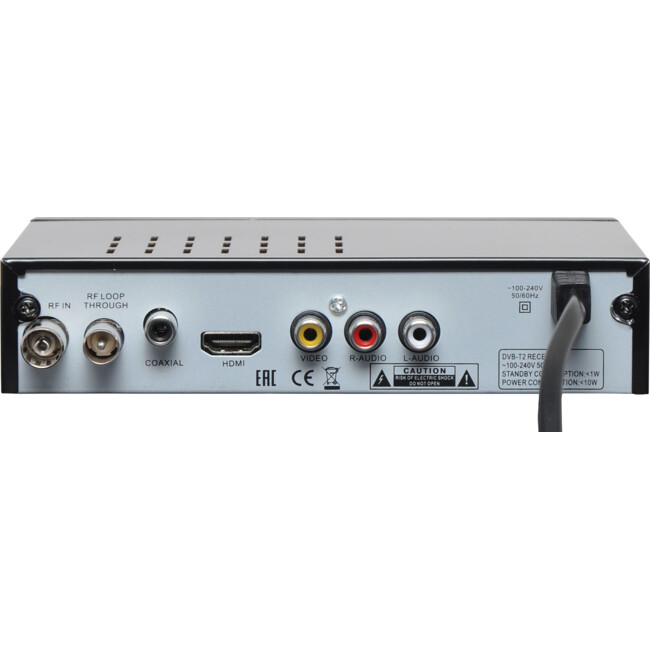

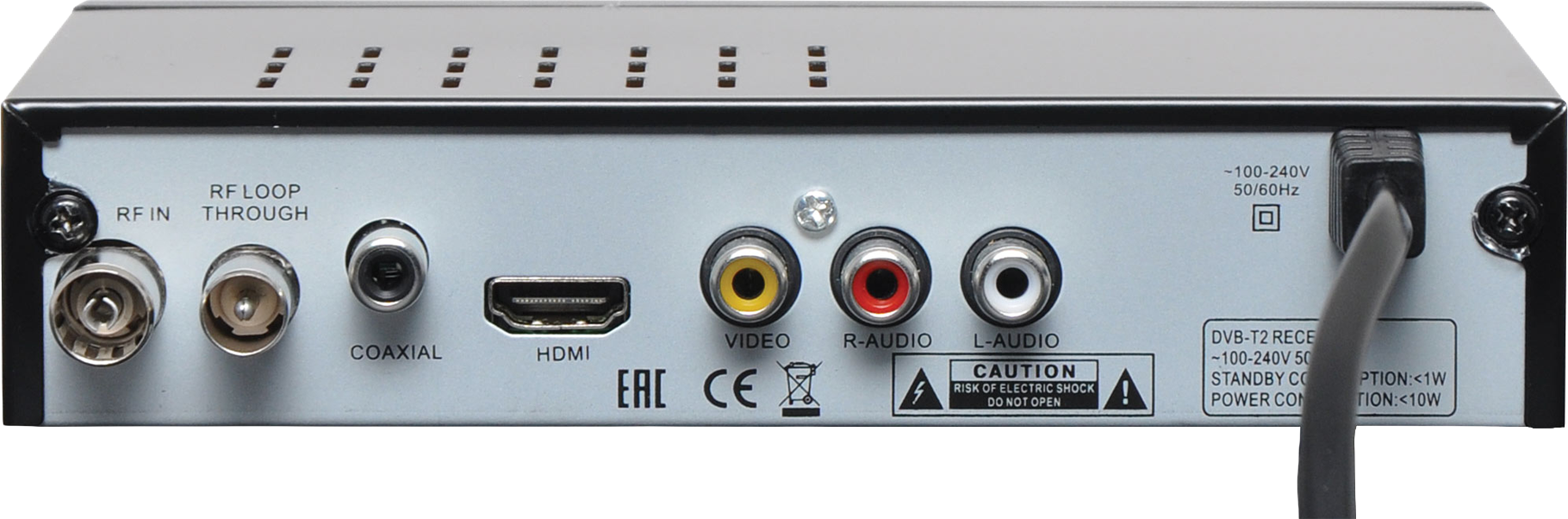

• Output Port: HDMI, CVBS (Composite)

Audio

• Decoder Format: MPEG-1 (layer 1,2,3), WMA, AC3
• Audio Output: Coaxial, Stereo RCA, HDMI

USB 2.0

• Supported Capacity: 500GB
• Supported Media: MP3, WMA, JPEG, BMP, AVI, MKV

Power

• Supply Voltage: 220-240V ~ 50/60Hz
• Power Consumption (Maximum): <10W
• Power Consumption (Standby): <1W
• Remote control batteries: 2 x AAA (included)

Dimensions:

• 168W x 37H x 106Dmm

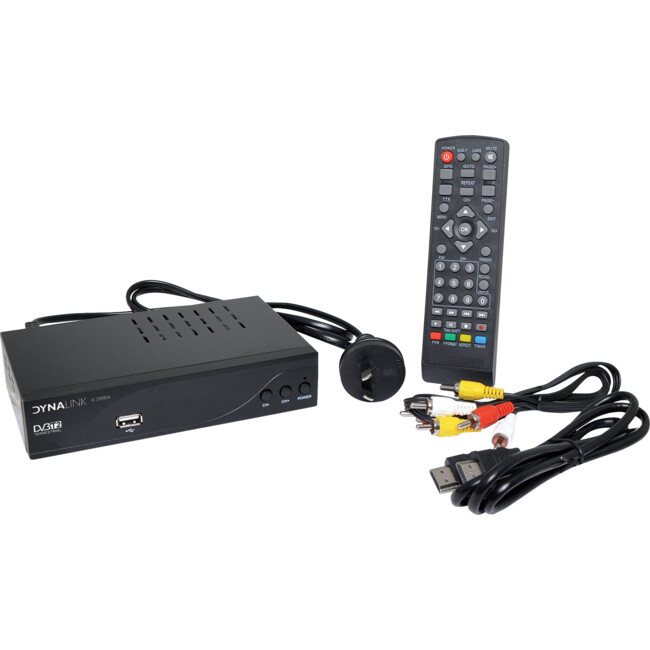

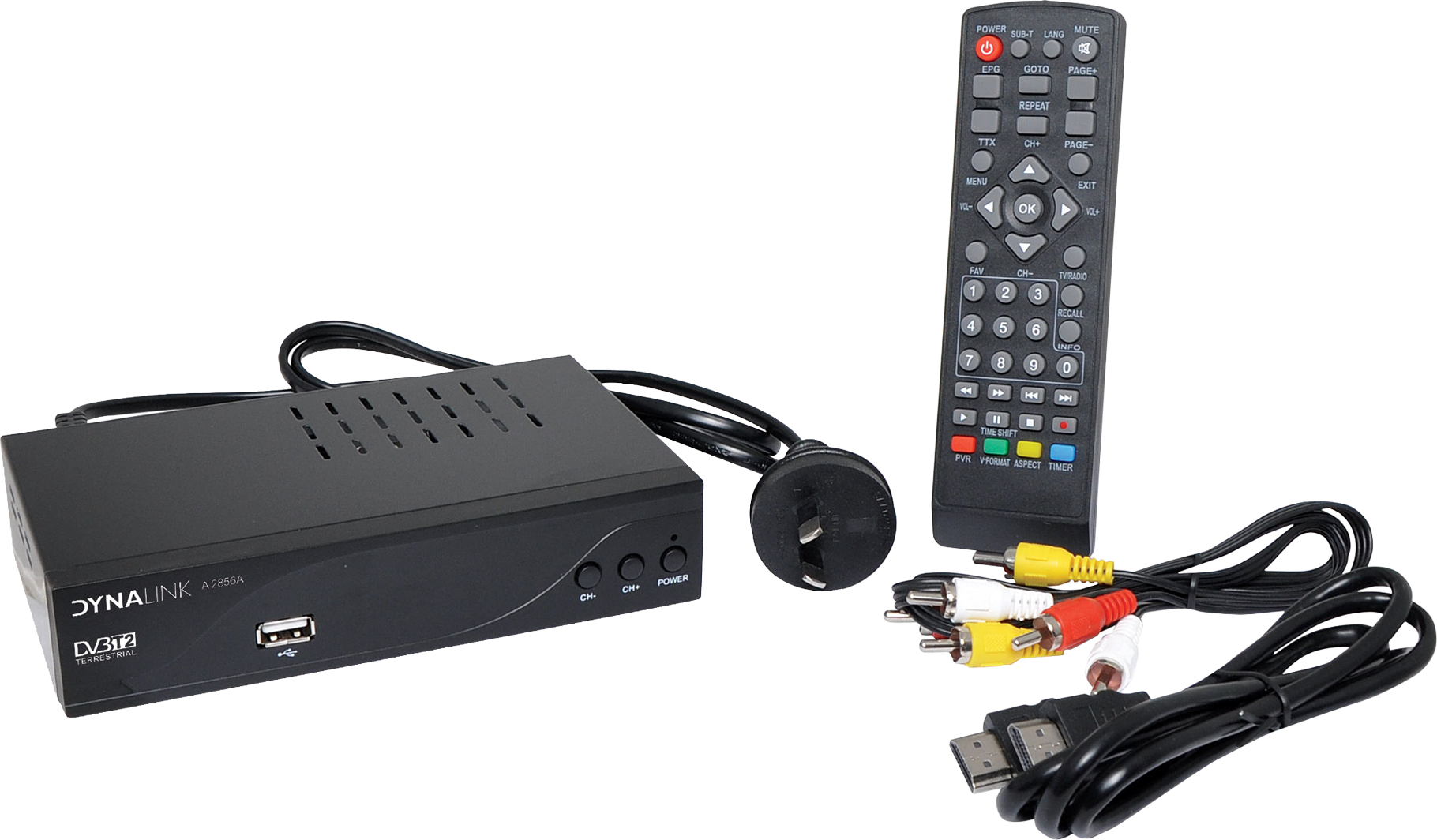

In the Box:

• Set top box
• Remote (2 x AAA batteries included)
• Instruction manual
• HDMI cable
• AV RCA cable
