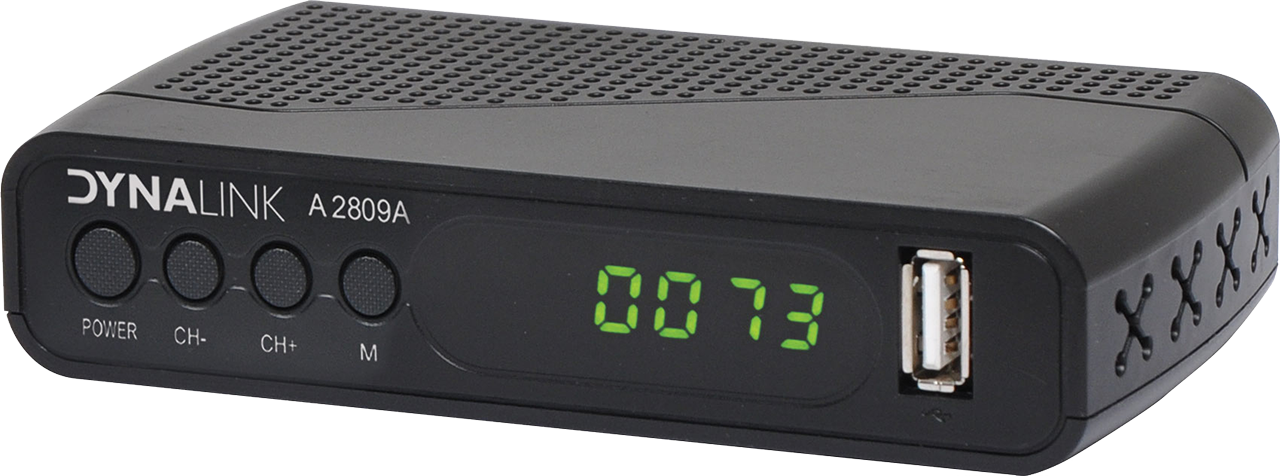

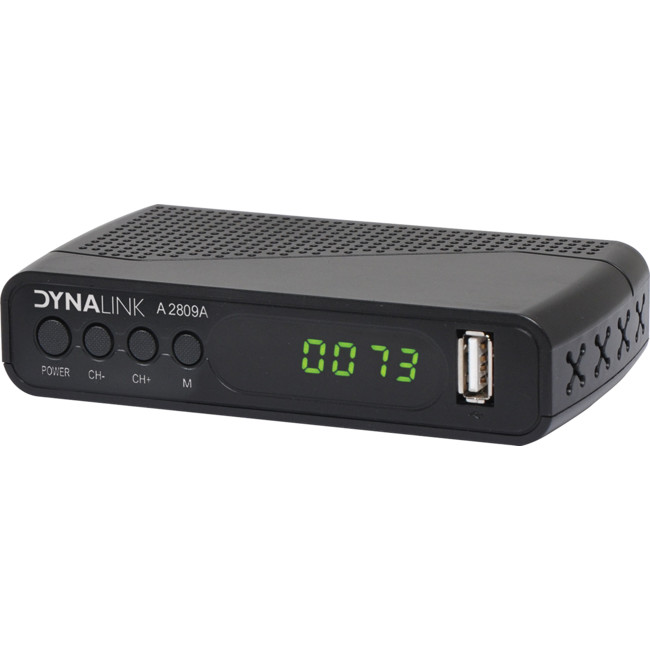

A2809A HD DIGITAL TERRESTRIAL STB 12V

HD Digital Terrestrial 12V Set Top Box

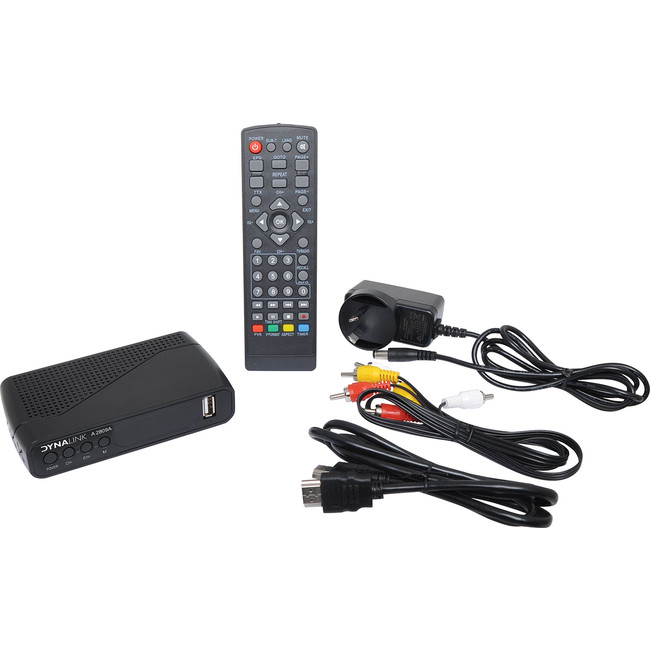

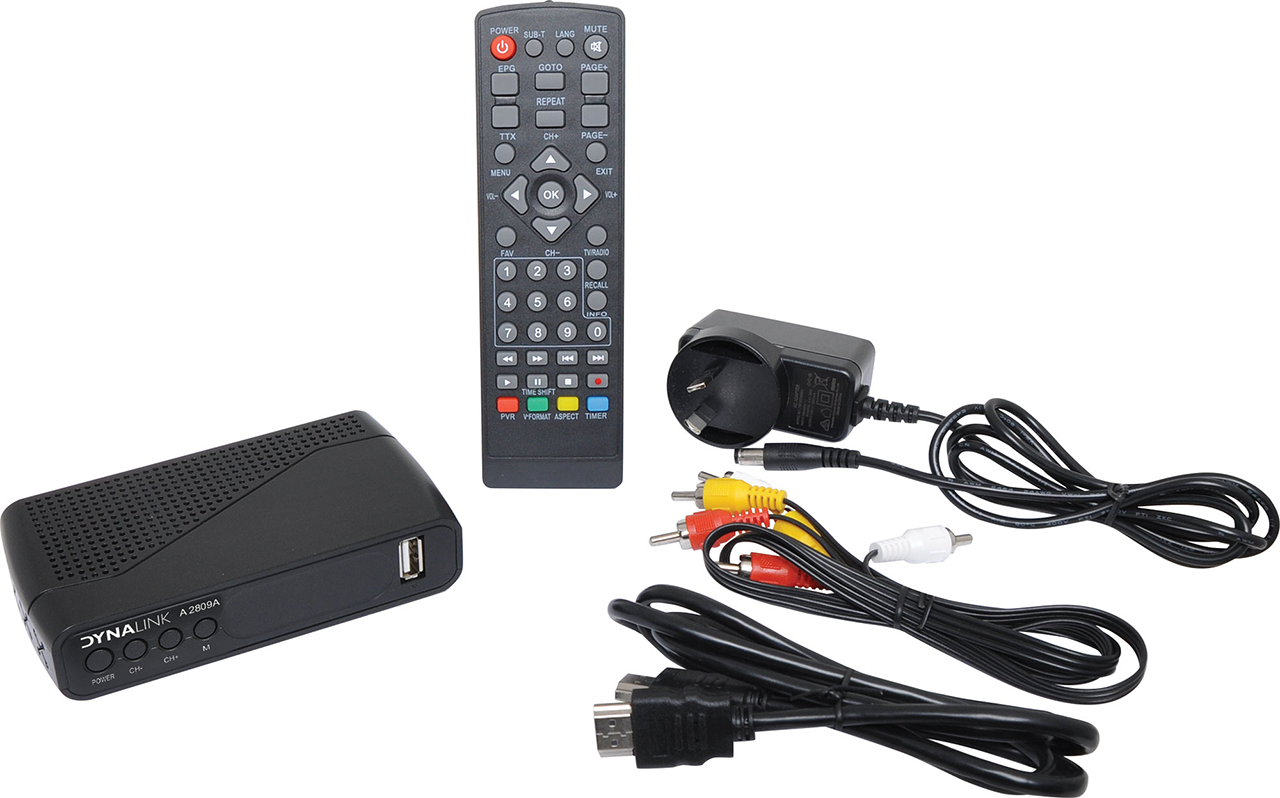

This 12V DC Powered HD set top box is great for caravans,RVs and vehicles. Incredibly compact, under 12cm wide! This DVB-T Terrestrial digital TV receiver features composite andHDMI outputs for HD televisions or connection to a PC monitor or projector. Runs off a 12V power source making it perfect for use in cars, 4WDs, caravans and boats. USB connection allows recording direct to a USB stick, plus playback of photo slideshows. Plugpack also included for 240V?operation. Includes 2xAAA batteries for remote control.

Features

• Fully DVB-T compliant
• USB PVR ready for recording
• MPEG-4 AVC/H.264 HP@L4
• HDMI cable included
• Parental lock facility
• Supports teletext
• IR remote control
• 240V plugpack included

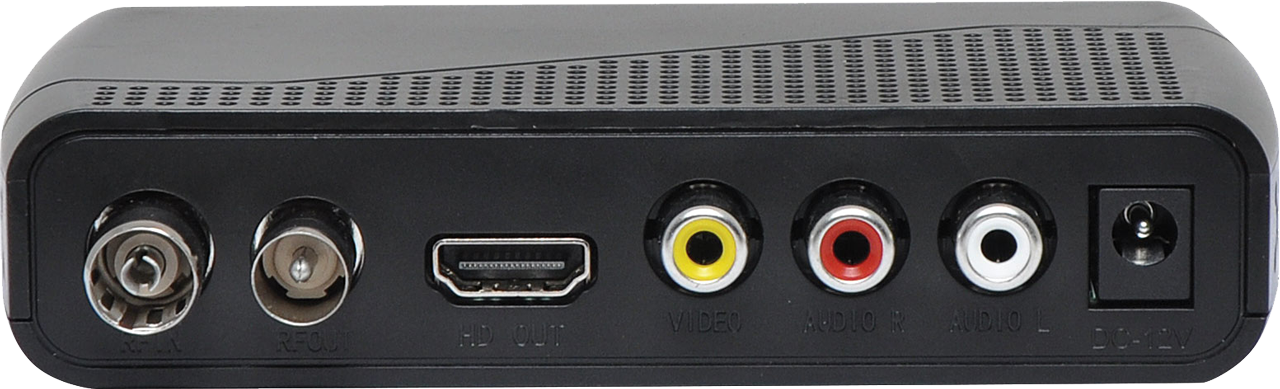

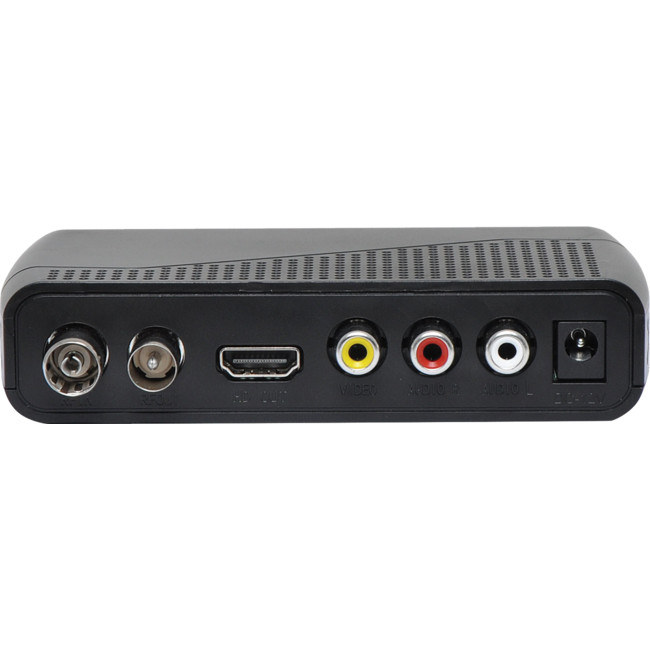

• HDMI and composite outputs
• 7-day electronic program guide (EPG)
• Multi-language subtitle output supported
• 12V DC operation suitable for use in vehicle

Specifications

• Tuner
• Input Frequency: VHF: 170-230MHz, UHF: 470-860MHz
• RF Input Level: -78 ~ - 20dBm
• RF Bandwidth: 7MHz and 8MHz
• Modulation: QPSK, 16QAM, 64QAM, 256QAM

• Video
• Decoder Format: MPEG4 AVC/H.264 HP@L4, MPEG2 MP@MP.HL
• Output Format: 480i/480p/576i/576p/720p/1080i/1080p
• Output Port: HDMI, CVBS (Composite)

• Audio
• Decoder Format: MPEG-1 (layer 1,2,3), WMA, AC3
• Audio Output: Stereo RCA, HDMI

• USB 2.0
• Supported Capacity: 500GB
• Supported Media: MP3, WMA, JPEG, BMP, AVI, MKV

• Power
• Supply Voltage: 12V DC
• Power Consumption (Maximum): <10W
• Power Consumption (Standby): <1W
• Remote control batteries: 2 x AAA (included)

• Dimensions:
• 125W x 28H x 77Dmm
