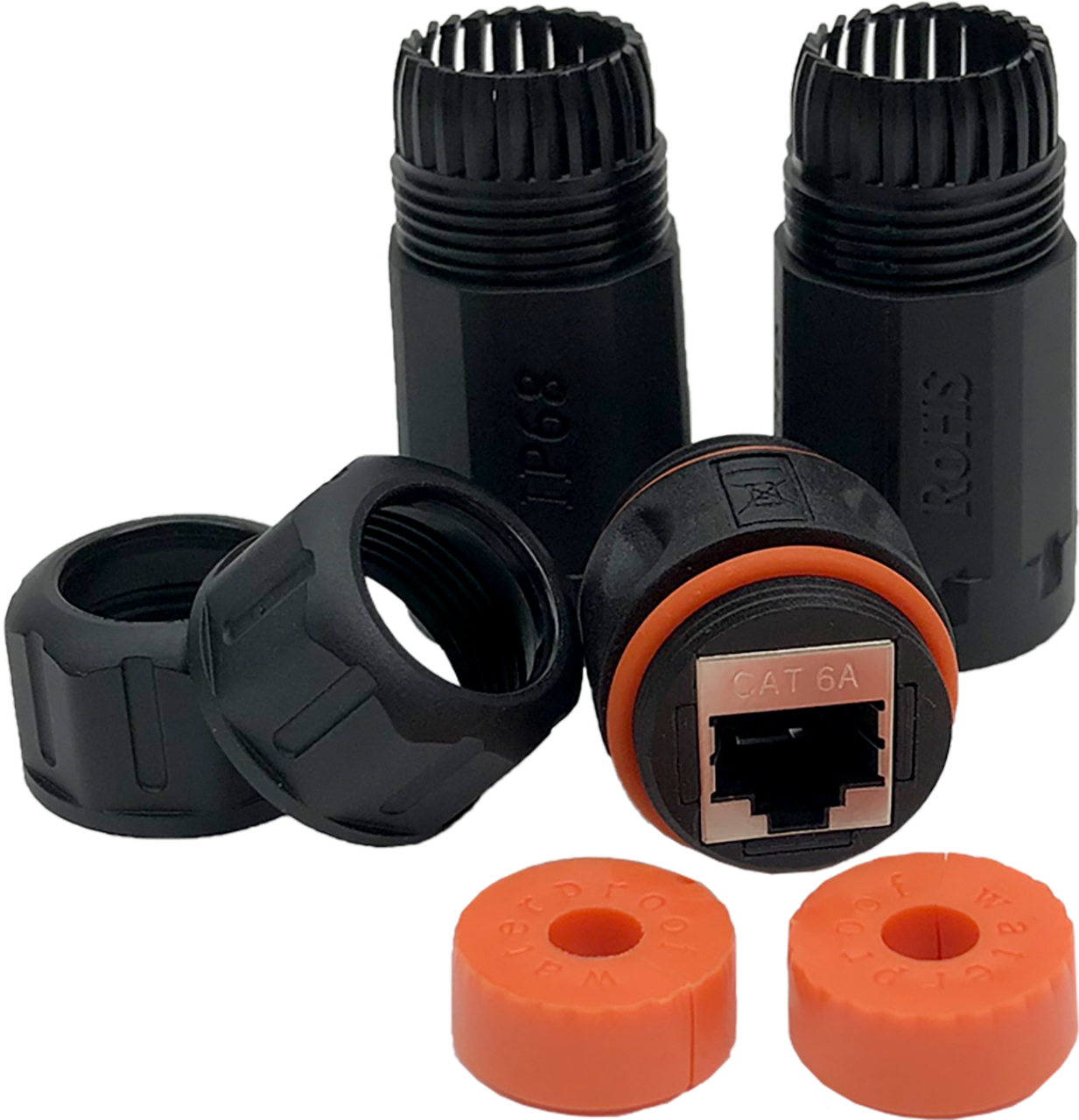

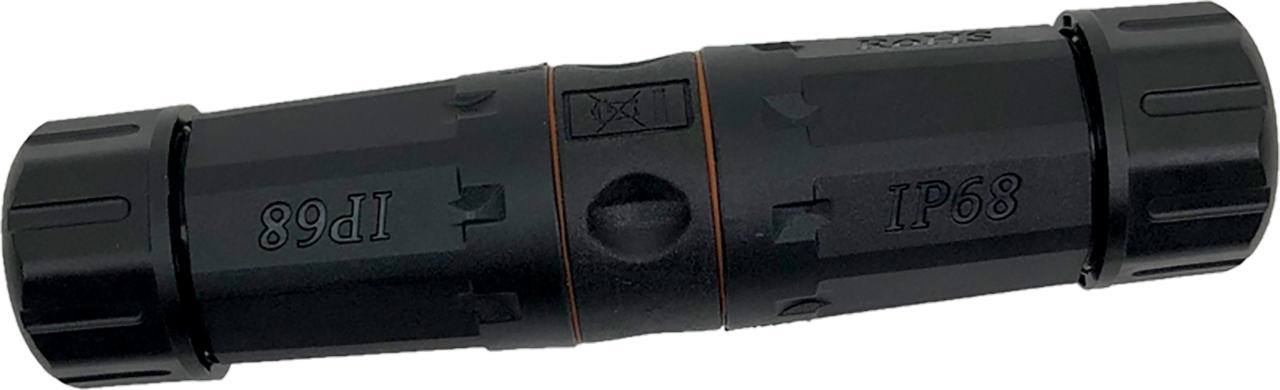

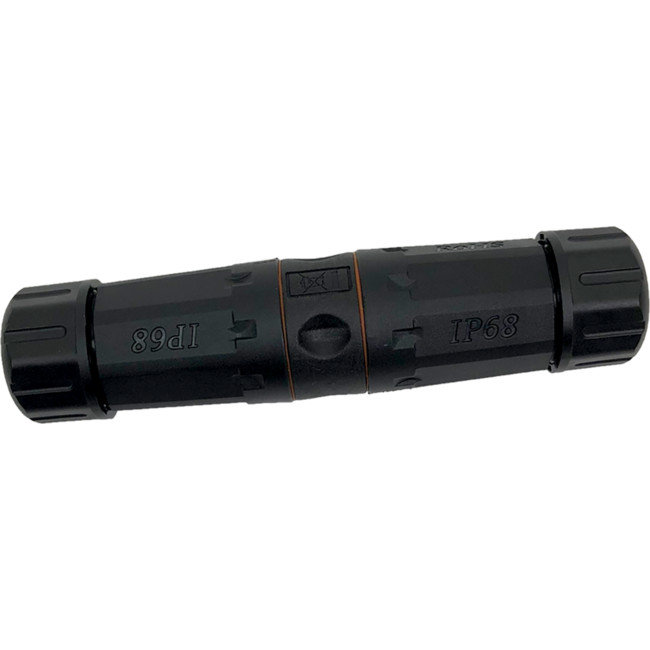

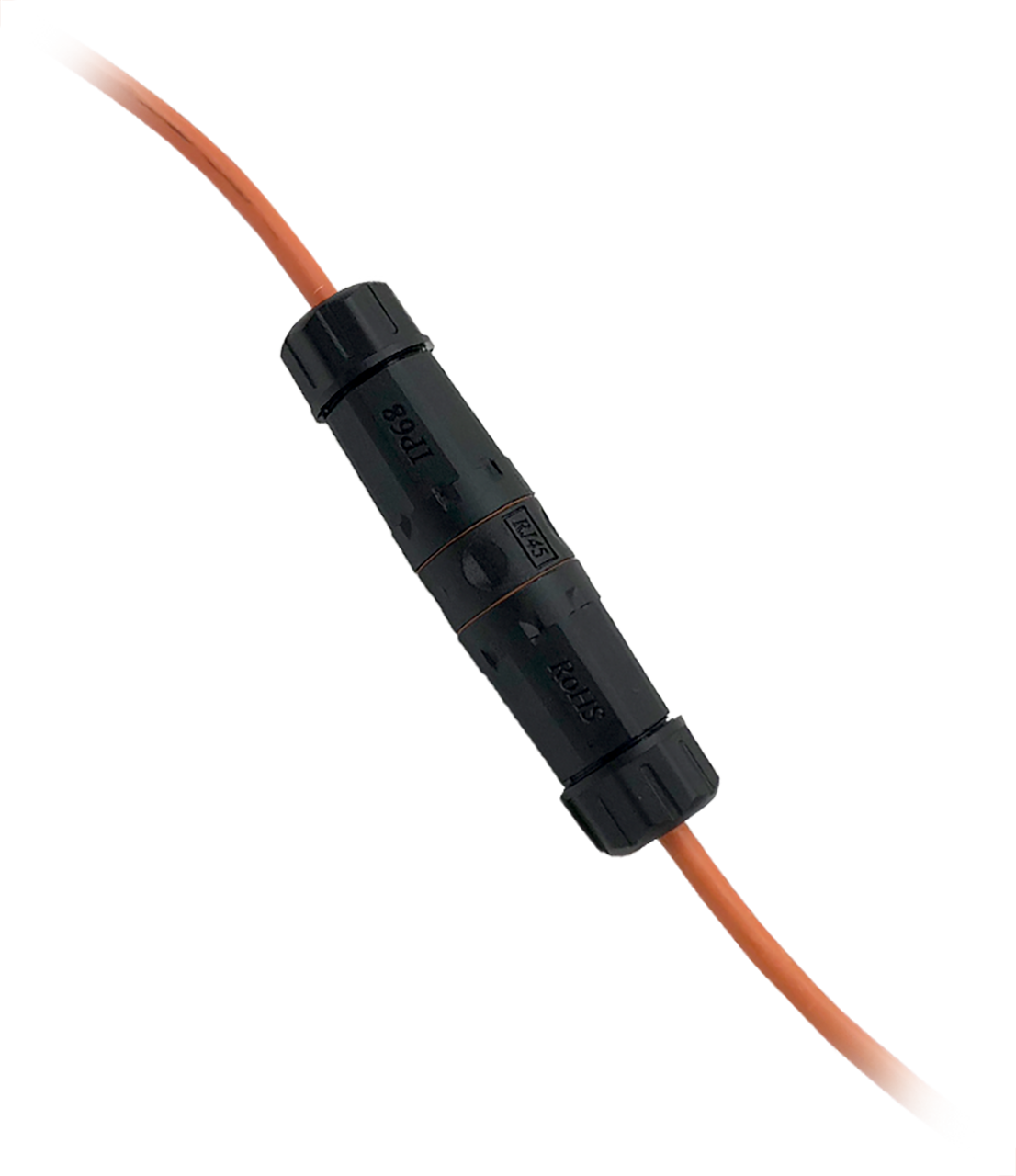

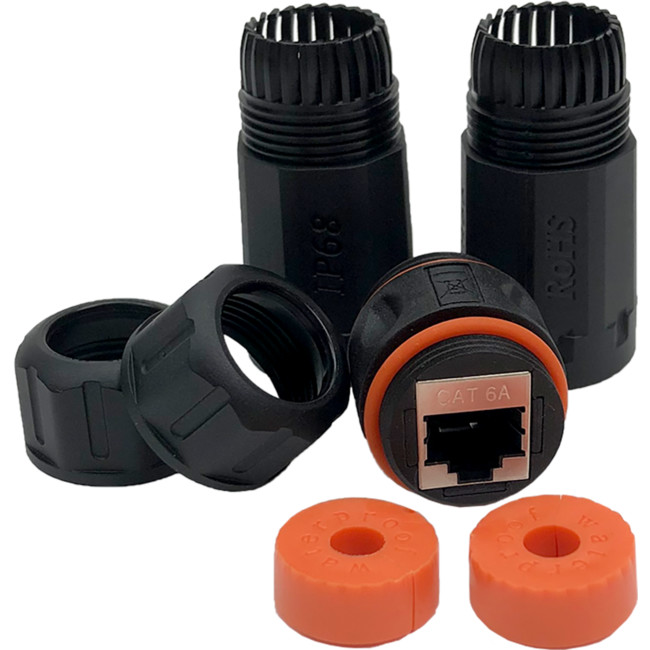

WPCAT6J CAT6A WATERPROOF RJ45 JOINER

IP68 INLINE COUPLER

Code: 43075014

0.0550 kg
9328202032805
EACH
200
In Stock
TRADE ALERT!
$15.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

  • Cat6 or Cat6A RJ45 inline coupler joins two premade patch leads together
  • Easy to assemble
  • IP68 waterproof rating

Specifications

  • Voltage rating: 125VAC RMS
  • Current rating: 1.5Amp
  • Contact resistance: 100 milliohms Max
  • Insulation resistance: 1000 Megohms Min @500VDC
  • Dielectric strength: 750 VAC RMS 60Hz, 1 Min
  • Storage: -40°C to 85°C
  • Operation: 0°C to 70°C
  • Housing material: PA66
  • Insert material: Flame Retardancy PBT
  • PCB material: FR-4 T=1.6mm
  • RJ45 jack contact: Phosphor bronze with nickel plating gold plated 50U
  • RJ45 jack life: 750 times minimum
  • Waterproof grade: IP68
  • Cable OD: 5-7.5mm
