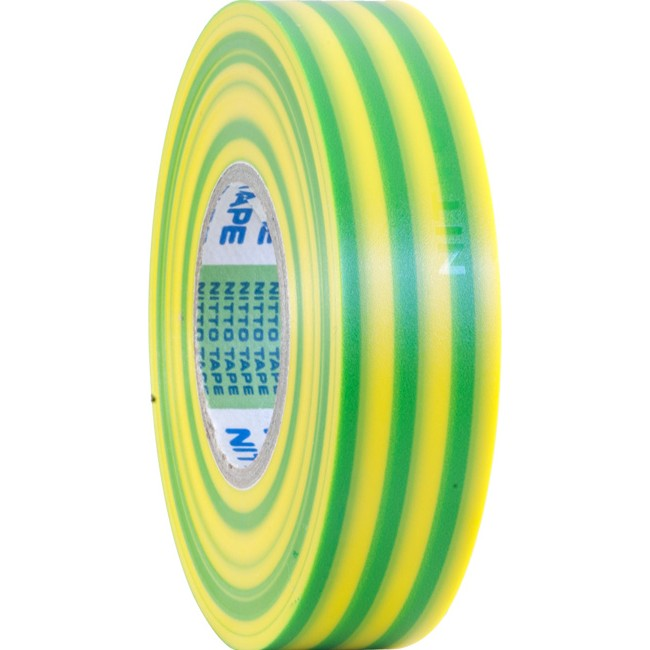

Vinyl Tape for Electrical Insulation No.201N/No.201 - NITTO DENKO
Environment-friendly, lead-free type vinyl tape for electrical insulation.
New materials are constantly being developed to advance the electric/electronics industry. Nitto Denko’s products are in use across the electric/electronics industry, from home appliances and AV equipment to information equipment and electronic devices/components.
20 Metre Rolls of very high quality, flexible PVC tape with uniform adhesive coating.
FEATURES:
- Offers excellent electrical insulation. Properties do not deteriorate after using, so it continues to provide reliable insulation.
- Has minimal flagging, and offers reliability for wiring.
- Easily cut by hand.
- Excellent in low-temperature resistance and perfectly fits as adhesive strength does not deteriorate even in -10°C.
- Superior initial adhesion.
- Convenient for color coding of wiring with 8 color variation.
- Individually wrapped.
Applications
- For wiring work.
- For identifying wiring
- For electrical insulation in machine work.
SPECIFICATIONS:
| Property | Unit | JIS C 2336 | No.21N | No.21 |
Adhesive strength
(to stainless steel plate) | N/10mm width | 0.5 and over | 1.81 |
Tensile
strength | 15 and over | 31.3 | 35.9 |
| Elongation | [%] | 100 and over | 180 | 215 |
Dielectric breakdown voltage/
Ordinary state | kV/mm | 25 and over | 61.2 |
Standard sizes:
| Thickness [mm] | Width [mm] | Length [m] | Color |
| 0.2 | 19 | 20 | Transparent, red, blue,green, yellow, white, black, gray & yellow/green. |
