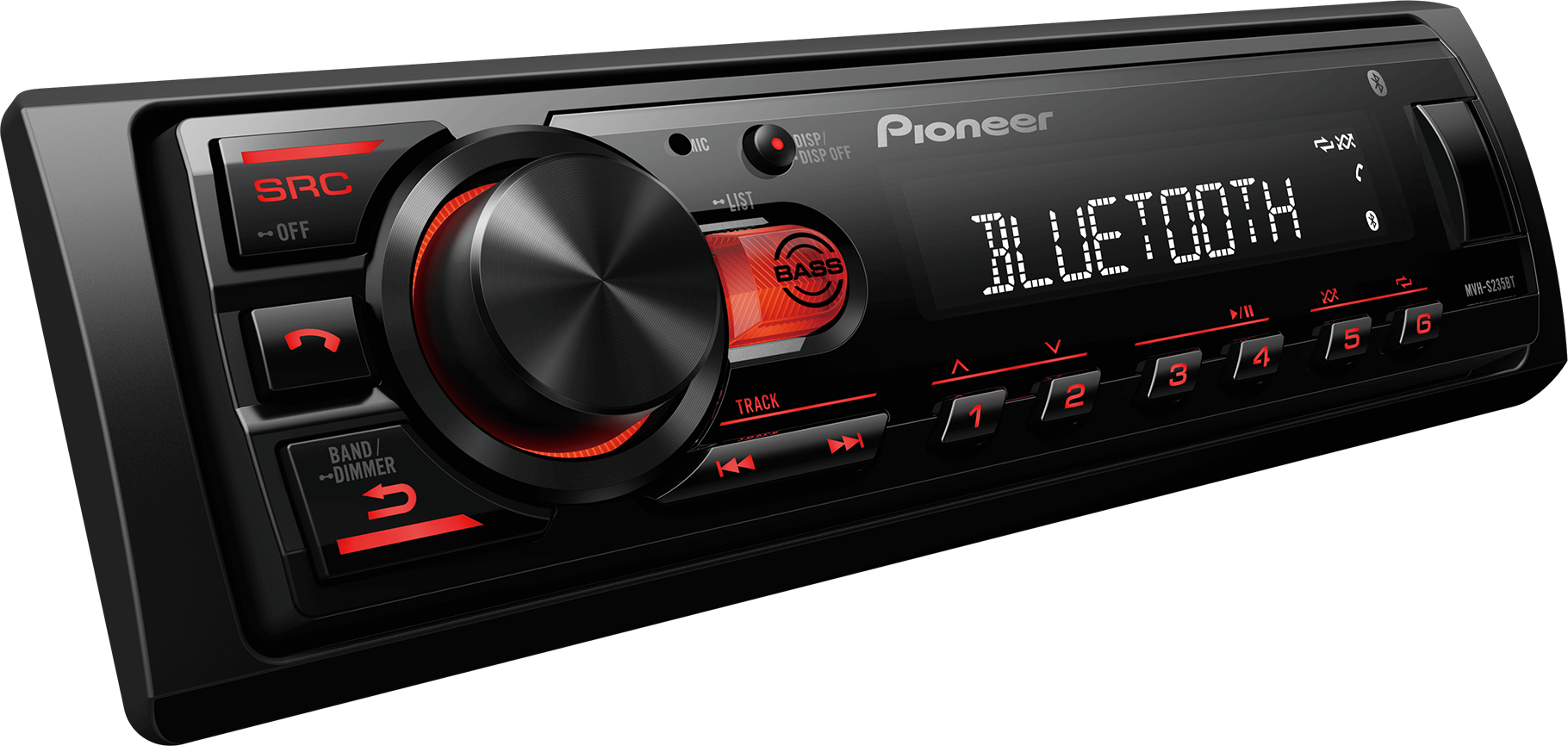

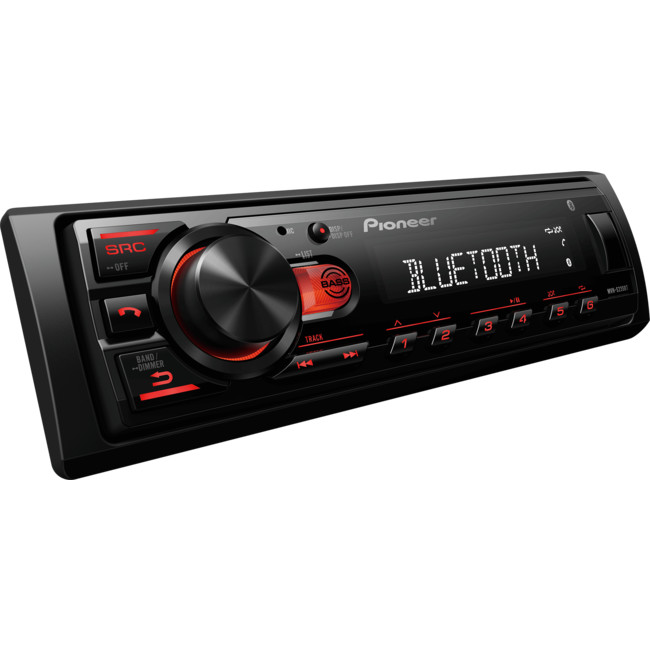

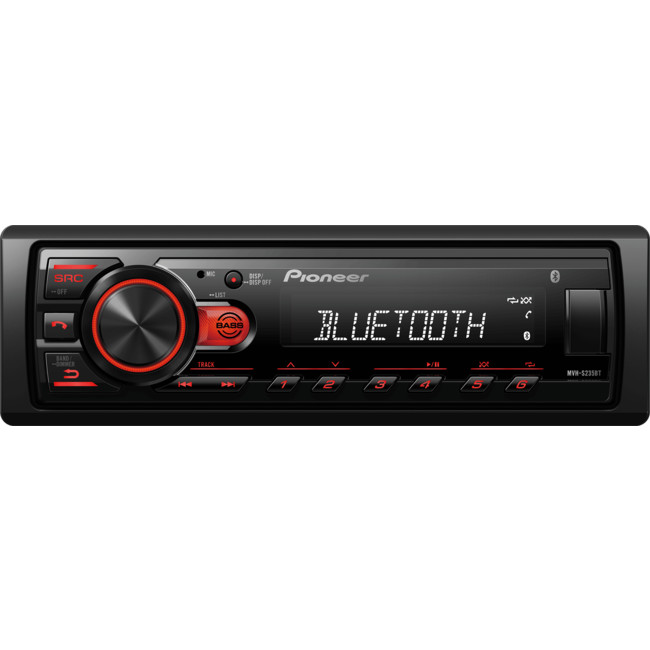

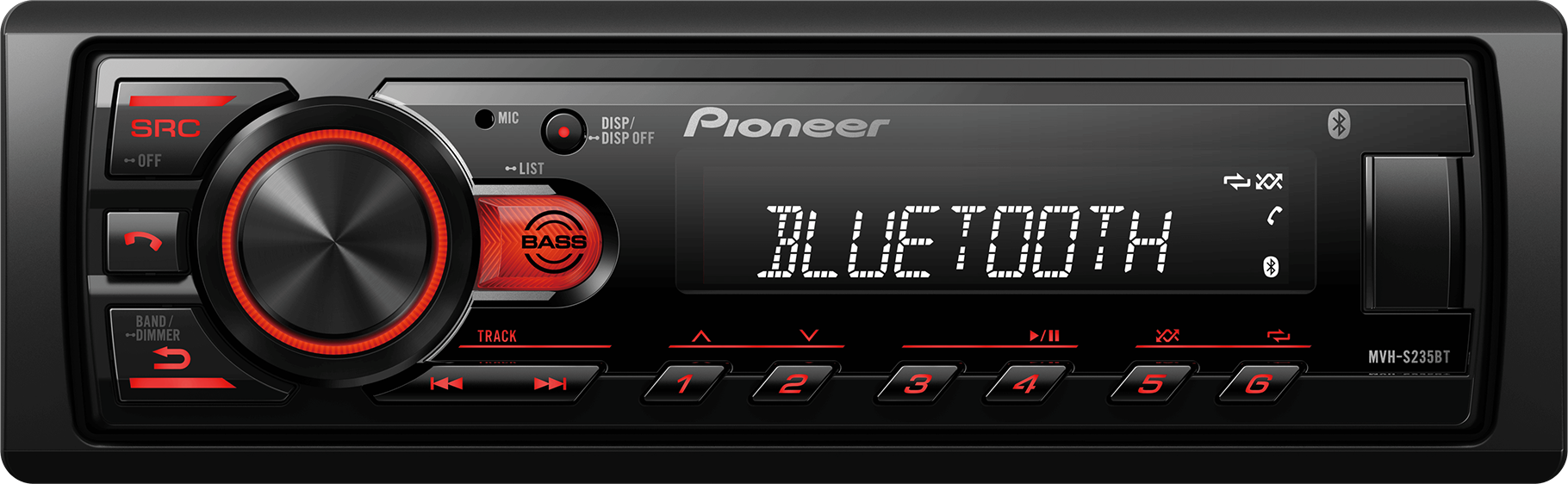

MVHS235BT MEDIA TUNER BLUETOOTH - PIONEER
The MVH-S235BT lets you enjoy hands-free calling and audio streaming in the car, courtesy of built-in Bluetooth® with internal mic. Other entertainment options include a front USB input and AM/FM radio.
Receive amazing sound from the MVH-S235BT’s built-in amplifier with 4 x 50W of pure MOSFET power. For even more power, you can use the 2 x RCA pre-outs to hook up amplifiers to provide additional power for front and rear speakers or front speakers and a subwoofer. Additionally you have a built-in 5-band graphic EQ and Bass Boost selection to tune your favourite tracks.
With a short chassis depth of only 97mm installation is a breeze.
{tab Features}
BLUETOOTH HANDS-FREE CALLING & MUSIC STREAMING
Stay safe and obey local hands-free laws with built-in Bluetooth (HFP) and internal mic. Easily pair a Bluetooth enabled phones without having to go through complicated settings. When a registered Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.
From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle much more convenient.
ANDROID MUSIC SUPPORT
Take advantage of a wired USB connection to the receiver. Sound stays clean and clear, and song, artist, time and album details are user-friendly.
FRONT USB
USB Input – connect an Android smartphone or a USB device, directly to the front USB input and enjoy clean, clear sound. With USB playback supporting WMA, MP3, WAV and FLAC you have multiple options to choose from.
SHORT CHASSIS
Tired of struggling with wiring behind the dash and limited space to store it. No problems with the Pioneer short chassis design. With a short chassis depth of only 97mm installation is a breeze with plenty of room behind the unit for those cables.
2 PAIR RCA PRE-OUTS
Looking to expand your system with the use of external amplifiers? With 2 pairs of RCA pre-outs, you can connect amplifiers for either front and rear speaker connection or front speakers with a subwoofer whilst retaining fading control.
{tab In Specs}
| DISPLAY |
| Display with LED Backlight | 12 Digit Icon LCD (1-Line) |
| Dimmer Setting | Yes |
| Brightness Control | No |
| Colour Customisation | No |
| Illumination Timer | No |
| BLUETOOTH |
| Built-in Bluetooth® | Yes |
| Dual Phone Connection | No |
| Hands-Free Profile (HFP) | HFP 1.6 |
| Audio/Video Remote Control Profile (AVRCP) | AVRCP 1.5 |
| Advanced Audio Distribution Profile (A2DP) | Yes |
| Secure Simple Profile (SSP) | Yes |
| Serial Port Profile (SPP) | Yes |
| TUNER |
| AM/FM Tuner | Yes |
| DAB Tuner | No |
| SW Tuner | No |
| Presets | 18 FM, 6 AM |
| Best Station Memory (BSM) | Yes |
| Local Seek Tuning | Yes |
| RDS | Yes |
| Supertuner® IIID | No |
| PIONEER SMART SYNC |
| iPhone | No |
| Android | No |
| ANDROID™ CONNECTIVITY |
| Android™ Music Playback | Yes |
| Spotify® Control | No |
| IPHONE® CONNECTIVITY |
| iPhone Music Playback | No |
| Spotify® Control | No |
| DIGITAL MEDIA PLAYBACK |
| MP3 Audio Playback | YES |
| WMA Audio Playback | YES |
| AAC Audio Playback | No |
| WAV Audio Playback | YES |
| FLAC Audio Playback | YES |
| AUDIO |
| RCA Pre-outs | 2 Pair (2V) |
| Built-in Amplifier | MOSFET 50W x 4 |
| Equalizer | 5 Band Graphic EQ |
| D/A Converter | 24-bit |
| DSP | No |
| Time Alignment | No |
| Crossover Network | No |
| Subwoofer Control | Yes |
| Loudness | No |
| Listening Position Selector | No |
| Advanced Sound Retriever | No |
| Dynamic Bass Enhancer | No |
| EXPANDABILITY |
| USB | Single, Front |
| AUX | No |
| Wired Remote Input | Yes |
| GENERAL |
| Detachable Face Security | No |
| Remote Control | No |
| Warranty | 1 Year |
