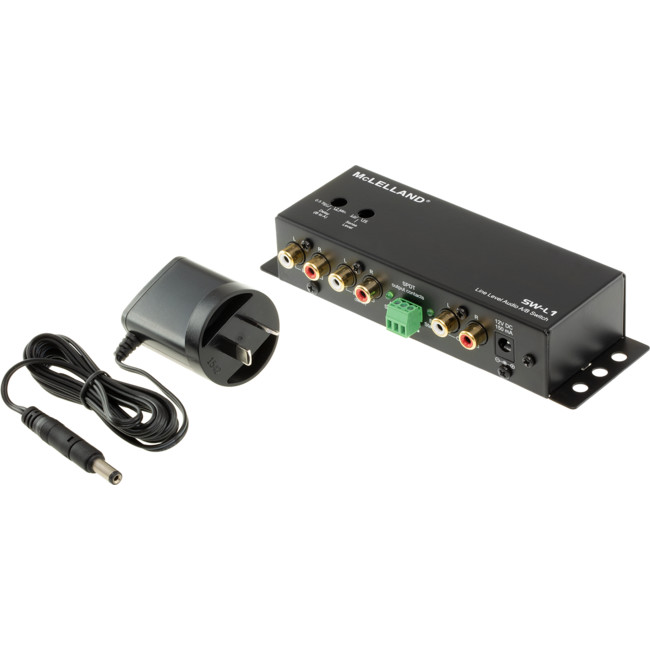

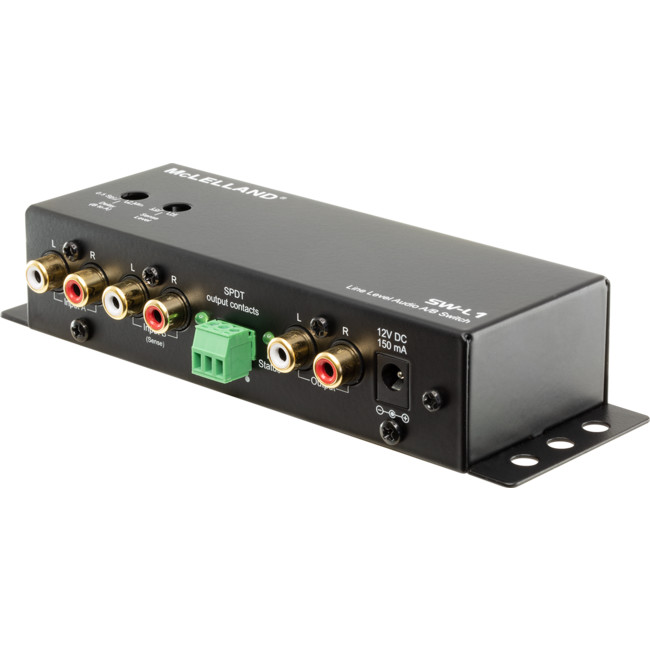

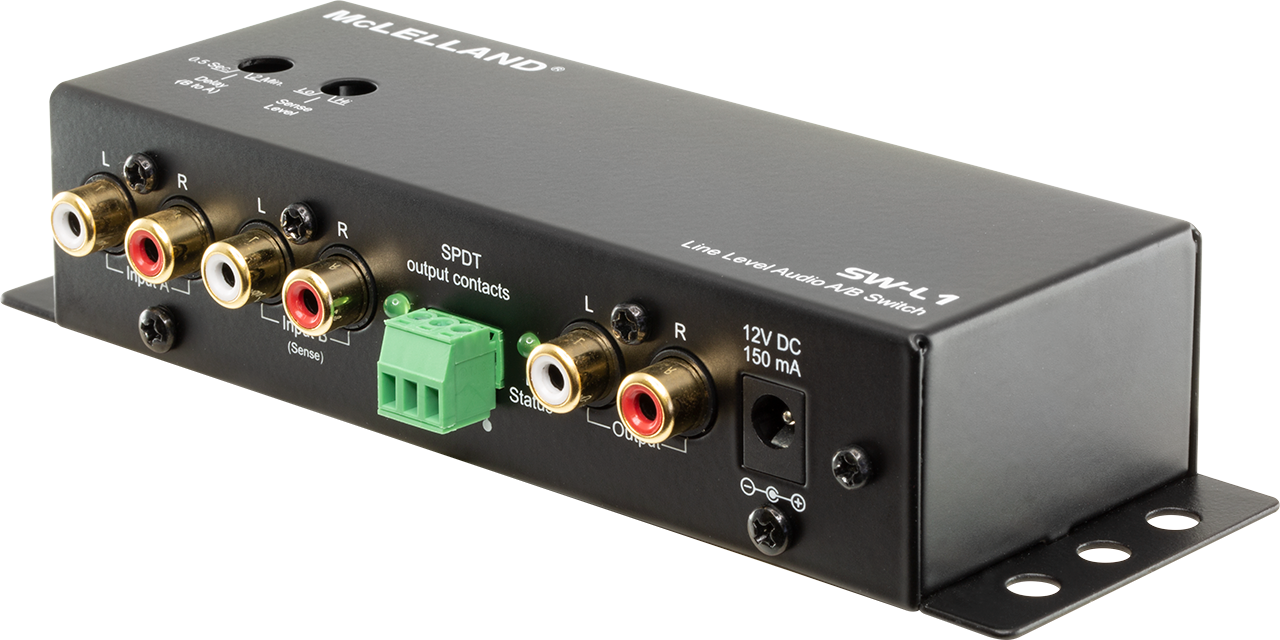

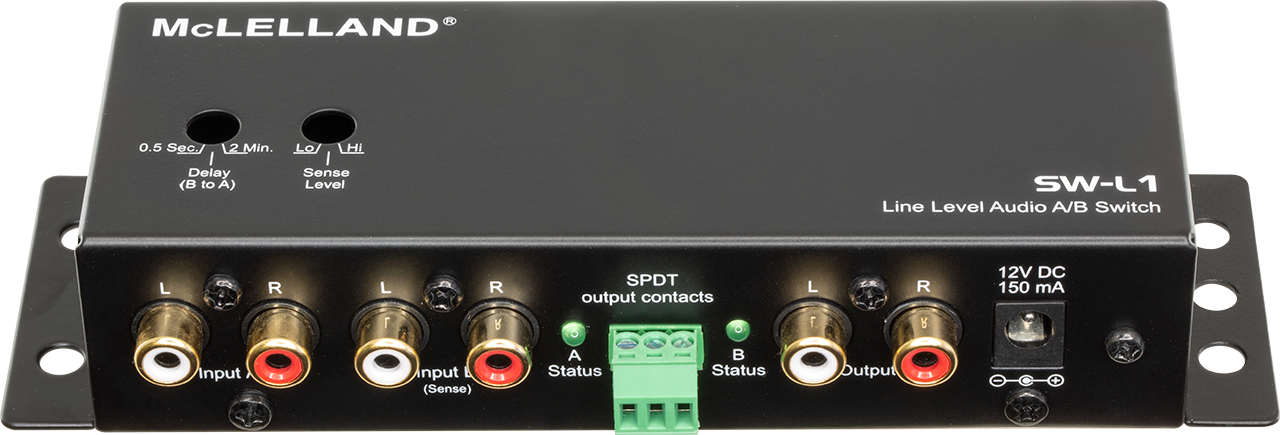

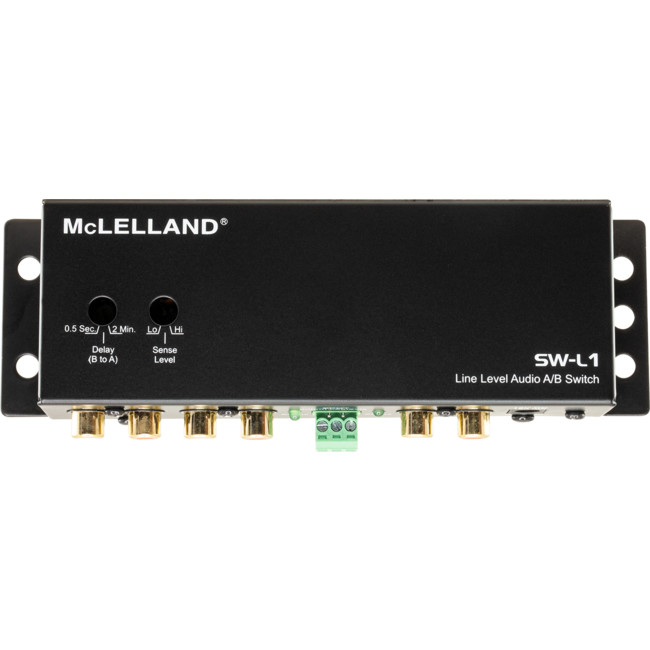

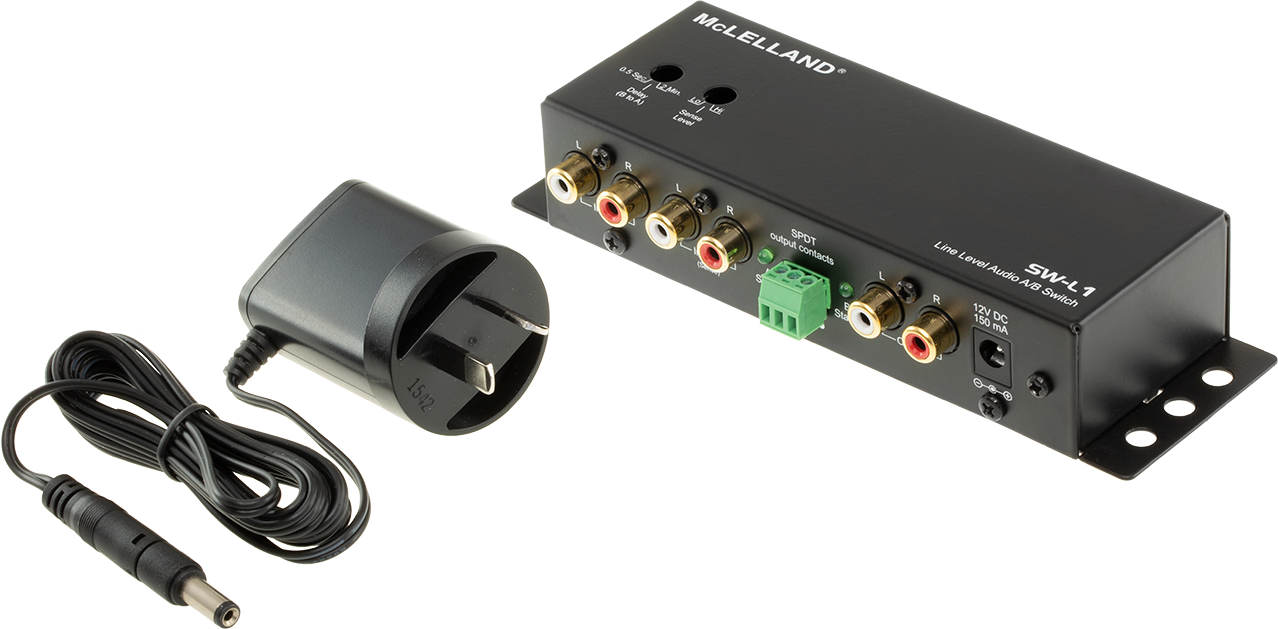

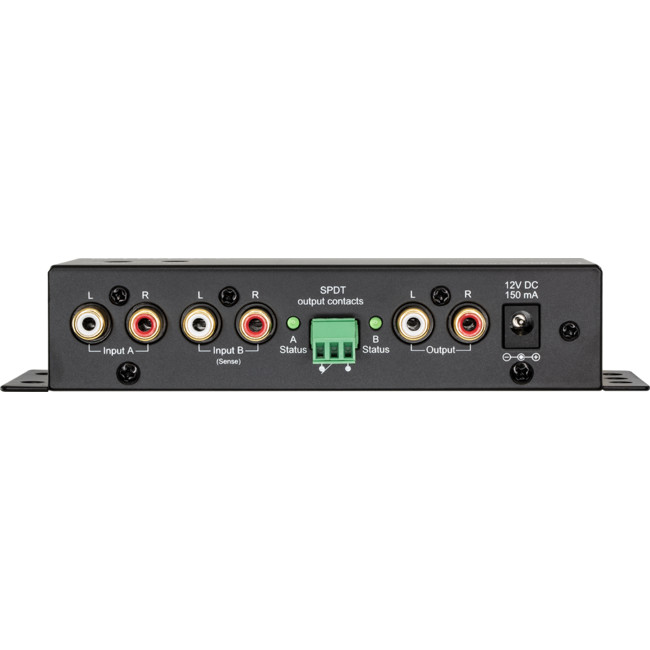

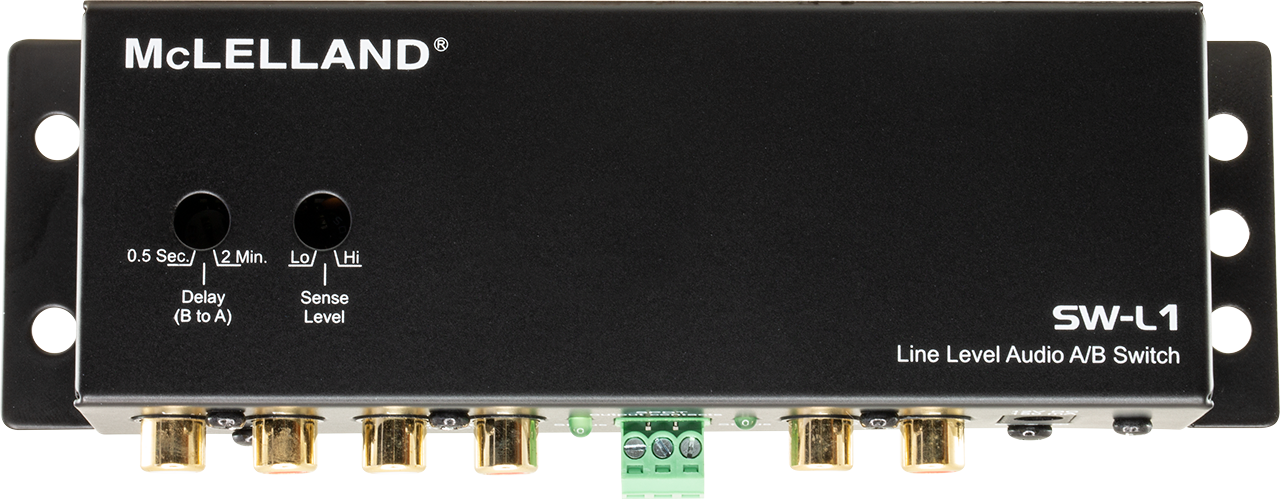

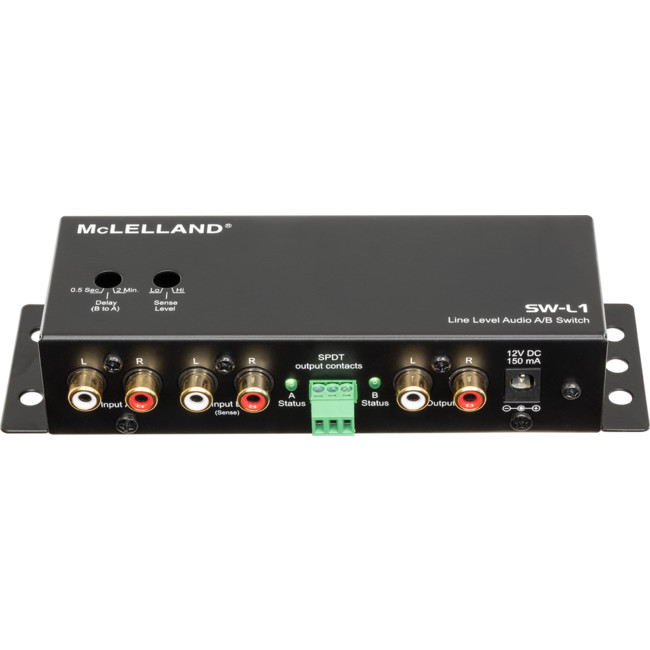

SW-L1 LINE LEVEL AUDIO AB SWITCH BOX

UPTO 24V SPDT RELAY OUTPUT

Code: 39894165

0.3890 kg
9328202031495
EACH
12
Low Stock
$99 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

•Automatically switches the signals to one power amplifier between two inputs.
•Delay Switch allows setting the Delay time from 0.5 Seconds to 2 Minutes to change the music automatically.
•Sense Level allows the adjustment of sensitivityto the desired Threshold.
•A/B Status LED indicate the music plays from Input A or Input B.
•Provides a SPDT(Single Pole Double Throw) outputcontact.
•External power supply required .
•Mounting hole for easy installation.

Specifications

•Delay Range: (0.5-2 )Sec, to 2 Min
•Sensitivity Range: 10mV to 100mV
•Dual Relays Contact Rating:24V@2A
•B Status Output Voltage: 12V DC @10mA/9VDC@100mAMax.
•Power Requirements: 12VDC@150mA
•Power Jack: 2.1mm ,center pole positive
•Dimensions: 6.5”W x 1.25”H x 2.35”D (165 x32 x60mm)



Manual PDF file
