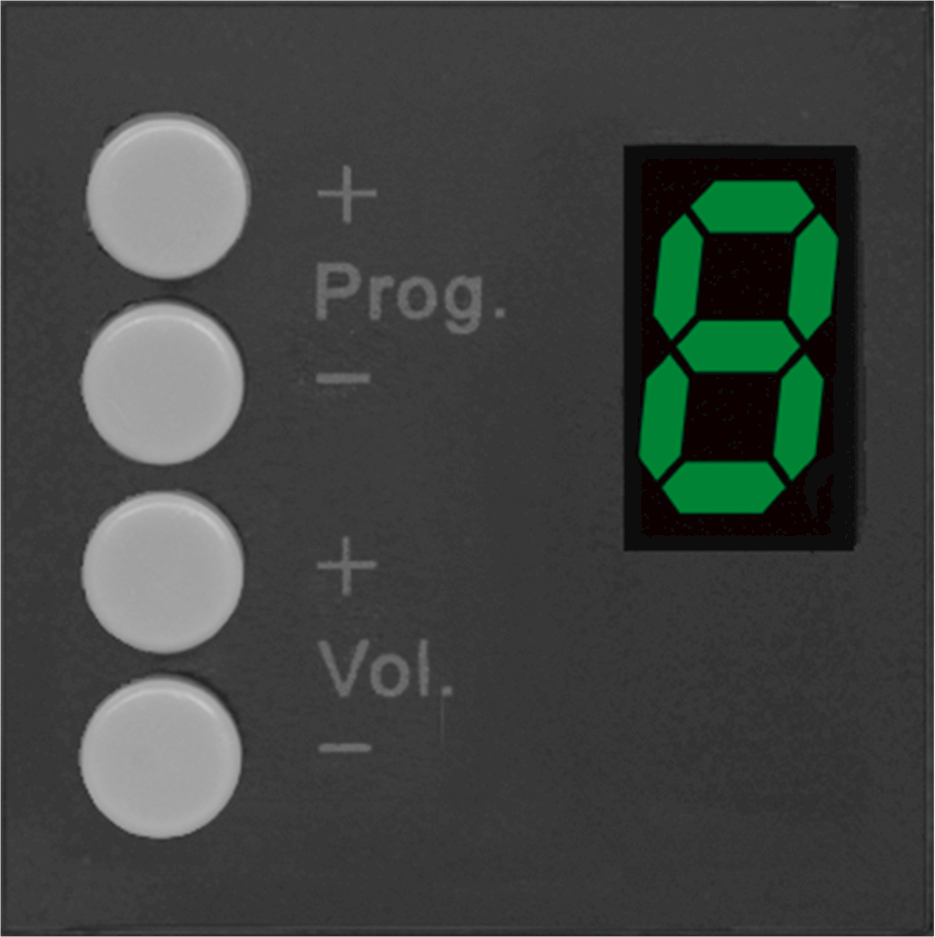

MWX45+/B BLACK WALL PANEL CONTROLLER

MWX45B

Black - MTX wall panel controller 45 x 45 mm

The MWX43/45 are wall panel controllers to be used in combination with the AUDAC MTX series multi-zone audio matrix systems and the AUDAC AMP523 & RM523.

It provides the possibility to select the desired audio source and control the volume for one zone.

The 7 segment LED display indicates the current selected audio source (1-8) or volume.

The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel.

The wall panels are available in two different sizes: 43 mm (MWX43) and 45 mm (MWX45), depending of the cover plate and installation materials which will be used.

The 45 mm version is compatible with Audac, Niko, Legrandand other standard 45 x 45 mm installation materials, while the 43 mm version is designed to be used with bTicino installation materials.

Thanks to its slim and good looking design, these wall panel controllers will blend into all kinds of different environments or interiors.

Available in black (/B) and white (/W).

There are two different AUDAC cover frames with metal subframe available, for 1 or 2 units, which are also available in black (/B) or white (/W).

Variants

• MWX45/B - Black version
• MWX45/W - White version

NOTE:

Optional cover frame/s is required if flush fitting only.

CF45SH - SINGLE In-wall coverplate WITH HOOKS for above units - Used for hollow walls - Available in black / white

CP45DH - DOUBLE In-wall coverplate WITH HOOKS for above units - Used for hollow walls - Available in black / white

Optional surface mount box ( does not reqiure frame when using wall mount box )

WB45S - SINGLE Surface-Mount Wallbox for above units - Used to surface-mount - Available in black / white
