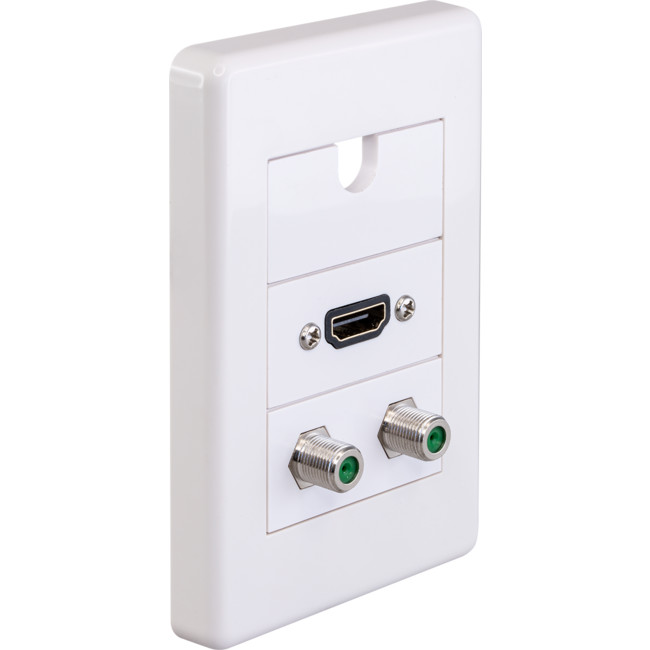

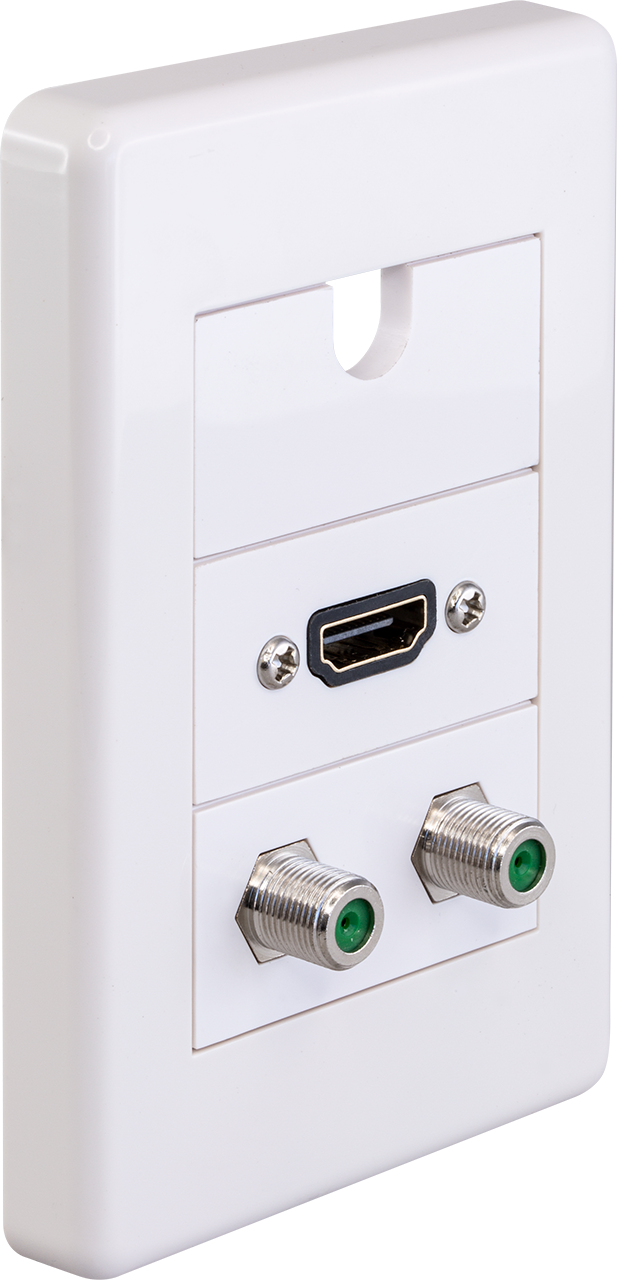

MWI3440 HDMI DUALL 'F' WALL PLATE

WITH BRIDGE MODULE

Code: 39893440

EACH
In Stock
DON'T PAY $24.65
$16.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Kit Components
Code
Item
Qty
30634895
MWI13B11 BRIDGE MODULE FOR MW13FR WITH 11MM HOLE CUTOUT
1
30634870
MWI13HDMI HDMI MODULE FOR MW13FR HDMI SOCKET TO SOCKET LEAD
1
30634832
MWI13FF2 DUAL 'F' MODULE FOR MW13FR FOXTEL APPROVED 'F' SOCKET X 2
1
30634800
MW13FR MODULAR WALL PLATE FRAME CLIPSAL STYLE FITS 3 MODULES
1
Enter 4 digit postcode

Specifications

This prechose modular wall plate comes with 1x Modular wall plate frame, 1x HDMI socket, 1x Dual 'F' sockets, 1x 11mm hole cutout bridge module, which saves your time to think and choose from all the different modular options. Of course, you will still build your custom wall plate if you like.
MWI13B11 insert is designed to allow a continuous 4K HDMI lead to passing through a cleverly designed 11mm cut-out to avoid signal loss in all the joints when running a 4k or 18gbs signal from a source to the TV. This cut-out allows for any cable up to a gauge of AWG24 to run directly through the wall plate.

MW13FR Modular Wall Plate Frame

  • Material: ABS
  • Colour: White
  • Inner plate dimension: 110.5(L) x 67.5(W) mm
  • Cover dimension: 115.7(L) x 74.5 (W)mm
  • 2x Screws are included

MWI13FF2 Dual 'F' Module

  • 2x 'F' socket to socket
  • Panel Dimension: 47 (L EX. inserts) *24 (W)* 11(H) mm
  • Foxtel Approval number F30583

MWI13HDMI HDMI Module

  • HDMI socket to HDMI socket
  • With built in nuts (4.75mm) on the sides of connectors
  • Black insulator
  • Golden plated connector
  • Black PVC Jacket
  • 200mm UL30276 type lead
  • Lead diametre: 6.0mm
  • White ABS pannel
  • Panel Dimension: 47 (L EX. inserts) *24 (W)* 11(H) mm

MWI13B11 Bridge Module

  • White Colour
  • ABS material
  • Panel Dimension: 47 (L EX. inserts) *24 (W)* 11(H) mm
  • OD 11mm pass through
  • Ideal to pass through HDMI leads
  • Upto AWG24 40M Pro2 HDMI lead

Diagram
