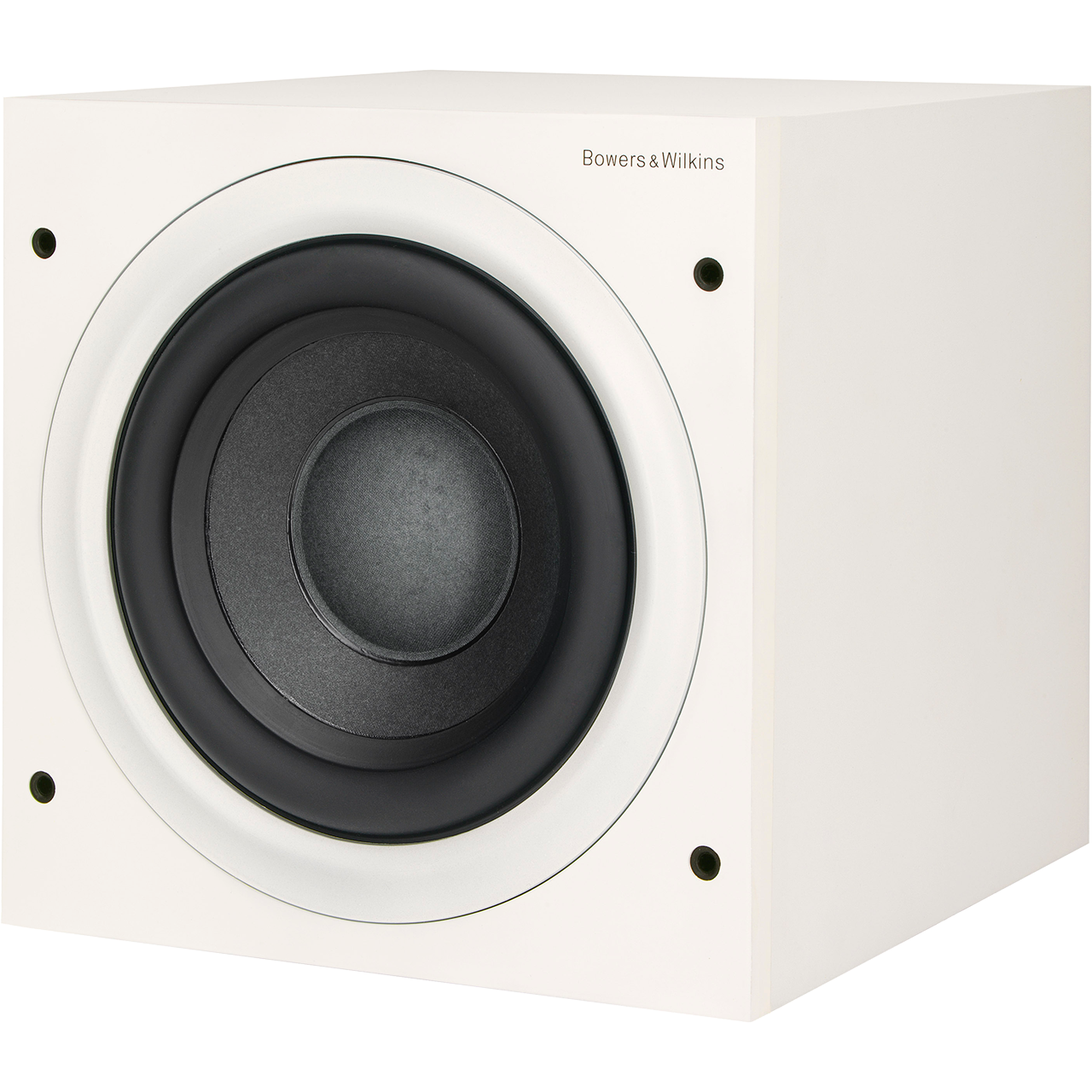

ASW610XP-W 2X200W 10" SUB - WHITE

SUBWOOFER B&W

Code: 39819207

21.50 kg
714346322671
EACH
Low Stock
DON'T PAY $1999
$1979.10 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match To order, call us on (03) 9321 8300 or visit us in store! Got an account? Log in for more options!
Enter 4 digit postcode

The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms. Serious basspower is developed in a compact cabinet thanks to the unit’s twin 200W amplifiers and dual voice coil, long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry, the unit remains cool and efficient under pressure.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which providesthe stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

Specifications:

Woven Kevlar
Crossover Tuning
Nautilus Tapering Tube
Flowport
Mushrooms
FST
Tweeter on Top
Matrix
Rohacell
Diamond Tweeters
Sphere / Tube Enclosure
De-Coupling
Nautilus
Description Active closed-box subwoofer system
Drive unit ø250mm (10 in) dual voice coil paper/Kevlar® cone long-throw
Frequency range -6dB at 18Hz and 25/140Hz adjustable (EQ at A)
Frequency response ±3dB 25Hz – 40/140Hz adjustable (EQ at A)
Bass Extension -6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)
Amplifier Power output: 200W 200W
Rated power consumption: 80W / 1W standby
Input impedance: 33kΩ
Signal / noise: >90dB
Functions: Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on/standby
Phase switch
Inputs: Line In (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions Height: 310mm (12.2 in) not including feet
Width: 310mm (12.2 in)
Depth: 375mm (14.8 in) including grille and controls
Net weight 15.5kg (34.4 lb)
Finishes Black Ash Vinyl
Light Oak Vinyl
Red Cherry Vinyl
Wengé Vinyl
600 series
