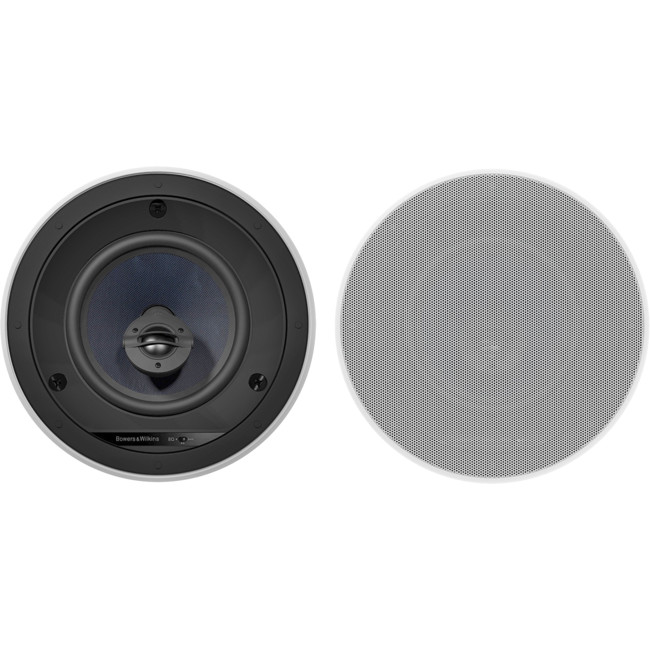

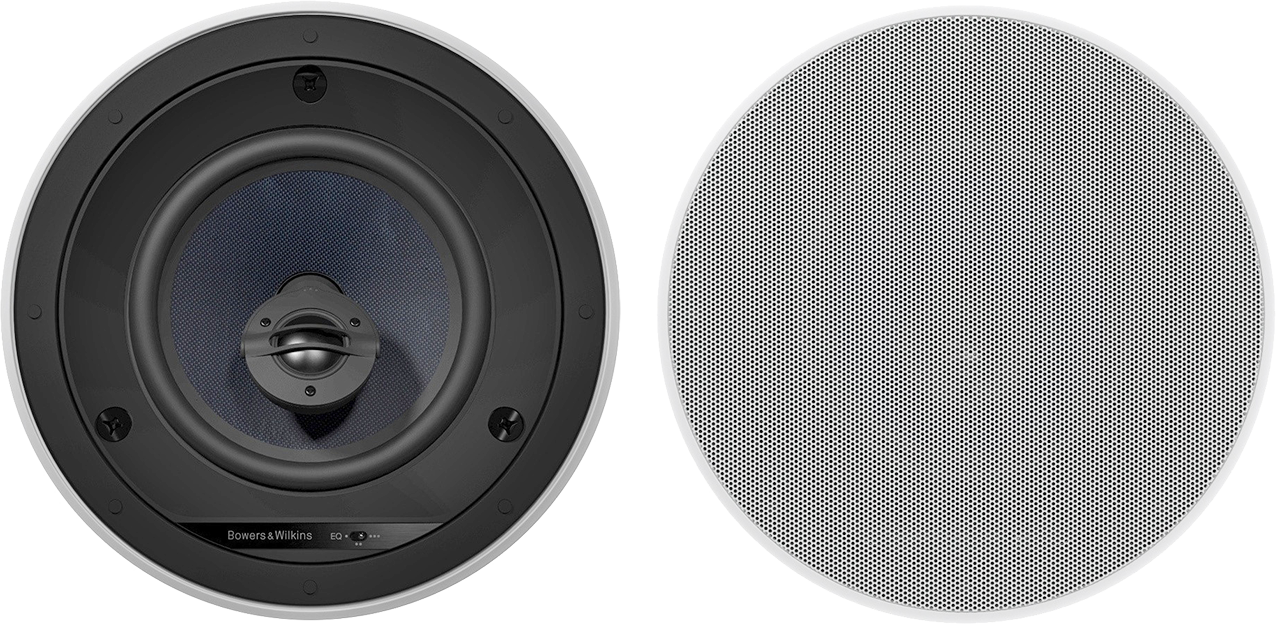

CCM684 8" 2-WAY IN-CEILING SPEAKER
See nothing, hear everything
- The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use.
- A two-way design, featuring a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in aneat circular ceiling mount chassis.
- The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response.
- Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.
FEATURES:
- 1x ø200mm (8in) woven Glassfibre cone bass/midrange
- 1x ø25mm (1in) pivoting soft dome tweeter
- Frequency Range (-6dB): 35Hz – 35kHz
- Recommended Amp Power: 25 – 130w
- Sensitivity SPL (2.83V, 1m): 88 dB 3-position
- Impedance Nominal (min): 8Ω (4.5Ω)
- Sensitivity SPL (2.83V, 1m): 88 dB
- EQ switch
- Frame diameter: 290mm (11.4in)
- Cut-out diameter: 250mm (9.8in)
- Depth behind surface: 133mm (5.2in)
SPECIFICATIONS:
- Description 2-way in-ceiling system
- Drive Units;1x ø25mm (1in) soft dome tweeter & 1x ø200mm (8in) black glassfibre cone bass/midrange
- Frequency Range (-6dB) 35Hz – 35kHz
- Recommended Amp Power 25 – 130w
- Sensitivity SPL (2.83V, 1m) 88dB
- Impedance Nominal (min) 8Ω (4.5Ω)
- Frame diameter 290mm (11.4in)
- Cut-out diameter 250mm (9.8in)
- Depth behind surface 133mm (5.2in)
- Protrusion 4mm (0.2in)
- Pre-mount Kit C8
- Back Box 6C
