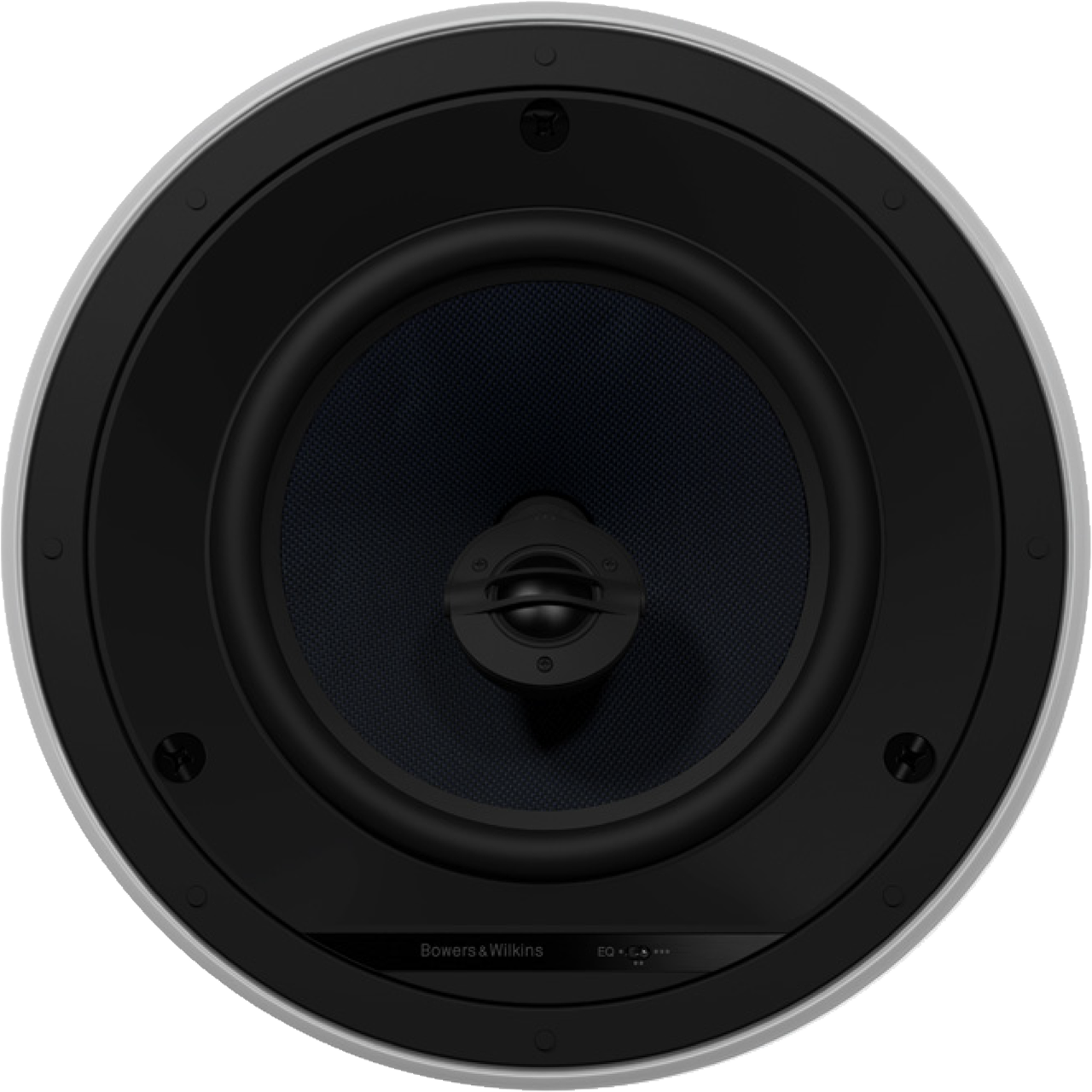

CCM683 8" 2WAY IN-CEILING SPEAKER

B&W

Code: 39818028

4.35 kg
N/A
EACH
Out of Stock!
$699.50 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

B&W CCM683- 8" 2WAY IN-CEILING SPEAKER - sold each

See nothing, hear everything

The CCM683 is a true high performance ceiling-mount speaker.

The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis.

The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass.

The speaker also has a three-position EQ switch for a better off-axis response.

The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.



CI600--Care-and-attention





Specifications

Description

2-way in-ceiling system

  • Drive Units
1x Ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter

1x Ø200mm (8in) blue Kevlar® cone bass/midrange

  • Frequency Range (-6dB)
35Hz – 50kHz
  • Recommended Amp Power
25 – 130w
  • Sensitivity SPL (2.83V, 1m)
88dB
  • Impedance Nominal (min)
8ohms (4.5ohms)
  • Frame diameter
290mm (11.4in)
  • Cut-out diameter
250mm (9.8in)
  • Depth behind surface
133mm (5.2in)
  • Protrusion
4mm (0.2in)



Package Content:

  • CCM6 Series speaker assembly (baffle, frame andbezel, grille)
  • Cut-out template
  • Paint mask
  • Document pack containing Quick Start Guide andWarranty information
