SM6BT Professional Studio Monitor: The Epitome of High-Resolution Sound Reproduction
Experience unparalleled audio quality with the Earthquake SM6BT Professional Studio Monitor. Its bi-amplified Class AB architecture, 2-inch ribbon tweeter, and 6.5-inch carbon fiber cone woofer ensure studio-level sound. With flexible connectivity options and Bluetooth® v5.3 with True Wireless Stereo (TWS) pairing technology, the SM6BT suits professional studios, home theaters, gaming systems, and more. It offers the perfect blend of professional-grade audio precision and everyday usability.

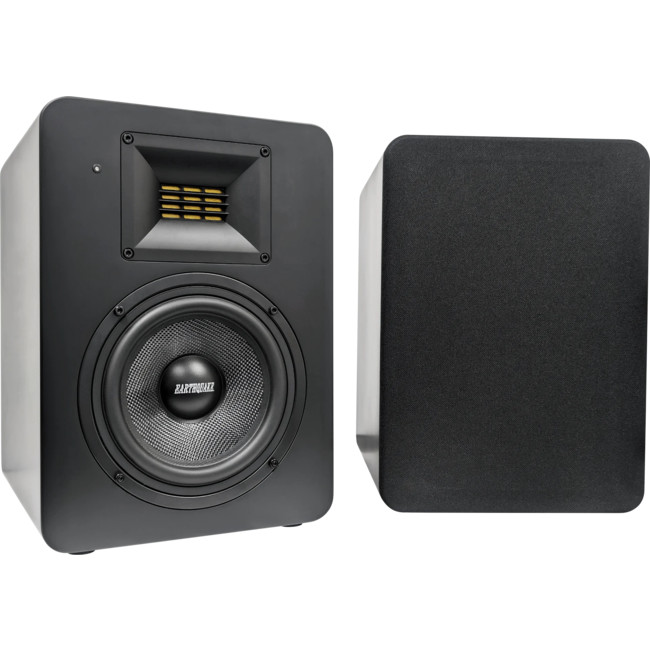

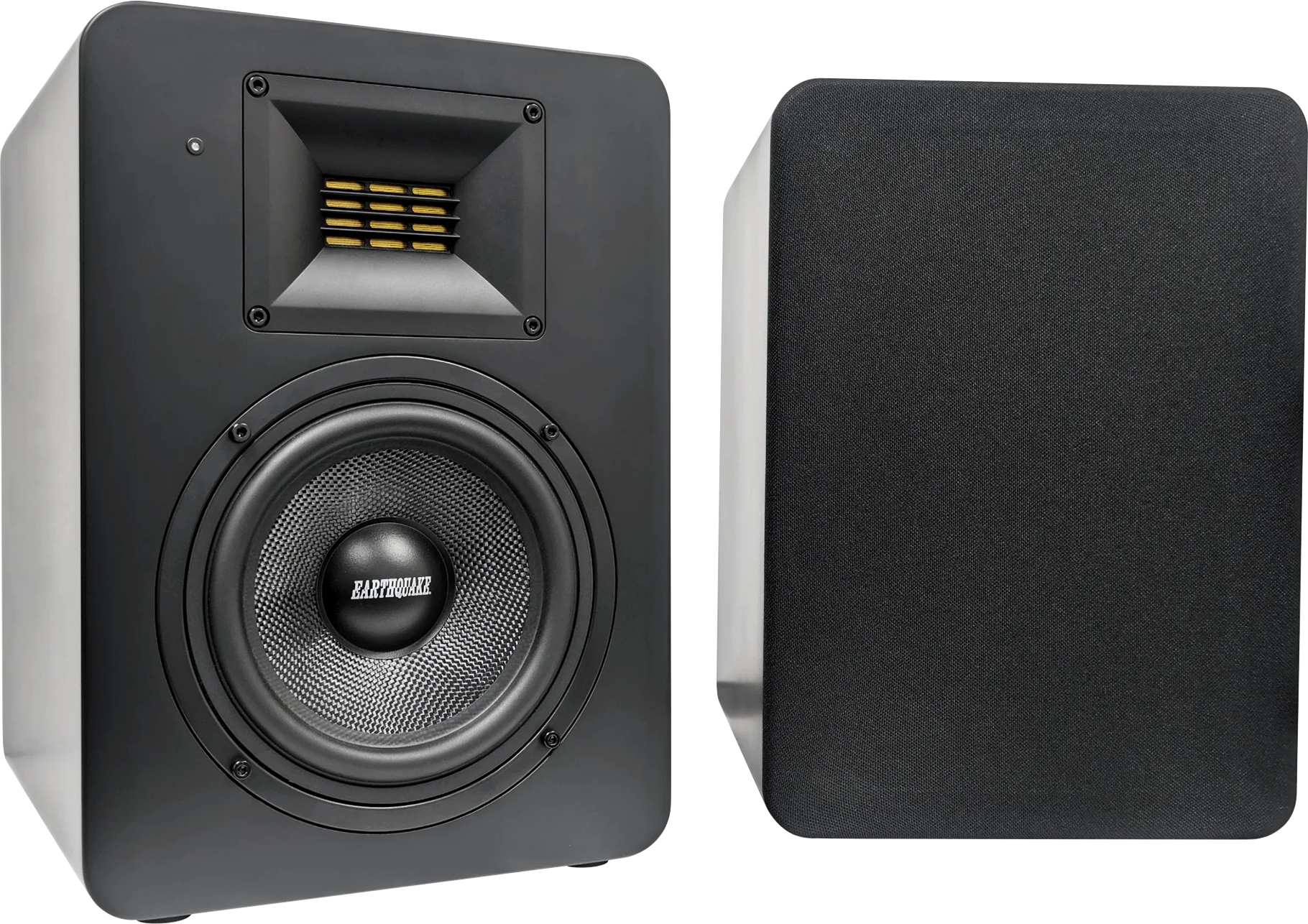

Where precision meets power, and every detail of your music comes to life, experience audio bliss with the new SM6BT Professional Studio Monitor from Earthquake Sound. This 2-way monitor speaker is designed for high-resolution audio and built from the ground up with high-quality components to ensure an exceptional listening experience.
At the heart of the SM6BT is a custom 2-inch wide band ribbon driver that captures the subtlest waveforms and the highest frequencies, allowing you to hear every nuance in your music. Its unique design allows for excellent dispersion over a wide area compared to traditional tweeter designs, resulting in a wider sweet spot with focused vertical dispersion while minimizing surface reflections.
In addition, the rigid yet light-moving mass of a 6.5-inch woven carbon fiber cone woofer ensures minimal distortion, delivering accurate mid/low-frequency reproduction down to 35Hz with a punchy bass response. With a total of 130W of Class AB power, bi-amplified to drive both the woofer and ribbon tweeter, the SM6BT stands as one of the most potent monitor speakers in its category.
The SM6BT is not only a powerhouse when it comes to performance but also offers modern convenience from built-in Bluetooth. With a wireless range of up to 100 meters, users can wirelessly stream their favorite audio to the SM6BT via Bluetooth® v5.3 technology with True Wireless Stereo (TWS) pairing. Balanced and unbalanced inputs and subwoofer output are also provided for ultimate flexibility for a broad range of audio setups.
Whether you’re an audio professional or a passionate music enthusiast, the Earthquake Sound SM6BT is a testament to precision engineering and an unwavering commitment to audio excellence. Elevate your listening experience and uncover new dimensions in your music with the SM6BT.
Key Features
Bi-amplified Power Amplifier
Powered by a high-end bi-amplification architecture, each drive unit in the SM6BT has its own dedicated amplifier. A total of 130W of Class A/B power drives both the woofer and ribbon tweeter (30W HF / 100W LF).
Crystal Clear High Frequencies

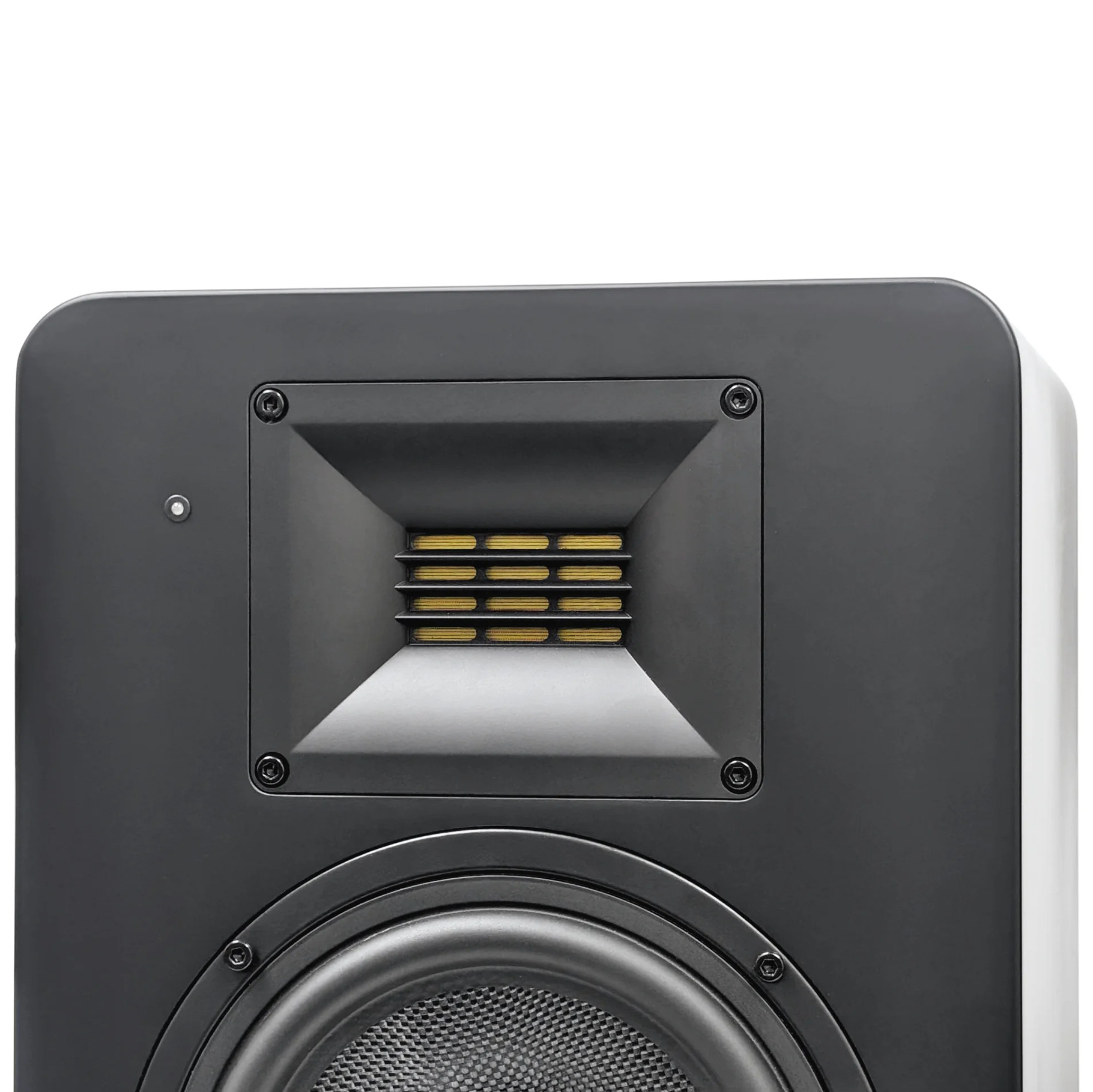

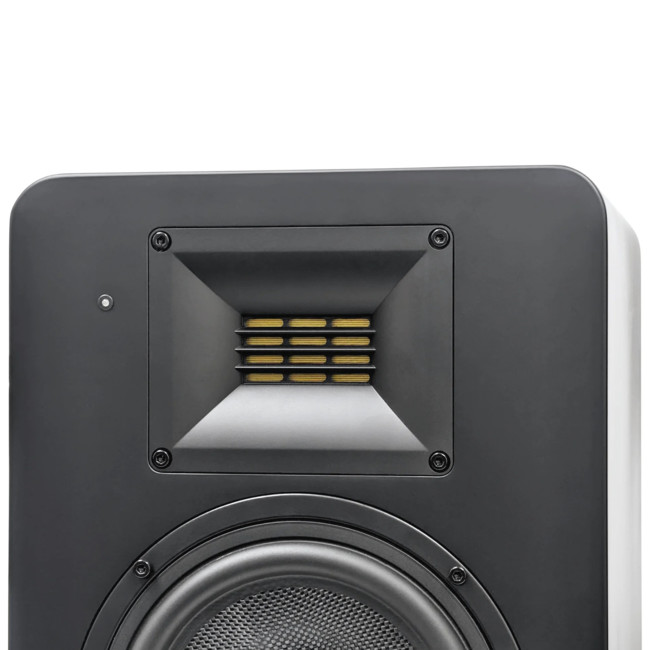

Designed for high-resolution audio and an exceptional listening experience, the custom 2-inch wide band ribbon driver captures the subtlest waveforms and the highest frequencies, allowing you to hear every nuance in your music.
Rich & Powerful Bass

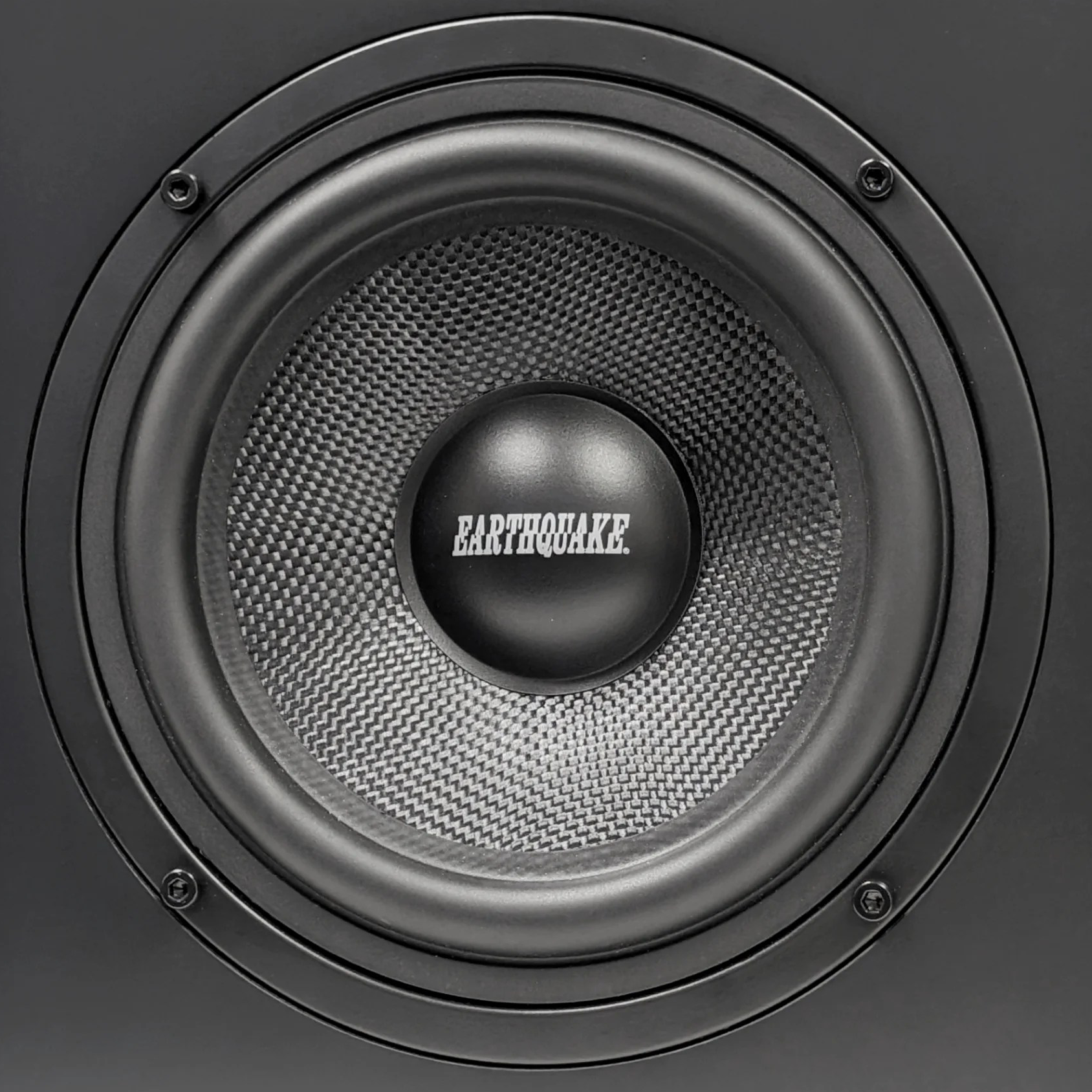

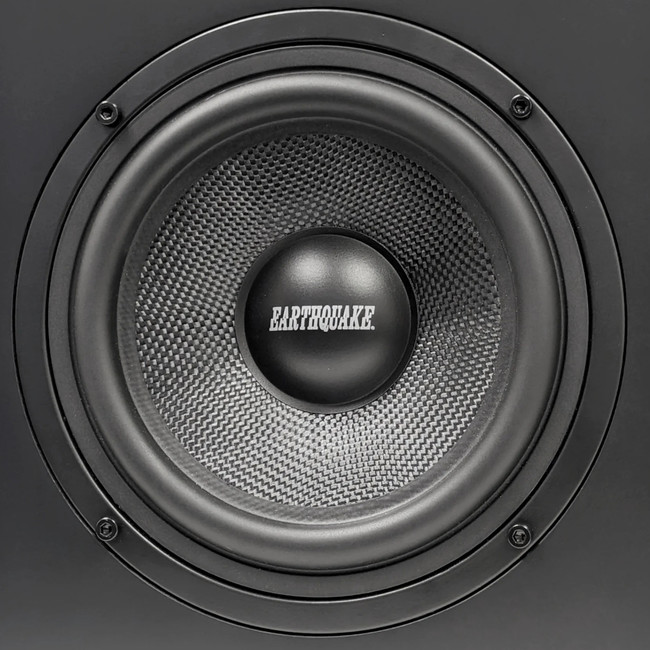

Experience rich and distortion-free low frequency reproduction down to 35Hz with a 6.5? rigid low-mass woven carbon fiber cone woofer for a punchy bass response.
Lossless & Hi-Res Audio Streaming
Seamlessly stream high-fidelity audio with the SM6BT via Bluetooth v5.3 and True Wireless Stereo (TWS) pairing technology. This monitor allows wireless music transmission from Bluetooth-enabled devices up to 100 meters away. Enjoy unparalleled convenience and long-range connectivity for an immersive audio experience.
Inputs, Outputs, and Controls

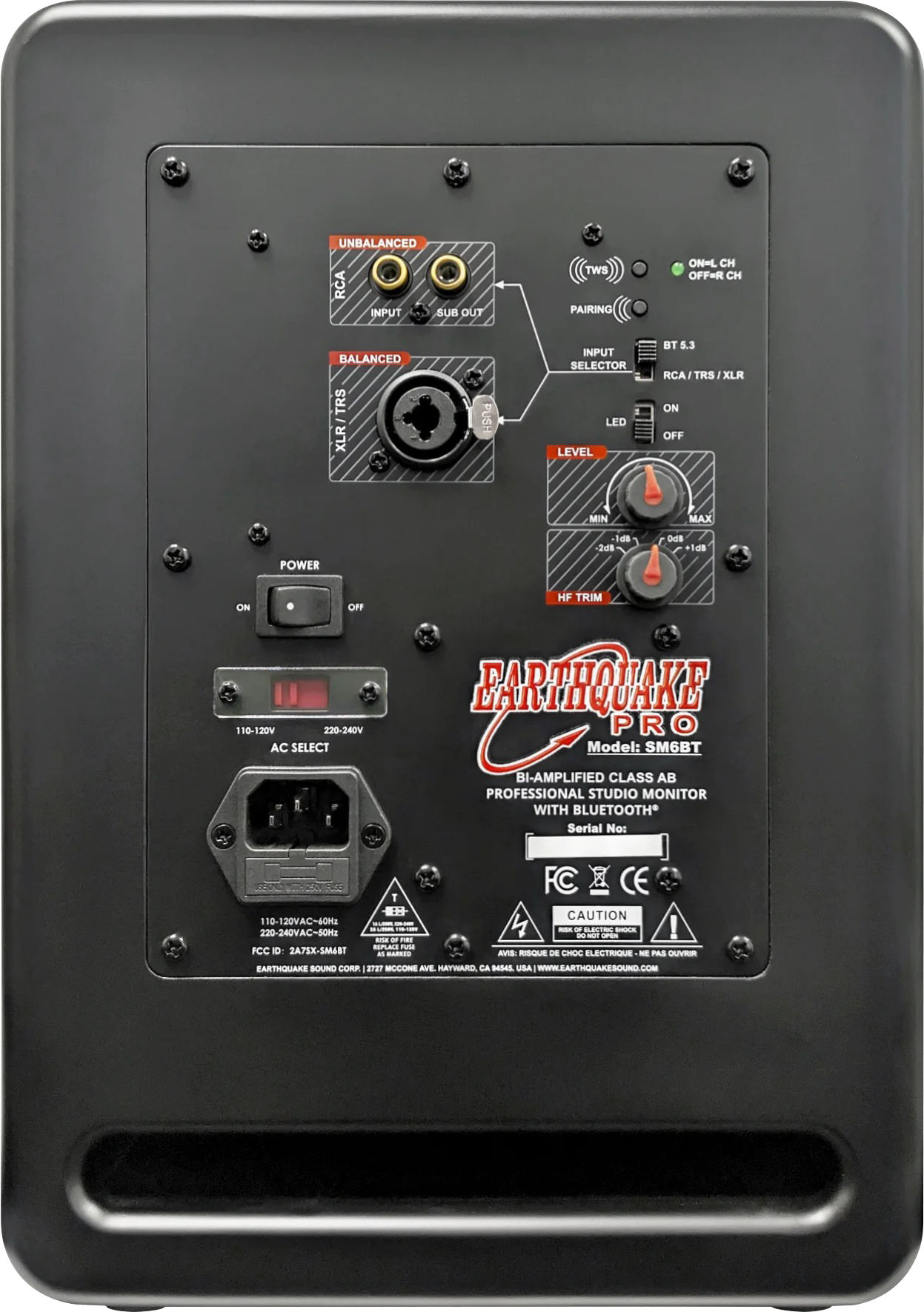

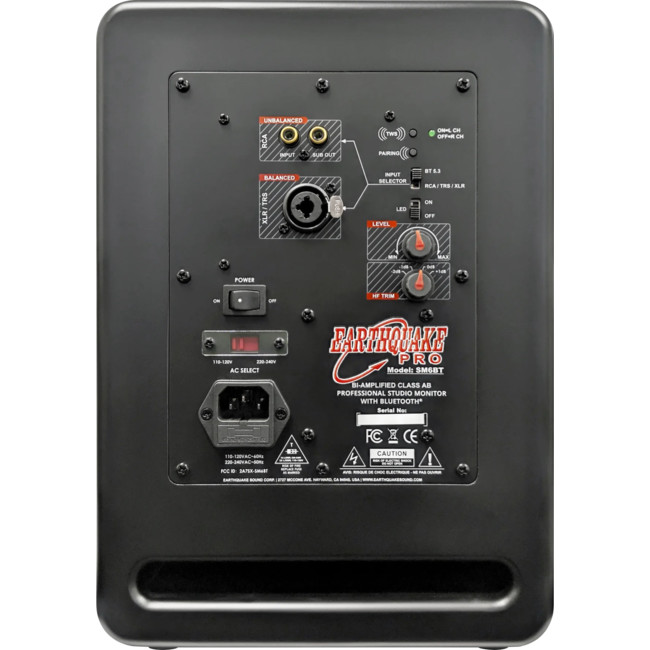

To accommodate professional studios, each SM6BT is equipped with a balanced XLR/TRS combo jack and unbalanced RCA inputs, ensuring compatibility with a wide range of audio equipment. A Subwoofer output is available to easily integrate additional bass when needed while a HF trim control empowers users to tailor the monitor for a more customized sound.
Specifications
- Dimensions: 15 × 25 × 18 inch
- Dimensions (Per Monitor) H x W x D, Feet, Amplifier and Grille: 12.75? x 9? x 11.5? (324mm x 228mm x 292mm)
- Weight (Per Monitor): 17 lb (7.71 kg)
- Quantity: Pair
- Speaker Configuration: 2-Way
- Powered: Yes
- Power Configuration: Bi-amplified
- Amplifier Class: Active (Bi-amplification Architecture) Class AB
- LF Driver Power Amp: 100W
- HF Driver Power Amp: 30W
- Total Power: 130W
- HF Driver Type: Horn Loaded Wide Band Ribbon Driver
- HF Driver Size: 2?
- HF Driver Material: Kapton and aluminum
- LF Driver Type: Woven Carbon Fiber Cone
- LF Driver Size: 6.5? Woofer
- LF Driver Surround Material: Butyl Rubber
- Crossover Frequency: 2.8kHz @ 12dB/Oct
- Frequency Range: 35Hz 40kHz (-10dB)
- Peak SPL: 108dB
- Subsonic Filter: 25Hz
- Input Types: 1 x RCA, 1 x XLR/TRS Combo
- 10 kΩ Balanced TRS/XLR Combo Jack
- 10 kΩ Unbalanced RCA
- Output Types: RCA SUB OUT
- Bluetooth: v5.3 with TWS Pairing
- Controls: System Level Control (-80dB to 6dB)
- HF Level Adjustment (-2dB, 1dB, 0, 1dB)
- Supported Audio Formats: aptX™, aptX™ HD, aptX™ Adaptive, FLAC, FastStream, AAC, AAC , MP3, SBC
- Cabinet Material/Construction: 3/4? (20mm) MDF
- Cabinet Finish: Painted Matte Black Finish
- Fuse Rating: Ø5x20mm 2A/250V, UL/VDE slow blow tube
- Enclosure Type: Rear-Firing Bass Reflex
- Enclosure Material: Painted MDF
- Color: Matte Black
- Grille Included: Yes
