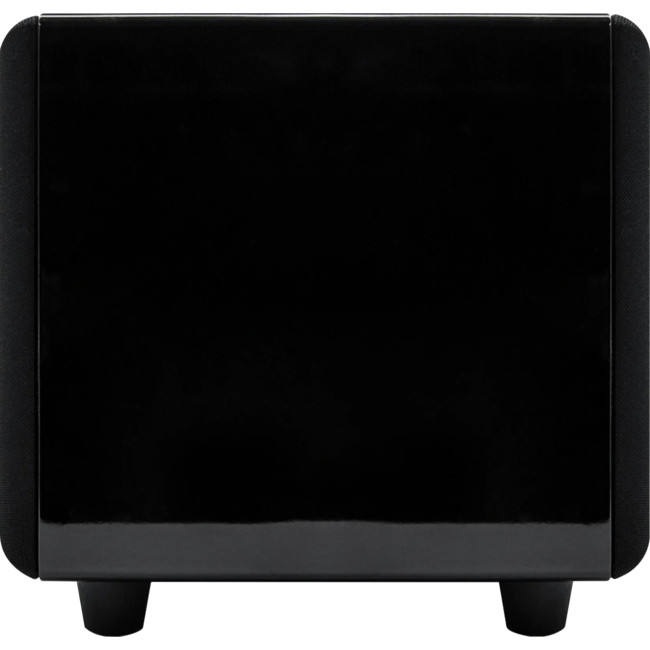

The MiniMe DSP P8 system is designed to dramatically enhance your enjoyment of music and movies at home by adding power and impact to low-frequency sound effects without taking up your entire living space. With the continued success of the MiniMe DSP series of home subwoofers, Earthquake felt that a smaller sibling was to help complement the line. Just under a foot wide, the MiniMe DSP P8 brings deep, dynamic, and impactful bass to virtually any space or room. The all-new MiniMe DSP P8 utilizes Earthquake’s unique class “D” circuitry with over 90% efficiency with the added advantage of DSP control through mobile devices. Complicated and professional room tuning is now made possible right at your fingertips through a mobile app allowing users to tune the MiniMe DSP P8 for flexible subwoofer placement in any room. Like the 10, 12, and 15-inch models, the DSP 8 offers users some of the same great performance and features like 600 watts of brute peak power output, high-EMF XLT active driver, and redesigned 8-inch mass-tuned SLAPS-M8 passive radiator with increased excursion potential. Without a doubt, the MiniMe DSP P8 is one the best 8-inch subwoofers ever produced by Earthquake and is sure to fill a small to medium-sized room with massive bass for the utmost in sound quality and intense room-rumbling sound effects. It is available in both black or white high gloss piano finishes and with the dual active and passive driver setup. With a compact 10-inch cube enclosure, don’t let the size of this little monster fool you. It offers users high performance and superb bass control with a sound that remains dynamic, punchy, and precise even under hard and continuous operation. Transform your listening experience with the all-new MiniMe DSP P8 subwoofer.
DSP For Optimal Performance
In order to optimize sound and clarity on a subwoofer, it must be tuned properly to its environment. Through an automated room correction process that the iWoofer™ Pro app offers, you will get the customized performance that you deserve and achieve the maximum amount of SPL with a more linear response for your home theater. Up to a 48dB/octave crossover is also available within the application for a steep frequency cutoff.
SLAPS-M8 – Patented Superiority

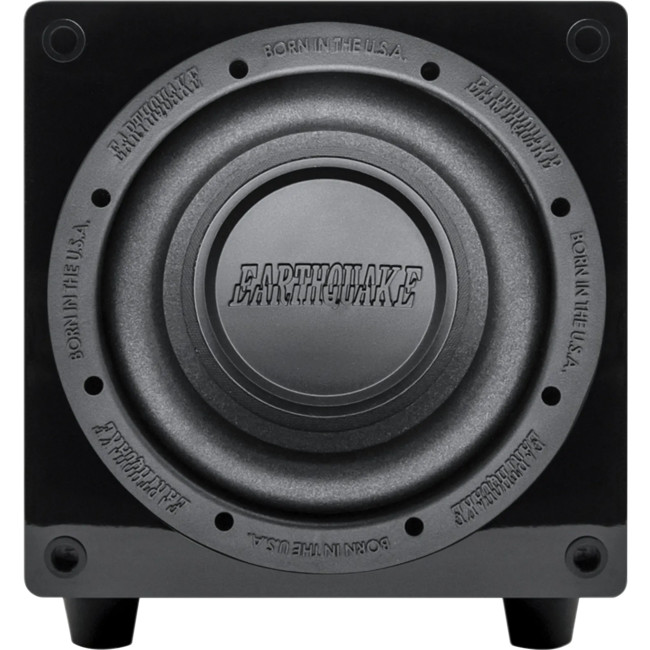

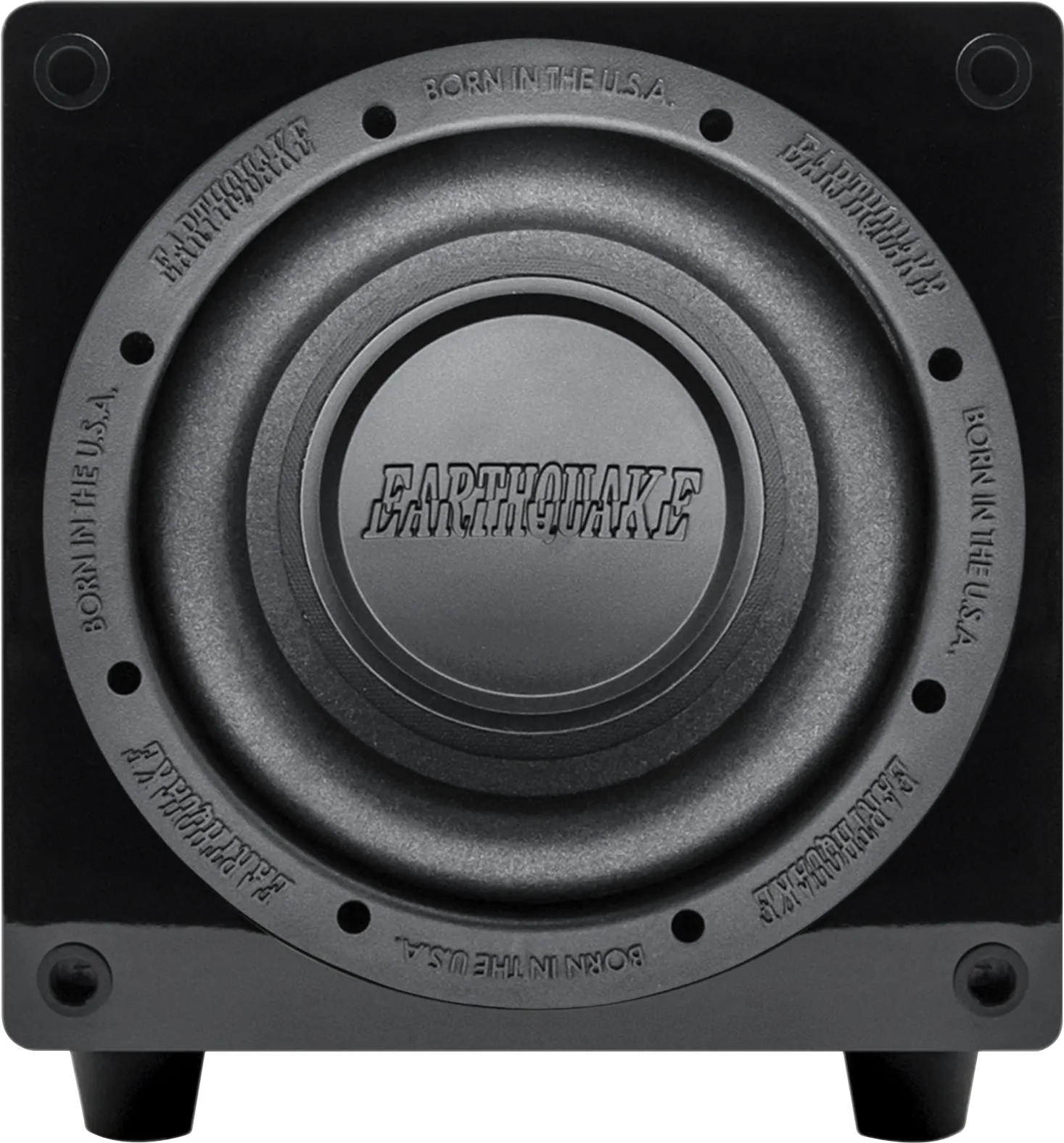

SLAPS passive radiator technology doubles the radiating surface and allows the DSP P8 to play louder and lower without unwanted port noise distortion. SLAPS technology is a key player in translating the MiniMe DSP P8 amplifier’s high power into dominating LFE. It is a patented system that dramatically increases subwoofer efficiency and capability for ultra-low frequency reproduction. SLAPS stands for Symmetrically Loaded Audio Passive System. As the name indicates, it is built symmetrically, which distinguishes it from traditional passive devices on the market. It integrates identical components in its suspension and design, ensuring the unit moves identically in both directions. The revolutionary efficiency and performance are the result of the pneumatic coupling between SLAPS and the active driver. SLAPS overcomes the limitations known from conventional closed and ported designs that prevent radical excursion and deep response. SLAPS allows the active driver compression-free movement, resulting in deep, dynamic, and hard-hitting bass response. Reach dominating LFE with Earthquake SLAPS technology.
Luxurious Finish

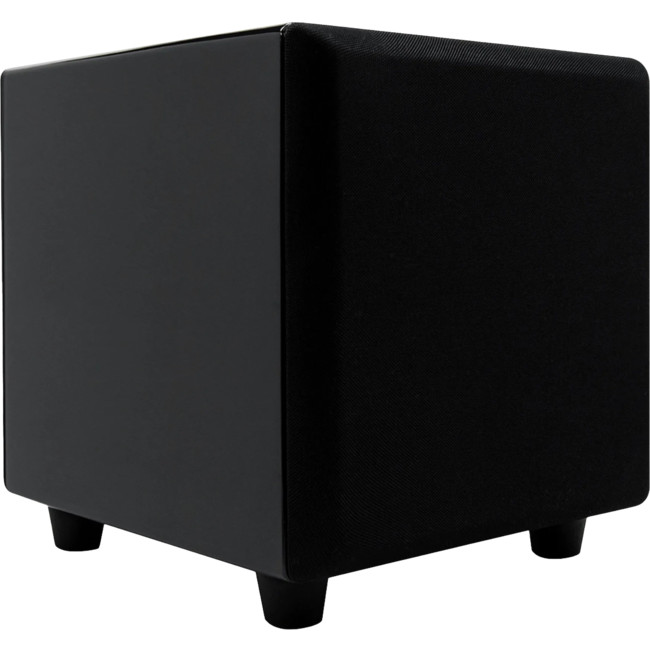

The MiniMe DSP P8 is covered in deep, luxurious black or white piano lacquer. The cabinet finish begins with thorough sanding and priming, followed by multiple applications of black lacquer with additional fine sanding between layers. The cabinet is then finished with a smooth, high gloss clear coat. The elegant piano lacquer complements its sleek modern design and adds sculptural finesse and exclusivity to your home.
Features
- Stylish & Ultra-Compact Subwoofer With Superb Low-Frequency Response
- Small form factor with a 10-inch cubed enclosure
- Built-in high-efficiency Class D amplifier

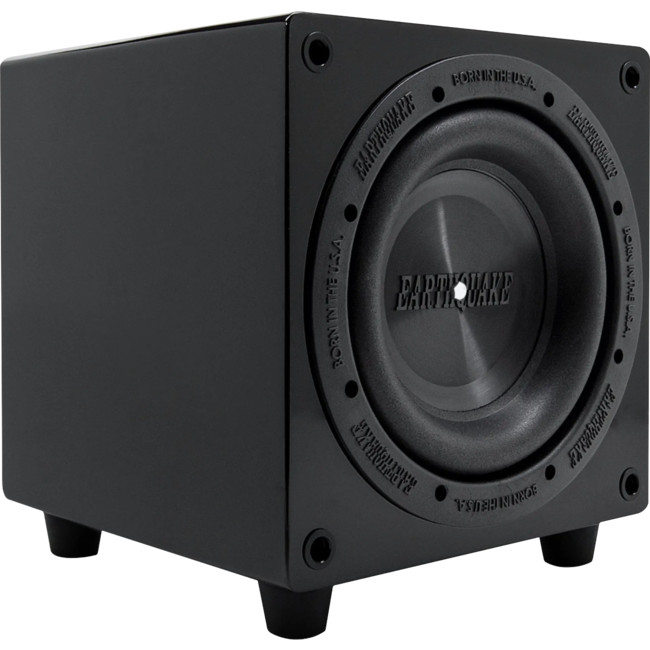

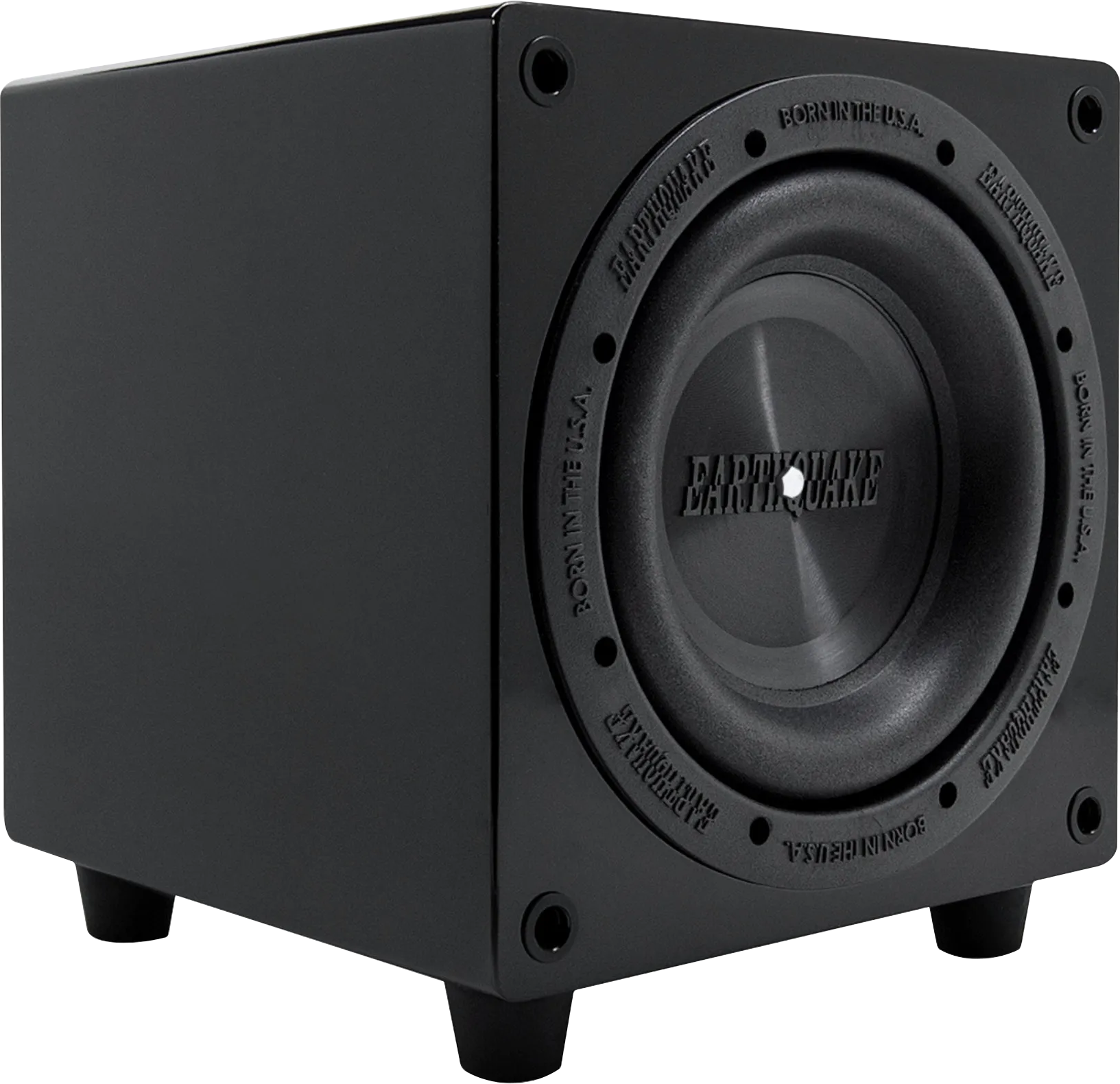

- Premium 8? high-EMF XLT active driver
- Non-pressed fiber cone
- Inverted edge reinforced poly dust cap
- Wide polyether foam surround
- Redesigned 8? mass-tuned SLAPS-M8 passive radiator system
- Double the radiating surface for an impactful response
- Ported with SLAPS passive bass radiator
- Built-in Digital Signal Processor (DSP) for enhanced bass performance
- 600W high-efficiency class D amplifier
- DSP control through the iWoofer™ mobile app
- Multi-path optocoupler protection circuitry
- Automatic signal sensing turn on and standby mode
- Auto room correction (iWoofer™ Pro only)

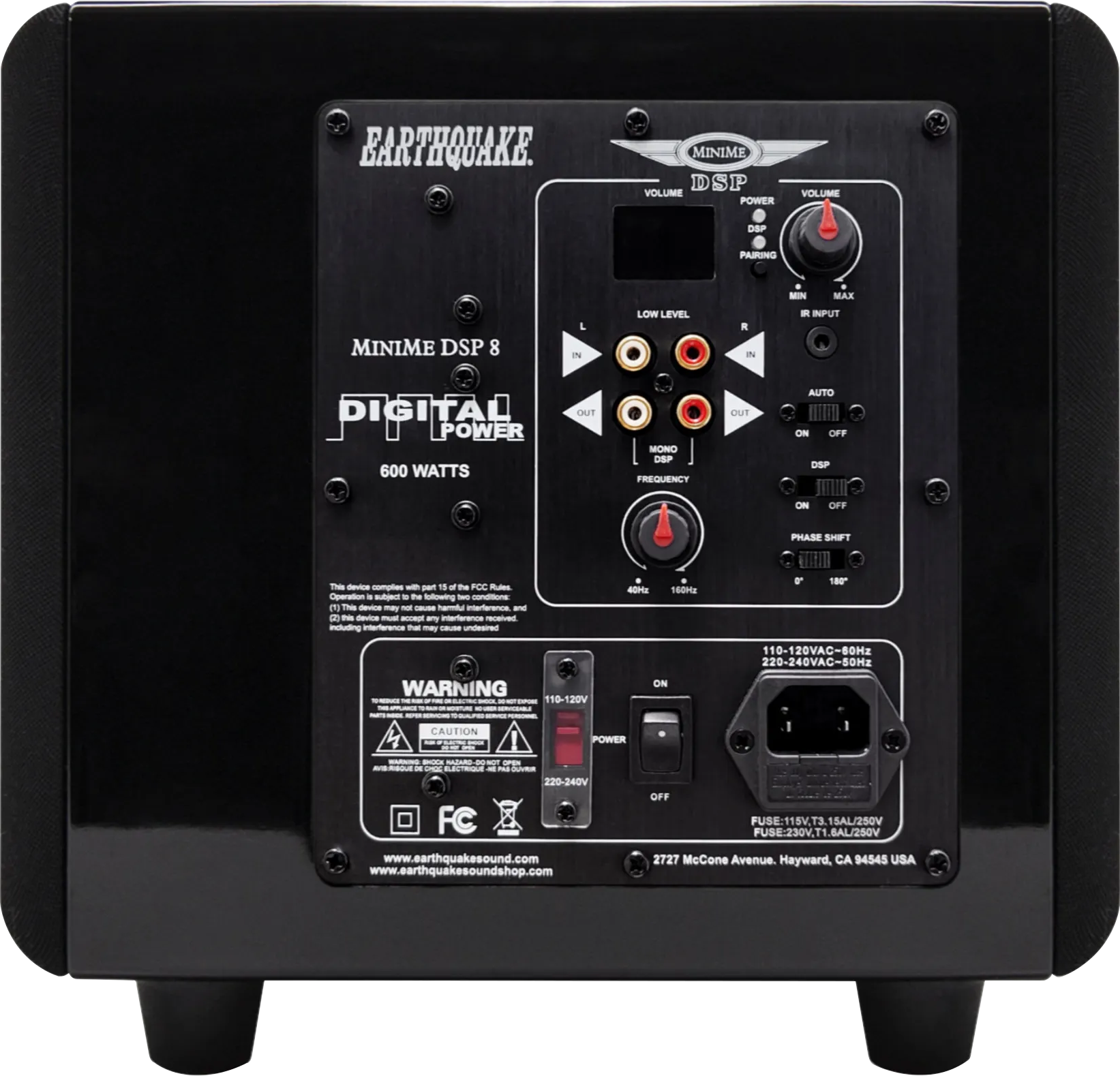

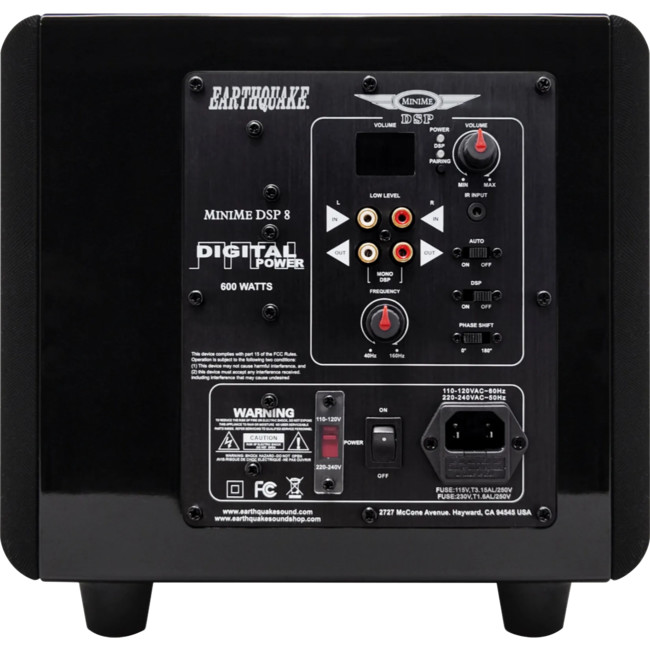

- 3-Way Auto/On/Off mode switch
- Sub-operation switch for different ranges
- DSP On/Off selector switch
- SHS (Sub-harmonic Synthesizer)
- Selective variable crossover
- 0–180 phase adjustment
- Operation status LED indicator
- Low-level RCA inputs
- RCA Mono DSP output
- Remote & remote eyes included

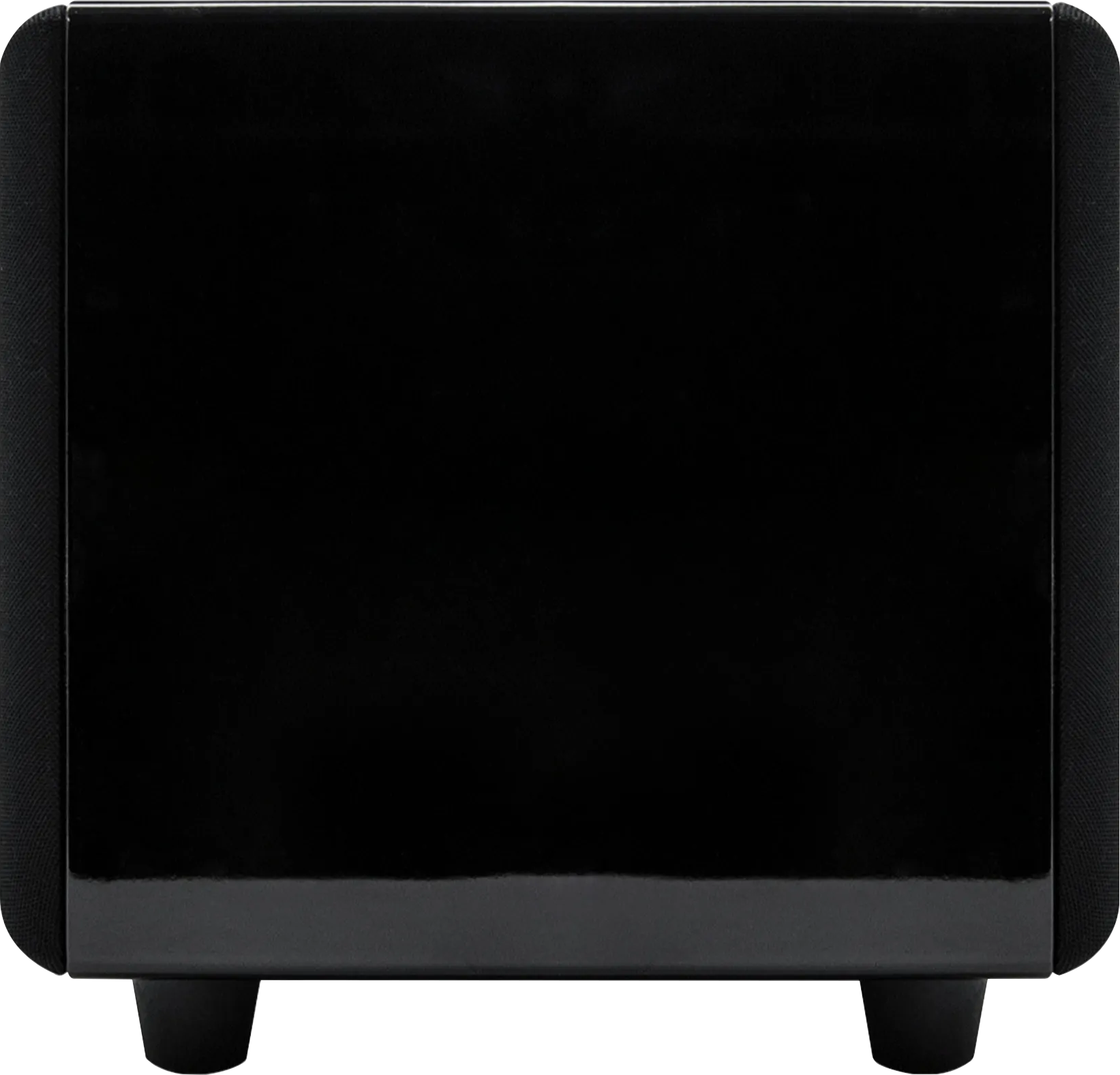

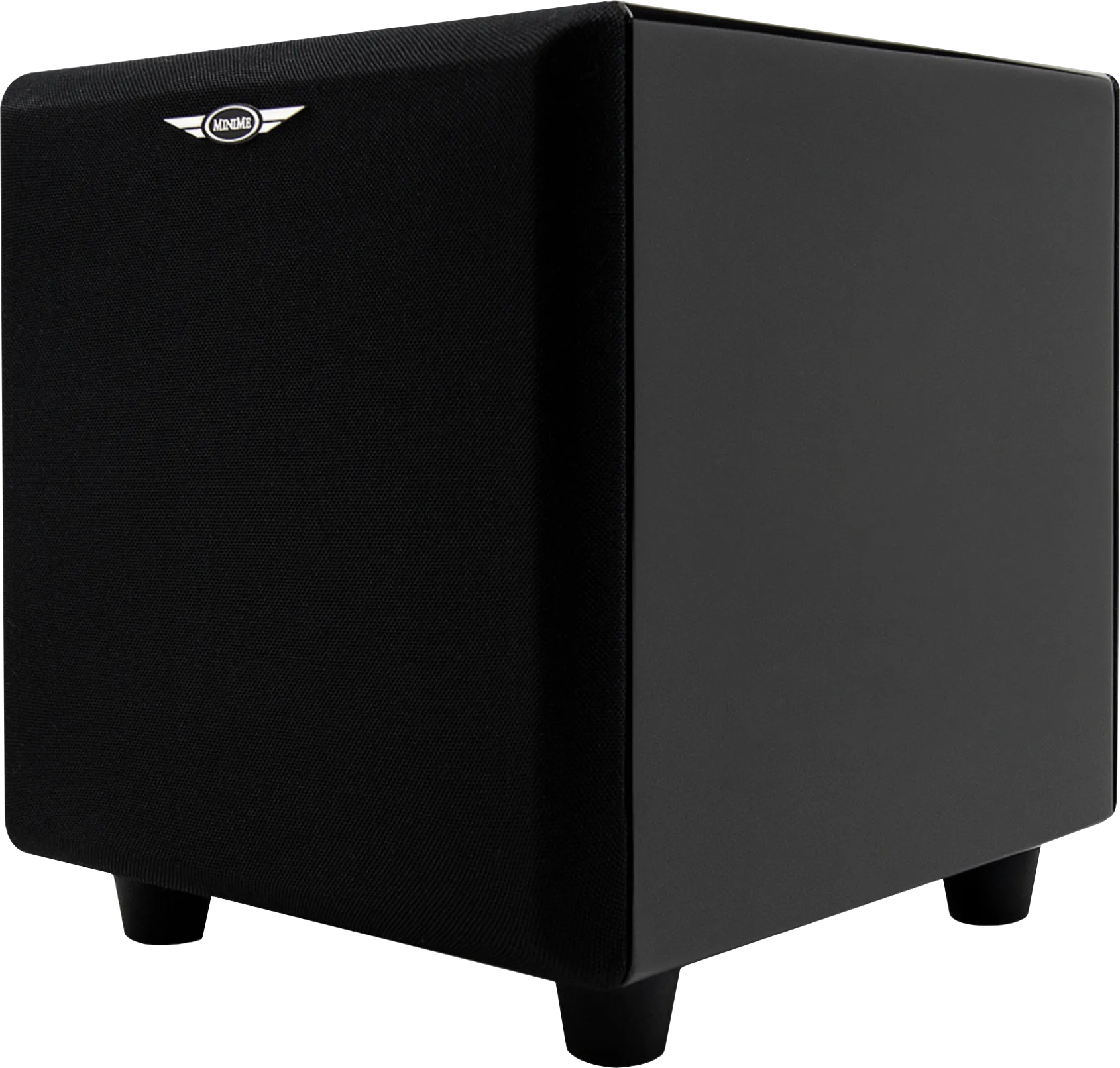

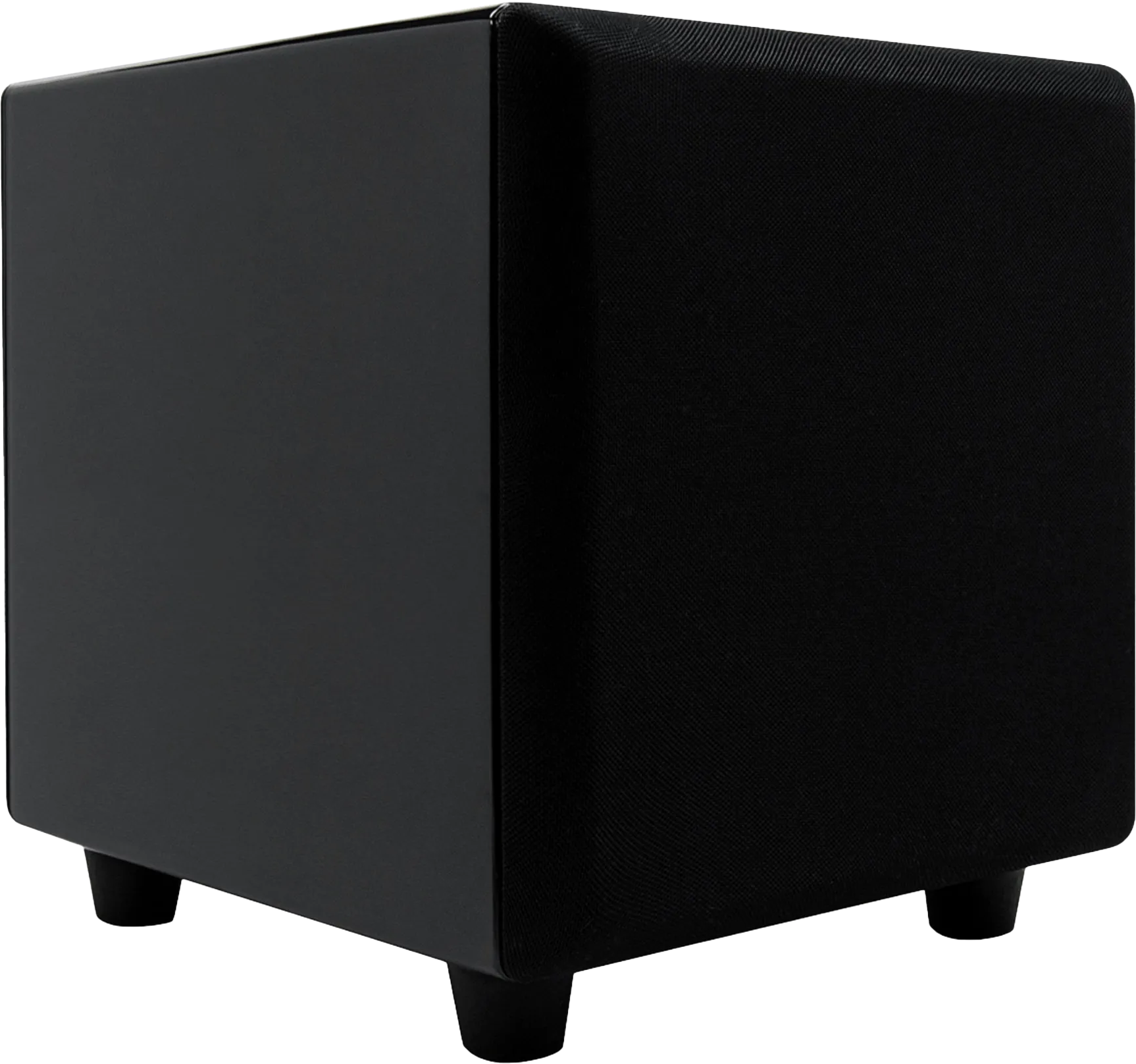

- Removable grilles included
- Luxurious high gloss black piano lacquer finish
Specifications
- Driver Size:
- 8? active driver
- 8? SLAPS passive radiator (Tuned to 27Hz with 160g added mass)
- Amplifier Power:
- 300W RMS / 600W peak dynamic
- Frequency Response: 25–160Hz
- Crossover Frequency: 40–160Hz
- Nominal Impedance: 8-Ohm
- Input Impedance: 20 kOhm
- Enclosure Type: Ported with passive radiator
- Enclosure Finish: Black Piano Gloss
- Dimensions : H x W x D: 11" (278mm) x 10.43" (265mm) x 11.41" (290mm)
- Weight: 18.2 lbs (8.25 kgs)
