CM7BG 7" BACKGROUND LISTENING

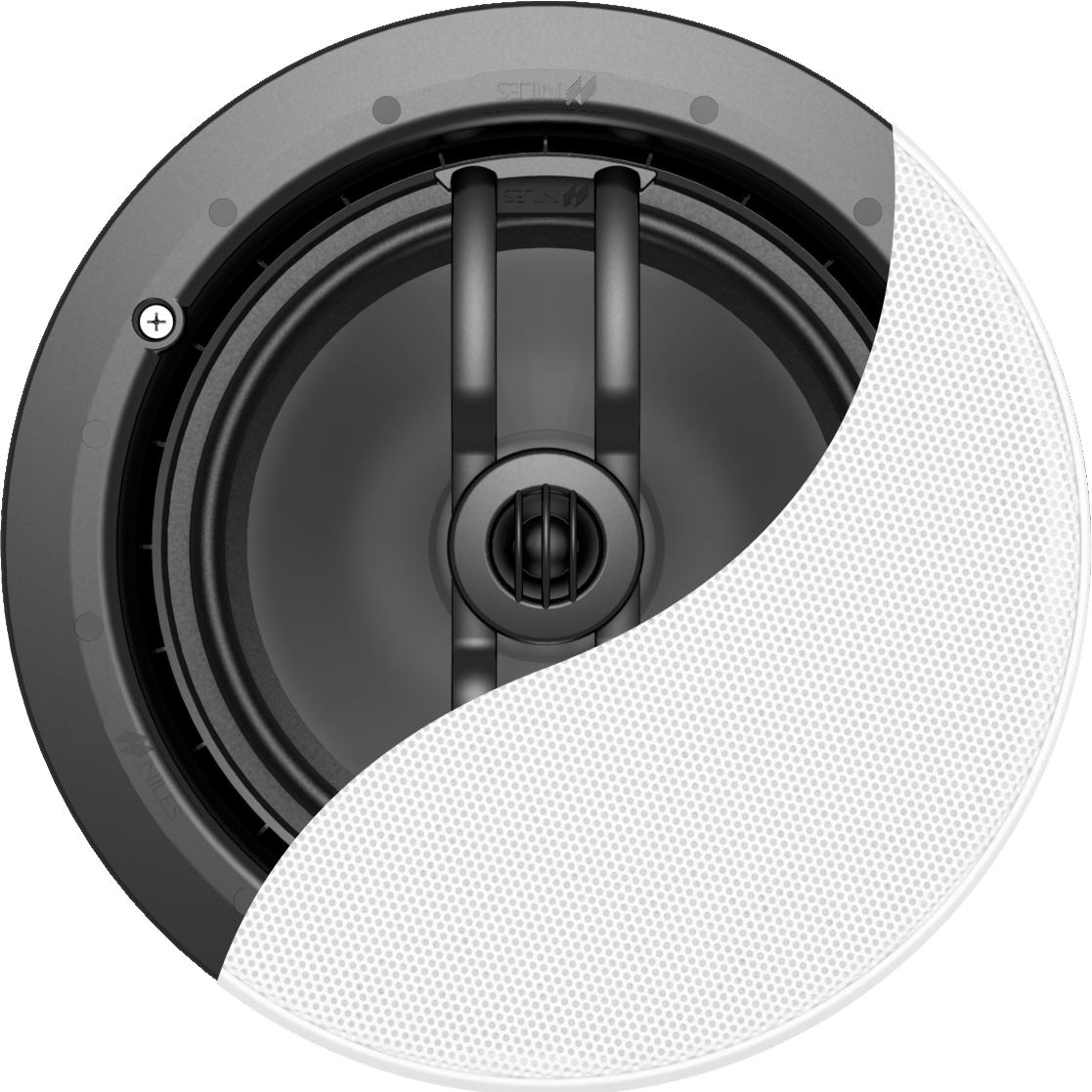

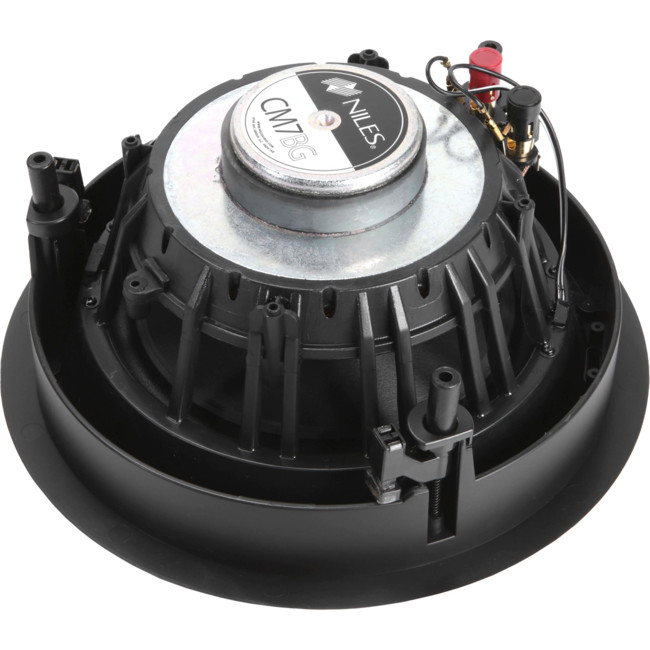

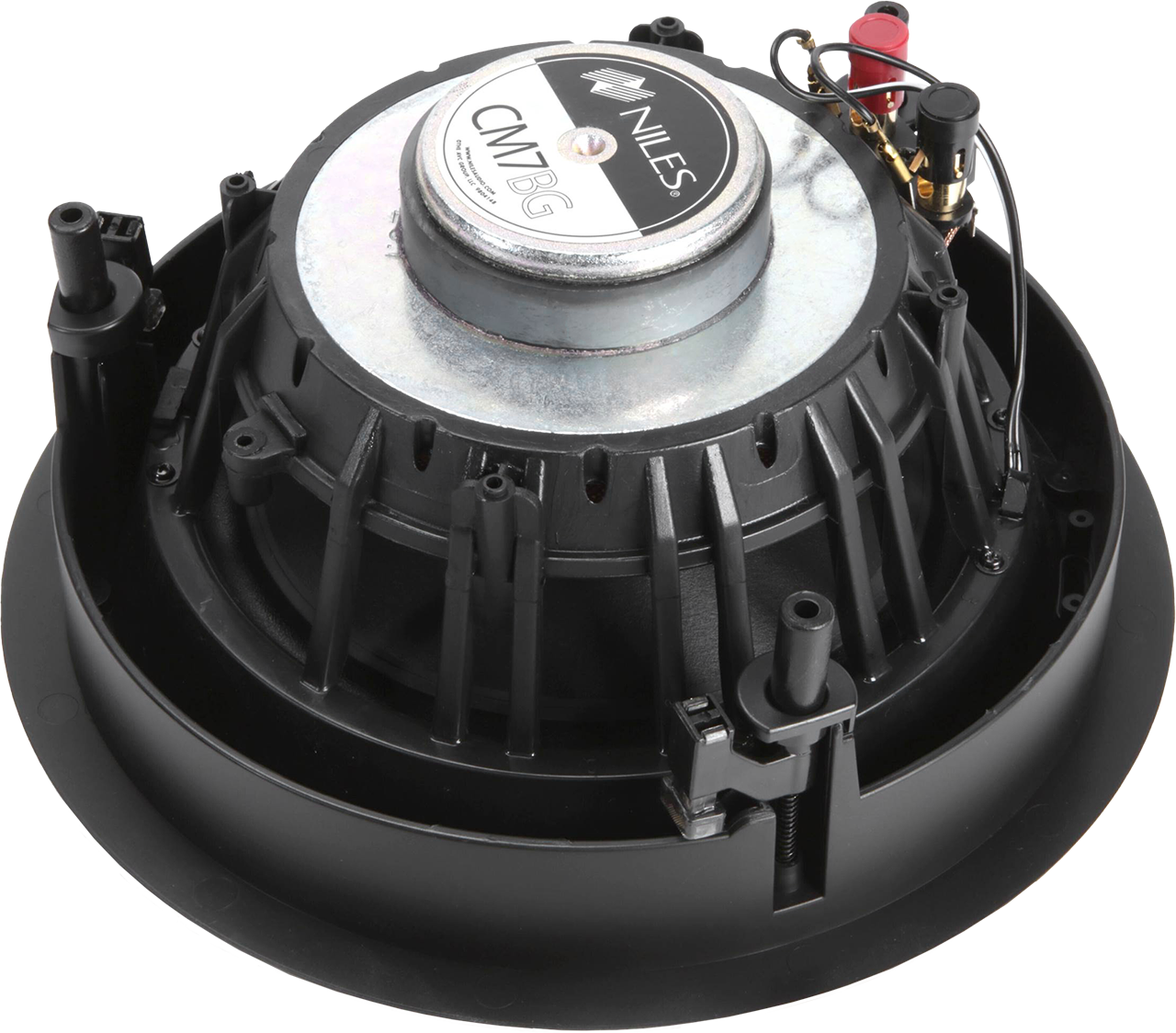

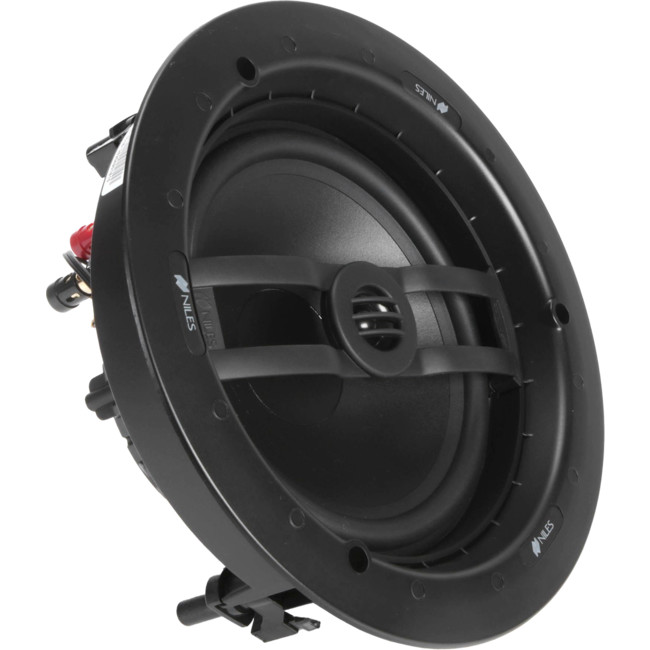

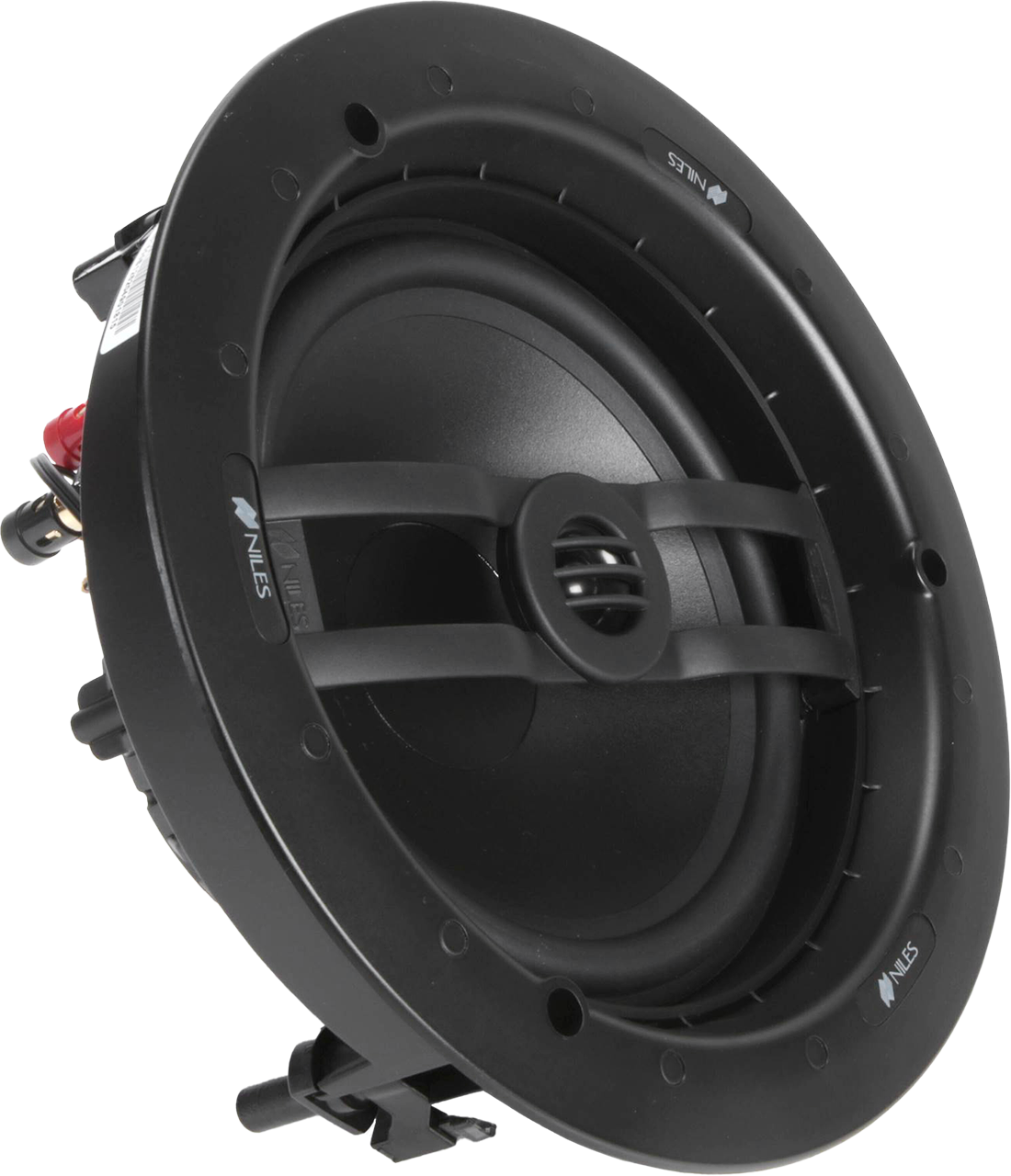

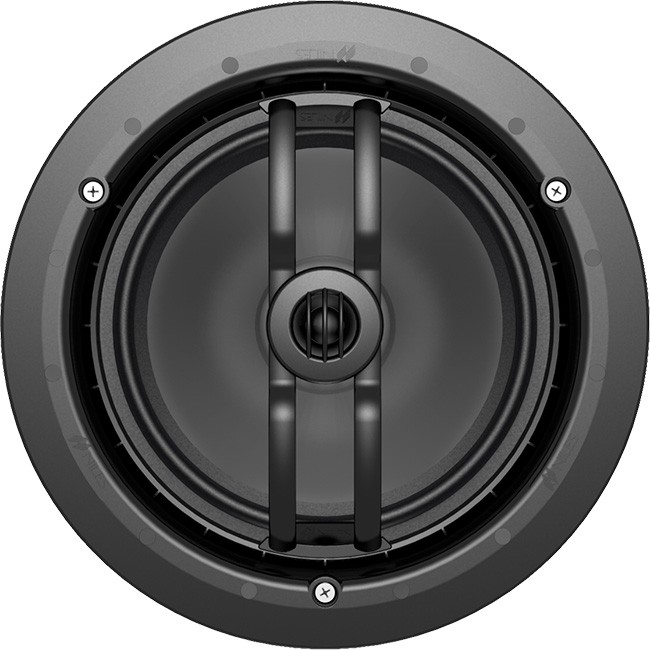

CM7BG 7” Ceiling-Mount 2-way background loudspeaker

Background music loudspeakers are a cost effective solution for providing music to a non-primary listening area.

Polypropylene woofer cone and a 13mm Kaladex® tweeterprovide a great cost/performance balance for this type of application.

FEATURES:

• Integrated woofer/baffle design delivers greater low frequency response by employing a larger 7” wooferwhere competitive models of the same outer size employ only 6 1/2” woofers in the same size speaker installation

• Polypropylene cone is light, strong and well damped toprovide “best in class” bass response

• Treated urethane surround increases sensitivity while preserving durability

• 13mm Kaladex® tweeter with fluid cooling provides wide dispersion for clear and detailed high frequencies

• Magnetically attached, rust-resistant grille covers install quickly and provide a low profile look

• Weather resistant construction reduces installation limitations and provides unique solutions in moist environments or outdoors under eaves

SPECIFICATIONS:

• Recommended Amplifier Power: 10 to 75 Watts

• Impedance: 8 ohm nominal; 6 ohm minimum

• Frequency Response: 58Hz to 20kHz /-3dB

• Voice coil size: 3/4"

• Frame Dimensions: 9 7/8 inches (25.1 cm)

• Hole cutout dimensions: 8 1/2 inches (21.6 cm)

• Depth behind ceiling (5/8” drywall): 3 3/4” (9.5 cm)

• Shipping Weight: 4.2 lbs (1.9 kg)

• Warranty: Lifetime Limited
