Monitor Audio C3L-A

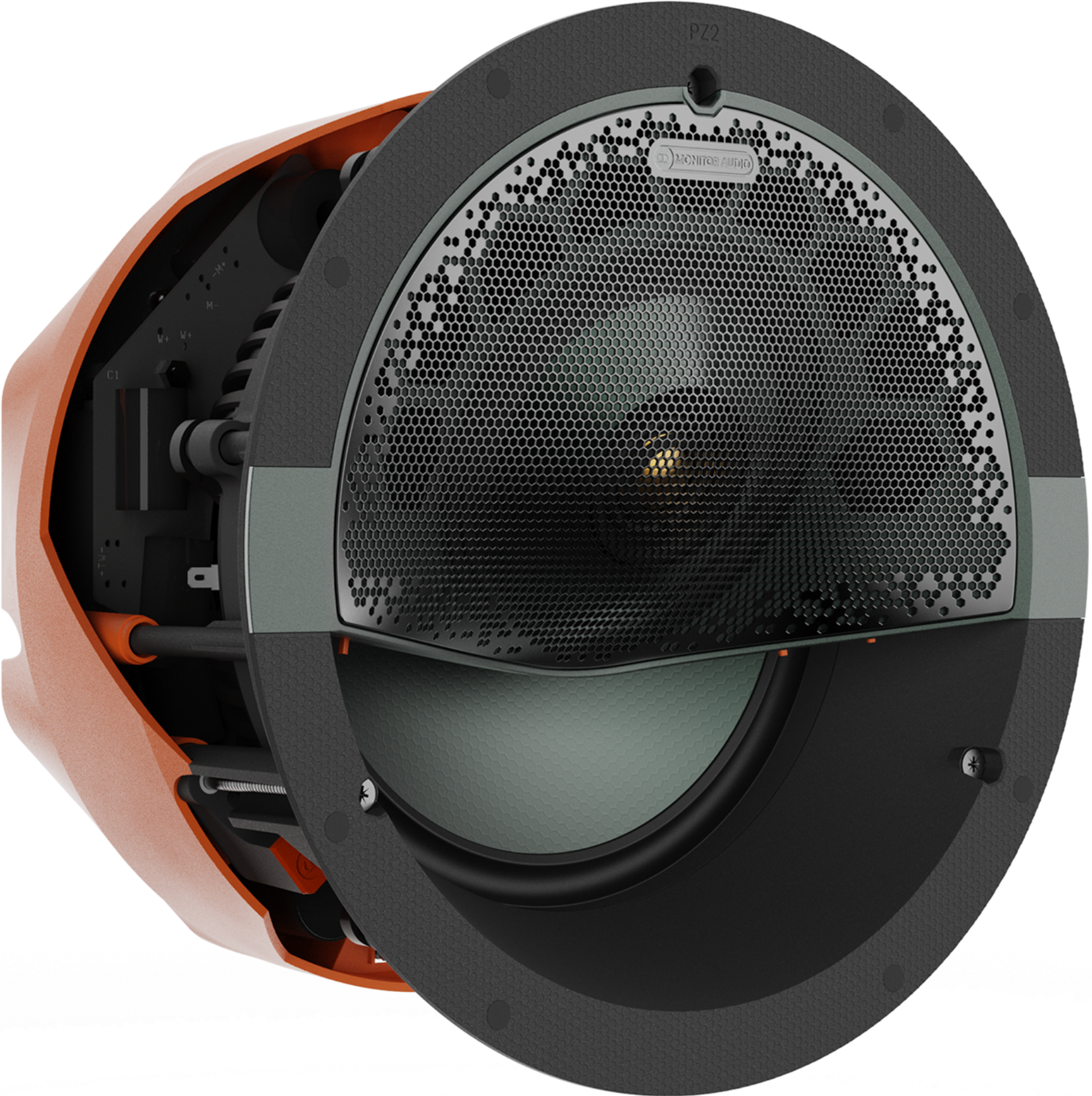

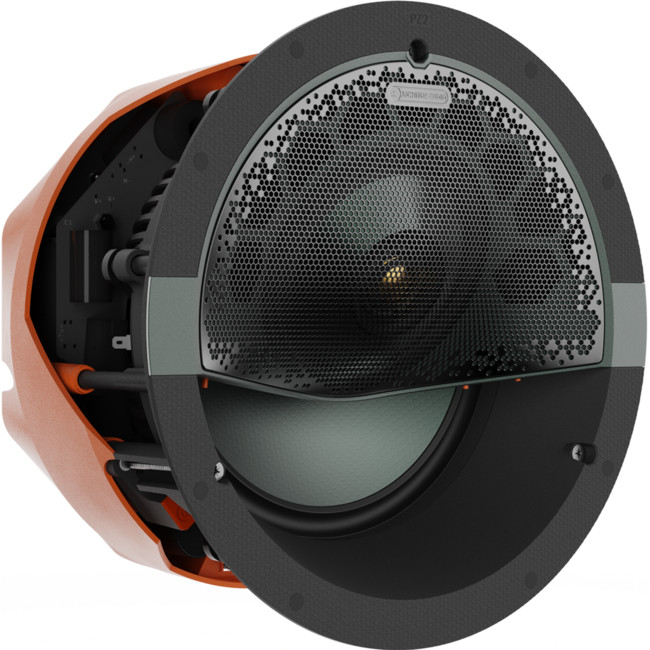

This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.

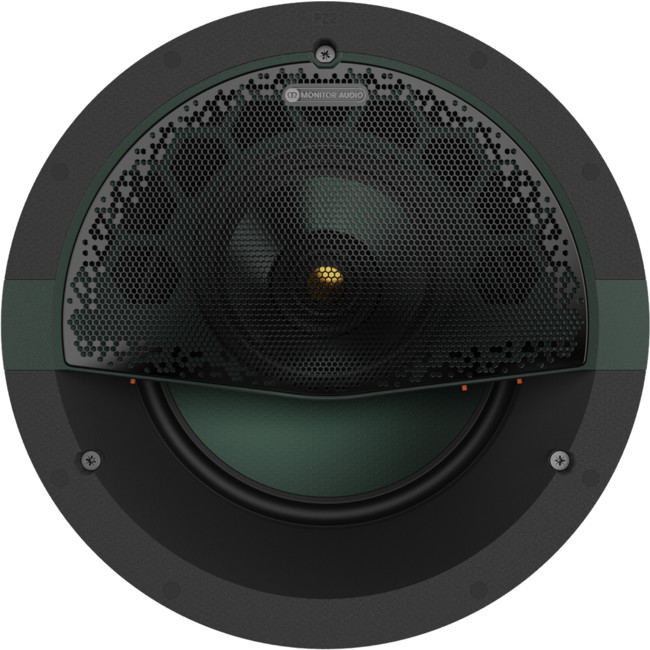

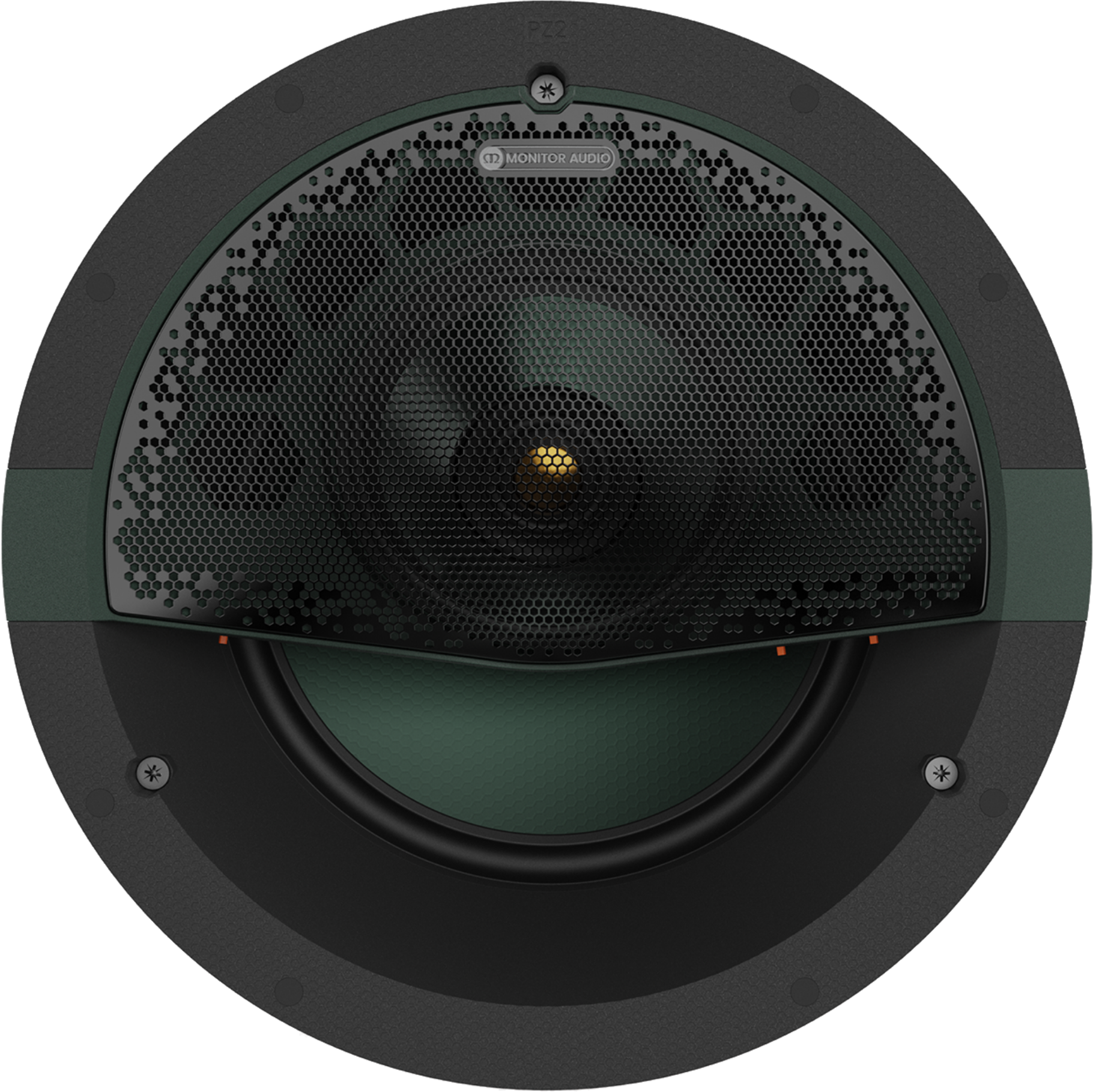

The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.

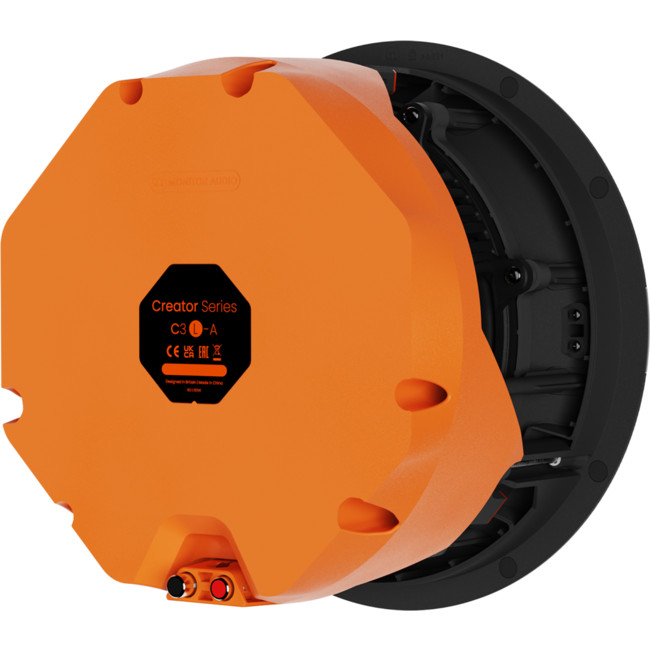

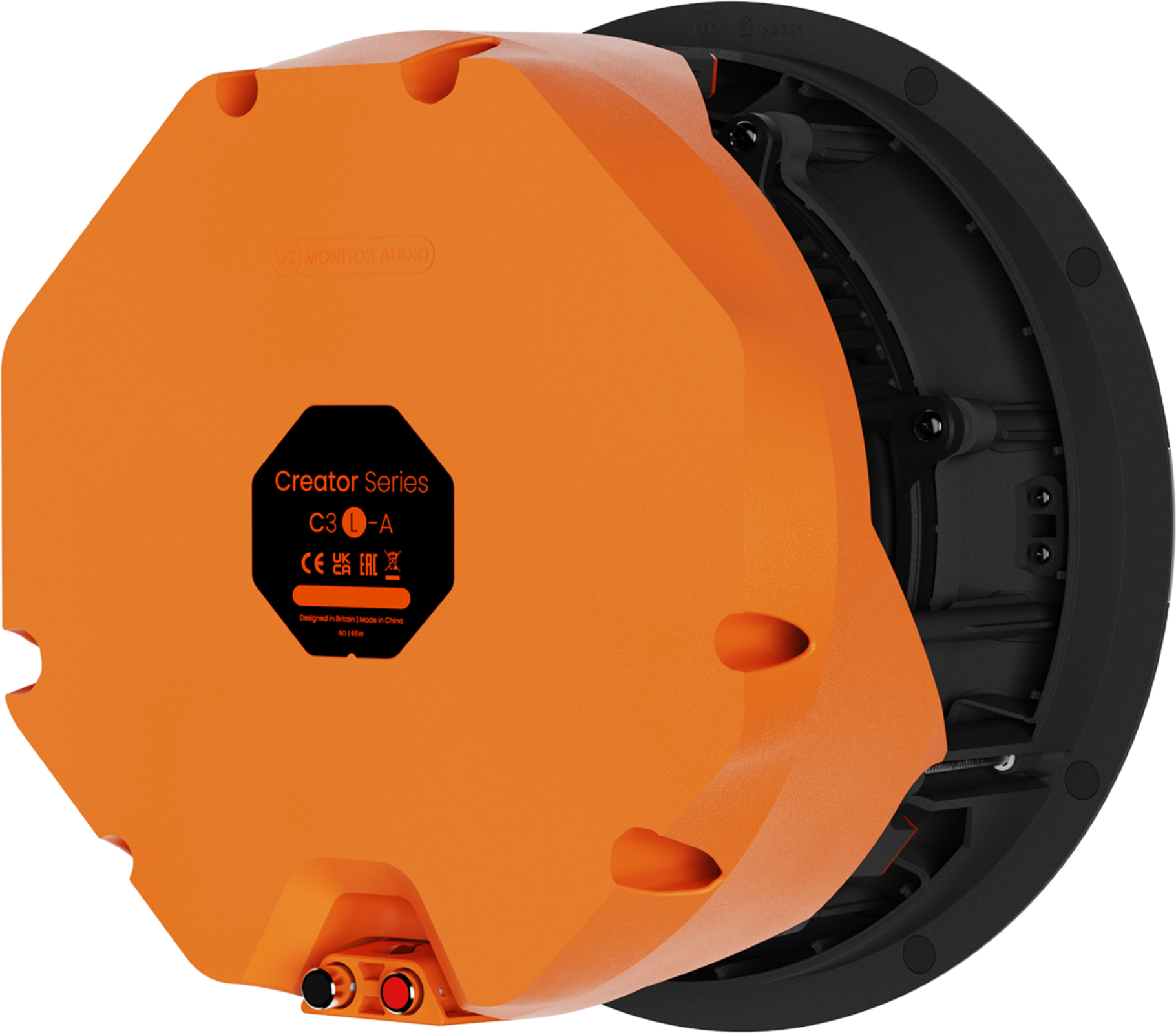

It has a cut-out diameter of 248mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grille can be used with this model.
This product is now available to use with home theatre design software, The Cinema Designer. Read more.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Angled IDC II projects sound into the room for pin-point accuracy
- Three-way design
- Mid-frequency ‘mid-pod array’
- 1 × 1″ (25mm) IDC II tweeterwith UD Waveguide II for lifelike sound
- 1 × 9″ (229mm) RDT III bass driver
- 1 × 4″ (102mm) IDC II midrange driver
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
{tab Specifications}
Specifications
| System Format | 3-Way |
|---|
| Channels | 1 |
|---|
| Frequency Response, Installed (−6dB) | 45Hz – 35kHz |
|---|
| Nominal Impedance | 6Ω (Ohm) |
|---|
| Minimum Impedance (20Hz to 20kHz) | 4.6Ω (Ohm) @ 2 kHz |
|---|
| Sensitivity (2.83V RMS @ 1m, Installed) | 89dB |
|---|
| Maximum Peak SPL* (Single Speaker @ 1m Z-Weighted) | Mono: 119dB |
|---|
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 150W |
|---|
| Recommended Amplifier Power (RMS into 8Ω (Ohm), Music Signal) | 60W – 125W |
|---|
| Drive Unit Complement | - 1 × 9″ (178mm) RDT III Bass Driver
- 1 × 4″ (102mm) IDC II Mid-range Driver
- 1 × 1″ (25 mm) IDC II Tweeter
|
|---|
| Cross Over Frequency | - LF/MF: 700 Hz
- MF/HF: 3.0 kHz
|
|---|
| Mounting Depth | 157mm (63/16″) |
|---|
| Cut-Out Hole Diameter | 248mm (93/4″) |
|---|
| External Dimensions (Including Grille – H×W×D) | 278mm × 278mm × 161mm (1015/16″ × 1015/16″ × 65/16″) |
|---|
| Weight | 5.6kg (12lb, 5oz) |
|---|
| Pre-Construction Bracket | CL-B |
|---|
| Cabinet Finish | Matte Black & Orange & Green |
|---|
| Sold As | Single Unit |
|---|
| Corner Switch | ON/OFF |
|---|
| H/F Switch / MF Switch | − /0/ + |
|---|
