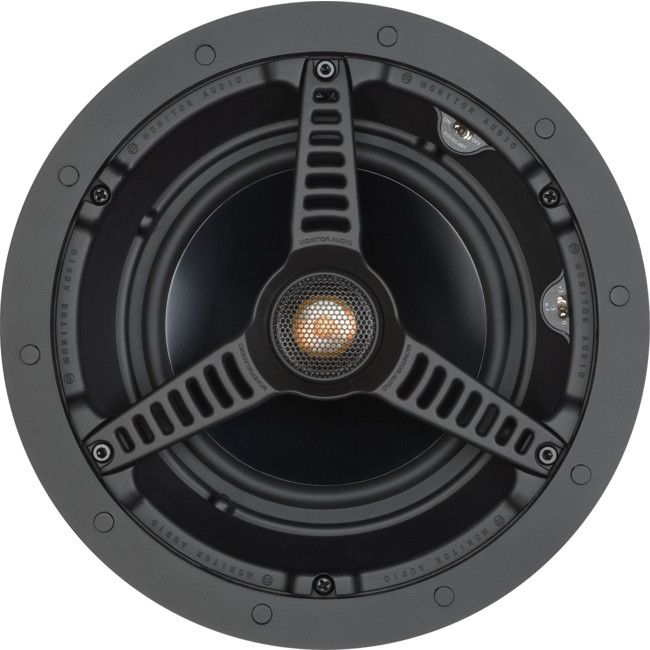

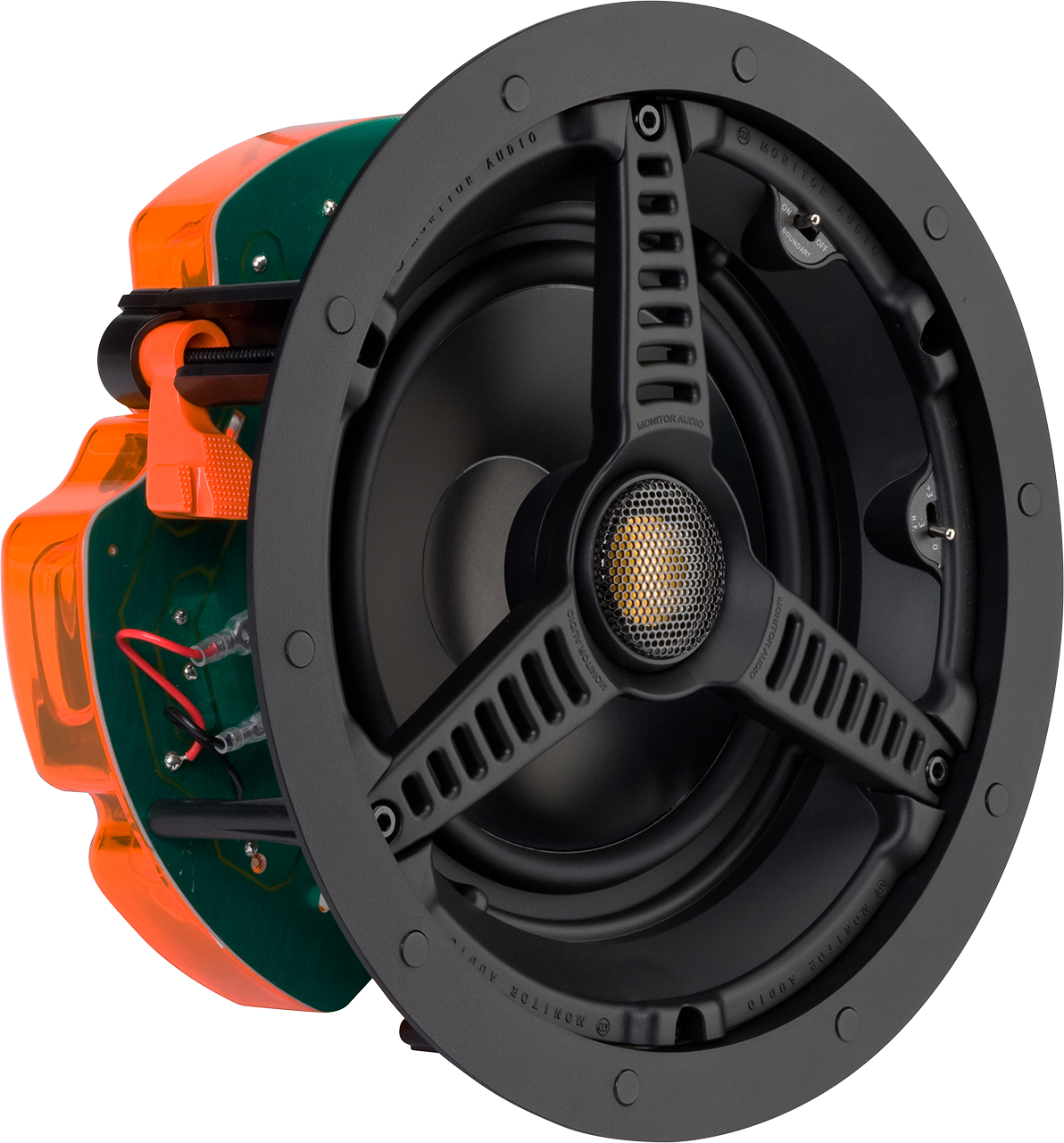

C265 6.5" 2-WAY IN-CEILING SPEAKER

C-CAM BASS - C-CAM TWEETER

Code: 39811245

2.96 kg
5060028971497
EACH
Low Stock
TRADE ALERT!
$369 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

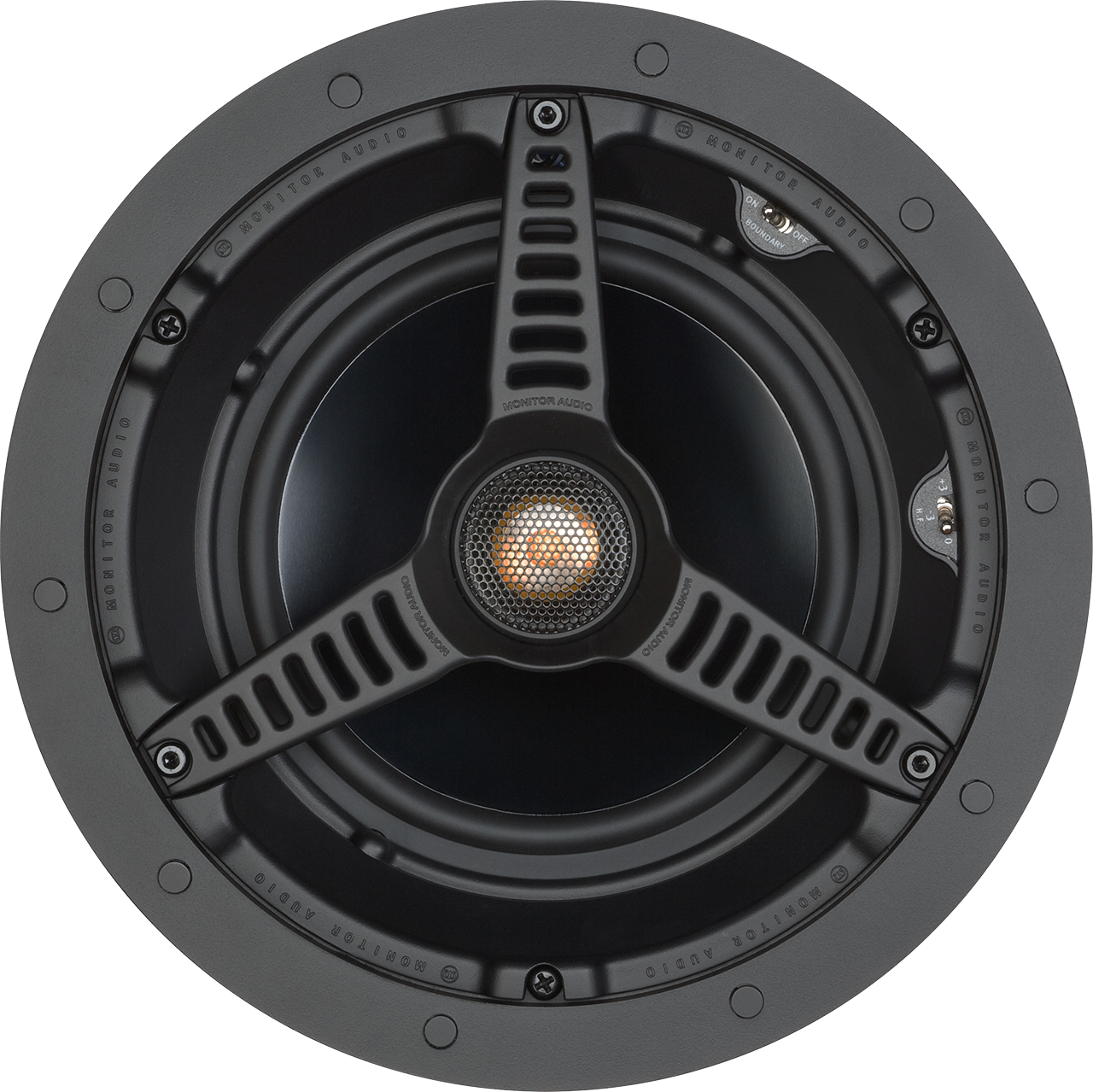

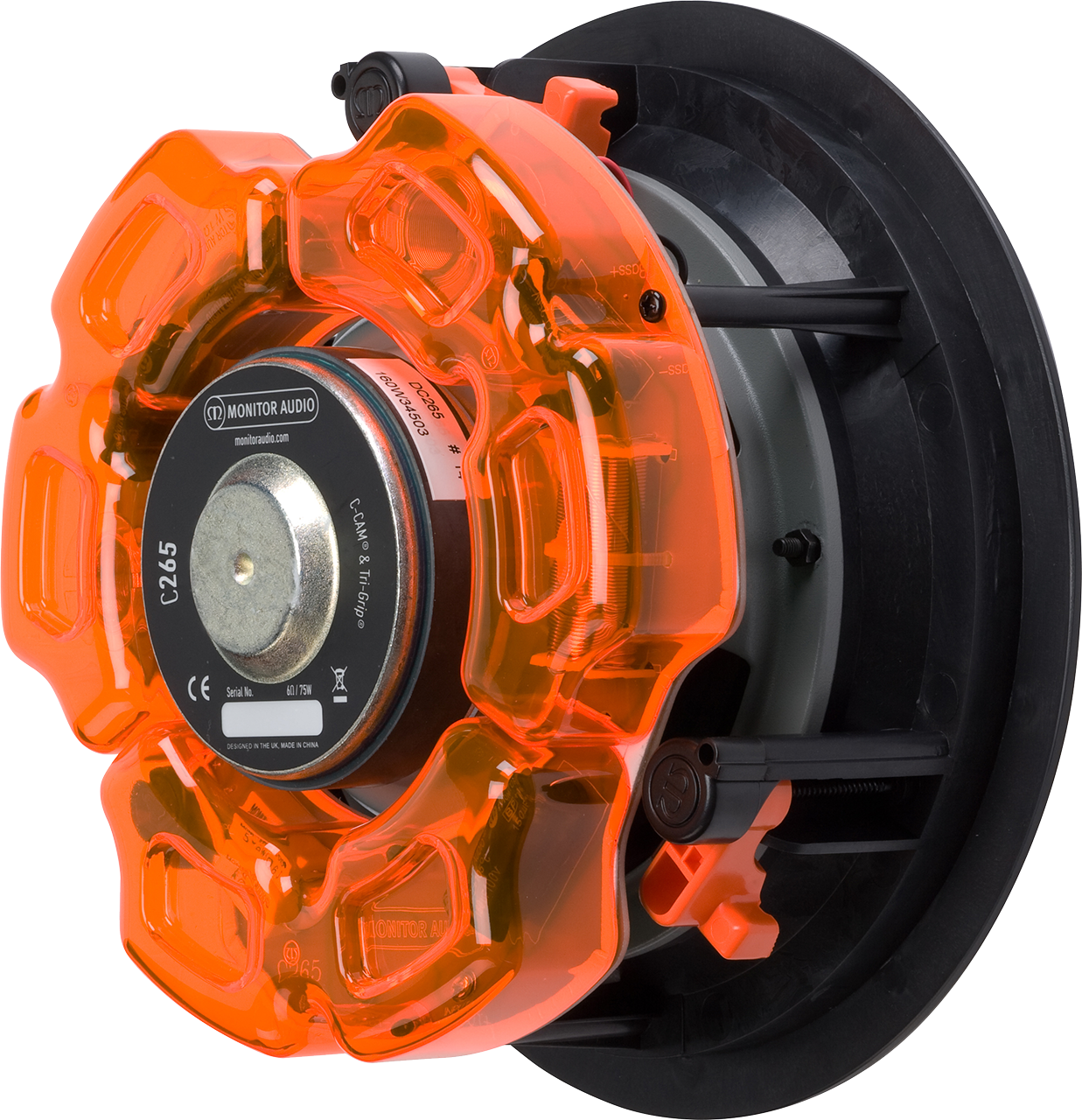

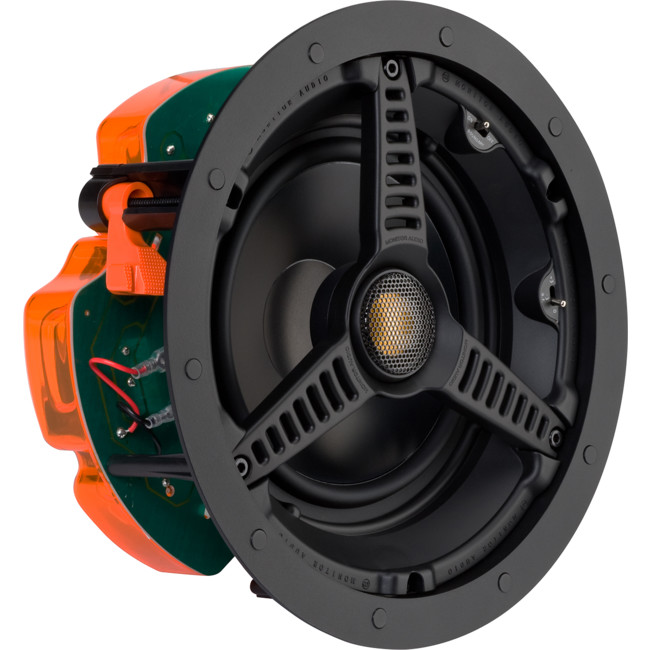

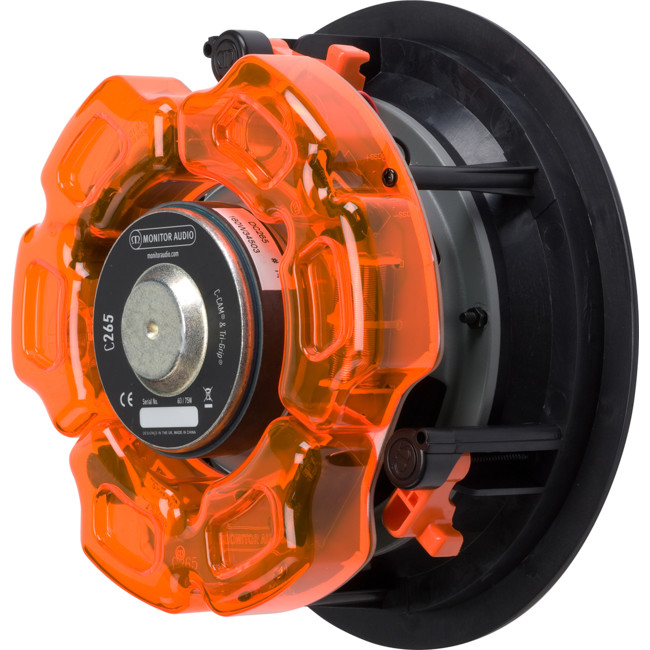

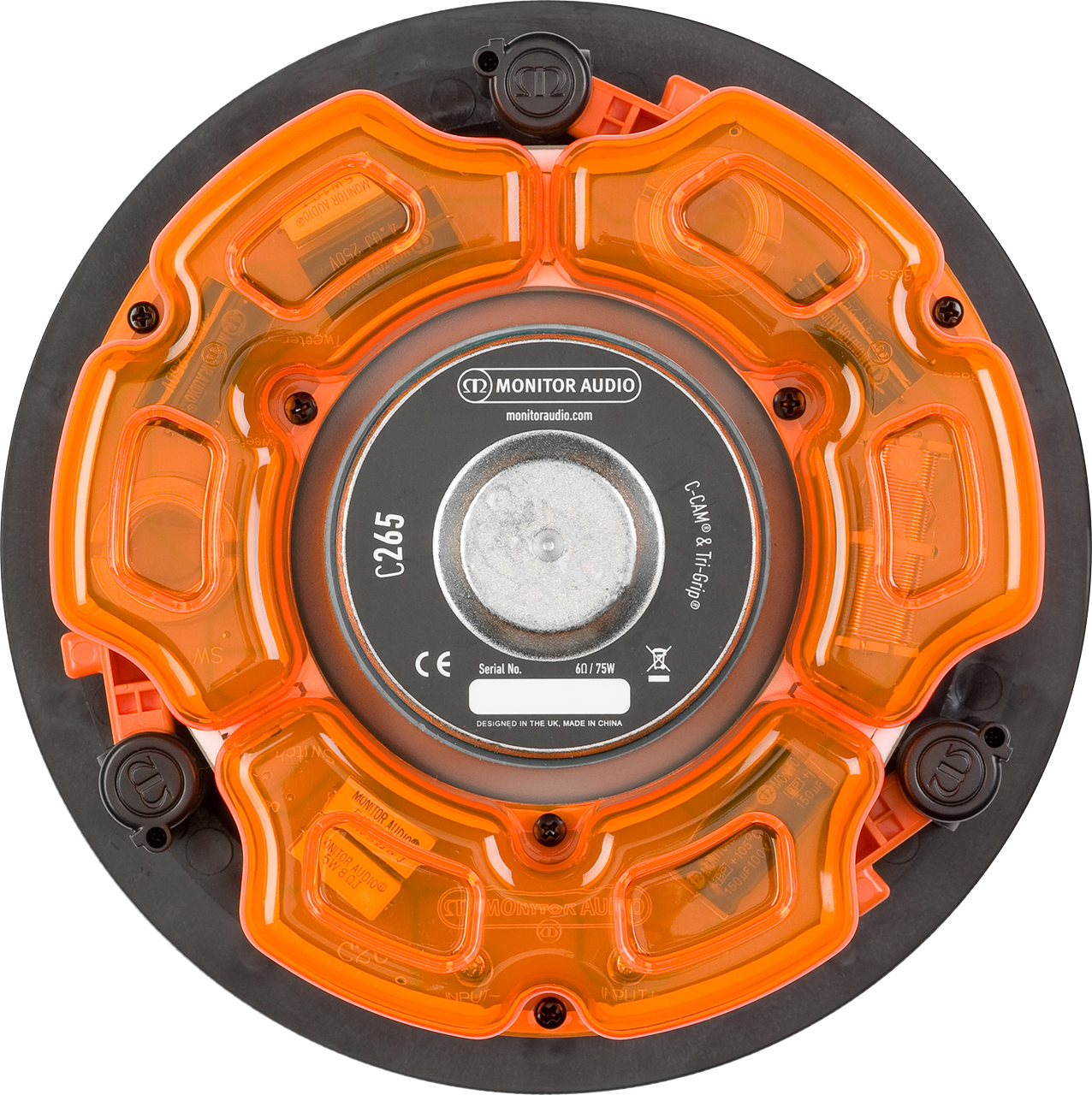

C265- 6.5" 2 WAY IN-CEILING SPEAKER

A 61/2 inchC-CAMbass driver and a more highly specified version of the C-CAMGold Dome tweeteroffer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.

Optimum imaging and set-up are established via a pivotingtweeter, high frequency ( 3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

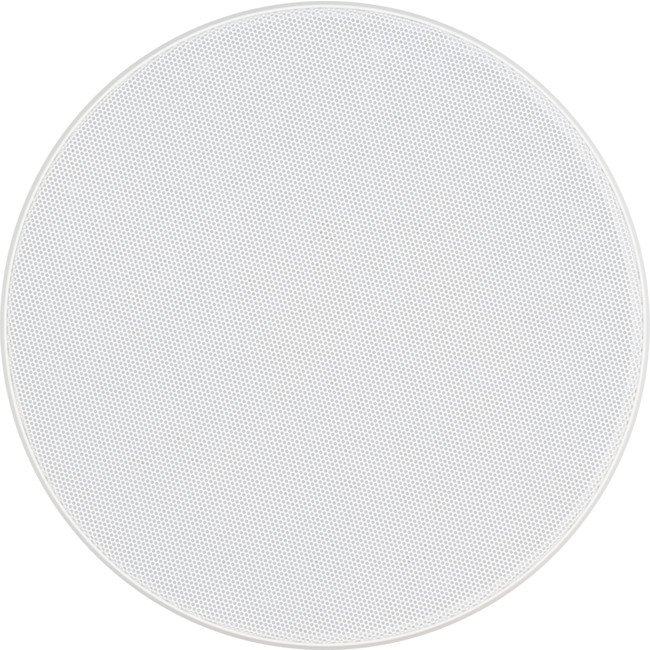

Optionalsquareorpremium grillecan be used with this model.

Technology

  • C-CAM bass and C-CAM gold dome tweeters
  • Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
  • Gold plated push terminals
  • HF Level Switch ( 3 dB / 0 dB / -3 dB)
  • On/Off Boundary compensation



Specifications

Frequency response 60 Hz – 25 kHz

Nominal Impedance

 6 ohms
Sensitivity (1W@1M) 88.5 db
Maximum SPL 108 dBA
Power Handling (RMS) 75 Watt
Recommended Amplifier Requirements 20-75 Watts
Drive Unit Complement

6 1/2"C-CAMcone bass driver
1” C-CAM pivotingGold Dome tweeter
Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

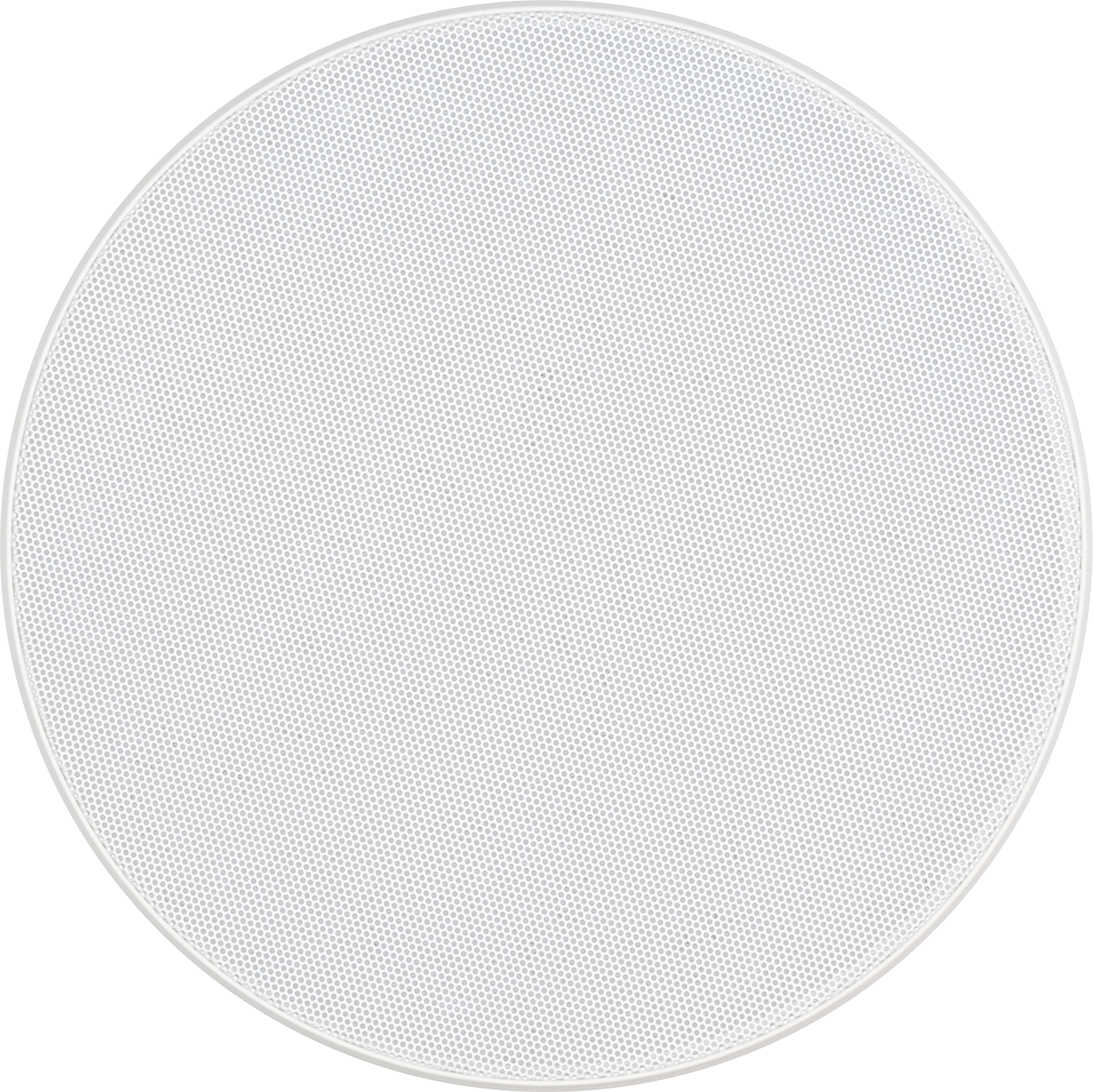

Overall Diameter (Including Grille) 250 mm (913/16")
Mounting Depth

116 mm (49/16")
Cut-Out Hole Diameter 211 mm (81/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection Gold plated ‘push’ type terminals

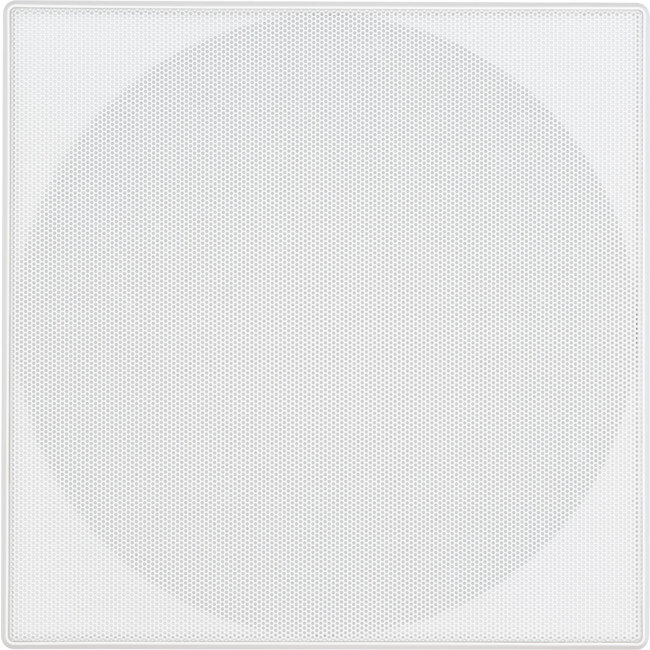

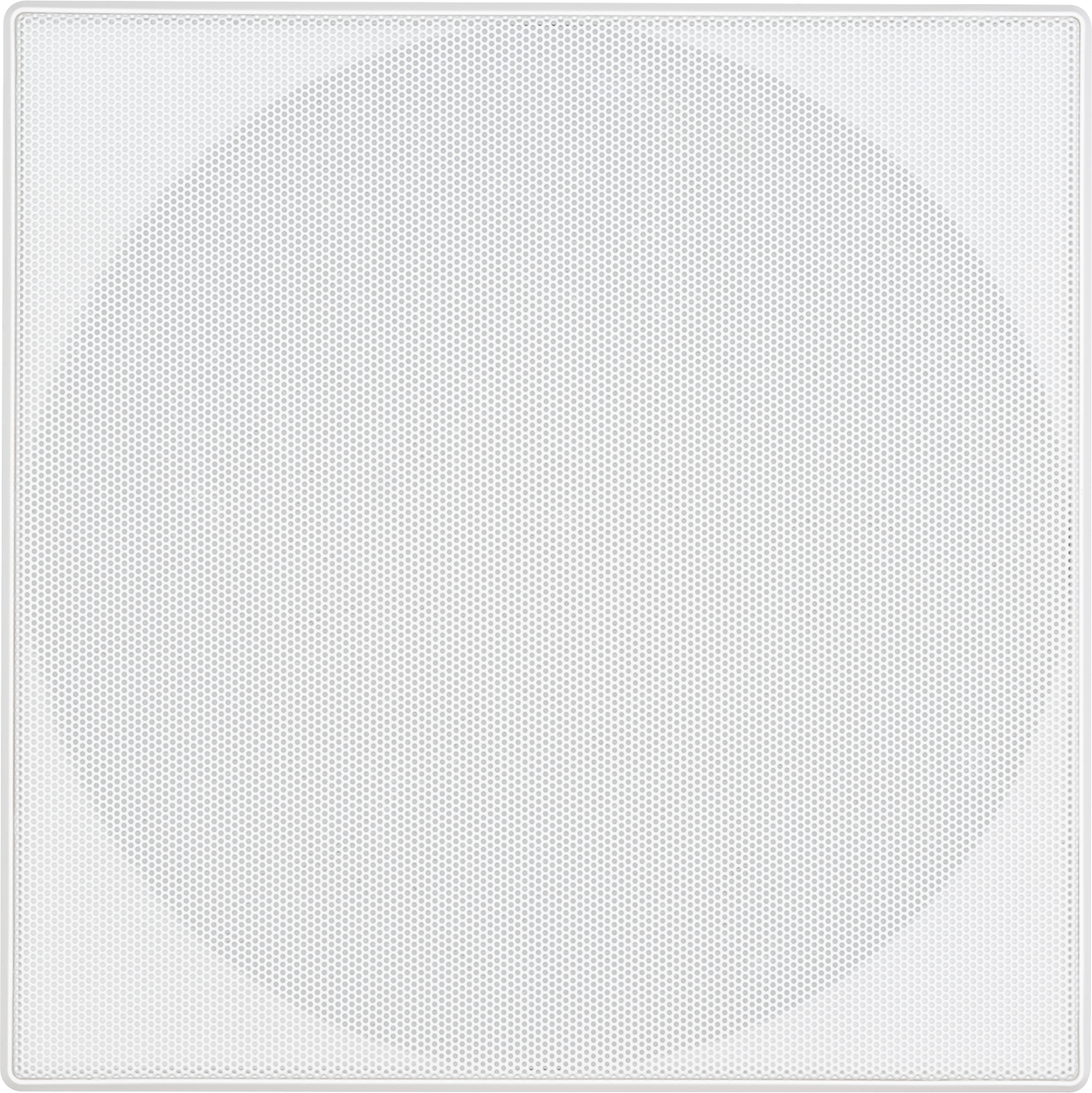

Optional Square Grille - Outer Dimensions 249 x 249 mm(93/16")
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.04 kg (4 lb 8 oz)
Pre- Construction bracket CB6Pre-Construction Bracket(Purple)
Back Box CCBOX-R/CMBOX-R
