C180T2 SINGLE STEREO 8" 2-WAY SPEAKER

MMP11 BASS -C-CAM TWEETERS

Code: 39811240

4.20 kg
5060028971466
EACH
Low Stock
$349 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

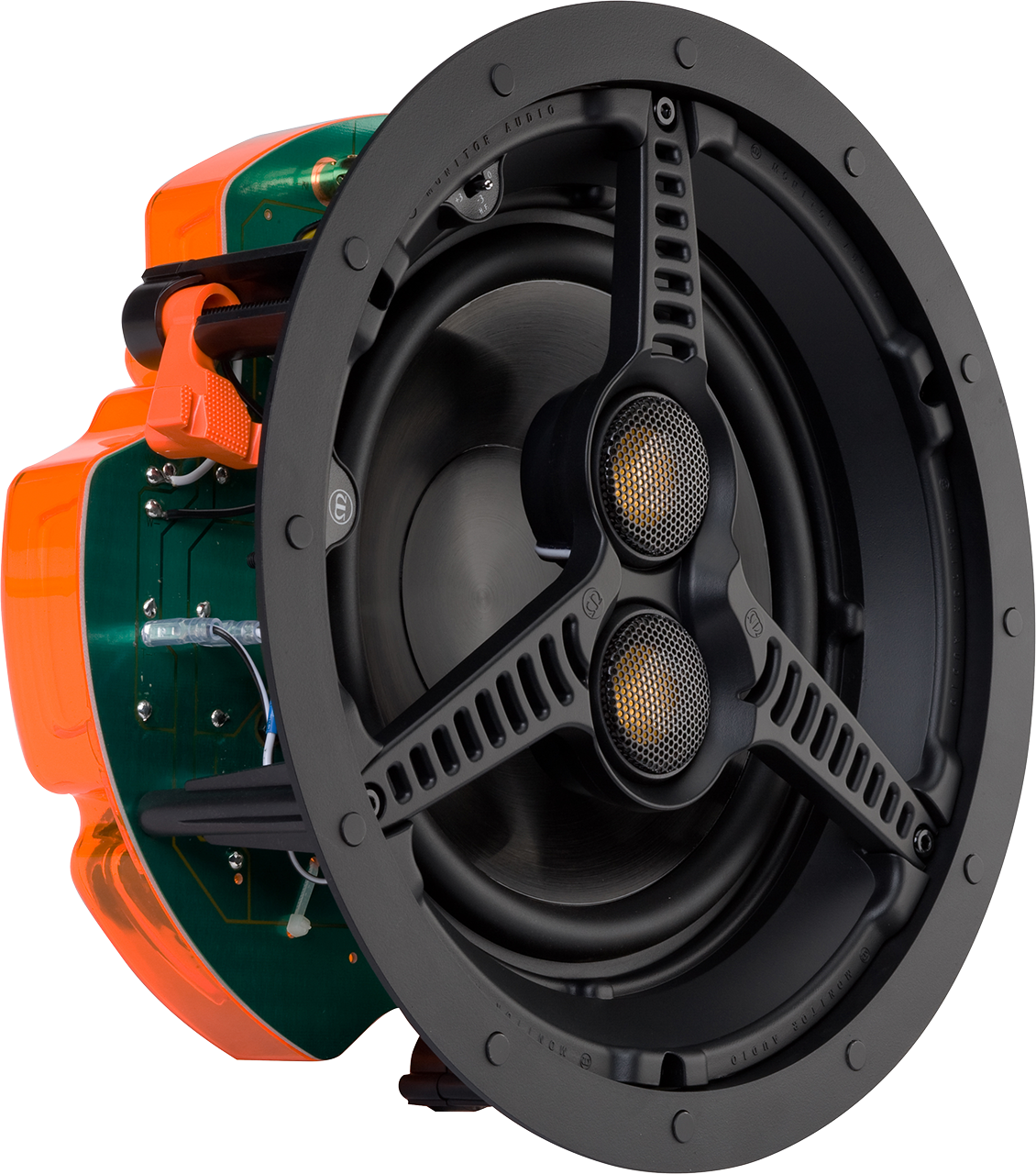

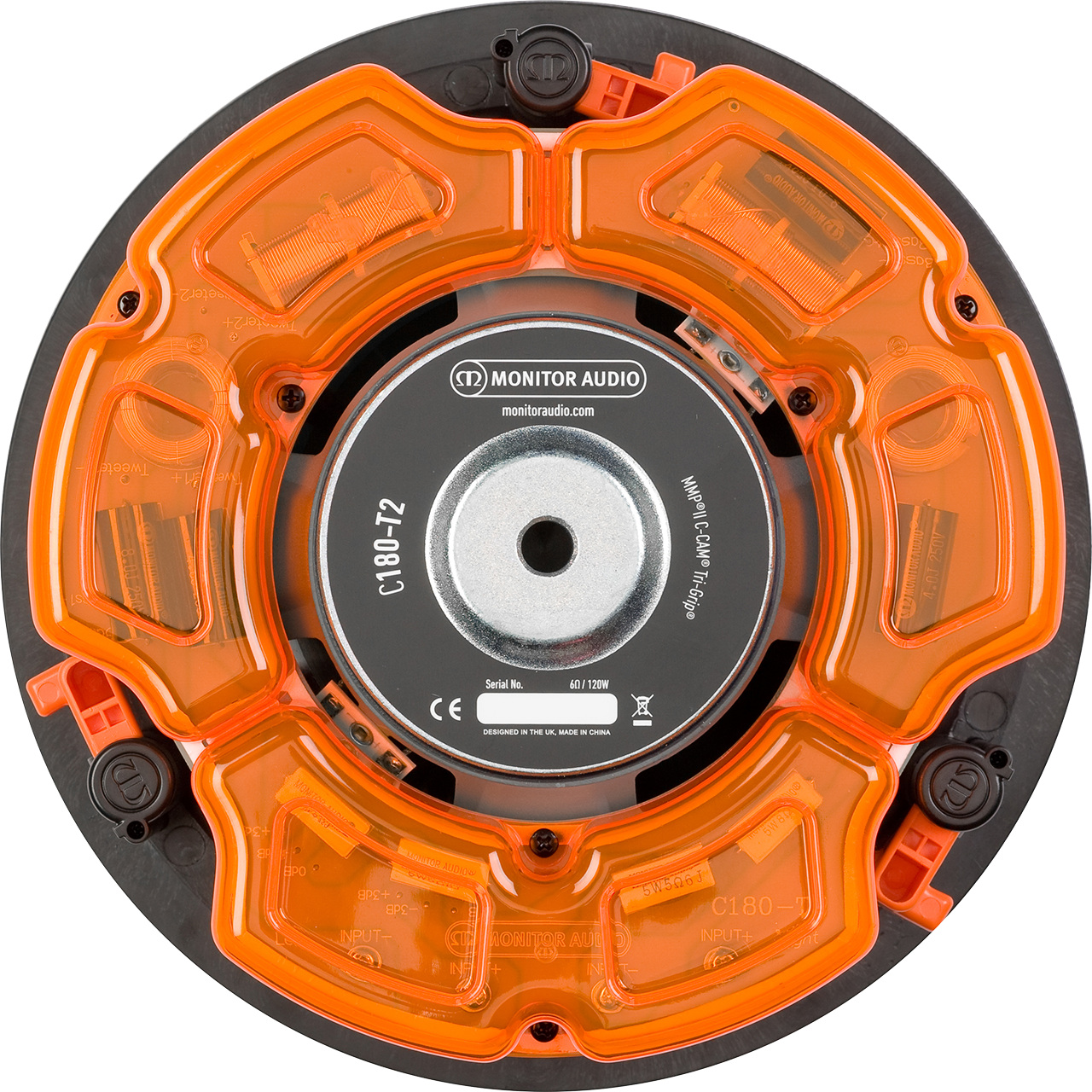

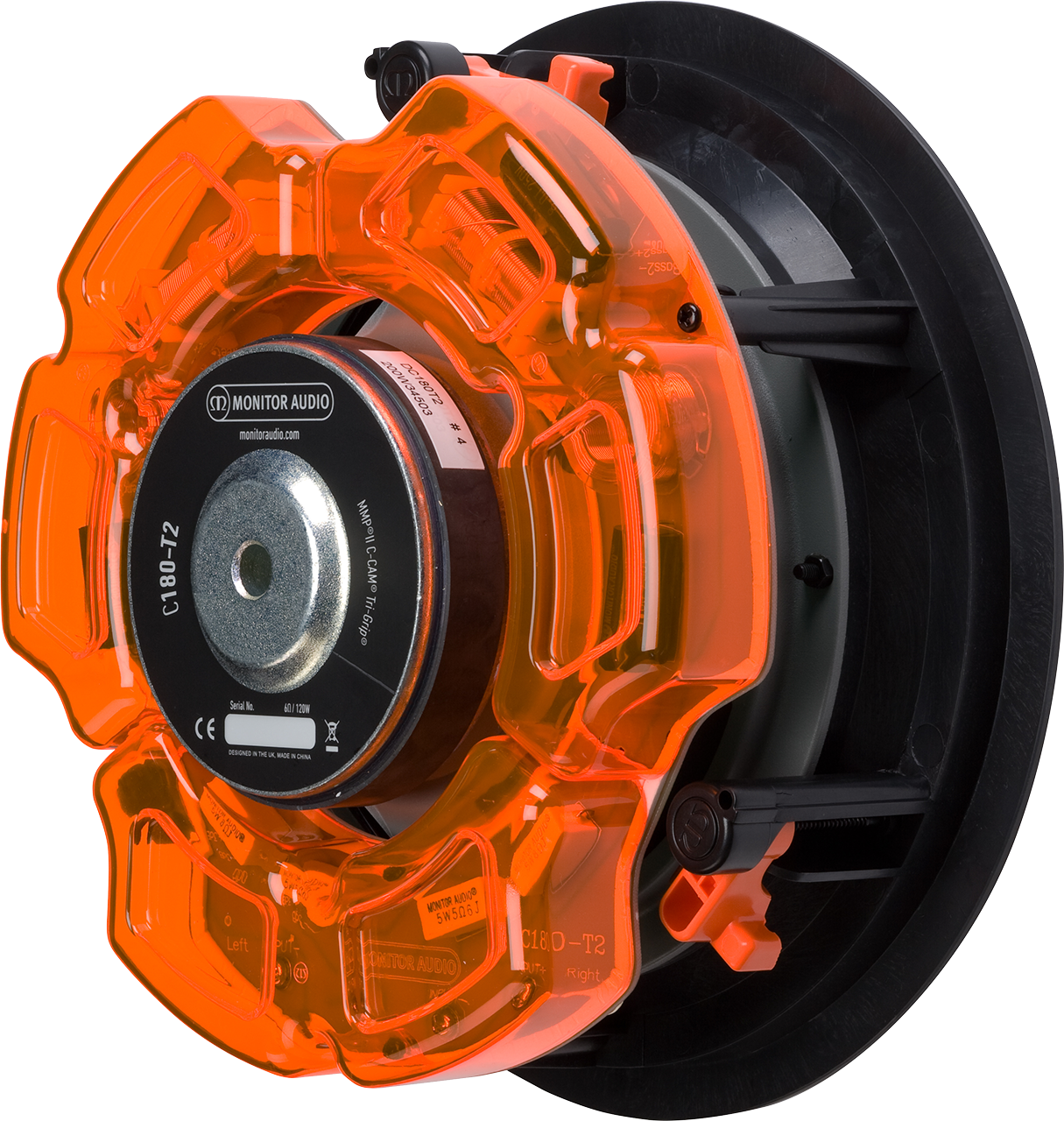

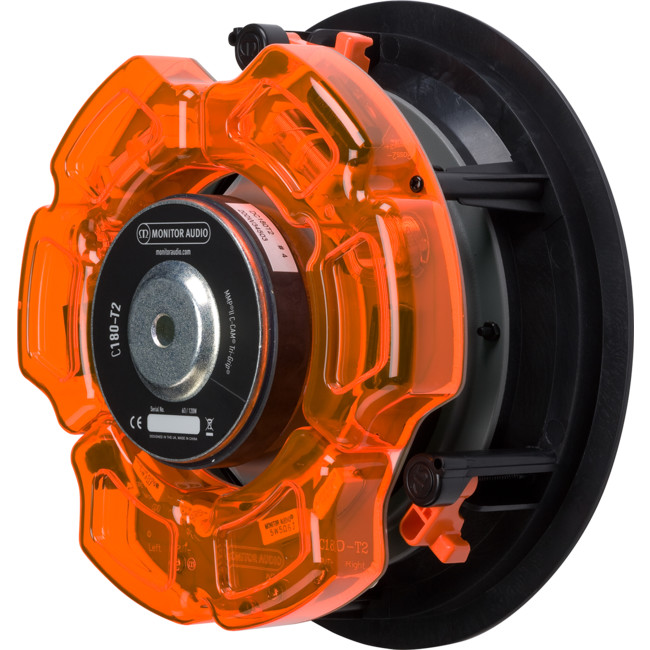

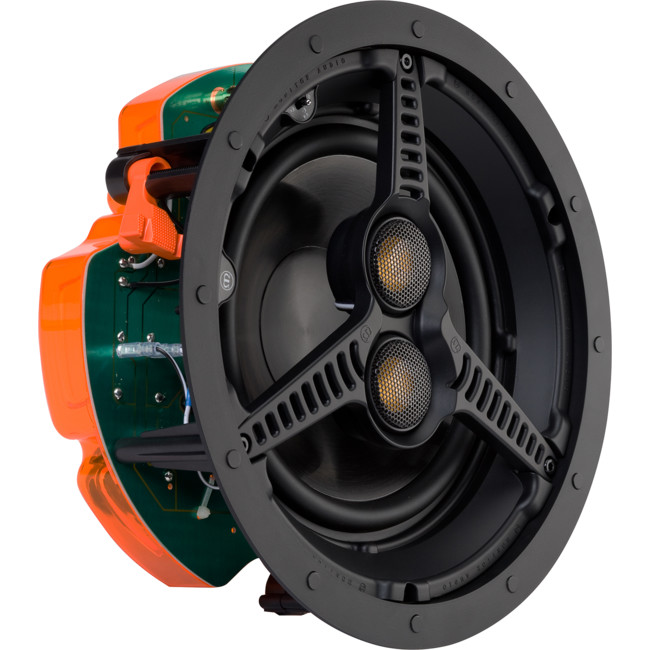

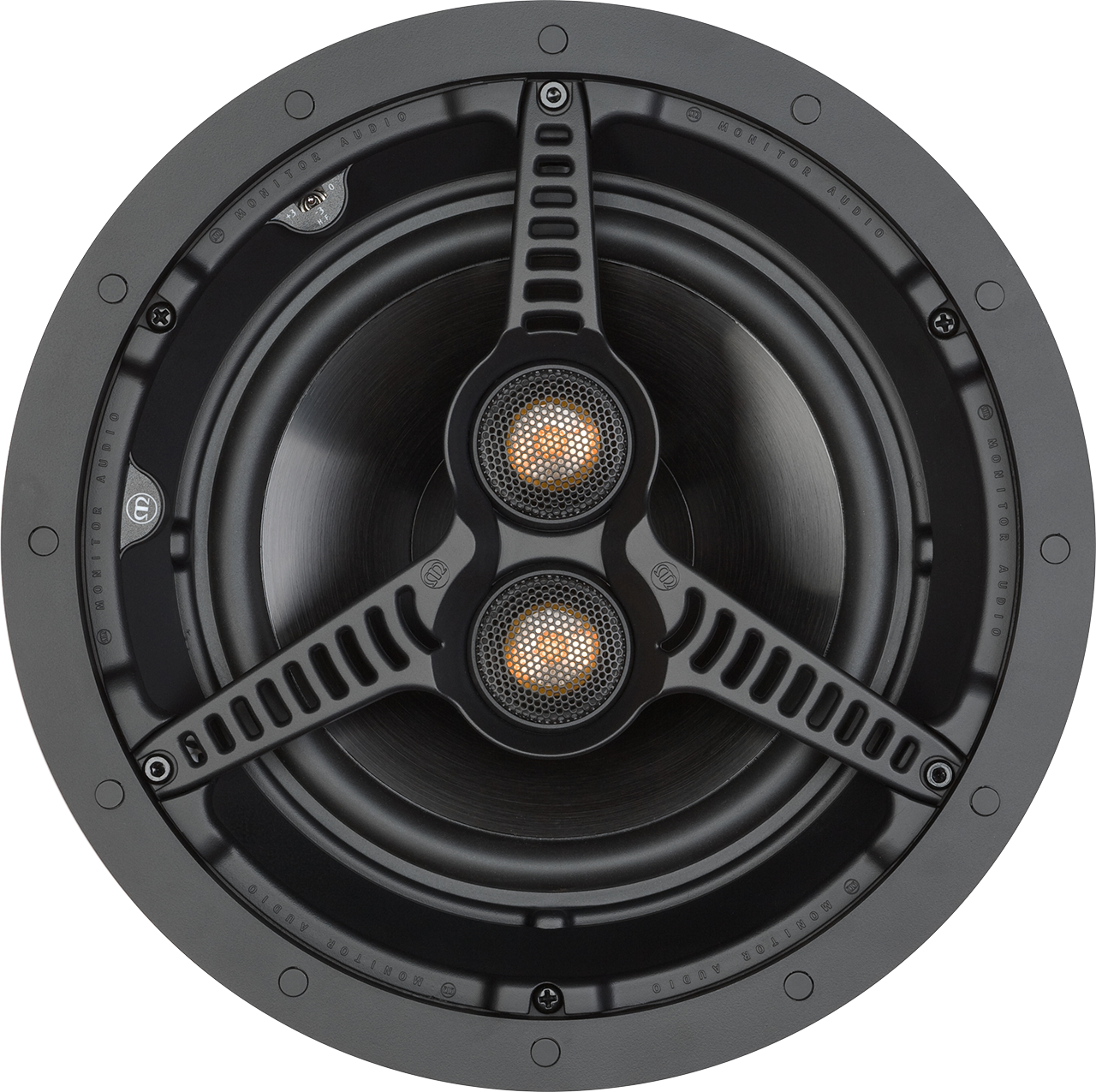

C180-T2- 8"- SINGLE STEREO 2 WAY IN-CEILING SPEAKER

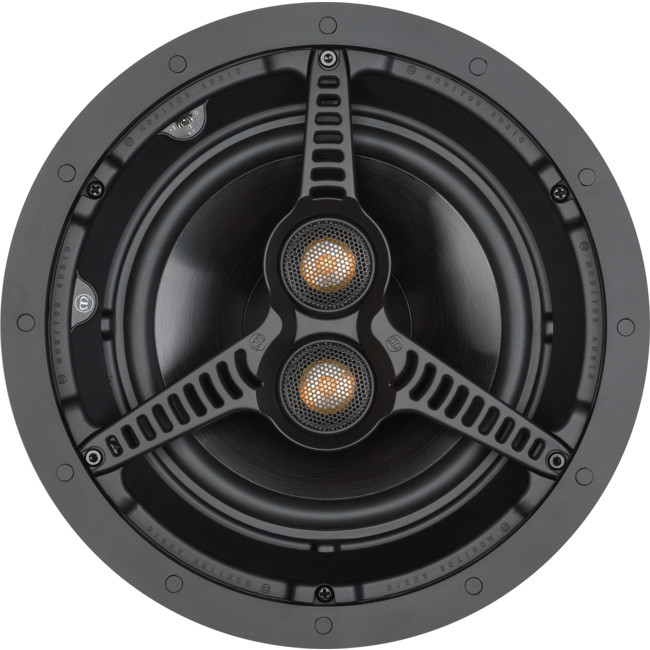

Features dual, independent, pivoting 1-inchC-CAMtwe eters and a 8 inchMMP IIdual wound voice coil bass driver, for high performance stereo sound from a single speaker.

Ideal for bathrooms, hallways, or any area where space does not allow for stereo pairs.

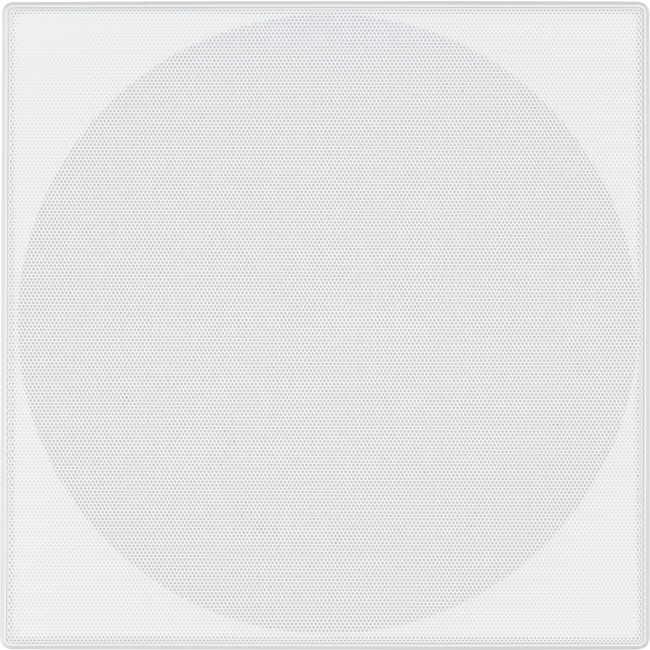

Optionalsquare Grille can be usedwith this model.



Technology

  • MMP 11 bass and CCAM gold dome tweeters
  • Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
  • Gold plated push terminals
  • HF Level Switch ( 3 dB / 0 dB / -3 dB)

Specifications



Frequency response 50 Hz – 25 kHz

Nominal Impedance

 6 6 ohms
Sensitivity (1W@1M) 90 db
Maximum SPL 111.6 dBA
Power Handling (RMS) 120 Watt
Recommended Amplifier Requirements 30-120 Watts
Drive Unit Complement

8"MMP IIcone bass driver
2 x 1"C-CAMpivotingGold Dome tweeters
Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille) 285mm (111/4")
Mounting Depth

122 mm (413/16")
Cut-Out Hole Diameter 247 mm (93/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection 2 X 2PR Gold plated ‘push’ type terminals
Optional Square Grille - Outer Dimensions 1.92 kg (4 lb 4 oz)
Construction Material Mineral filled ABS, RoHS compliant
Weight 2.08 kg (4 lb 10 oz)
Pre- Construction bracket CB6Pre-Construction Bracket(Purple)
Back Box CCBOX-R/CMBOX-R
