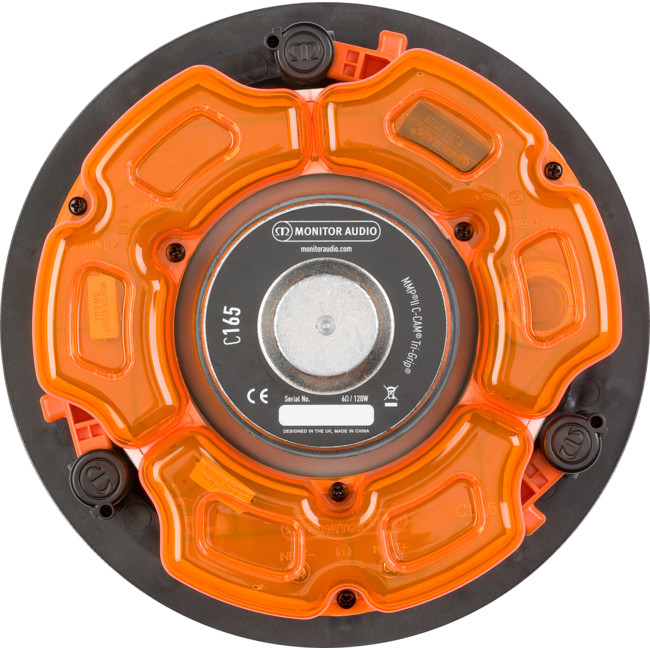

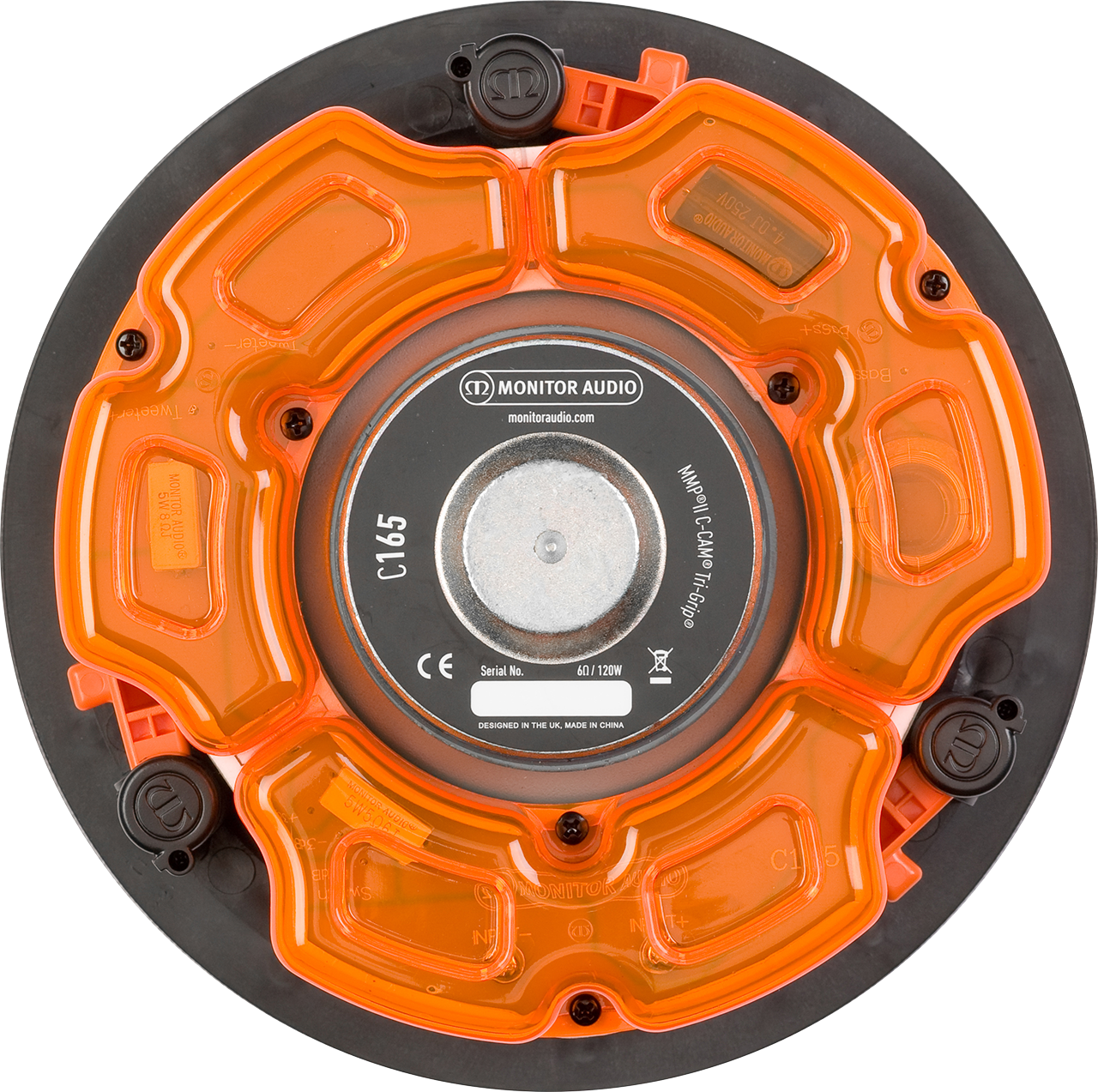

C165 6.5" 2-WAY IN-CEILING SPEAKER

MMP11 BASS -C-CAM TWEETER

Code: 39811225

2.88 kg
5060028971435
EACH
Low Stock
TRADE ALERT!
$219 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

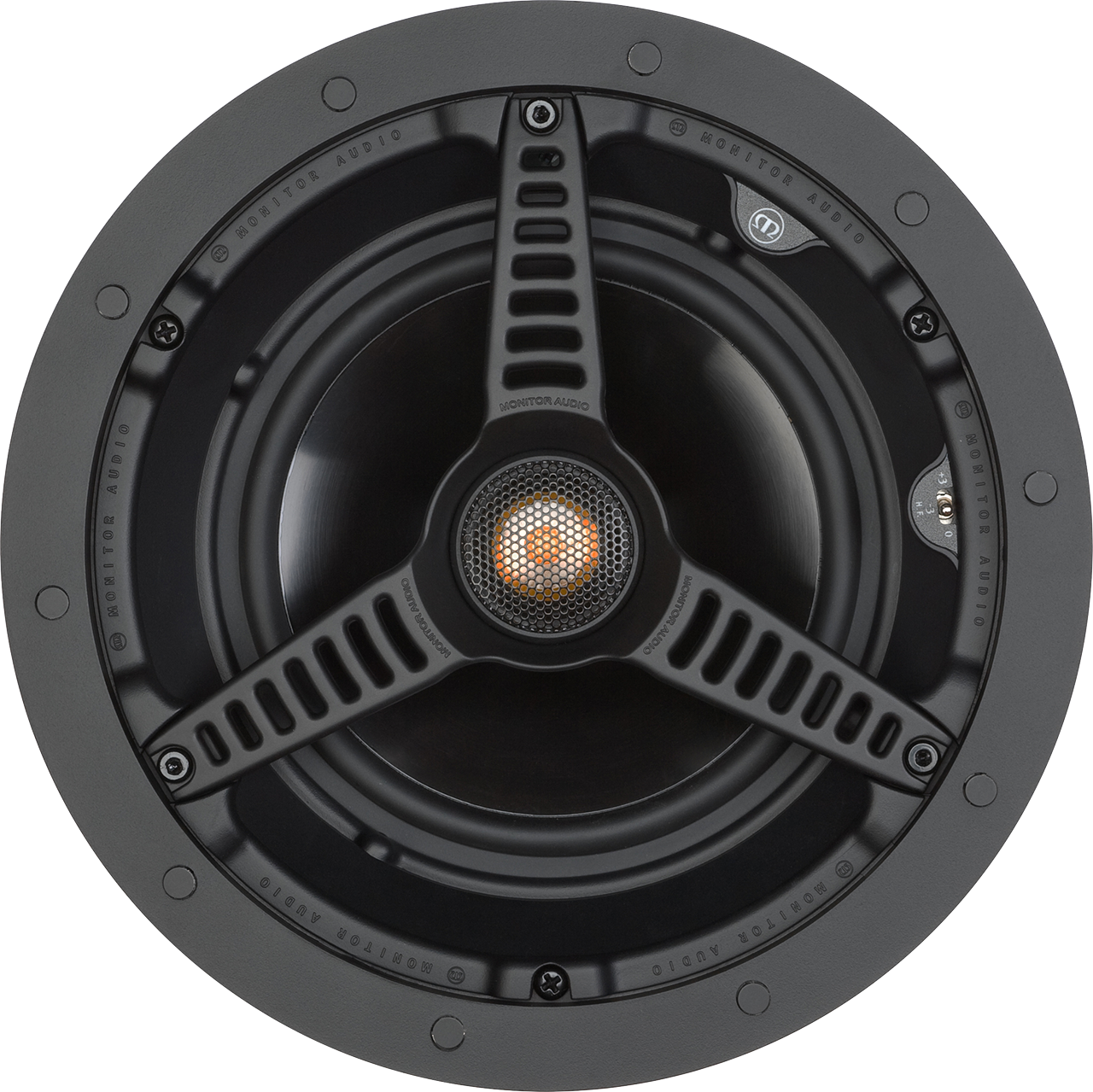

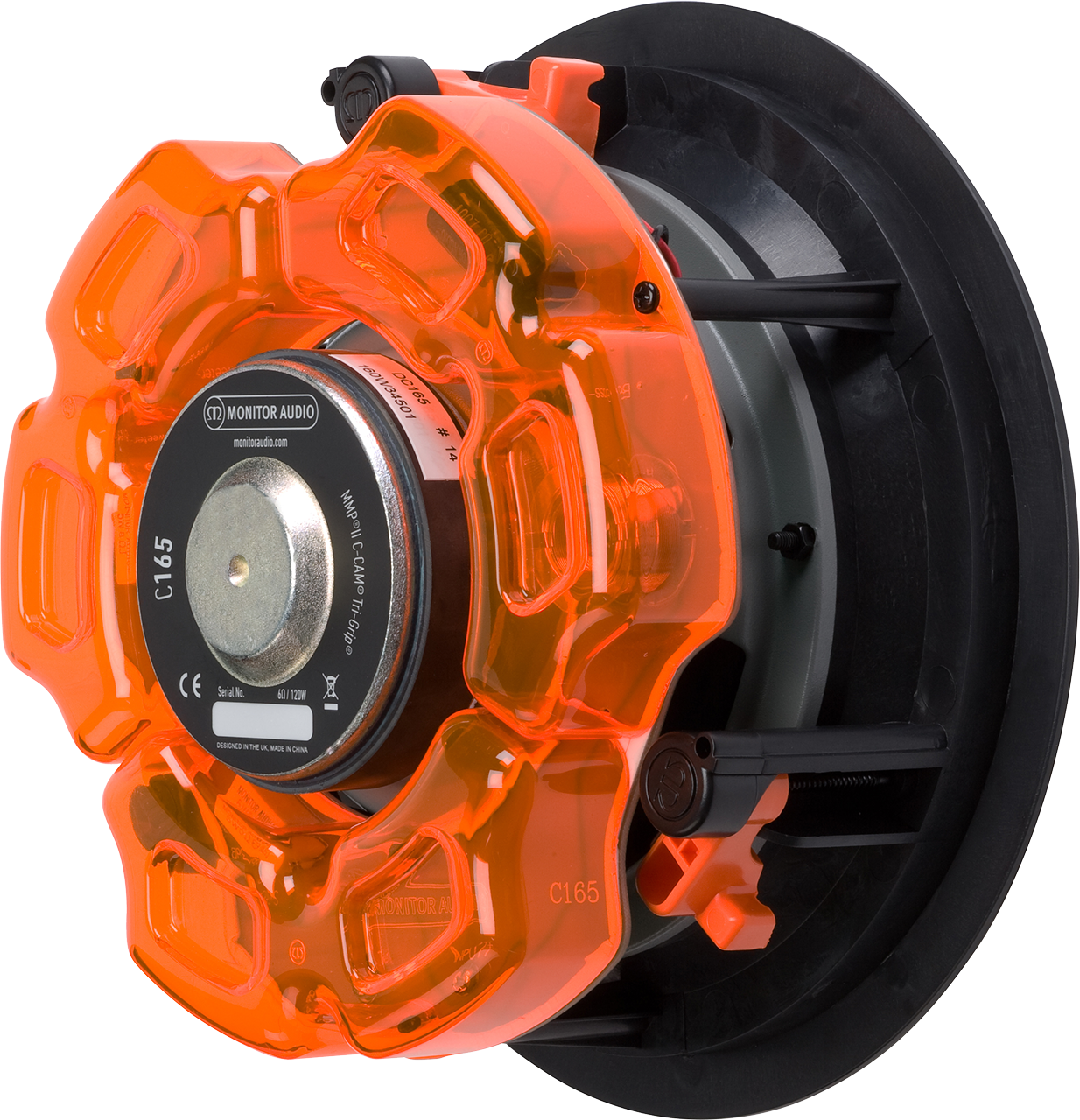

C165- 6.5"- 2 WAY IN-CEILING SPEAKER

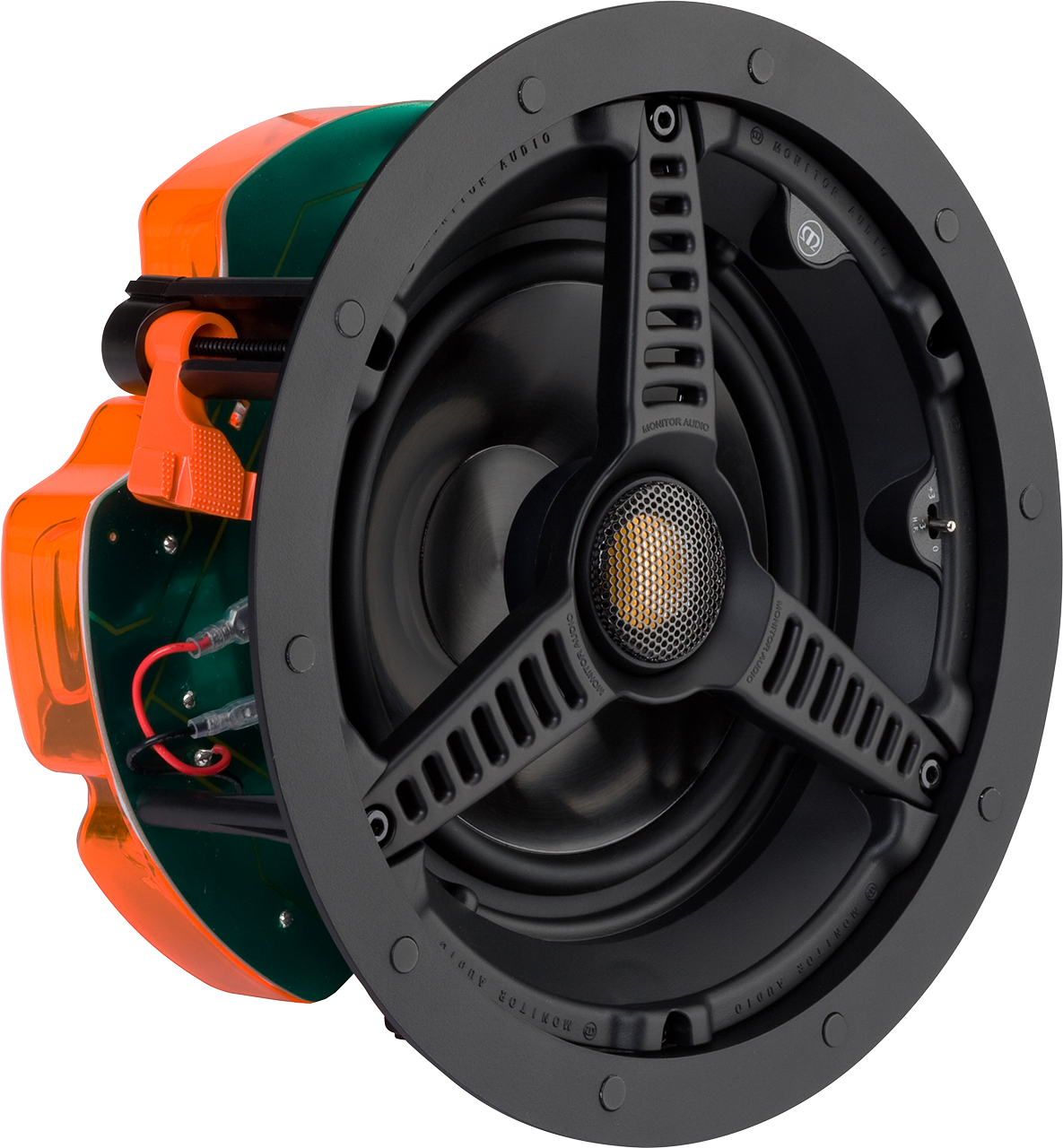

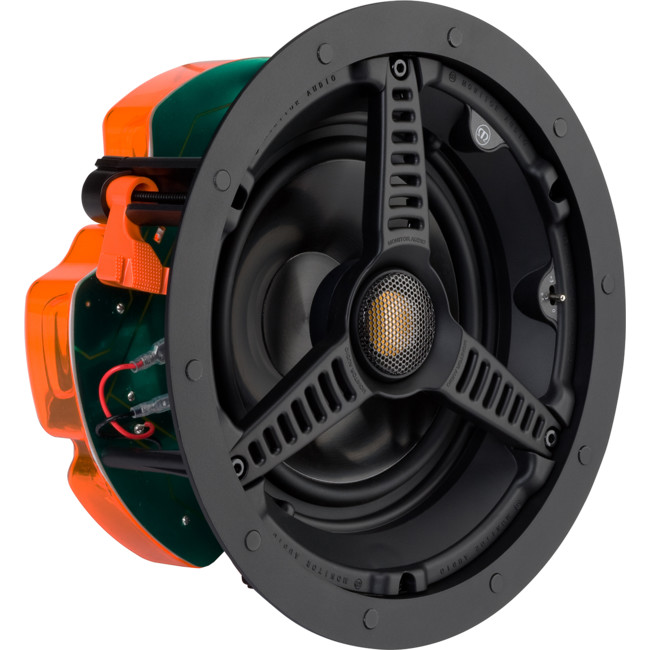

Incorporating a 6 1/2 inchMMP IIbass driver with Monitor Audio’s signatureC-CAMGold Dome tweeterto provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivotingtweeter and high-frequency ( 3 dB / 0 dB /-3 dB) level adjustment.

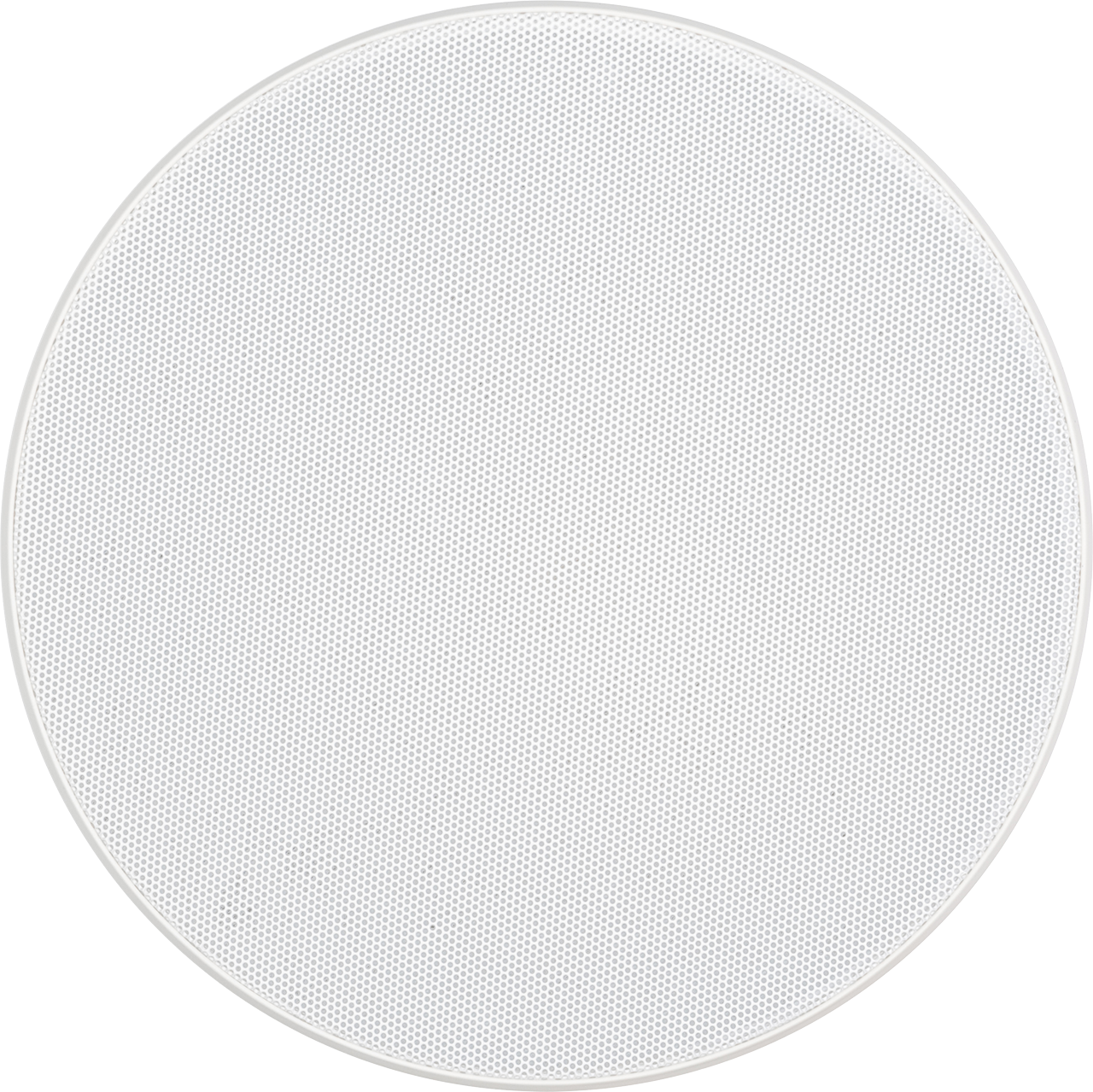

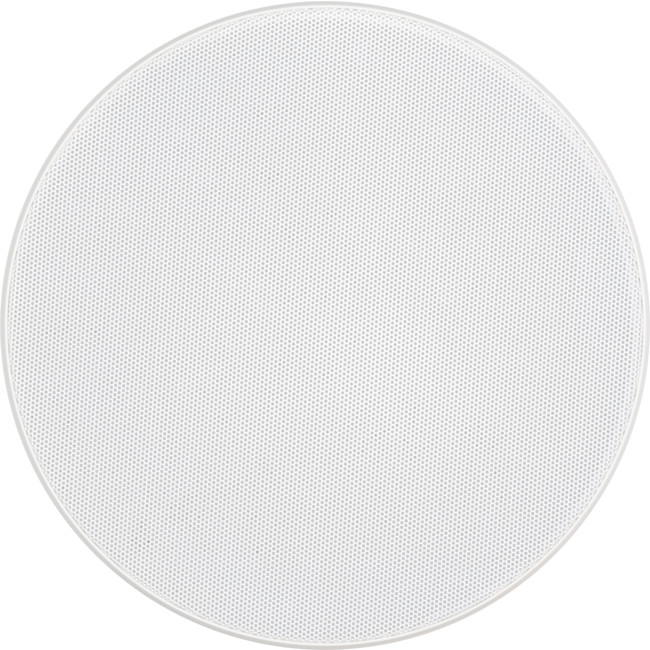

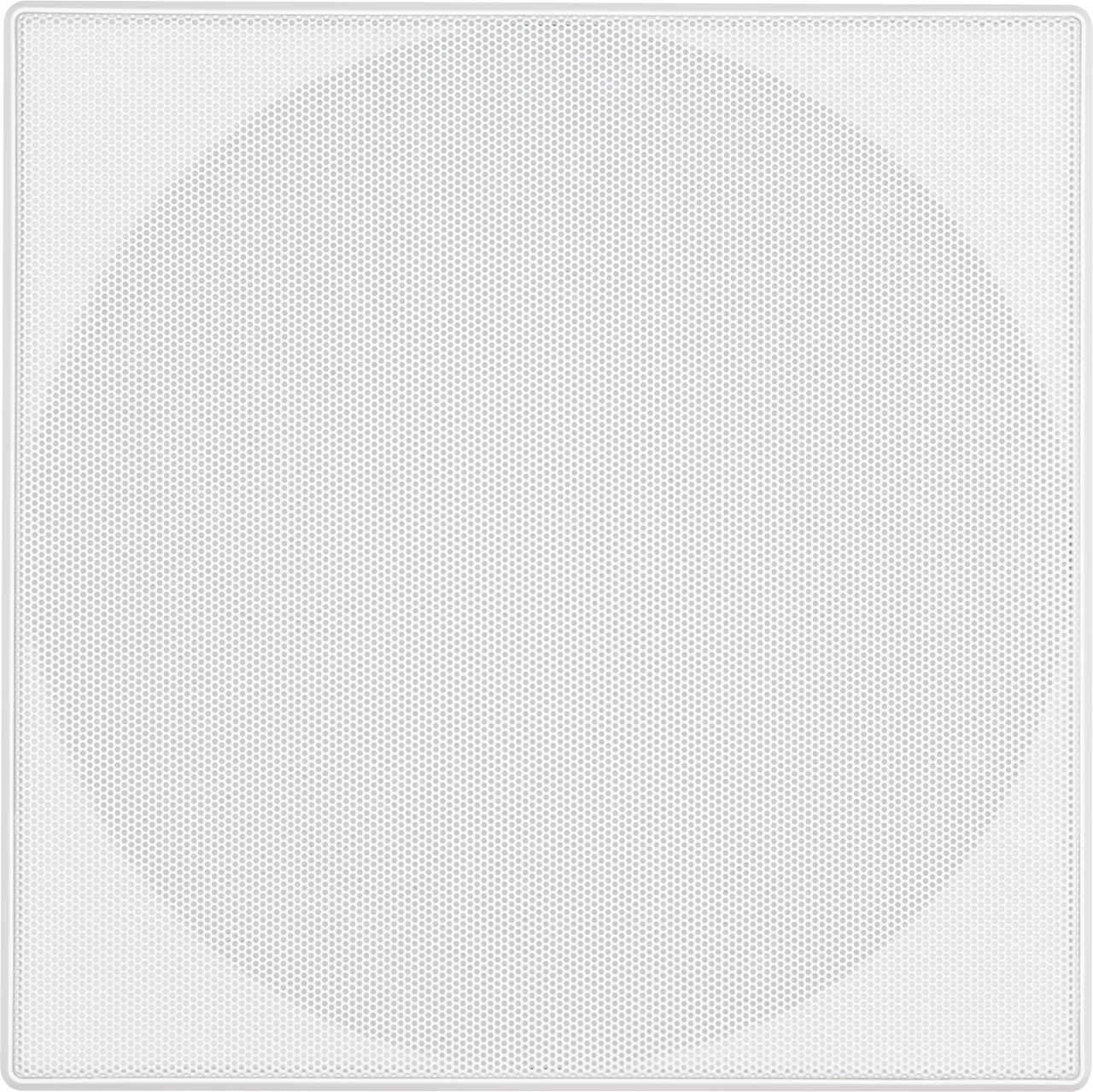

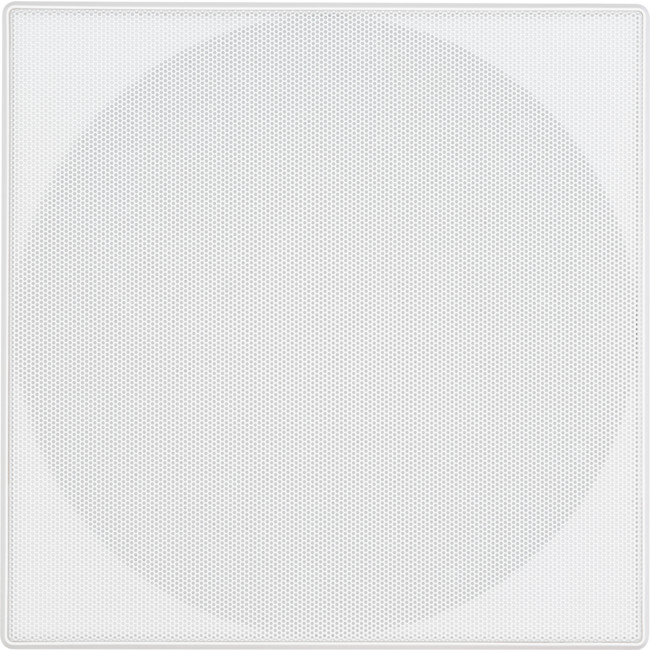

Optionalsquareorpremium grillecan be used with this model.



Technology

  • MMP 11 bass and CCAM gold dome tweeter
  • Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
  • Gold plated push terminals with silicon cover
  • Tweeter level attenuation (internal) – set prior to installation

Specifications



Frequency response 60 Hz – 25 kHz

Nominal Impedance

 6 ohms
Sensitivity (1W@1M) 88.5 db
Maximum SPL 107.4 dBA
Power Handling (RMS) 65 Watt
Recommended Amplifier Requirements 20-65 Watts
Drive Unit Complement

6.5" C-CAM cone bass driver
1" C-CAM Gold Dome tweeter (fixed angle)
Adjustment Controls HF Level Switch ( 3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille) 250 mm (913/16")
Mounting Depth

116 mm (49/16")
Cut-Out Hole Diameter 211 mm (81/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection 2 X 2PR Gold plated ‘push’ type terminals
Optional Square Grille - Outer Dimensions 1.92 kg (4 lb 4 oz)
Construction Material Mineral filled ABS, RoHS compliant
Weight 1.92 kg (4 lb 4 oz)
Pre- Construction bracket CB6Pre-Construction Bracket(Purple)
Back Box CCBOX-R/CMBOX-R
