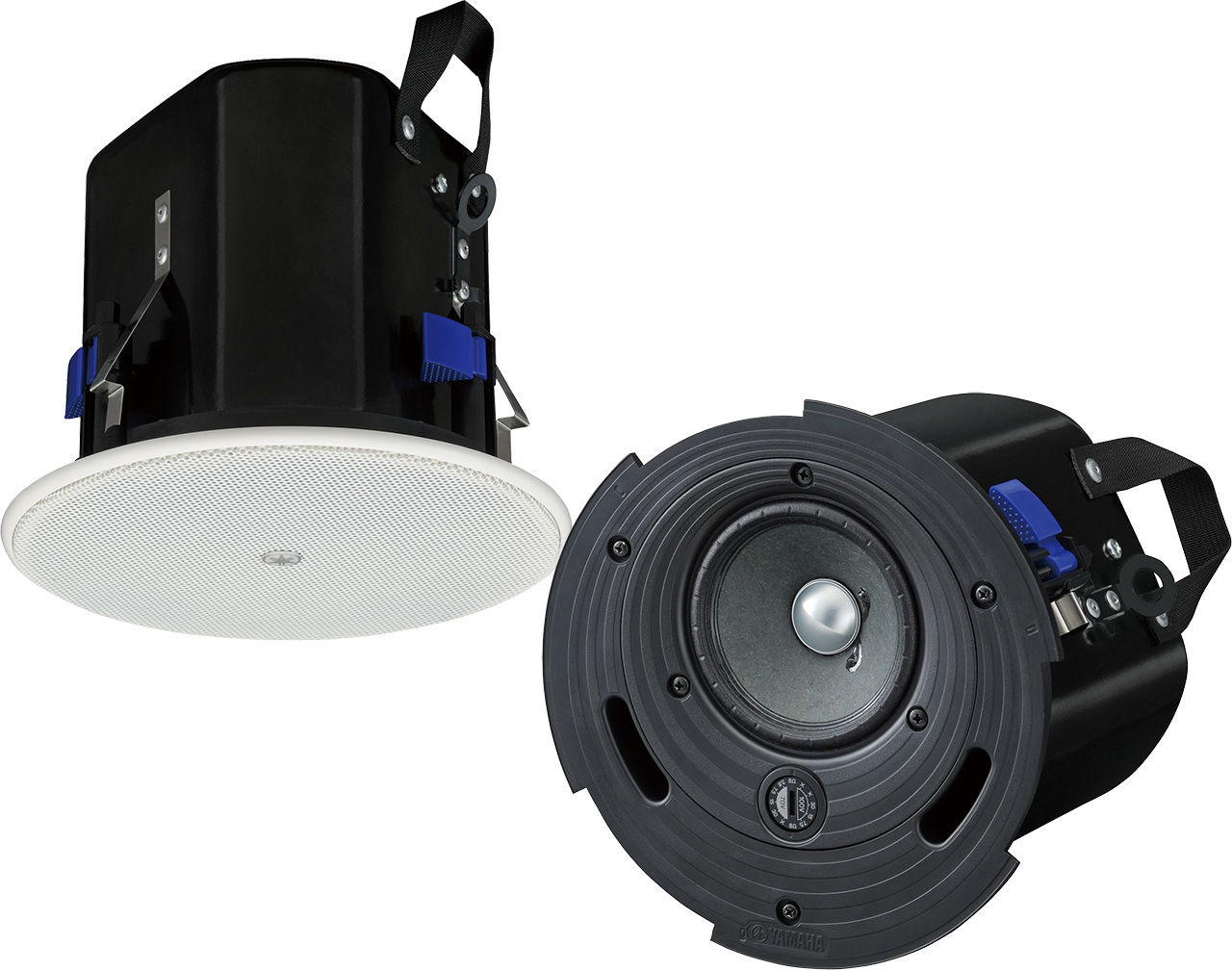

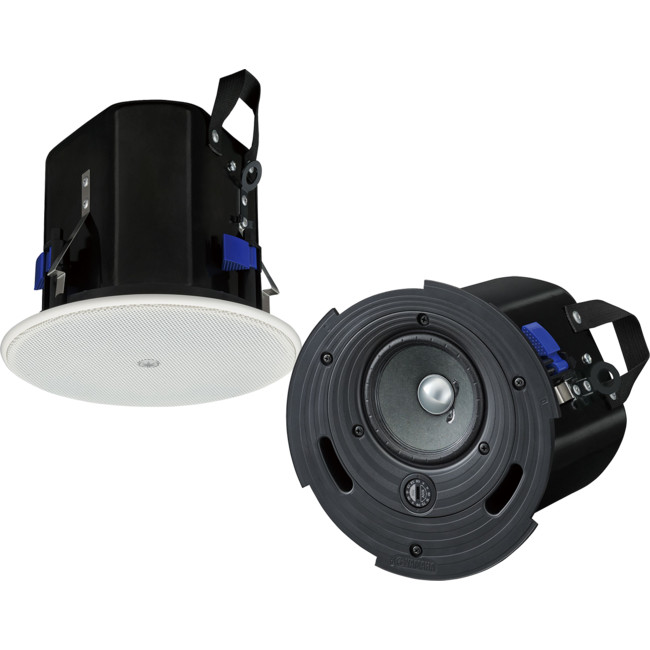

VXC4W 4" CEILING MOUNT SPEAKERS

BASS REFLEX WHITE FULL RANGE

Code: 39776340

9.00 kg
4957812523615
PR
Low Stock
$510 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Yamaha designed the new VXC speakers to accommodate a growing list of applications in the installation market.

While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe andeasy installation.

Featuring a simple ceiling mount option, this 4" full range ceiling speaker are available in either black or white, or can be painted to match the interior of any application.

Ceiling speakers for any application

The VXC Series offers three different woofer sizes, allowing you to choose the speaker that is most suitable foryour venue.

Each model has an internal transformer that allows both high and low-impedance drive with just a single speaker, simply by switching the tap on the baffle.

Since a single speaker can be used for both operations, inventory control is simplified, and you can easily adapt your system to any changes.

Safe, seamless installation

Series speakers' Anti-Drop tab allows them to be mounted temporarily in the ceiling, freeing your hands for better safety and ease of installation.

An attached, flexible carrying band also makes the speakers very portable, allowing you to carry multiple speakers at once safely.

Additionally, VXC Series speakers also come complete with O-rings and tile rails for a safer, smoother installation.

Pursuing the best sound for installation

We developed the VXC Series speakers to address a demand in the installation market for speakers capable of providing superb music reproduction as well as crystal clearannouncements for public address applications.

The VXC4 features a newly customized transducer withlarge, powerful magnetic circuits that increase driving and braking force substantially, as well as a dedicated tweeter diaphragm and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction.

Cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end.

From the networking components and the materials usedfor wiring and soldering, right down to the optimal placement of acoustic absorption material, a great deal of attention has been paid to even the smallest details of the series' design.

Speaker Design

Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction - effectively enhancing soundquality and speaker performance without disturbing the interior decor of the installation.

This concept is evident in the hexagonal design featured on the grille of both series' speakers that actually improves sound clarity by raising the aperture ratio.

Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.

Paintable speakers for your unique room design

VXC series comes with paintable speaker grilles.

Not only filling your room with premium sound, VXC series enhances the design of interior by painting its grille in any color you like such as light color, deep color, or the best matching color to your decors.

VXS/VXC Series Painting Guide



Specifications

VXC4

General specifications VXC4W
Speaker type Full-range, Bass-reflex
Frequency range (-10dB) 80Hz - 20kHz (Half-space:2p)
Nominal coverage 130°Conical (Half-space:2p)
Components LF-HF 4" full-range
Power rating NOISE 30W
PGM 60W
PEAK 120W
Nominal impedance 8O
Transformer taps 100V 30W (330O), 15W (670O), 7.5W (1.3kO)
70V 30W (170O), 15W (330O), 7.5W (670O), 3.8W (1.3kO)
SPL Sensitivity (1W; 1m on axis) 87dB SPL (Half-space:2p)
Peak (Calculated) 108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)

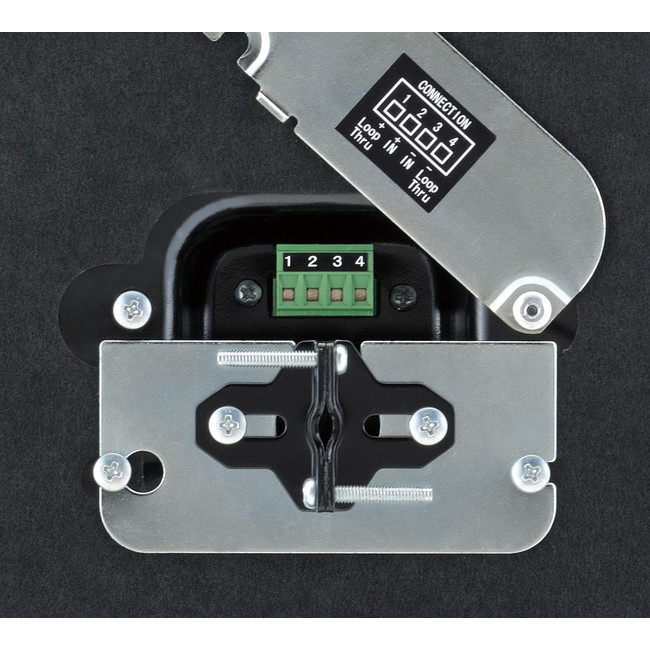

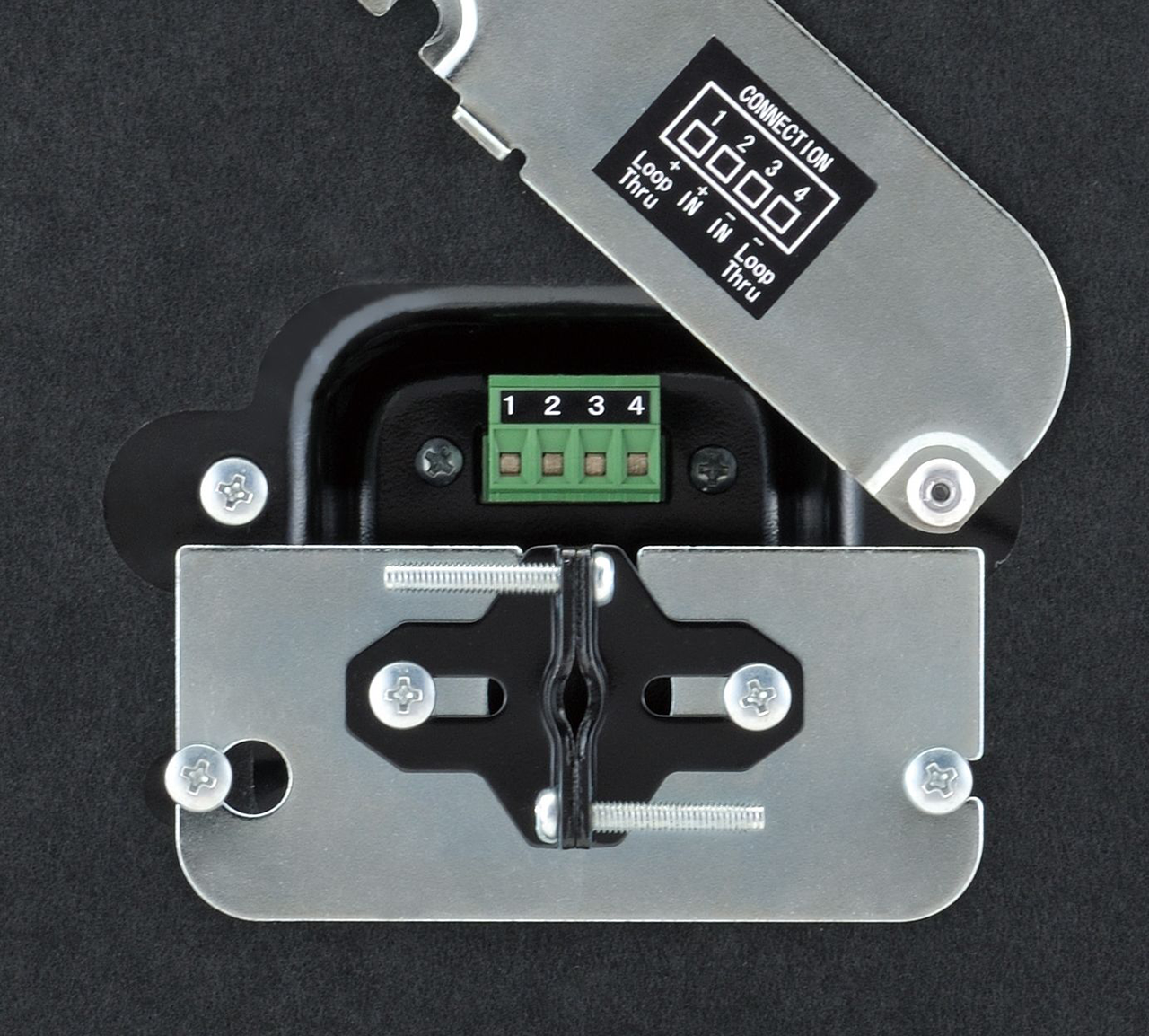

I/O connectors 1 x Euroblock (4P) : (Input: / -, Loop Thru: / -)
Finish VXC4: Black / VXC4W: White
Dimensions Diameter 225mm (8.9")
D 195mm (7.7")
Net weight 2.6kg (5.7lbs)
Cutout size Ø186 mm (Ø7-5/16")
Required ceiling board thickness 5 mm ? 35 mm
Accessories O-ring, Tile Rail, Cutout Template
Packaging Packaged in pairs
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance -
Waterproof -
