QF60CS 60W 100V-16OHM CEILING SPEAKER WITH BACK CAN

TILE BRIDGE INCLUDED

Code: 39776156

5.60 kg
9323383019492
EACH
In Stock
TRADE ALERT!
$290 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

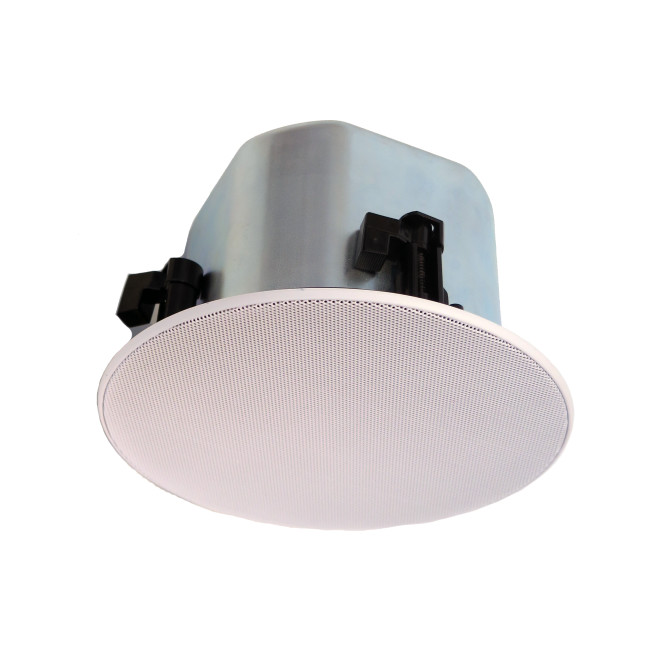

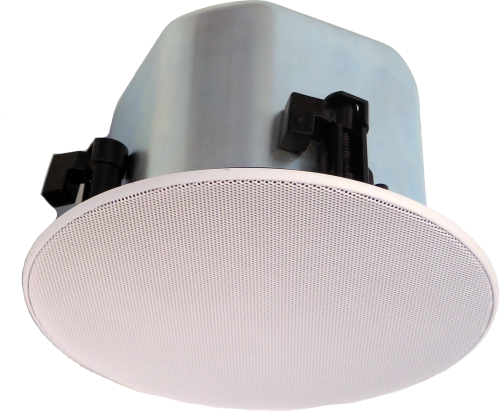

Australian Monitor QF60CS- 60w ceiling speaker with sealed back can

When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations.

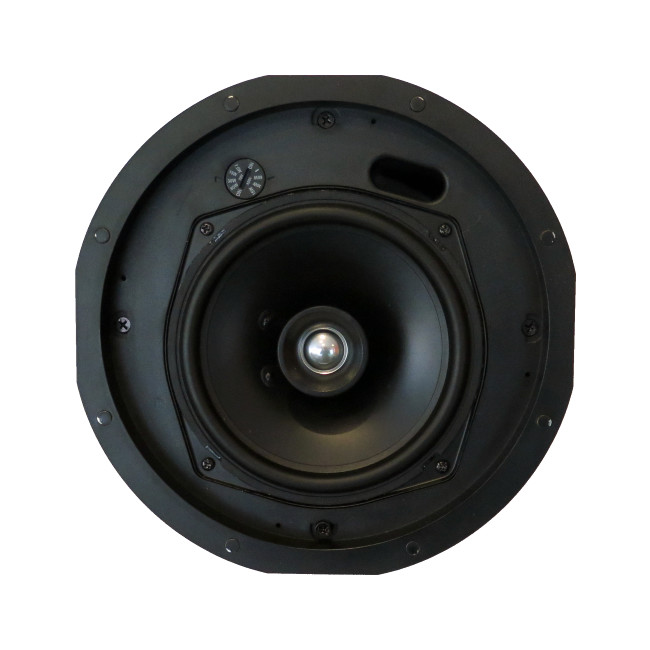

This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction.

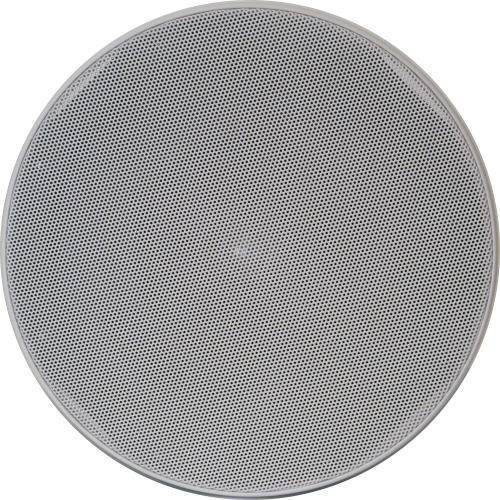

The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation.

Porting through the front baffle improves bass response and ensures detailed bass definition.

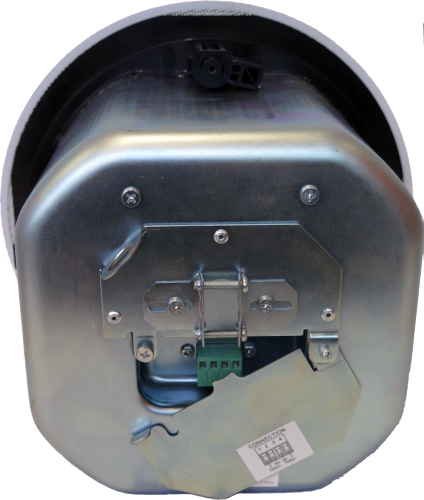

The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill.

A black grill for each model can be purchased separately as an accessory.

EASE®GLL files simulation files are available for QuickFit ceiling speakers.

EASE®is a registered trademark of AFMG Technologies GmbH



Key Features

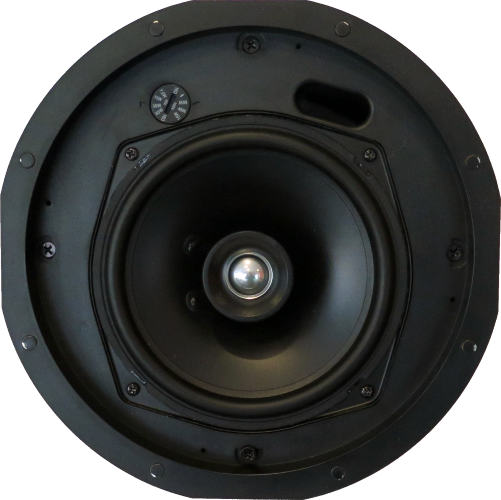

  • 6 inch & 20mm coaxial high powered driver

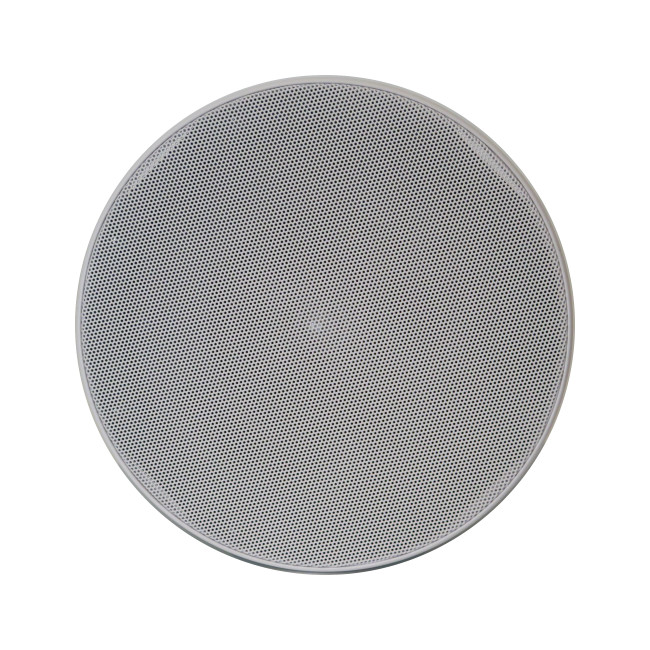

  • QuickFit white frameless powder coated steel grill

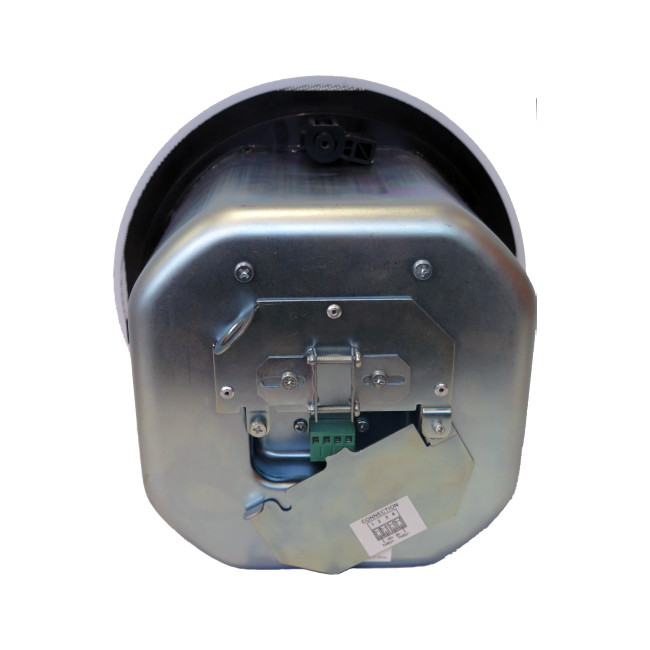

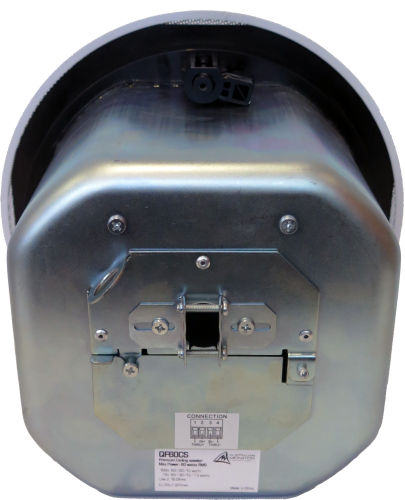

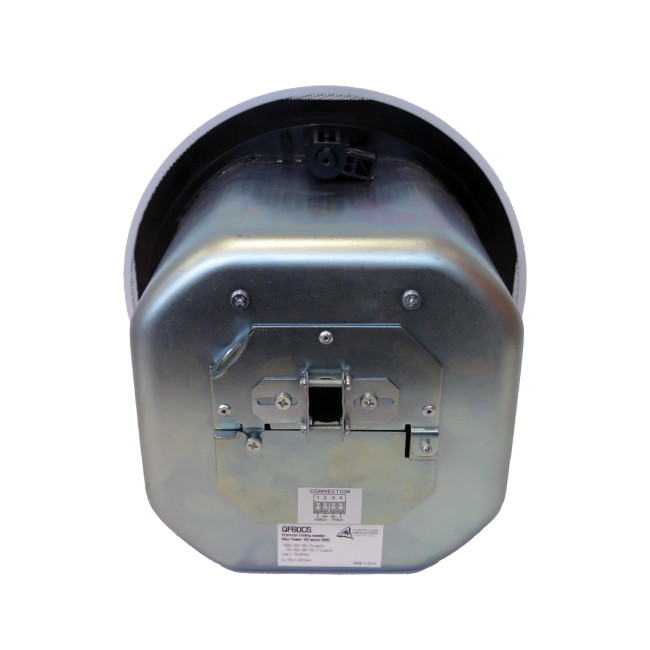

  • Sealed steel back can
  • 15, 30, 60 watt taps @ 100V
  • 60 Watts @ 16 Ohms

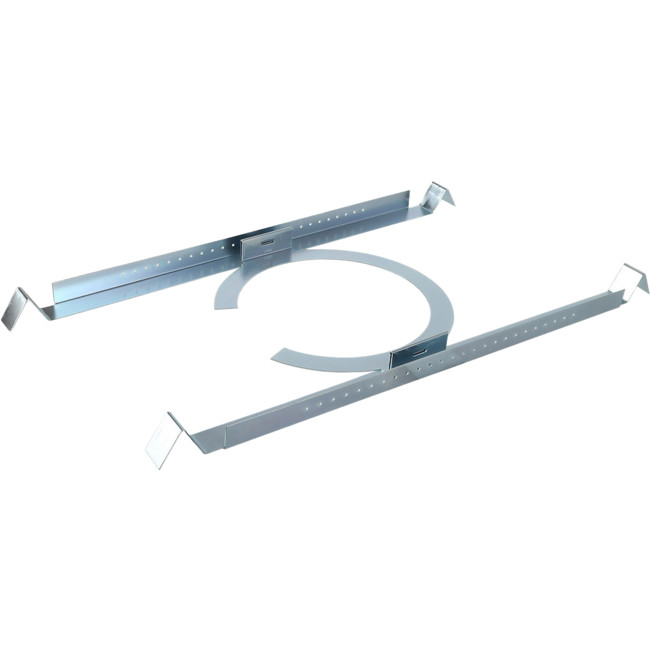

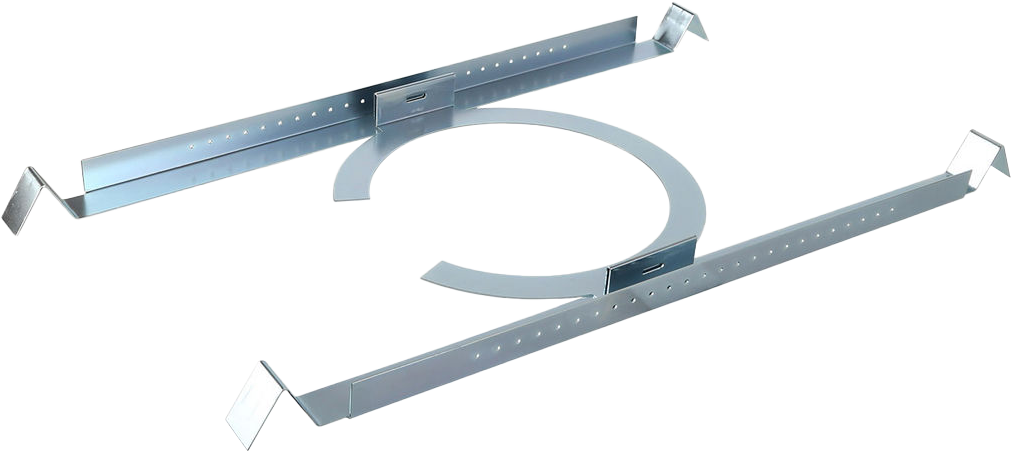

  • Tile bridge included



Specifications

Form Factor Ceiling Max Continuous Power 60W
Tappings 60W-30W-15W-7.5W Max Program Power 120W
IP Rating No Max Peak Power 180W
EASE Model Yes SPL 1W/1m 90dB
Powered Passive Max SPL RMS 108dB
Driver Diameter 6" & 20mm Max SPL Peak 114dB
Colour White Frequency Response (-3dB) 85Hz - 20kHz
Warranty 5 years Dispersion 130deg
Product Dimensions
(W x D x H)
257mm x 195mm Shipping Dimensions
(W x D x H)
286mm x 282mm x 220mm
Net Weight 3.7 Kg Shipping Weight 5.0 Kg
GTIN EAN 9323383019492
