F2352C 30W 5" 100V CEILING SPEAKER

TOA F-Series ceiling Speakers are ideal for music and paging applications such as audio/visual, businessmusic or retail sound systems. The new lineup consists of six models with features and price points to suit premium-to-economy applications; all built with the same high quality and reliability the industry has come to expect from TOA products. Key benefits include smooth off-axis coverage, versatile range of models, ease of installation, and competitive pricing.

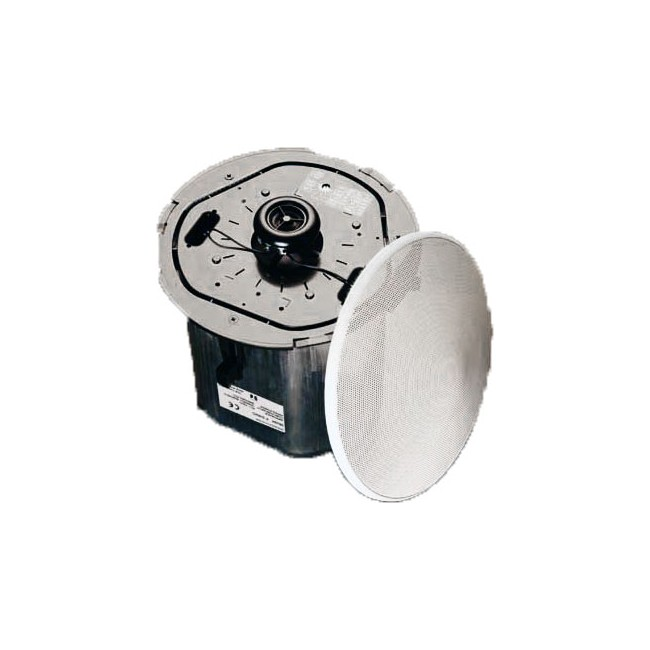

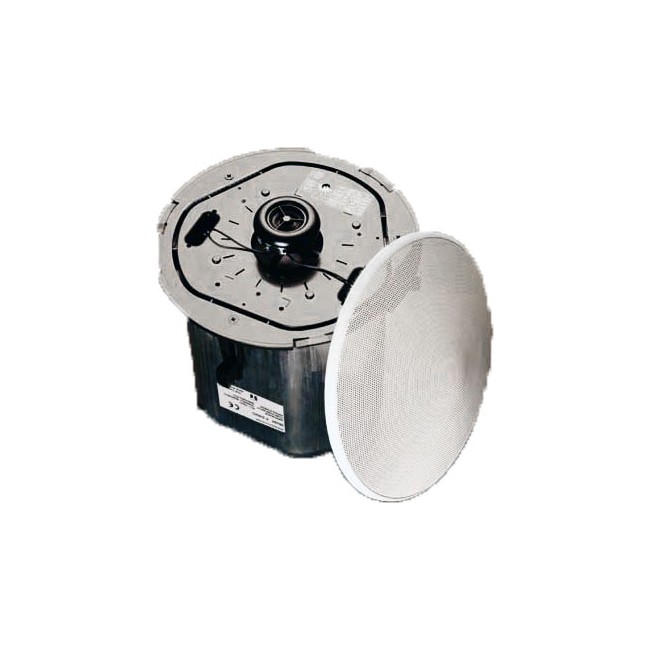

Three new two-way co-axial models include the F-2352C with 5” cone driver. Each model has a special diffusor with built-in dome tweeter for superior co-axial performance. It includes an integral metal back-can with safety cable, quick-mount hardware and removable Phoenix-style connectors with loop-through points for adjacent speakers. Built-in overload protection circuitry ensures outstanding reliability.

All six new models include built-in multi-tap transformers with 8/16 ohm direct modes, front baffle power tap selection and double-locking, paintable grilles. Accessories include HY-TB1 tile bridge rails, HY-TR1 trim ring and HY-BC1 surface back-can. The F Series ceiling speakers are individually packaged and backed with a five year warranty.

Features:

• Special diffuser provides wide off-axis high frequency response
• Ported bass-reflex design
• Co-axial: 5” cone driver and dome tweeter
• Wide-dispersion: 170º conical (1-4k Hz avg.)
• Frequency Response: 70 to 20k Hz
• Sensitivity: 90 dB SPL (1 W, 1 m)
• Continuous Power Handling: 120 W (8 ohms)
• Built-in 25/70.7/100 V transformer (30 W max.) with 8/16 ohm direct modes
• Convenient power tap selector on front baffle
• Metal back-can and safety cable
• UL Compliant for Air-Handling Spaces (UL2043)
• Removable terminal block with loop-through terminations
• Low-profile, paintable grille
• Overload protection circuitry
• Mounting C-ring included
• Optional HY-TB1 tile rails, HY-BC1 surface-mountback-can and HY-TR1 trim ring
