SC630MEB 30W IP65 100V PAGING HORN SPK

AS 7240.24 2018

Code: 39775953

EACH
Special
Buy-In
TRADE ALERT!
$244.20 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

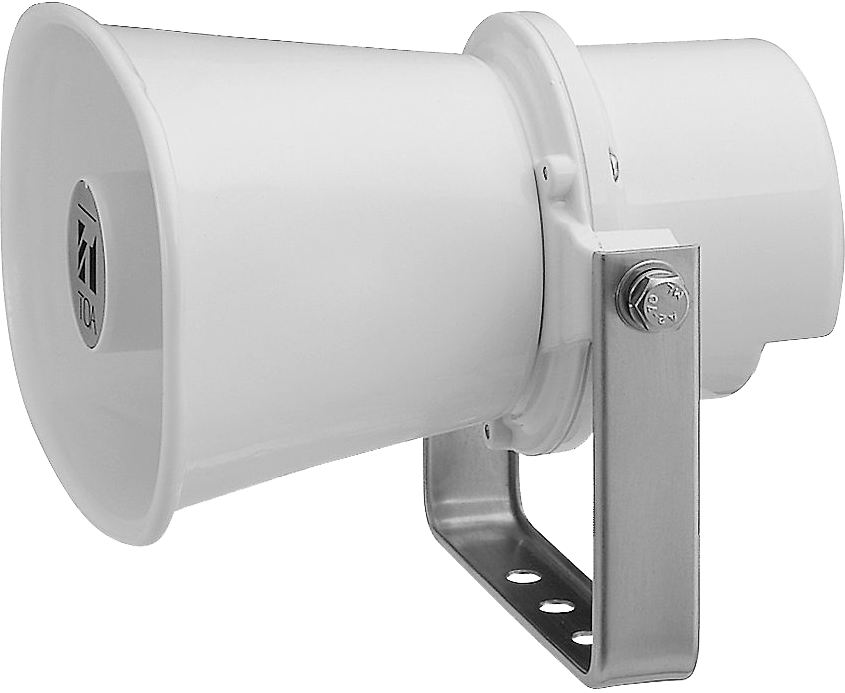

TOA SC-630M-EB 30W HORN SPEAKER AS7240.24:2018

The SC-630M EB-Q is a compact, highly intelligible speaker suited to public address announcement applications.

The aluminium horn flare finished with powder coating, and stainless steel bracket and hardware ensures the unit's weatherproof capability.

The SC-630M EB-Q is certified to the Australian StandardsAS 7240.24:2018.. 30W, 100V line horn speaker.

  • All weather durabilty
  • IP65
  • Aluminium horn flare
  • Stainless steel hardware
  • Excellent speech clarity
  • High SPL; 113dB, 1W/1m
  • Certified to AS 7240.24:2018



Application examples for this product:

  • Railway stations
  • Parking garages
  • Stadiums
  • Theme parks
  • Educational facilities

Specifications
Frequency response

250 Hz - 10 kHz


Sensitivity (1 W, 1 m)

113 dB (500 Hz - 2.5 kHz, peak level)


Maximum sound pressure level (1 m) (value)

111 dB


Rated input (High Impedance)

30 W


Tappings

100 V: 330 Ω (30 W) / 670 Ω (15 W) / 1 kΩ (10 W) / 2 kΩ (5 W)
70 V: 170 Ω (30 W) / 330 Ω (15 W) / 670 Ω (10 W) / 1 kΩ (5 W) / 2 kΩ (2.5 W)


Finish

Aluminium, powder coating, off-white (RAL 9010 orequivalent)
Reflector horn, trans case and terminal cover: ABS resin, off-white (RAL 9010 or equivalent)

Bracket, screws and bolts: Stainless steel


Dimensions

285 x 227 x 277 mm (W x H x D)


Weight

2 kg
