BS1015BSW 15W WHITE 2 WAY 100V SPEAKER

AS 7240.24 2018

Code: 39775940

EACH
Special
Buy-In
TRADE ALERT!
$298 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

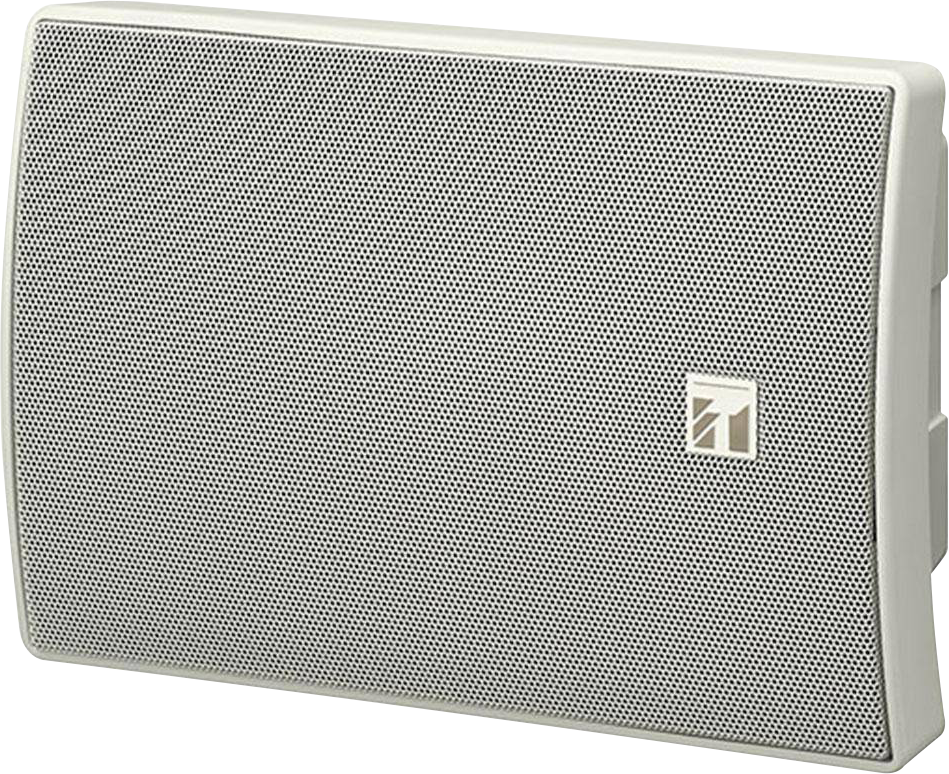

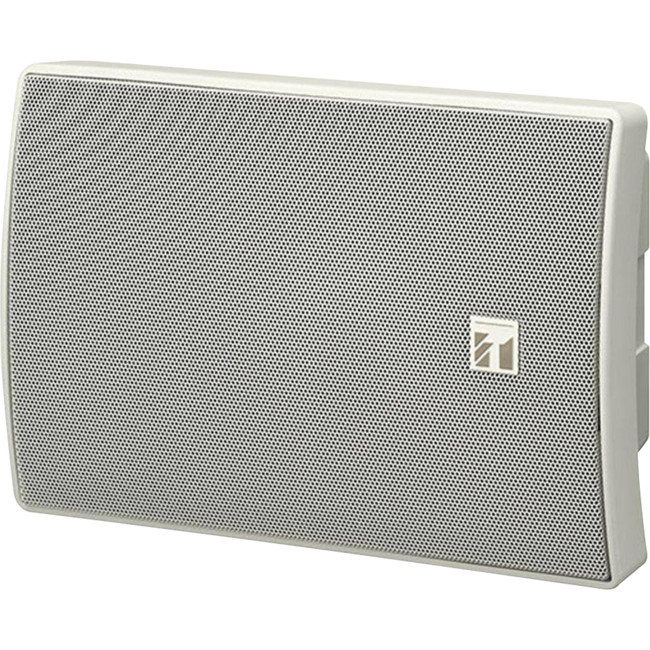

TOA BS-1015BSW 15W 2 WAY BOX SP BLACK- AS 7240.24:2018.

The BS-1015BSB is a voice alarm certificated 2 way speaker to Australian Standards AS 7240.24:2018.

With a wide frequency range, it is suitable for announcements and music.

The speaker's design, harmonizes with the venue's architecture and decor.

  • 2-way hi-fi speaker
  • 15W, 100V line
  • Easy and quick installation
  • Fits architecturally sophisticated environments
  • Certified to AS 7240.24:2018
  • Indoor Type A



Application examples for this product:

  • Supermarkets
  • Office buildings
  • Health and fitness clubs
  • Hotels



Specifications



 BS-1015BSB BS-1015BSW
Frequency response

80 Hz - 20 kHz

80 Hz - 20 kHz


Connection

Ceramic screw terminals, thermal fuse

Ceramic screw terminals, thermal fuse


Sensitivity (1 W, 1 m)

90 dB (500 Hz - 5 kHz, pink noise)

90 dB (500 Hz - 5 kHz, pink noise)


Maximum sound pressure level (1 m) (value)

98 dB

98 dB


Speaker component

Low: 5" cone-type High balanced dome tweeter

Low: 5" cone-type High balanced dome tweeter


Rated input (High Impedance)

15 W (100 V), 7.5 W (70 V)

15 W (100 V), 7.5 W (70 V)


Tappings

100 V line: 670 Ω (15 W) / 1 kΩ (10W) / 2 kΩ (5 W)

70 V line: 670 Ω (7.5 W)/ 1 kΩ (5 W)/2 kΩ (2.5 W)

100 V line: 670 Ω (15 W) / 1 kΩ (10W) / 2 kΩ (5 W)

70 V line: 670 Ω (7.5 W)/ 1 kΩ (5 W)/2 kΩ (2.5 W)


Operating temperature

-10°C to 50°C

-10°C to 50°C


Finish

ABS resin, paint, black (RAL 9011 or equivalent)

ABS resin, paint, off-white (RAL 9010 or equivalent)


Dimensions

196 x 290 x 186 mm (W x H x D)

196 x 290 x 186 mm (W x H x D)


Weight

2.4 kg

2.4 kg


Accessory (included)

Bracket x 1, bracket mounting screw x 2, rear cover x 1

Bracket x 1, bracket mounting screw x 2, rear cover x 1
