NOTE: This item is an overseas Indent Item
Please allow 13 weeks from order being placed.

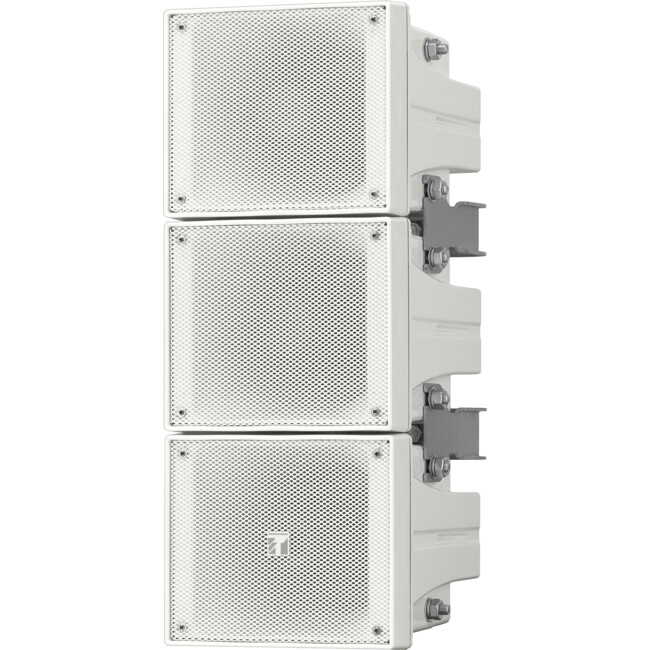

The HA-2120EN is composed of multiple horn speakers positioned in an array. It is a highly efficient speaker. Clear voice can be transmitted to a distant place without acoustic correction. The built-in high-pass filter cuts the bass that can damage the speaker. Drip-proof structure, and a salt-resistant paint finish, it has excellent durability in an outdoor permanent environment.
Rated Input
120 W
Rated Impedance
100 V line: 83 Ω (120 W), 170 Ω (60 W) 70 V line: 42 Ω (120 W), 83 Ω (60 W)
Sensitivity
113 dB (1 W, 1 m) (500 Hz - 5 kHz, (EC60268-5)
Max. SPL
133 dB (120 W, 1 m) (500 Hz - 5 kHz, (EC60268-5)
Frequency Response
500 Hz - 4.3 kHz (-10 dB) 290 Hz - 8 kHz (-20 dB)
Speakers Component
Horn speaker unit x 3
IP code
IP66
EN 54-24 specifications
Sensitivity: 91 dB (1 W, 4 m) Max. SPL: 110 dB ( 120 W, 4 m) Coverage Angle ( -6 dB): Horizontal: Horizontal: 200° (500 Hz), 120° (1 kHz), 65° (2 kHz), 40° (4 kHz) Vertical: 80° (500 Hz), 40° (1 kHz), 20 ° (2 kHz), 15 ° (4 kHz) Environmental Type: B (outdoor applications)
IP Code: IP33C
Speaker Cable
4-core cabtyre cord 2 m
Cable Gland
Size: PG 13.5 - 12 (gray) 1
Cable Diameter Range: 12.5 - 6.5 mm (0.49" - 0.26") Size: PG 13.5 - 08 (black) 1
Cable Diameter Range: 9 - 4.5 mm (0.35" - 0.18") Two cable glands are factory-installed.
Input Terminal
Ceramic terminal ( 3-pole), can be bridge-connected 1 Ceramic terminal ( 2-pole) 1
Thermal fuse is included.
Applicable Wire Size
For Ceramic terminal (3-pole)
Conductor: Solid wire or 7-core wire
No bridge connection: 0.8 - 10 mm2 (AWG 18 - 7) for solid wire, 0.8 - 8 mm2 (AWG 18 - 8) for 7-core wire
Bridge connection: 0.8 - 2.5 mm2 (AWG 18 - 13) for solid wire, 0.8 - 1.5 mm2 (AWG 18 - 15) for 7-core wire
Operating Temperature
-20°c to + 55 °c
Finish
Case: FRP, white (RAL 9016 equivalent), paint
Front grille: Aluminum, white ( RAL 9016 equivalent), paint Bolts: Stainless steel
Dimensions
215 (W) x 555 (H) x 309 (D) mm (excluding projection)
Weight
16 kg (unit only)
Accessory
Terminal box
Option
Speaker mounting bracket: YS-1100A
Notes: The speaker must be installed upright or facing down. Installing the speaker in any other position may render the drainage hole ineffective, eventually leading to an electrical failure or other damage.
