Sonance Pro Product Overview
Sonance Professional Series includes a range of 70V, 100V, 8 Ohm selectable In-Ceiling, Pendant and Surface Mount Speakers that delivers unparalleled fidelity, extremely low distortion, wide dispersion, and exceptional reliability. The range also shares consistent voicing, ensuring seamless sonic integration when used together throughout the dynamic spaces of a commercial project.
Sonance Professional Series has been engineered with a level of attention to detail beyond what is typical of most traditional commercial audio brands of the industry. With flexible form factors to support in-ceiling, surface mounted, or suspended pendant style applications, Sonance Professional Series speakers and subwoofers are intentionally designed to blend into any environment, contributing to an overall elevated experience for guests, business owners, and employees in any commercial environment.
Each product in the series includes a full-fidelity Sonance Laminated Core Transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension, and chambered 1" pivoting tweeter for precise high-end detail and exceptional off-axis performance.
Features
- 70V/100V/8 ohm selectable
- Full fidelity Sonance Laminated Core Transformer with adjustable tap settings
- Flexible form factors: in-ceiling, surface mount, pendant
- Consistent voicing across form factors
- Chambered 1" tweeter for precise high-end detail and exceptional off-axis performance
- 4”, 6”, 8” models
- Sleek, minimalistic enclosure design
- UL 1480, EN54-24, and UL 2043 certified (in-ceiling models)
- UL 1480 and UL 2239 certified (pendant models)
- UL 1480 certified, IPX4, Mil Spec 810, and UV IEC 529 (surface mount models)
- GLL codes available and loaded into EASE Address database for acoustic system mapping and modeling
PS-C83RT Professional Series

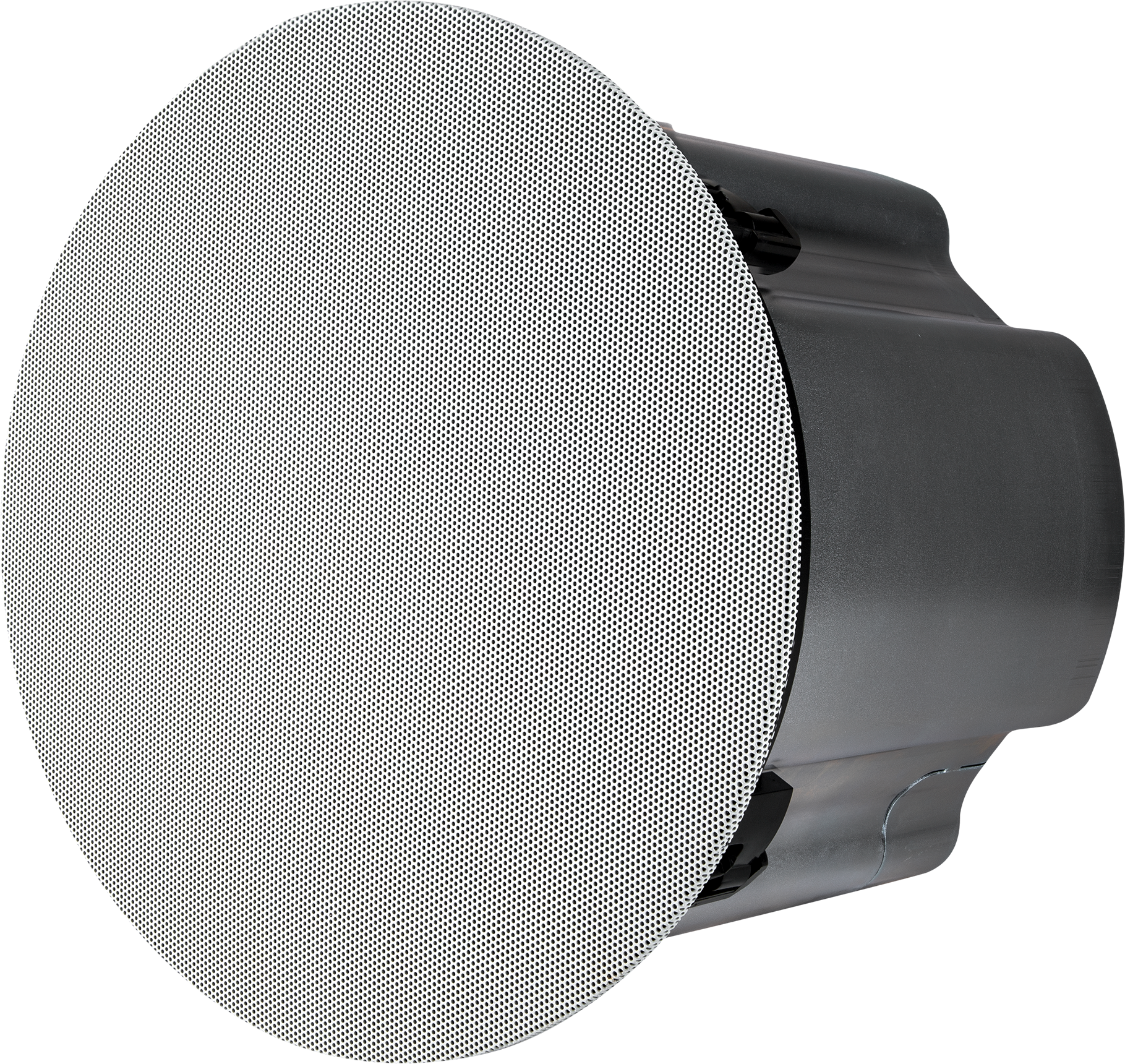

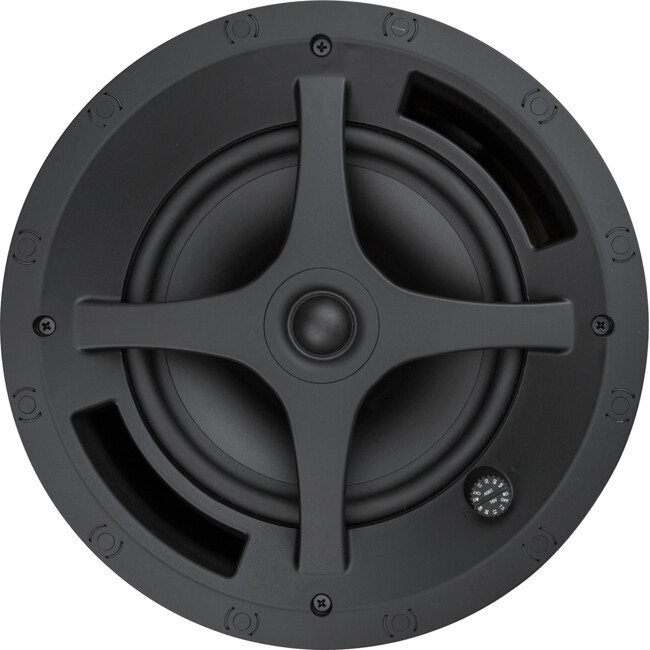

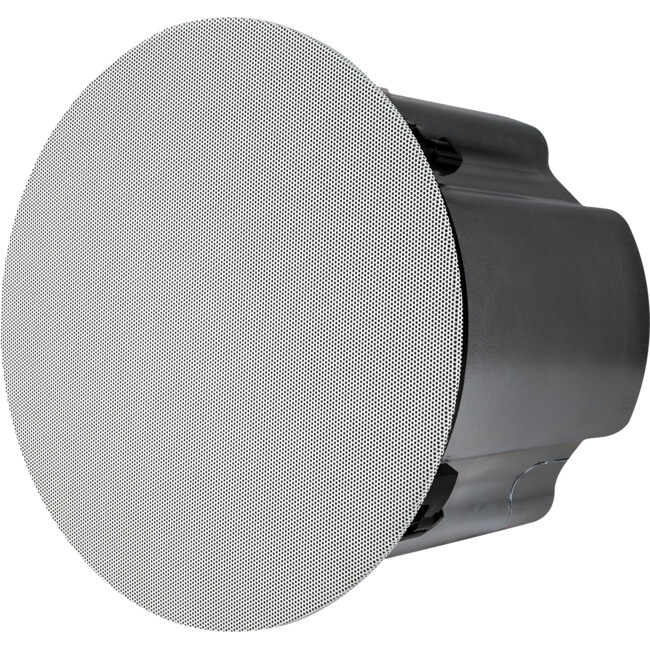

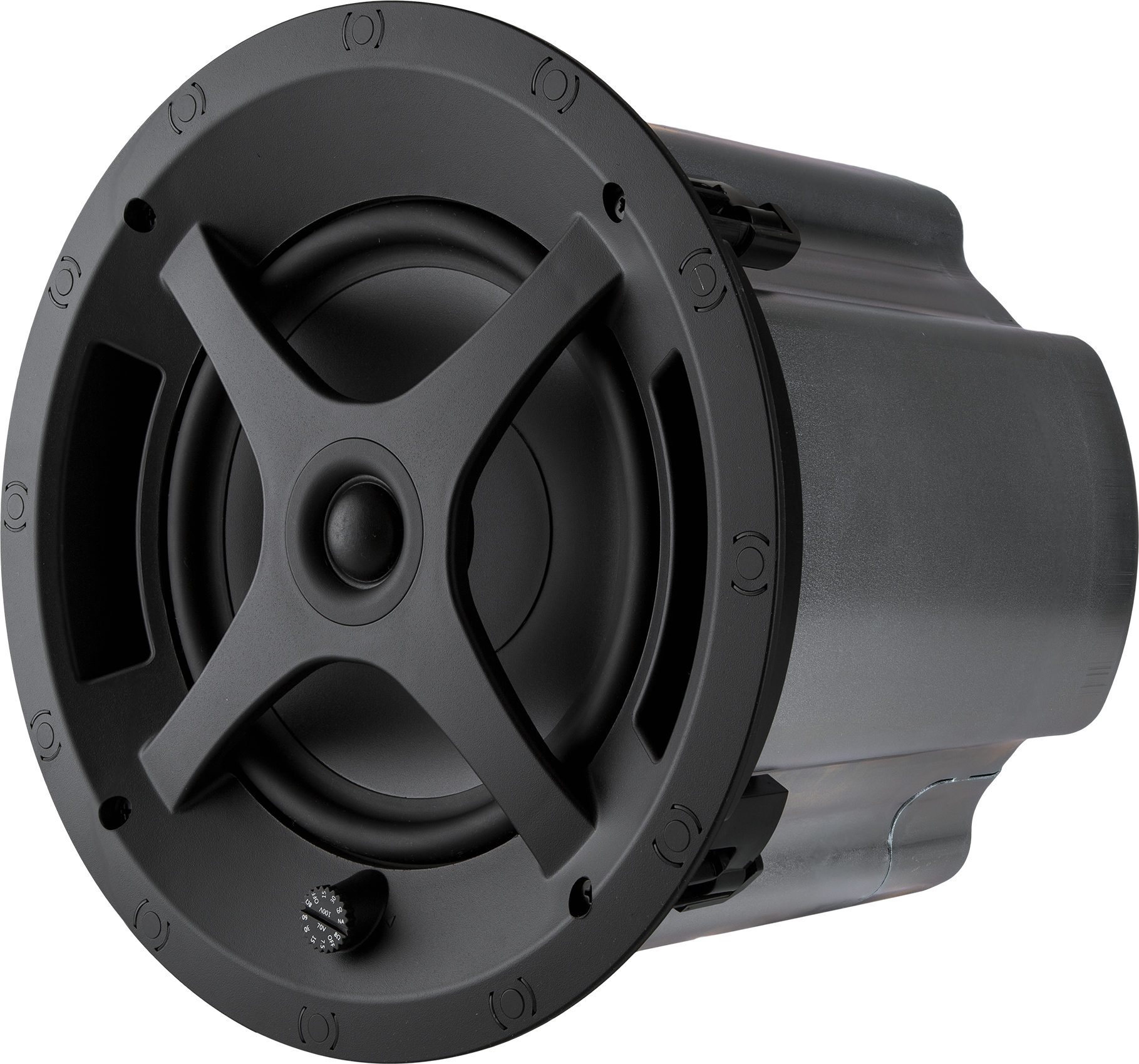

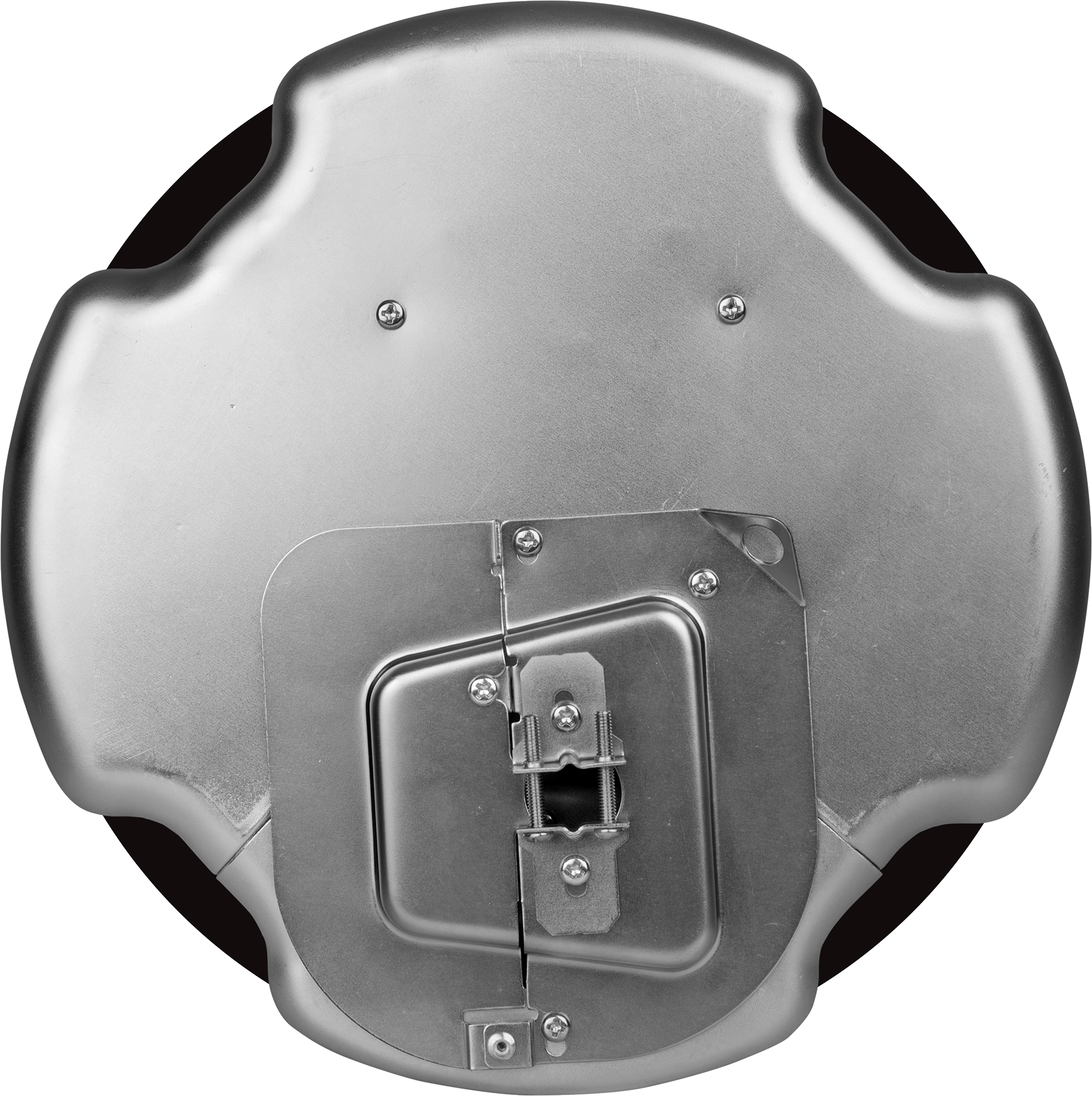

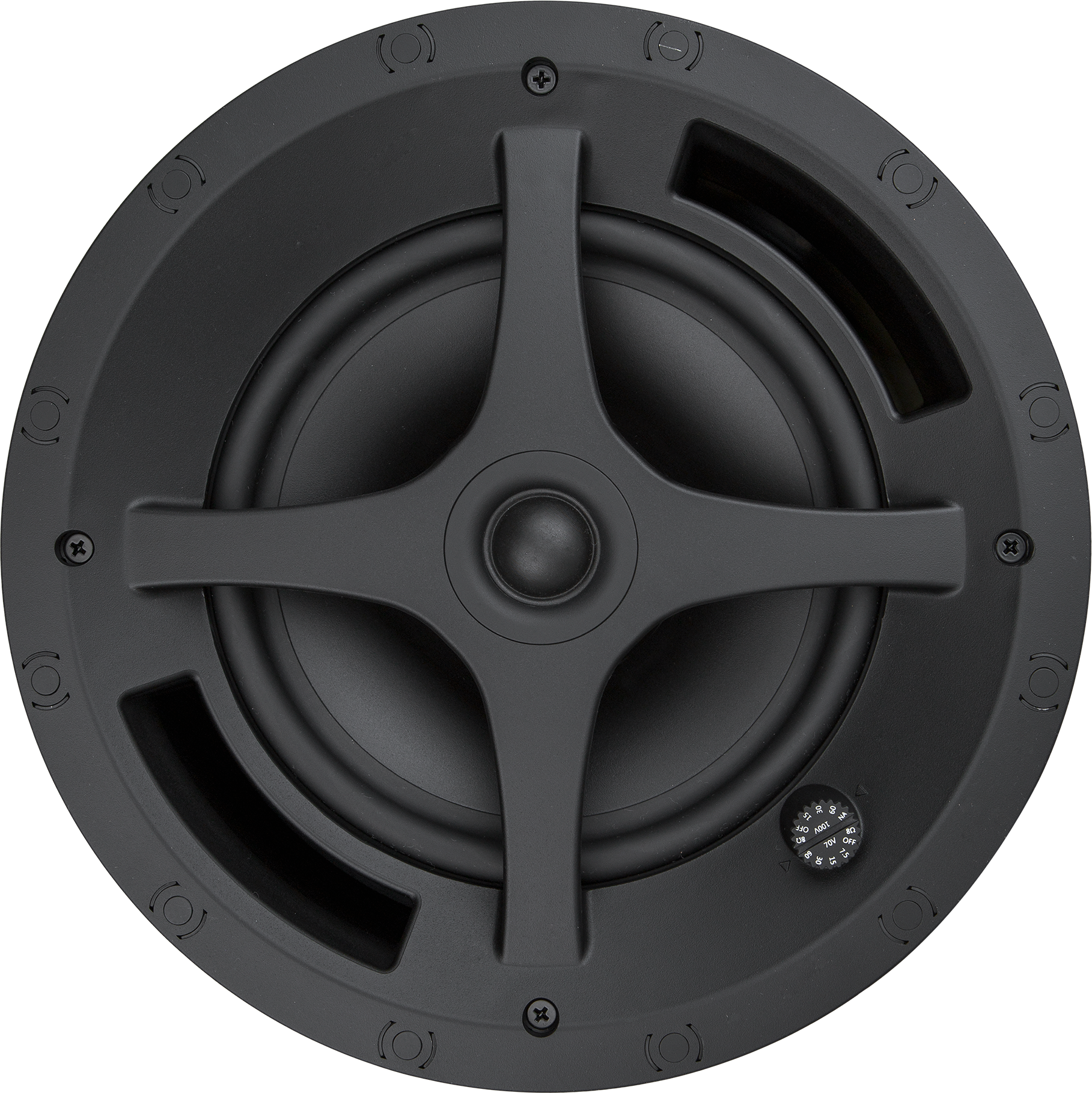

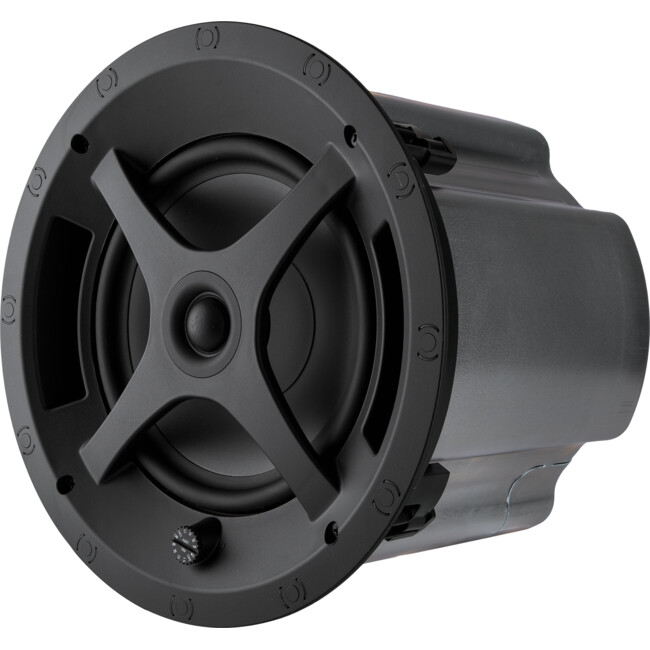

The Sonance PS-C83RT in-ceiling speaker features a bezel-less magnetic grille, optional square adapter, high-excursion 8" woofer, and pivoting tweeter for precise sound. Its sealed metal enclosure includes cable clamping, a removable Euroblock connector, and seismic attachment. UL 1480 and UL 2043 certifications ensure safety and reliable performance.
Key Features
- Class-leading sensitivity & sonic performance
- Exceptional off-axis response
- Heavy duty voice coil for longevity and reliability
- Full-fidelity transformer for uncompromised tonality
- Consistent voicing across product range
- Bezel-less design for clean and minimalistic aesthetic
- Optional black grilles in round or square
- Magnetic grille retention for fast installation and removal
- Finger-adjustable selector tap
- One-step simplified painting proces
Specifications
| 45132 / White |
| 1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled |
| 8" (203mm) Polypropylene Cone, Butyl Rubber Surround |
- Frequency Response ( /- 10db)
| 41Hz - 25kHz |
- Frequency Response ( /- 3db)
| 55Hz - 20kHz |
| 160W program, 80W pink noise |
| 91dB (2.83V/1m) |
| 110dB @ 1 meter (3.3 feet), 116dB peak |
| 8 ohms |
| 70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W |
- Dimensions (Diameter x D)
| 11.06" x 9.84" (280.92mm x 249.94mm) |
- Cut-Out Dimensions (Diameter)
| 10.125" (257.18mm) |
| One, Side mounted 0.75" (19mm) |
| 13.41 lbs. (6.08kg) |
| One Piece Paintable Grille with Magnetic Retention |
| Four pin, Euroblock with loop output connections |
| UL 1480; UL 2043; NFPA 90A; NFPA 70 |
| One, on top surface |
| 116dB peak |
