CM760/CP77 12CM 6W 100V SPEAKER W/ GRILLE

TOA CEILING SPEAKER

Code: 39737095

0.6880 kg
EACH
Special
Buy-In
TRADE ALERT!
$59 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

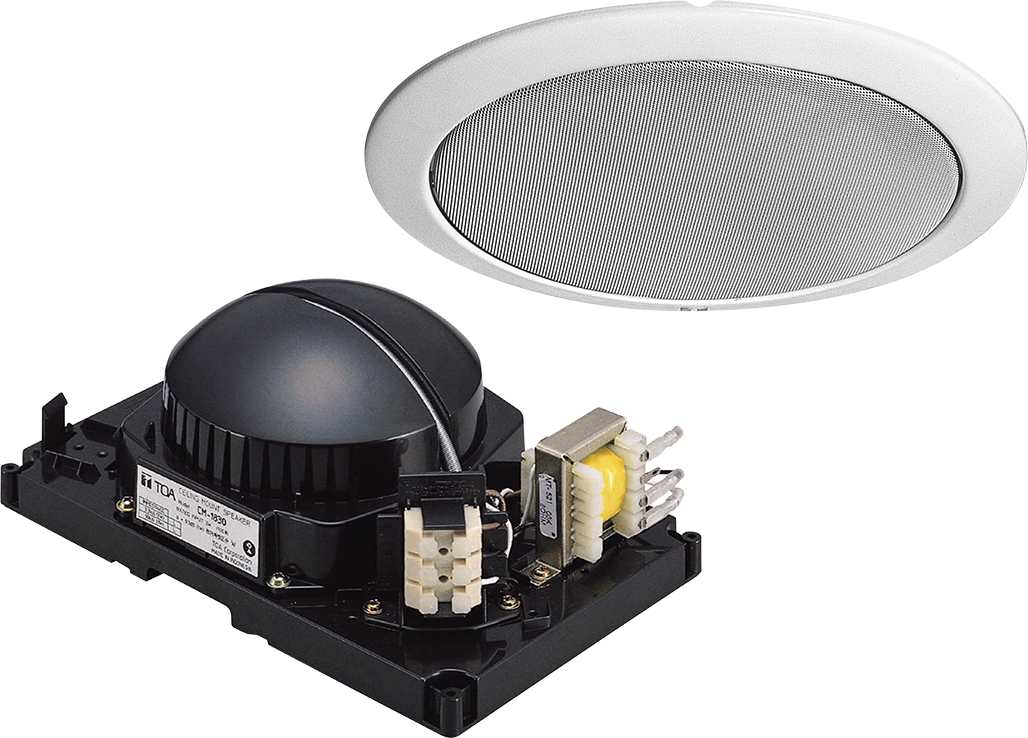

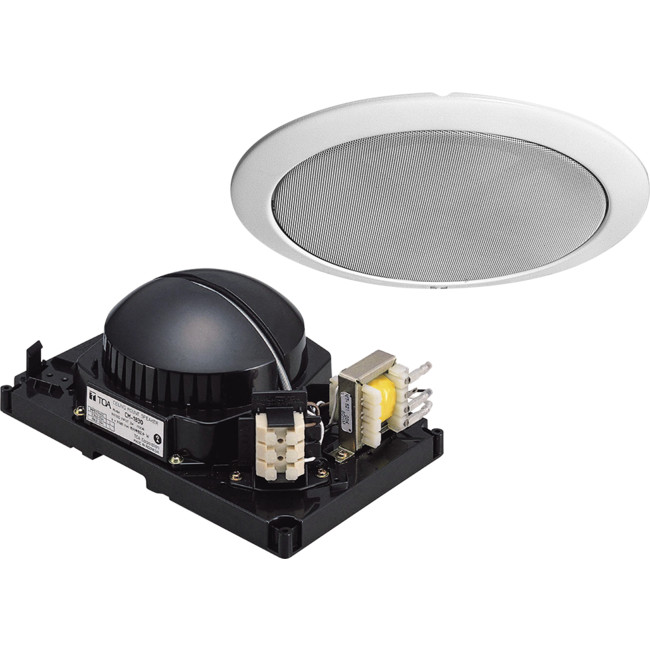

CM-760 Speaker & CP-77 Grille

The CM-760 speaker allows selection of most suitablefront panel out of the CP-70 series panels (optional) depending on the installation place.

Thanks to its coil spring catch method, the panel can be easily attached to the speaker.

The CM-760 comes with a push-in connector which permits instant wire connection for bridging and branch wiring.

The speaker is protected by a hard speaker cover.

Specification
Rated Input 6 W
Rated Impedance 1.7 kΩ (6 W), 3.3 kΩ (3 W),
(6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internalwiring must be changed)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 100 - 16,000 Hz
Speaker Component 12 cm dynamic cone-type speaker
Dimensions for Fixing Hole Φ150 (mounting hole) × 50 (ceiling thickness) mm
Speaker Mounting Method Spring catch
Applicable Cables 600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Φ0.8 - Φ1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m?
Connection Push-in connector (Bridging and branch connectionspossible.)
Finish Grille: Fire-resistant, high-impact styrene resin
(resin material grade: UL94 V-O or its equivalent), black
Dimensions 215 (W) × 134 (H) × 89 (D) mm
Weight 630 g
Applicable Panel CP-77
[Note] Do not use the speaker with heat insulating material sound absorbing material mounted. Ensure thatthe speaker is kept away from the heat insulating material.

CP-77

The CP-77 grille can easily be attached to the CM-760 speaker by means of coil springs.

Because it is thin in thickness and white in color, it blends with any ceiling.

In addition, cleaning is easy because the net is painted metal.

Specification
Speaker Mounting Method Spring catch
Finish Frame, net: Aluminum, off-white, paint
Dimensions Φ180 × 11 (D) (exposed section) mm
Weight 70 g
Applicable Speaker CM-760,
