C0703A SURFACE MOUNT CEILING SPEAKER

100MM 4" 5W 100V EWIS REDBACK

Code: 39737041

1.02 kg
9321758101056
EACH
12
In Stock
DON'T PAY $69
$60.50 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

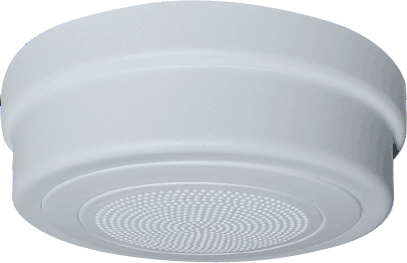

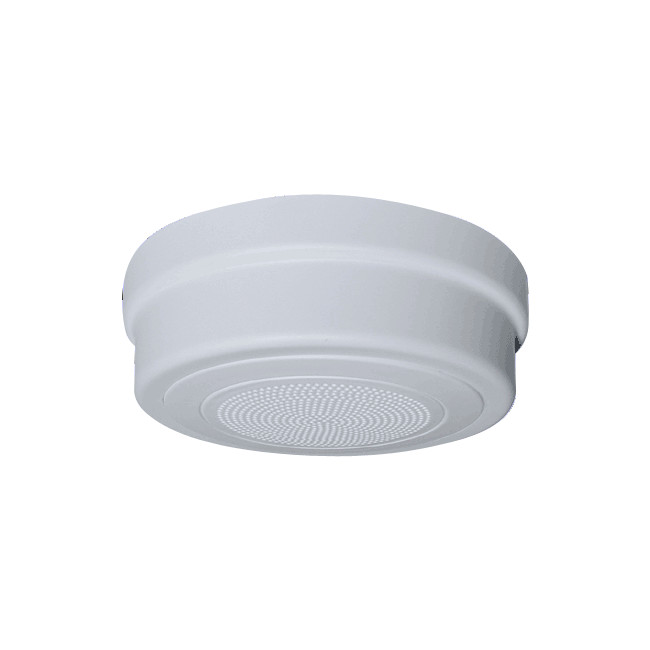

100mm 5W 100V White Surface Mount EWIS Speaker

Saving valuable installation time the innovative One-Shot® range is moulded from industrial grade, talc-filled polypropylene and designed to mount directly to the underside of concrete slabs or inaccessible ceilings.

The housing is surface mounted with concealed internal fixings. Speaker cable entry can be either from the rear, orvia surface mounted conduit (four 19mm conduit knockouts areprovided).

An excellent choice for use in plant rooms, warehouses, shopping centres, malls etc.

The speaker is fitted with a 100V line multi-taped transformer & 4 way wire protected terminal strip with 22uF bipolar capacitor for line monitoring applications in EWIS systems.

These "One-Shot" ® versions simply snap-fit in secondsto the surface mounting ring, reducing installation time considerably.

SPECIFICATIONS

Power taps: 0.33, 0.66, 1.25, 2.5 and 5W
SPL 1W @ 1m: 90dB
Freq. Resp.: 100Hz-20kHz
Connection: 4 way wire protect terminal 22uF bipolar cap
Overall Dimensions: 220mm x 55mm high.
Note: All SPL figures are measured at 1KHz /- 2dB.
*Specifications are subject to change without notice.
