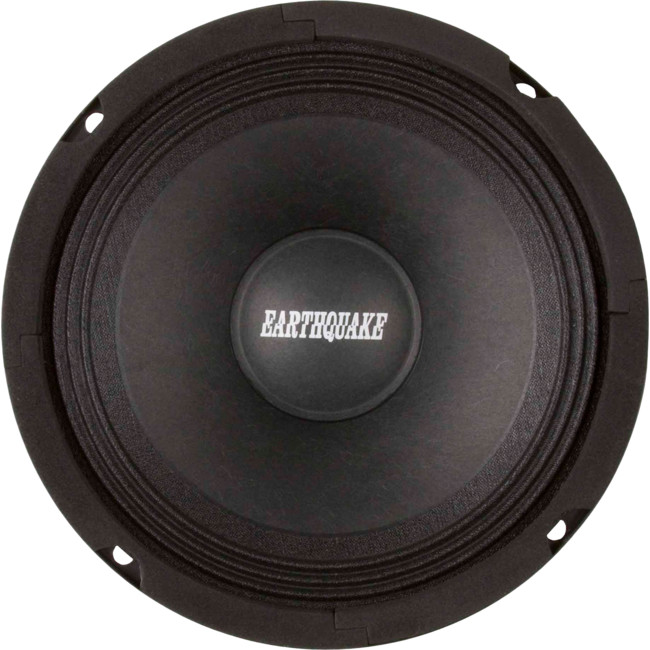

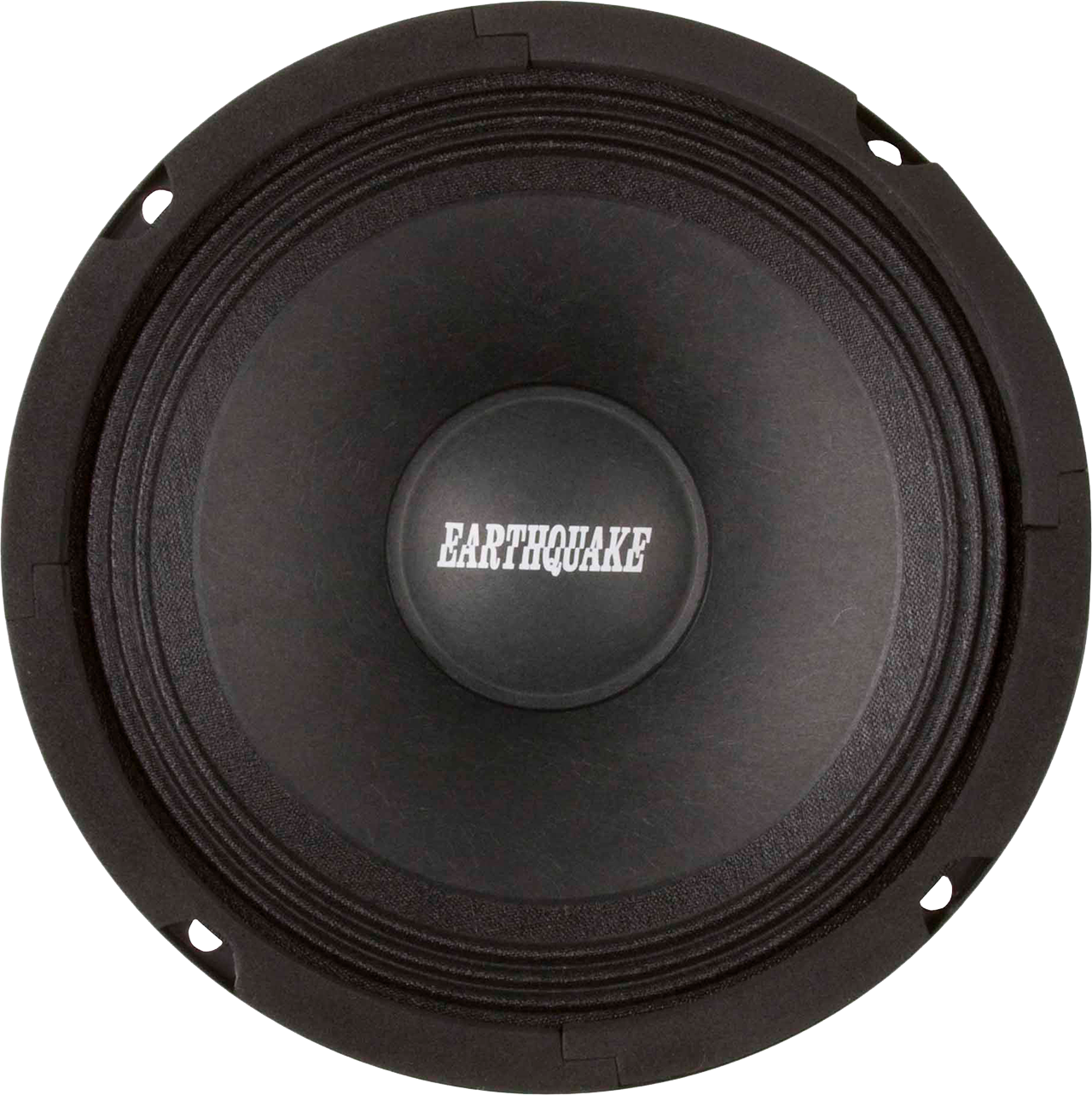

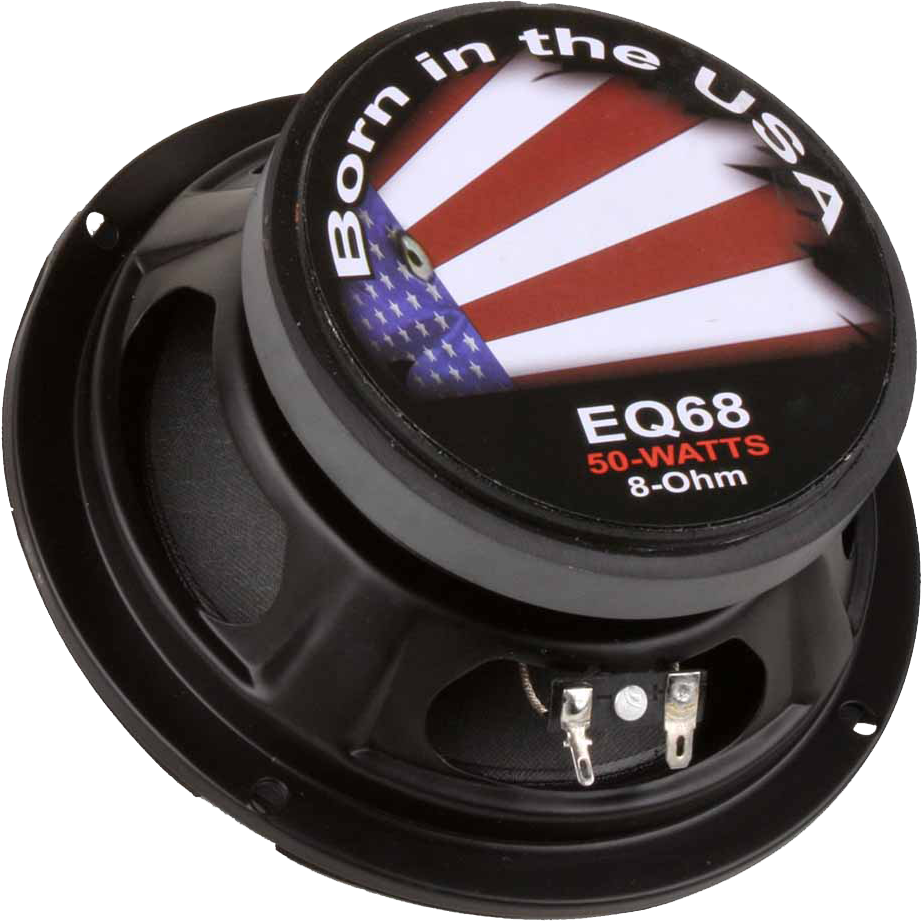

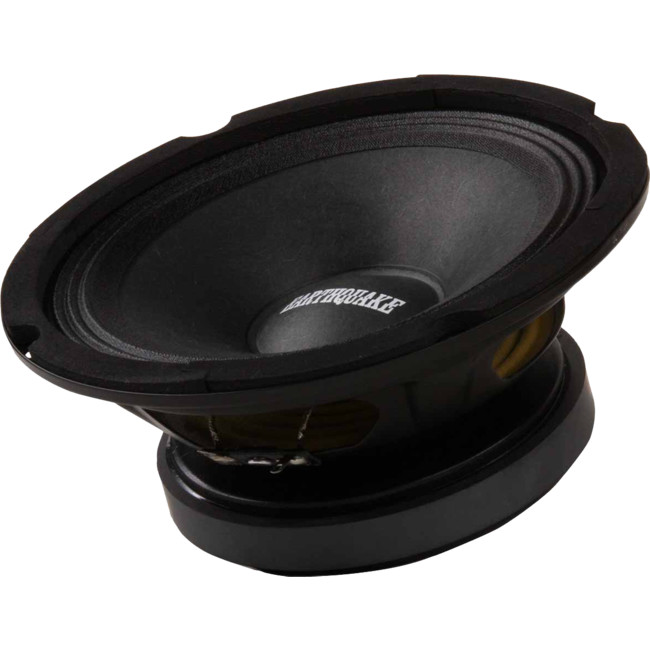

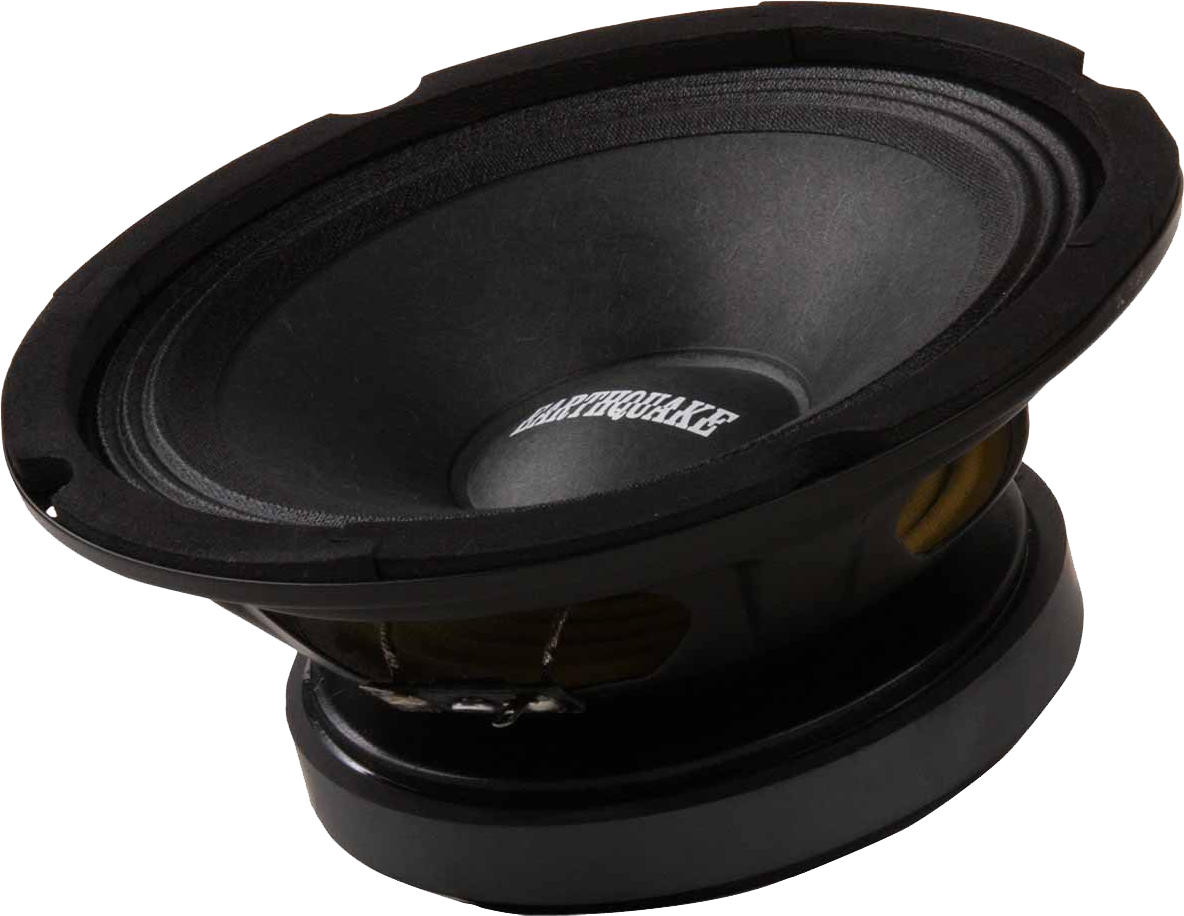

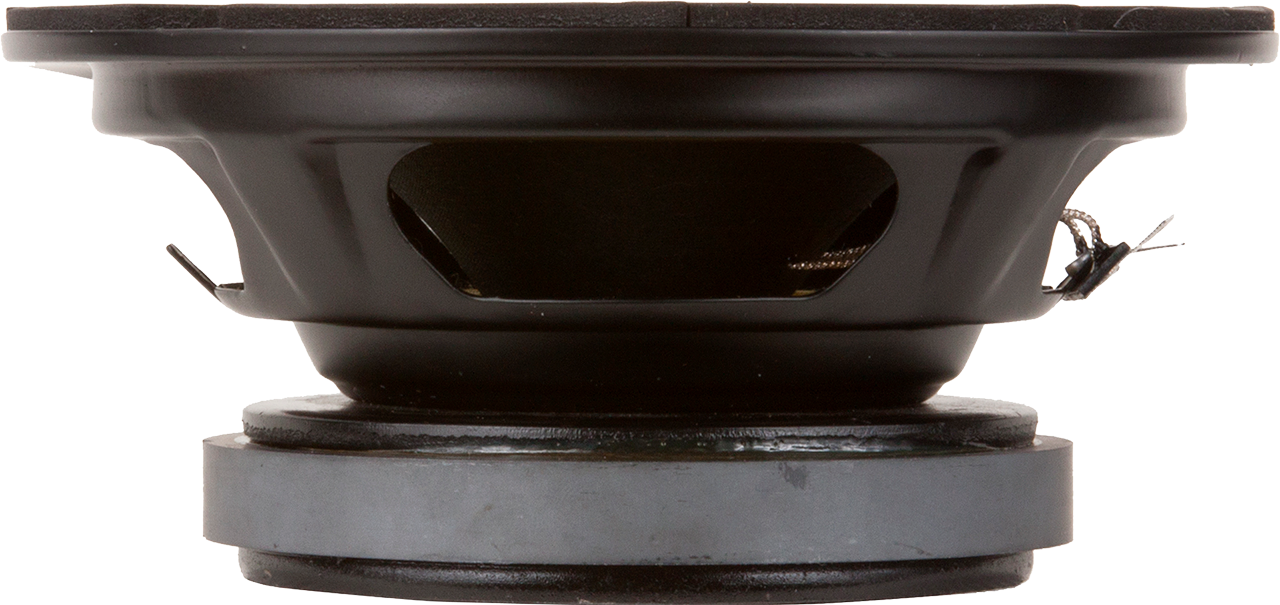

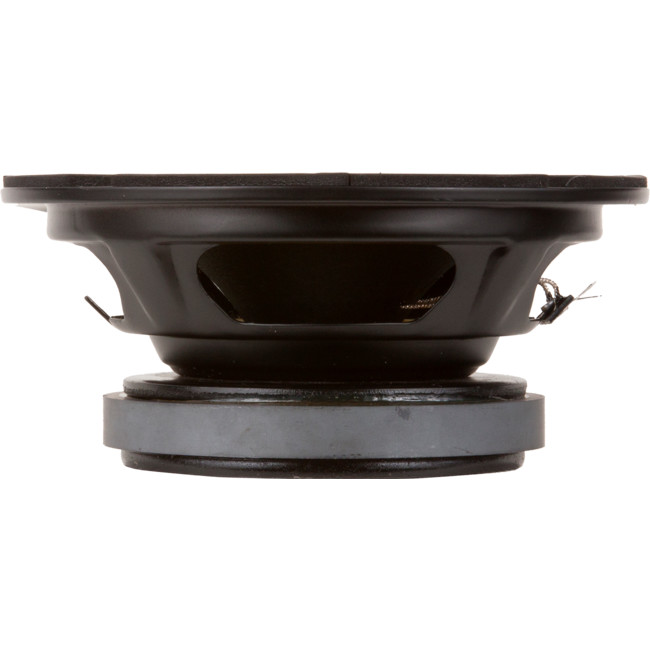

EQ6-8 6.5CLOTH SPEAKER-VENTED BASKET

6.5 INCH MIDBASS, 65W, 8 OHM

Code: 39155605

2.12 kg
168975910141
EACH
8
In Stock
DON'T PAY $89
TRADE ALERT!
$54.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

The Earthquake EQ line of Maximum Musical Output drivers are specifically designed to provide smooth, low-distortion mid-range/mid-bass output for the highest quality sound reinforcement applications. Because of their relatively highresonance and very low Qts values, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free response.

Features

  • High efficiency / sensitivity
  • Multi roll cloth surround
  • New longer lasting, low mass cone
  • Stamped steel basket with jet-black finish
  • Enhanced sound quality
  • Heavy duty ferrite magnets
  • 8-Ohm impedance
  • Edge-wound aluminum bobbin voice coils
  • Low harmonic distortion
  • Max output @ low wattage
  • Vented T-Yoke
  • Bumped Back Plate

Specifications

  • Size: 6.5" Midbass
  • Fs: 112Hz
  • Frequency Response: 112Hz - 10kHz
  • Max Power: 50W
  • Impedance: 8Ω
  • Sensitivity: 96dB
  • Mounting Depth: 69.4mm
  • Cut-out Diameter: 144mm
